AKLU120 series aluminum alloy system doors and windows aluminum profiles

AKLU 120 series energy-saving steel mesh integrated system window

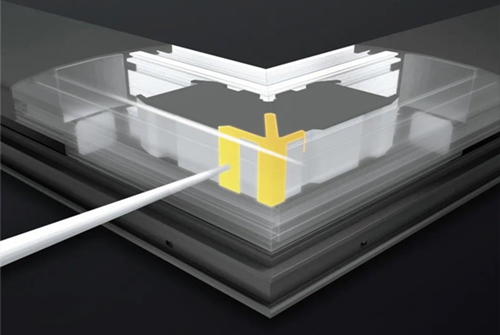

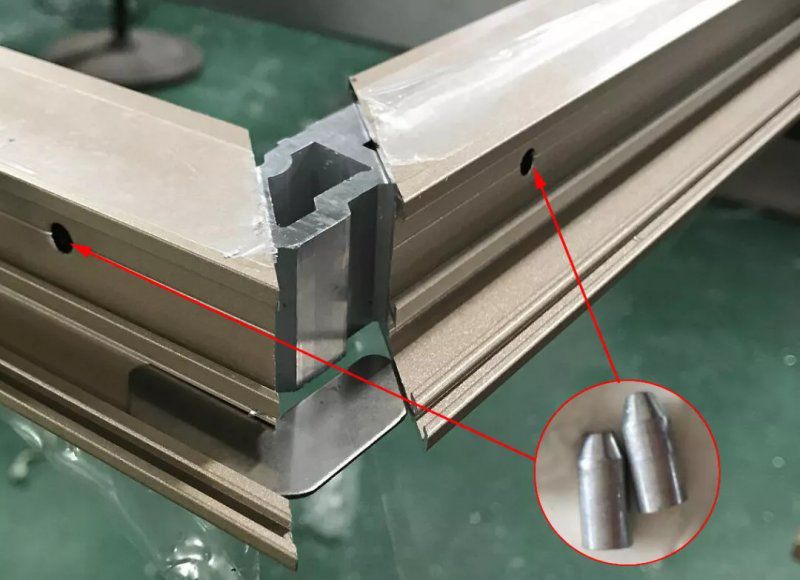

  AKLU120 series is an energy-saving steel mesh integrated window with a flush design inside and outside to enhance the aesthetic vision. It adopts the pin injection process, and the middle support connection adopts the connector injection process to enhance the waterproof, airtight, heat insulation and sound insulation performance. It adopts the invisible drainage groove design to enhance the streamlined visual sense of the window; optional light strip decoration. Non-invisible drainage grooves can also be selected, and the floor drain drainage process is standardly equipped with: dust strips, steel sheets, and anti-sinking blocks.

Basic configuration parameters :

Frame size : 120mm × 58mm × 34mm

Center size : 120mm × 82mm × 34mm

Inner opening size: 89.5mm × 78 mm × 55mm

Profile wall thickness : 1.4mm, 1.8mm

Outward opening size: 75.5mm × 90 mm × 33mm

Glass notch : 30mm-43mm optional

Glass assembly specifications: 5mm 16A 5mm, 5mm 12A 5 12A 5

Insulation strip material: PA66 nylon strip

Thermal insulation strip width: 44mm , can be equipped with multiple cavities

Sealing strip material: EPDM rubber strip

Hardware configuration: Standard AKLU European standard notch

Opening method: Inward opening, outward opening, inward opening and tilting, outward opening and hanging

Product performance parameters:

Air tightness: National standard GB/T 31433-2015, test result is level 7

Water tightness: National standard GB/T 31433-2015, test result is level 6

Wind pressure resistance: National standard GB/T 31433-2015, test result is level 8

Thermal insulation: National standard GB/T 31433-2015, test result is level 8

Sound insulation: National standard GB/T 8485-2008, test result is level 5 ≤ 40db
