Wholesale ANSI CAST STEEL 759810 BALL VALVE FLANGE Supplier

Request for quotation

<p><span>Name:</span><span>Ansi cast steel Ball Valve flange type, ball valve picture</span></p><p><span>Design confirms:</span><span>ANSI B16.34</span></p><p><span>Flanges drilled confirms:<span>ANSI B16.5</span></span></p><p><span><span>Tightness check:</span><span>API 598/ISO 5208/EN12226-1</span></span></p><p><span><span>Face-to-face conform:<span>ANSI B16.10</span></span></span></p><p><span><span><span>Normal pressure:300LB</span></span></span></p><p><span><span><span>Shell test pressure:<span>7.5Mpa</span></span></span></span></p><p><span><span><span><span>Seal test prressure:</span><span>5.5Mpa</span></span></span></span></p><p><span><span><span><span>Sultable medlum:<span>water and neutral liquid</span></span></span></span></span></p><p><span><span><span><span><span>Working temperature:<=200°C</span></span></span></span></span></p><p><span><span><span><span><span>Body/Bonnet/Dlsc:WCB</span></span></span></span></span></p><p><span><span><span><span><span>Seat:<span>PTFE</span></span></span></span></span></span></p><p><span><span><span><span><span><span>Stem:</span><span>SS304</span></span></span></span></span></span></p><p><span><span><span><span><span><span>Ball:</span><span>SS304</span></span></span></span></span></span></p>

Quantity

Ship to Country

Add to container

China

Member since : 16-Dec-2025

DID LINK

Basic Member

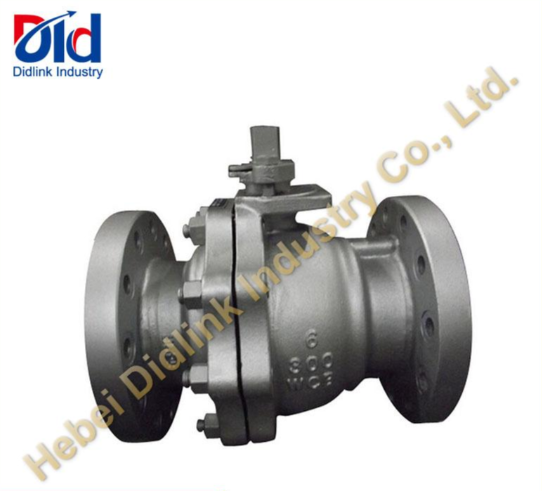

ANSI CAST STEEL BALL VALVE FLANGE TYPE, BALL VALVE PICTURE_2

Request for quotation

Quantity

Ship to Country

Add to container

Valves

ANSI CAST STEEL BALL VALVE FLANGE TYPE, BALL VALVE PICTURE

AED 183.50 / Unit

Availability: in stock

Highlights :

Min Order : 1
Country of shipping : China

Safe and secure payments using Abraa safe trade systems

Item Details

Product Specification

Product Descriptions

Name:Ansi cast steel Ball Valve flange type, ball valve picture

Design confirms:ANSI B16.34

Flanges drilled confirms:ANSI B16.5

Tightness check:API 598/ISO 5208/EN12226-1

Face-to-face conform:ANSI B16.10

Normal pressure:300LB

Shell test pressure:7.5Mpa

Seal test prressure:5.5Mpa

Sultable medlum:water and neutral liquid

Working temperature:<=200°C

Body/Bonnet/Dlsc:WCB

Seat:PTFE

Stem:SS304

Ball:SS304
