Safe and secure payments using Abraa safe trade systems Product Specification
| Brand | Chenpin |
| Condition | New |
| Warranty | YES |
| Dimensions | 28,295 x 1,490 x 2,400mm (LxWxH) |
| Weight | 3,630kg |
| Power(W) | 20 kW (380V, 3Ph, 50Hz) |
| Conveyor Belt Available | Yes |
| Power Type | Electric |
| Stance | Horizontal |
| Capacity (Qty/Per Hour) | 7,500 ~ 10,000 pcs/hr |
Product Descriptions
CPE3368 788B Lachha paratha production line specs

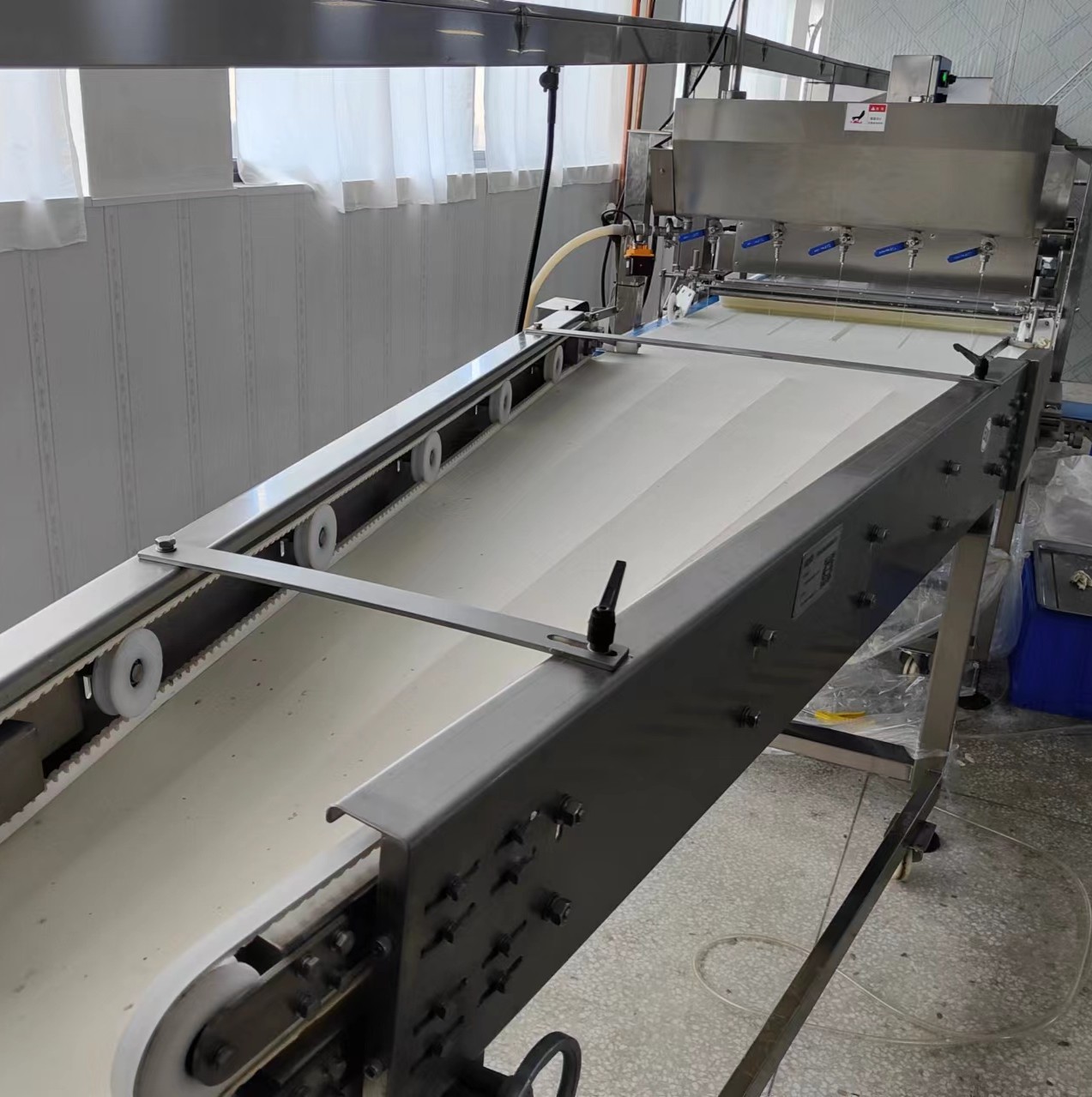

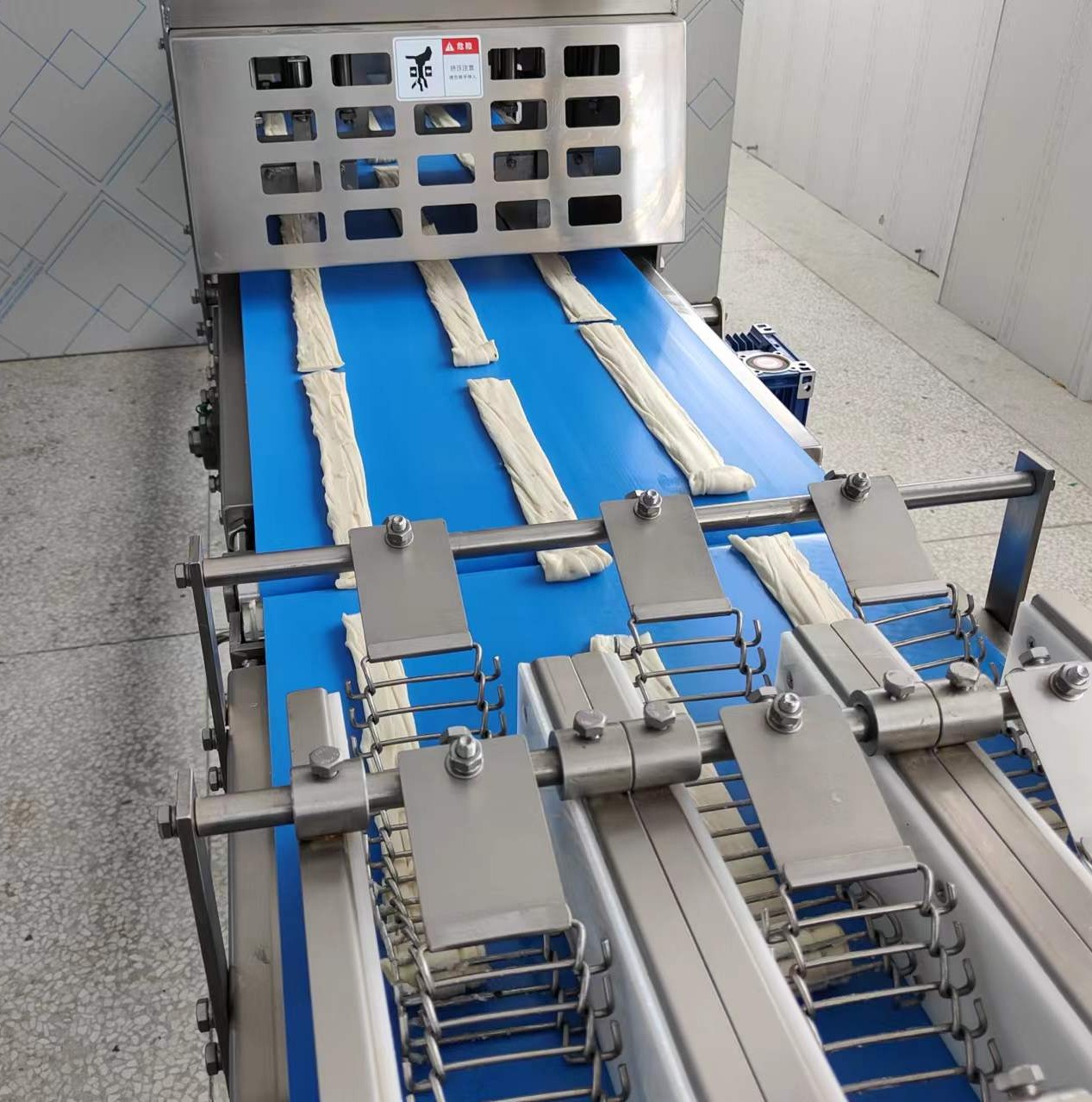

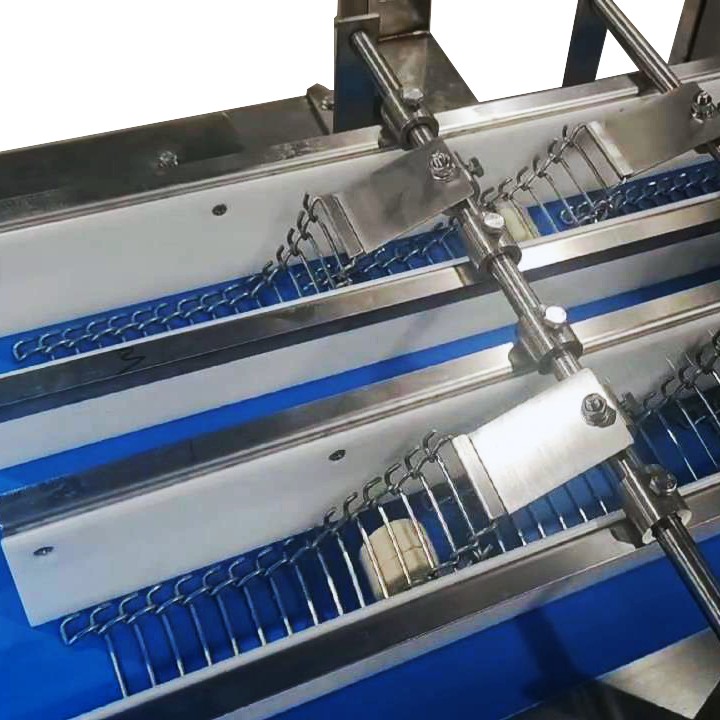

The CPE-3368 Integrated Lachha Paratha Production Line is designed for automatic bulk production of layered flatbreads such as Lachha paratha, scallion flatbread and etc. It can be also used for production of roti paratha, meat pie or flavored pancake with minor customization. The line is with 8 main function stations from dough feeding, sheeting, stretching, oiling and rolling, resting, vertical cutting, forming. Followed by the 788B automatic pressing and filming machine to make the parathas ready for following processes like quick frozen and packing.
The production line is with high efficiency requiring only 3-5 operators, this fully automated solution is ideal for flatbread manufacturers and food brands seeking high capacity, stable, and labor-saving solutions.
Main Processes
1) Dough feeding -> 2) Continuous sheeting -> 3) Stretching -> 4) Oiling, dividing and Rolling -> 5) Dough Resting -> 6) Vertical Cutting -> 7) Forming -> 8) Pressing and Filming
Equipment Parameters CPE-3368 Paratha dough processing line
| Model Number | CPE-3368 |
| Capacity | 7,500 ~ 10,000 pcs/hr |
| Dimensions | 28,295 x 1,490 x 2,400mm (LxWxH) |
| Power | 20 kW (380V, 3Ph, 50Hz) |
| Product weight | 90~120g |
| Resting conveyer | 6 meters 9 layers; 6 meters 7 layers |
| Weight | 3,630kg |

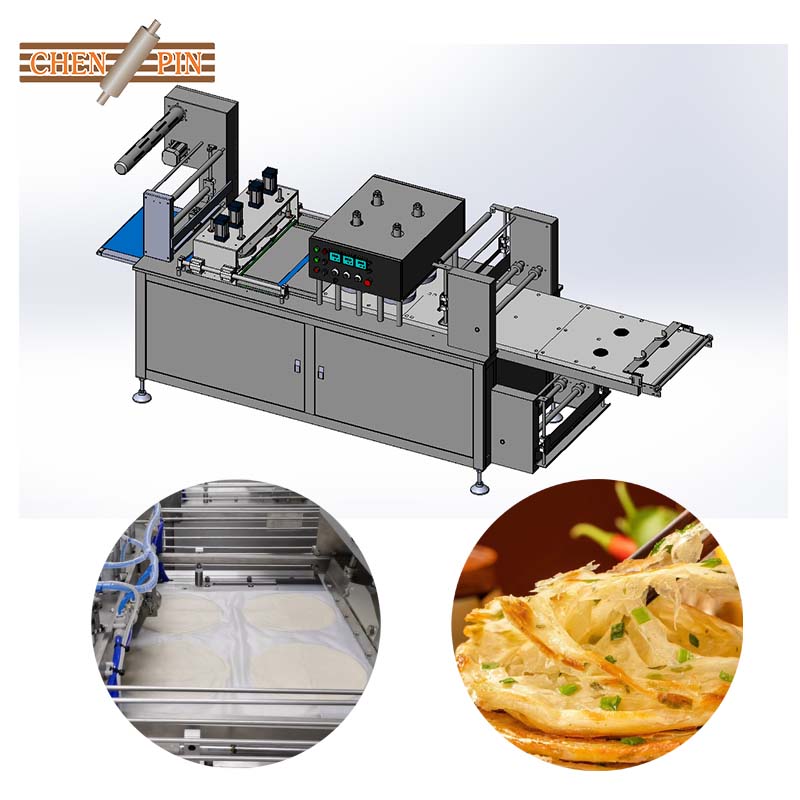

Equipment Parameters CPE-788B Paratha pressing and filming machine
| Model Number | CPE-788B |
| Capacity | 2,600 ~ 3,000 pcs/hr |
| Dimensions | 3,950 x 920 x 1,350mm (LxWxH) |
| Power | 1 kW (220V, 1Ph, 50Hz) |
| Product size | Dia. 170~240mm |
| Filming type | Square film, 2 rows |
| Application | Flatbread pressing and filming |
Remarks: Above datas are for reference, specific parameters will be decided based on real conditions.
\
