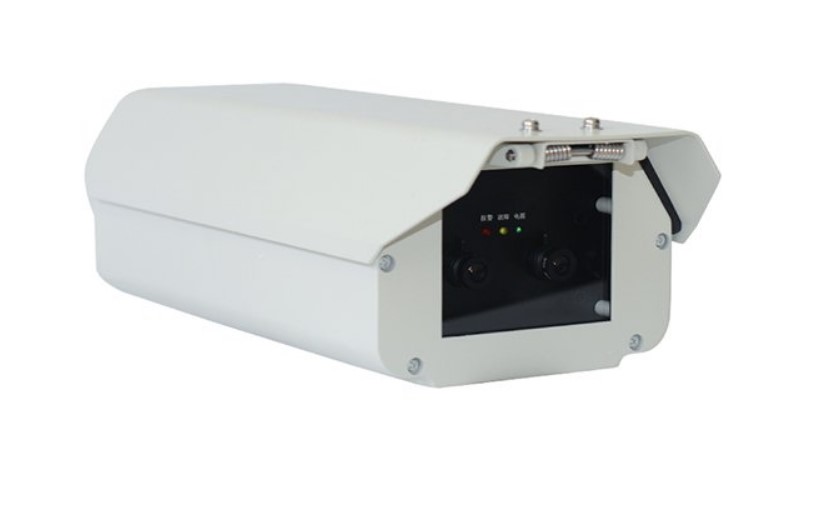

Fire detection camera

The fire detection camera is a special fire detector and an intelligent video fire monitoring system. The fire detection camera collects the fireworks information and analyzes and processes it. It does not need to touch or get close to smoke and flame, and the detection range is 60m, 80m and 100m.

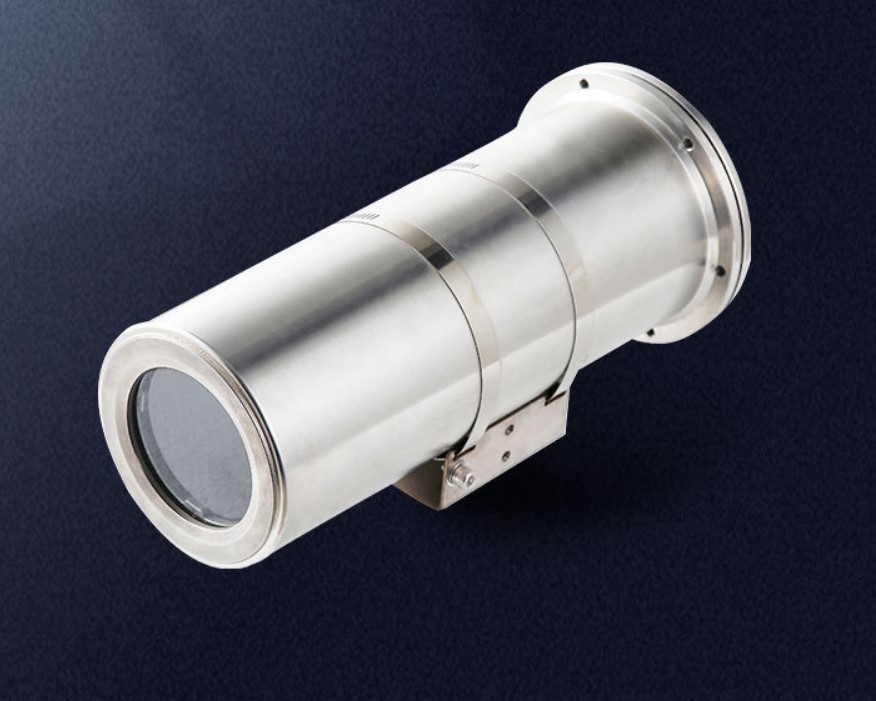

Fire image detectors can be installed in high temperature, toxic, explosive industrial environment.
The fire image detector includes HD color infrared camera and AC/DC power module. The acquisition unit is composed of infrared CCD and color CCD, which is a dual-band fire image detector.

It uses intelligent camera control technology and intelligent image processing technology, single equipment has the largest area of care, suitable for large Spaces such as stadiums, parking lots, tunnels and so on.
Fire image detectors are not affected by lights, solar radiation, arc welding, high temperature gas and blackbody radiation.

The fire detector has linkage alarm sound output and switch output, and CAN be linked with the fire alarm controller through the CAN bus.
It has one alarm output, one RS485 communication port, and one RJ45 video port.
Product size: 375mm*145mm*130mm
Specification:
Working voltage: DC24V
Horizontal Angle of view: 42°(JT-TX-GA60), 22°(JT-TX-GA120)
Vertical Angle of view: 32°(JT-TX-GA60) , 17°(JT-TX-GA120)
Farthest detection range:60m(JT-TX-GA60) , 120m(JT-TX-GA120)
Minimum flame size:0.060m*0.060m(JT-TX-GA60) , 0.030m*0.030m(JT-TX-GA120)
