Product Specification
| Brand | PEACENTURY |
| Warranty | YES |
Product Descriptions
| TUNNEL SIZE: | 530(w)*350(H)mm | CONVEYOR SPEED: | 0.22m/s |
|---|---|---|---|
| TYPE: | Mutil Energy | CONVEYOR: | 200 Kg |
| STEEL PENETRATION: | 38mm | WIRE RESOLUTION: | 40AWG |
| WARRANTY: | 2 Years | PRODUCT NAME: | X-ray Baggage Scanner |

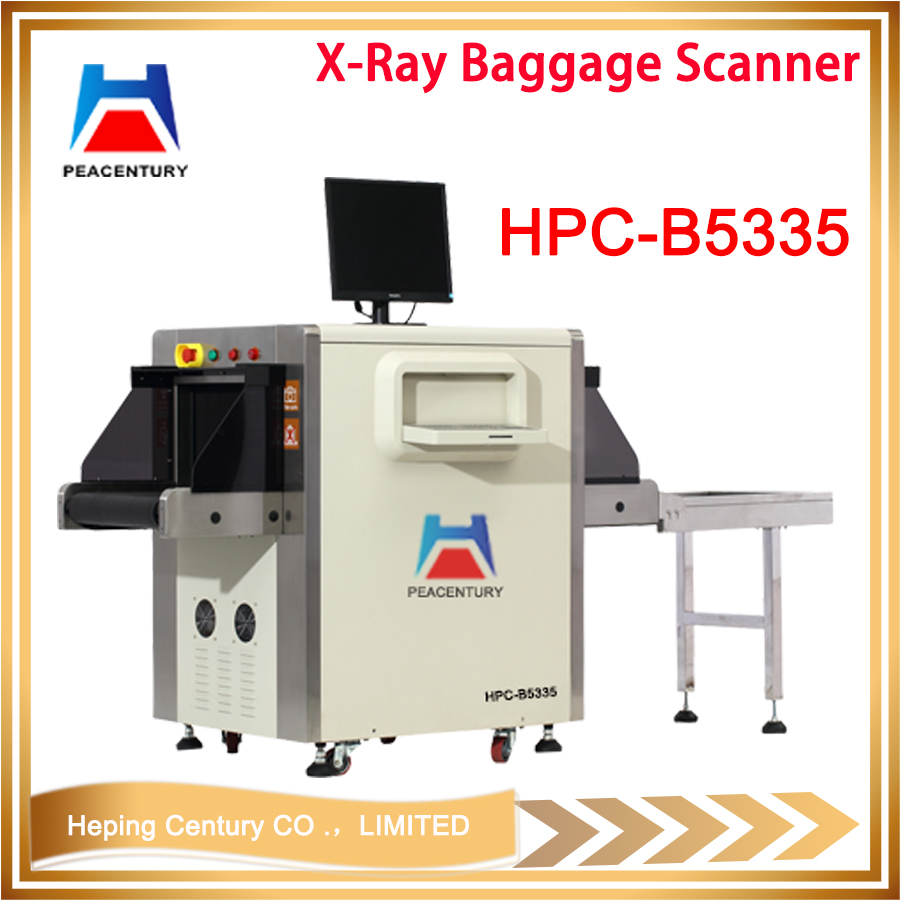

High Resolution 32mm Penetration 5335 Dual Energy X-ray Baggage Scanner
Model: HPC-BF5335
General Specifications
Tunnel Size : 530 (W) ×350 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 32mm
Film Safety: For ISO 1600
X-RAY GENERATOR
Orientation: Upward
Tube Current:0.4~0.7mA(adjustable)
Anode Voltage:80KV(adjustable)
Angle: 60°
Generator cooling/working periods:
Sealed oil bath with forced air/100%
OPERATING ENVIRONMENT
Storage Temperature: -20oC to 60oC
Operating Temperature: 0oC to 45oC
Relative Humidity:
20 to 95% non-condensing
System Power: 220 VAC (±10%) 50±3HZ
Power wastage: 1.0 KW (Max)
Noise<65DB
X-RAY Sensor:
L-shaped array detector
24bit
Dual energy
Image Performance System:
Display: High-resolution 19 inch color LCD display
Color quality: 24-Bit real colors based on materials
Edge enhancement: Object contour edge is more distinct
Super image enhancement: Image detail is more distinct
High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly
Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.
Magnifier: Partial magnifying function
Brightening/dimming: Increase/Decrease brightness of image
Image recurrence: Display the previous twenty images and process any one of them
Image restoration: Restore image to initial status
Image storage: Real-time store any image and process it in operation status
Special features:
Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
Safety ray: Ray is transmitted under automatic control, avoiding the error
One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
Eagle eye: Capable of expediently observing the magnifying area
Self-diagnosis function: Give message automatically if malfunction for prompt maintenance
