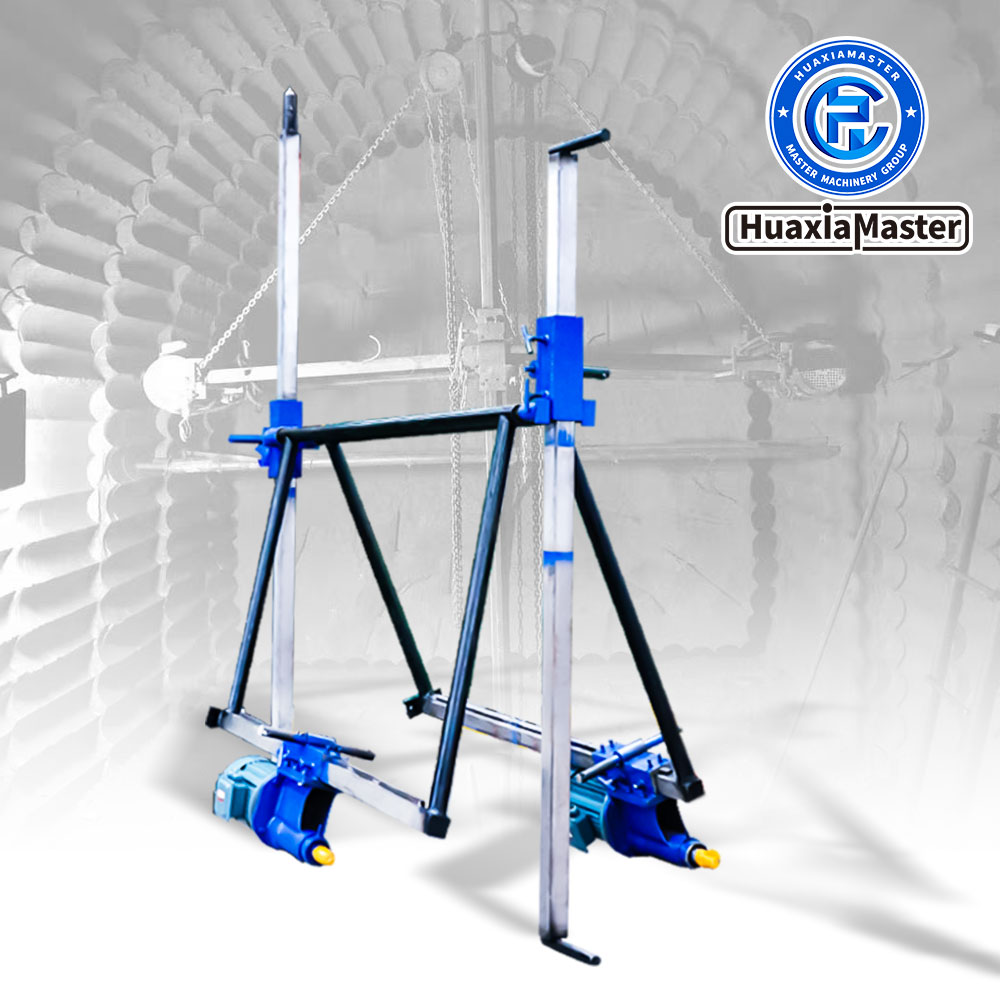

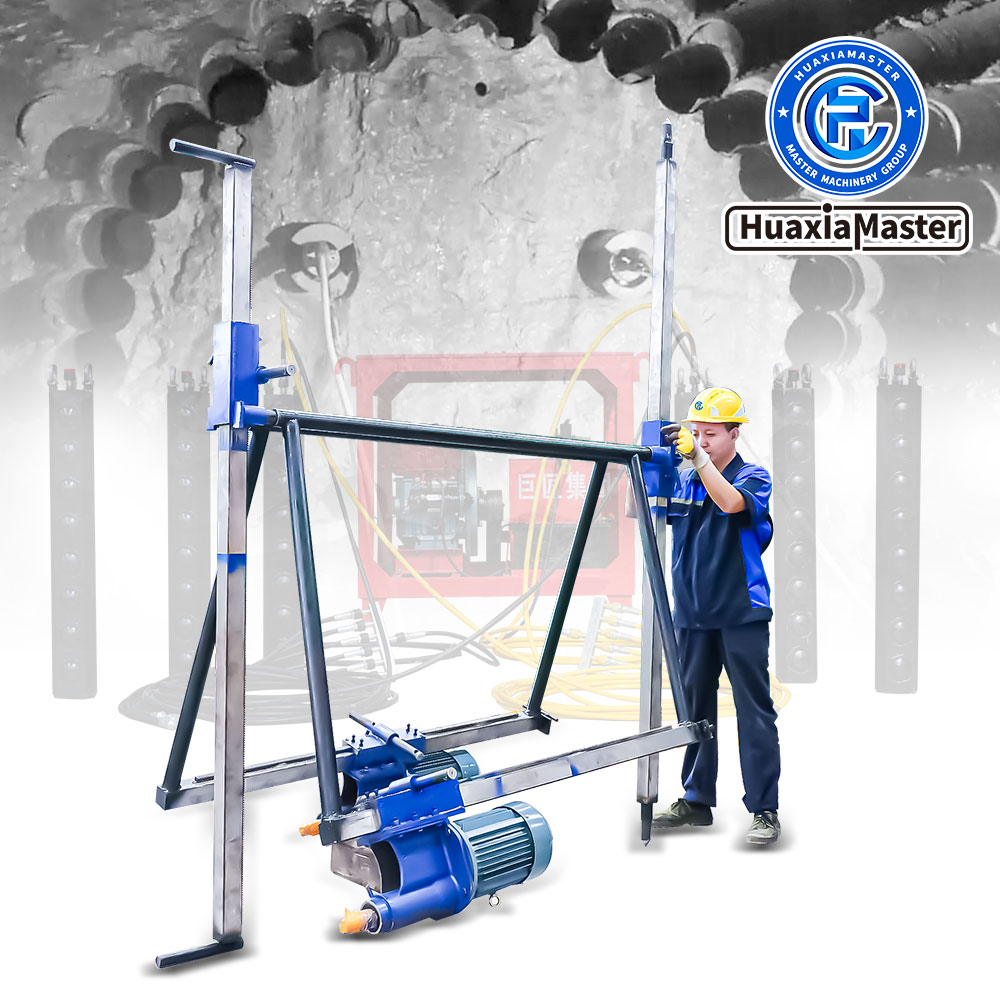

1. Introduction to HZD-P Horizontal Water Grinding Drilling Rig
The HZD-P horizontal water grinding drilling rig integrates high-pressure water flow and diamond circular cutting technology, which can efficiently penetrate reinforced concrete and hard rock formations, achieving precise drilling and coring. It is an environmentally friendly, low-disturbance, and highly adaptable horizontal drilling equipment. When used with a splitting rod, it can quickly promote tunnel excavation, specializing in mountain tunnel drilling and tunnel construction fields. Meanwhile, it is widely applied in scenarios such as trenchless pipeline laying, municipal pipe jacking, and building structure drilling. With its efficient drilling performance and excellent cost-effectiveness, it has won the favor of numerous construction and tunnel construction units.
2. Features of HZD-P Horizontal Water Grinding Drilling Rig
2.1 The drilling rig can drill at 360° in the forward direction, easily excavating arched or circular tunnels in mountain bodies.
2.2 It is simple and labor-saving to operate, without the need for a large number of workers.
2.3 Compared with large excavation equipment, it has the same function but is inexpensive.
2.4 It features low vibration, low noise, and less dust, reducing harm to the ecological environment and surrounding people.
2.5 The structure of the drilling rig can be customized according to customers' construction requirements.
3. Parameters of HZD-P Horizontal Water Grinding Drilling Rig
Specification Model
HZD-5.5P11
HZD-5.5P12
HZD-5.5P21
HZD-5.5P22
HZD-7PS21
HZD-7PS22
HZD-7.5P21
HZD-7.5P22
HZD-6PS22T
Structural Type
Single column, single power head
Single column, double power heads
Double columns, single power head
Double columns, double power heads
Motor Power
5.5kW*1
5.5kW*2
7kW*1
7kW*2
7.5kW*1
7.5kW*2
6kW*2
Applicable Voltage
380V
Motor Cooling
Air-cooled
Water-cooled
Drill Barrel Specification
Φ160*650
Drill Barrel Rotating Speed
860r/min
Availability: in stock
