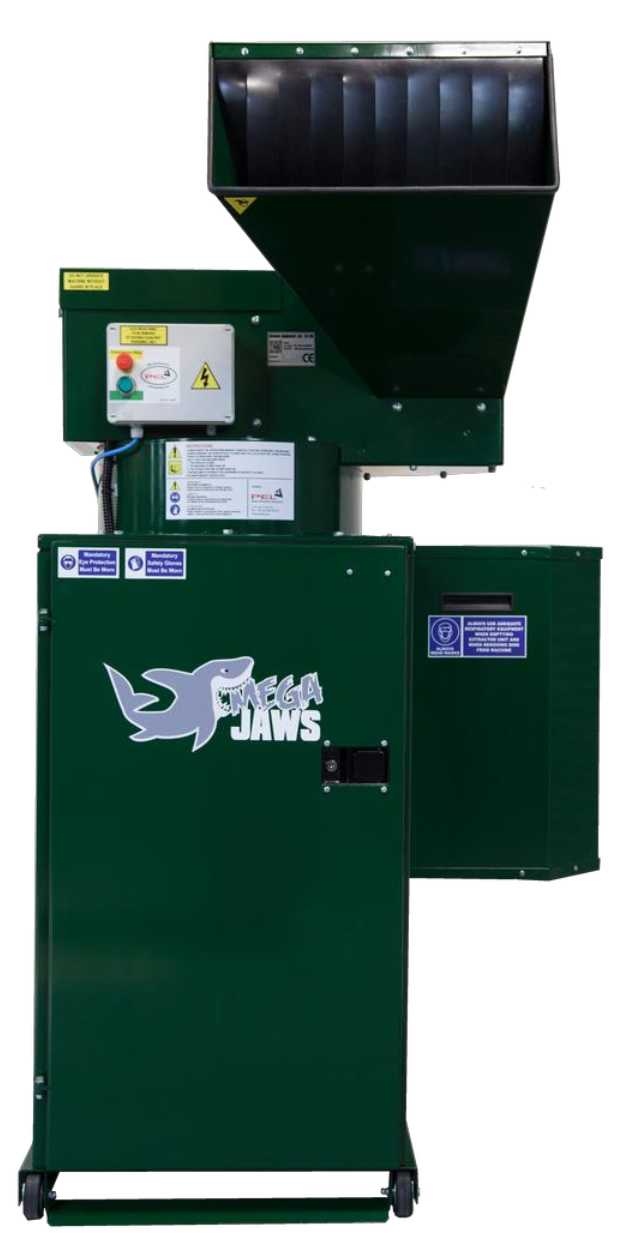

The PELBB06 MEGA JAWS is a high capacity glass bottle crusher featuring and integrated dust filtration system.

This is a stand-alone unit that is typically located in back of house areas. Multiple bottles can be fed into to the BB06 simultaneously.

BENEFITS OF THE PELBB06 MEGA JAWS BOTTLE CRUSHER

• This is a standalone glass bottle crusher with a compact footprint suitable for indoor and outdoor installation

• The external dust extractor filtration unit filters and removes dust created during the bottle crushing process, making it safe to

operate in confined spaces.

• A volume fed shoot creates efficiency for staff by reducing their workload in glass bottle segregation. It further reduces the noise of clinking bottles

TECHNICAL SPECIFICATIONS

Dimensions (W x D x H): 1066 x 1074 x 1914 mm

Weight: 221 KG

Power Supply: Single Phase 13 Amp 3 Pin Plug - Available in 3 phase

Finish: Steel with a Hard-Wearing Powder Coat Finish, PEL Green

Capacity: Holds up to 680 Bottles Once Crushed per 140 ltr Bin

Operating Noise: 75 dB (A)

Power: Motor & Extractor: 0.37 1.1 kw = 1.48 kW / 3 phase Motor & Extractor: 0.55 1.1 kw = 1.65 kW
