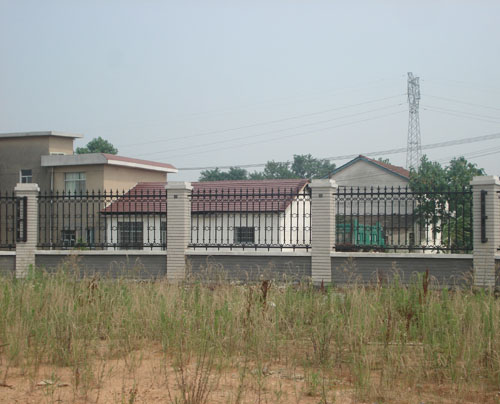

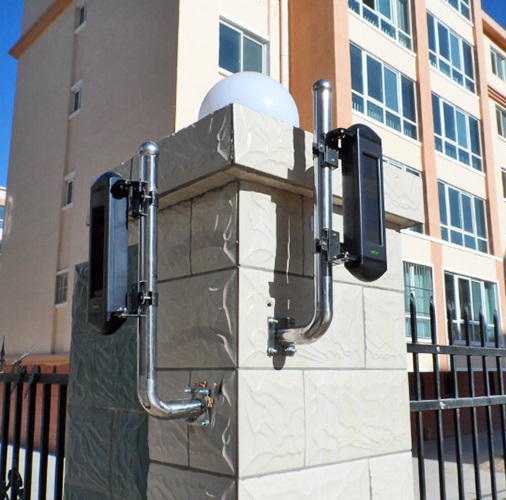

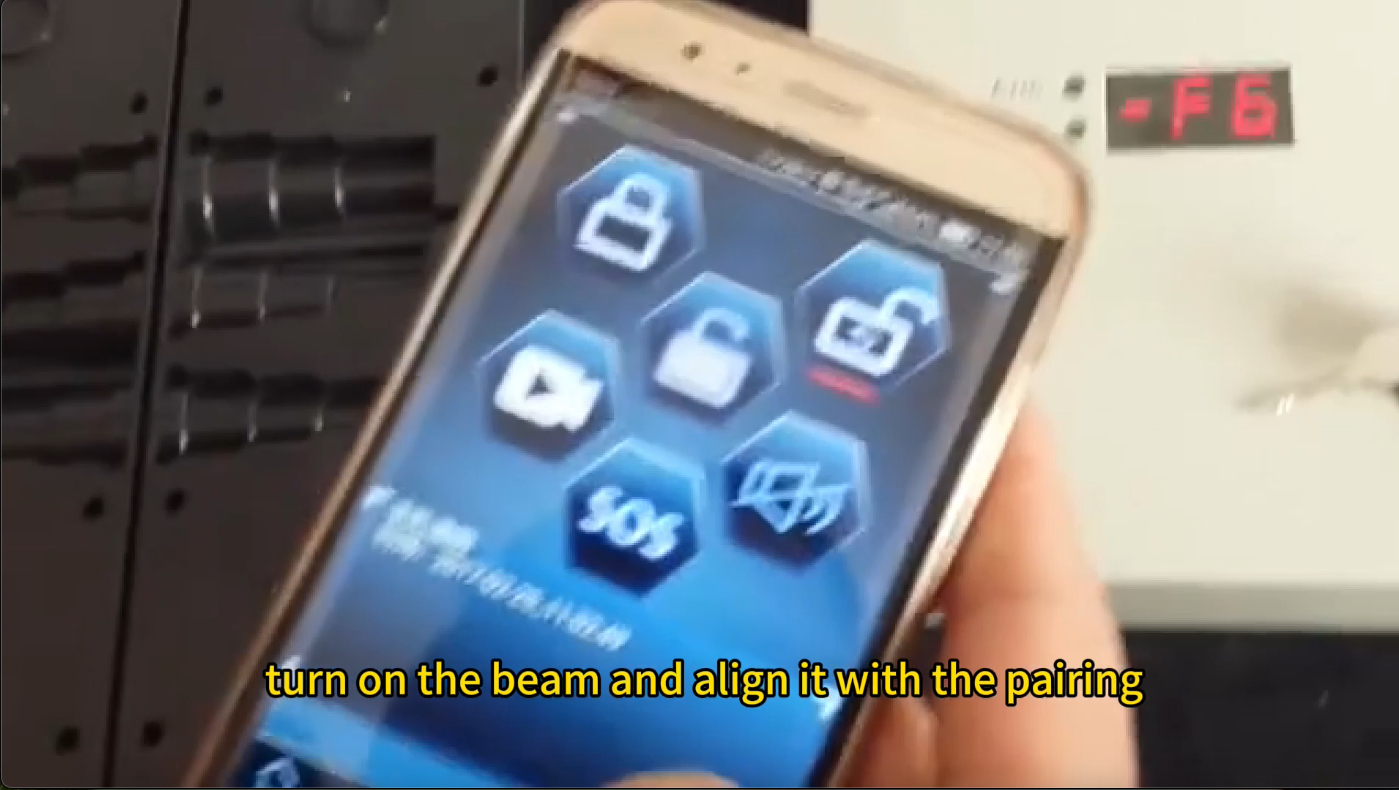

Easy install the beam transmitter and receiver terminals on fence, courtyard, garden, driveway to create invisible light wall. When someone intrudes the light wall, the beam sensor will send alarm report to wireless receiver, the app monitor control panel.
So, intrusion will be notified on app on ios and android app notification.
App monitor alarm control panel has TCP/IP version (RJ45 interface), and 4G version.
TCP/IP or 4G network App pop up notification for alarm, fault, low battery of the beams. Easy configuration and setting of the security controller with up to 99 wireless sensors, infrared beam, door sensor, smoke detector same brand wireless communication.

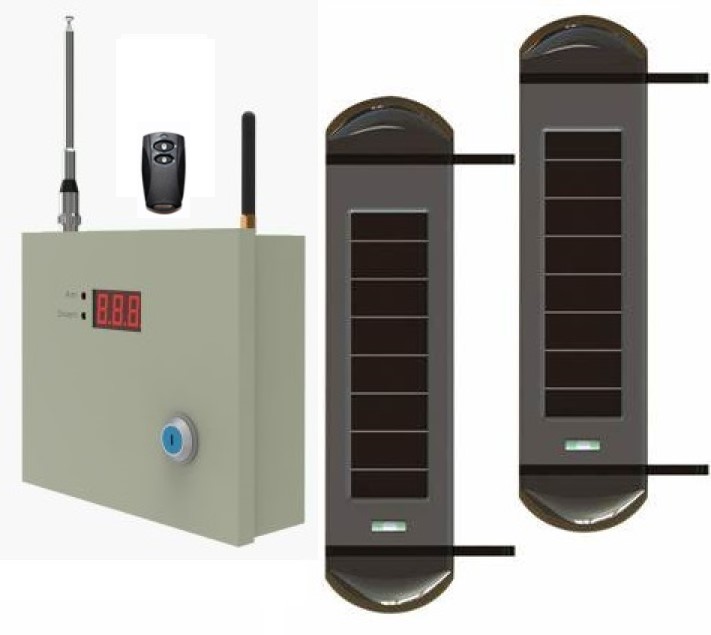

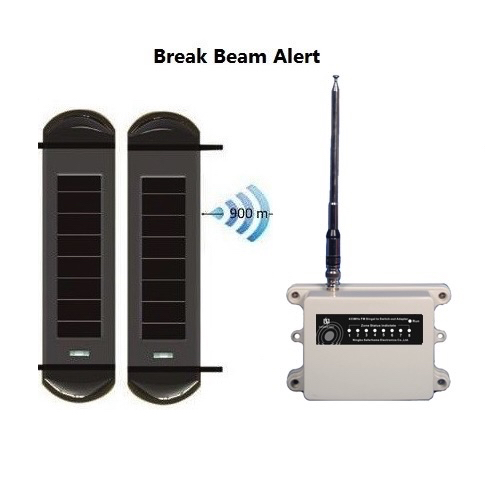

Package includes:
1* pair 3-beams solar power photoelectric beam sensor, with fixing bracket, but no pole included.
1* set HB-5050R/G TCP/IP or 4G network app alarm notify wireless receiver

details:

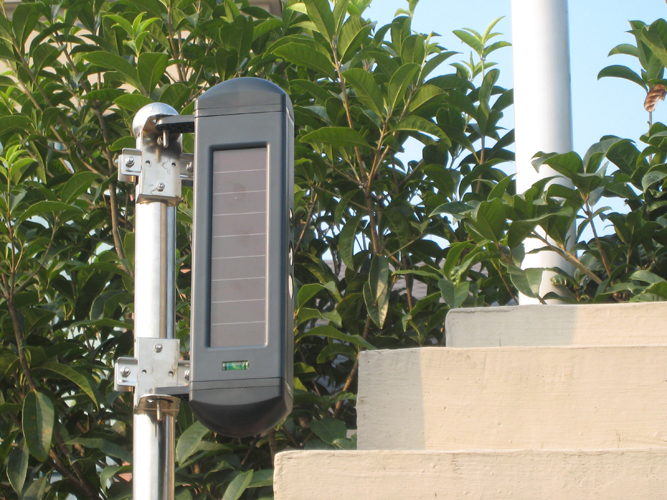

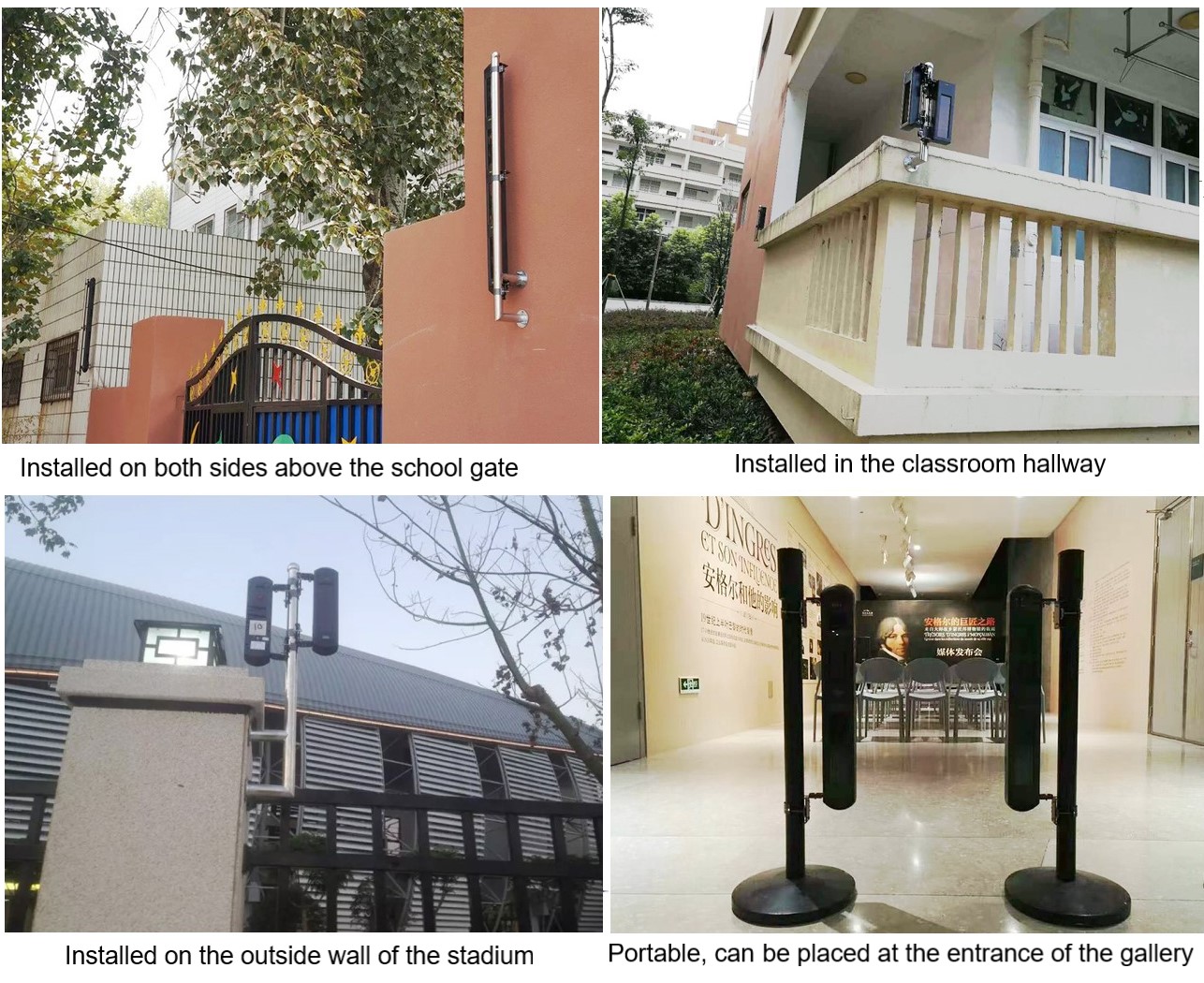

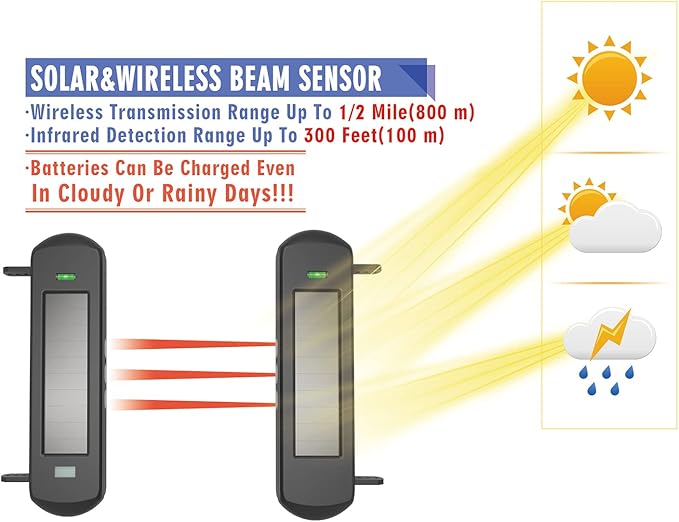

100m infrared distance solar powered intrusion barrier used for school, workshops, perimeter fencing of residential quarters etc. New technology wireless beams detector anti same frequency interference hop-frequency technology. Wireless beams detector solar power supply. Updated with LCD calibrator and DC power supply for charging if long time no sunshine.
Functions and Specification:
1.It is a solar-powered wireless product and should be installed at place with sunlight intensity more than 2200lux.
2.It is triple beams wireless outdoor infrared detectors working by pairs of transmitter and receiver.
3.Irradiation distance:100m
4.Wireless transmitting distance:800-1000m at open area
5.Wireless frequency:433MHz
6.Maximum alarm times in 24 hours:<=50times
7.Infrared light beam number: 3 beams
8.Battery capacity: transmitting terminal: 500mAh, receiving terminal: 1000mAh
9.Working temperature: -30℃~70℃
10.Working voltage:3.3V
11.Power storage type: LiFePO4 Battery
12.Static working current: transmitting terminal<=0.5mA, receiving terminal<=0.5mA

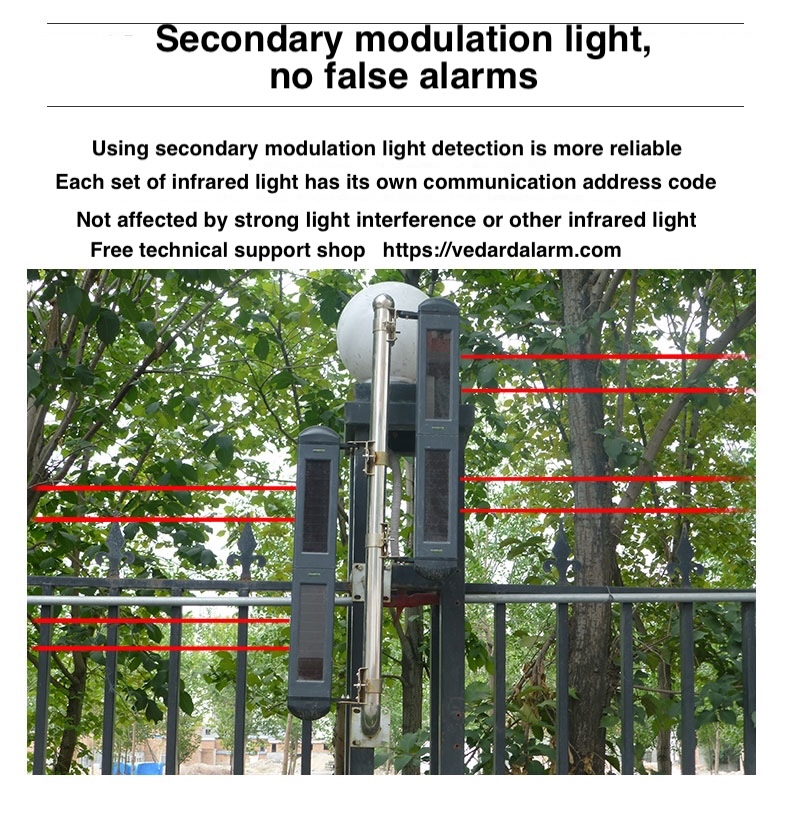

13.Infrared light frequency: secondary modulation & encoding based on 38KHz
14.Infrared light wave-length: 940nm /-20nm
15.Output current of solar panel: Under the condition of 1800Lux lighting >=2mA (Outdoor illumination in ordinary rainy or cloudy days is about 2000Lux)
16.Dimension:340*84*45mm
17.Distance between infrared light hole: 35mm
18.Updated with electric power recharging jack

HB-5050R TCP/IP network with app monitor and app setting, controlling, operation for the control panel.
4G network with app control, monitor, setting, operation and SMS alarm text sending, voice alarm calling.
details:
HB-5050G (4G), HB-5050R metal case alarm panel is compatible with solar power perimeter security system.
1. HB-5050G (4G) is 4G sim card communication network alarm panel.
2. HB-5050R is TCP/IP network RJ45 interface alarm panel.
Functions:
1.99 zones for zone type: normal, emergency, fire, help, gas and water. Each zone can equip 1 detector, sensor or remote controller.
2.Total 4 groups phone number can be set.
3.SMS message write and read function.
4.Maximum 4 remote controllers can be used.
5. 2groups arm/disarm timing can be set.

Power interface: DC15V 1.5A (power adaptor)
Backup battery: 12V 1.3Ah lead-acid battery (not included)
Wireless frequency: 434.6MHz FSK
GSM frequency: 900/1800/1900/2100MHz
Dimension: 165*175*62mm

Phone configuration:
smart phone above android 4.0 operating system
>=2G RAM, >=2G storage memory
