Product Specification
| Condition | New |
| Brand | HUAXIAMASTER |
Product Descriptions
1、Introduction to QTZ-2YS Double-tube Soil Sampling Drilling Rig

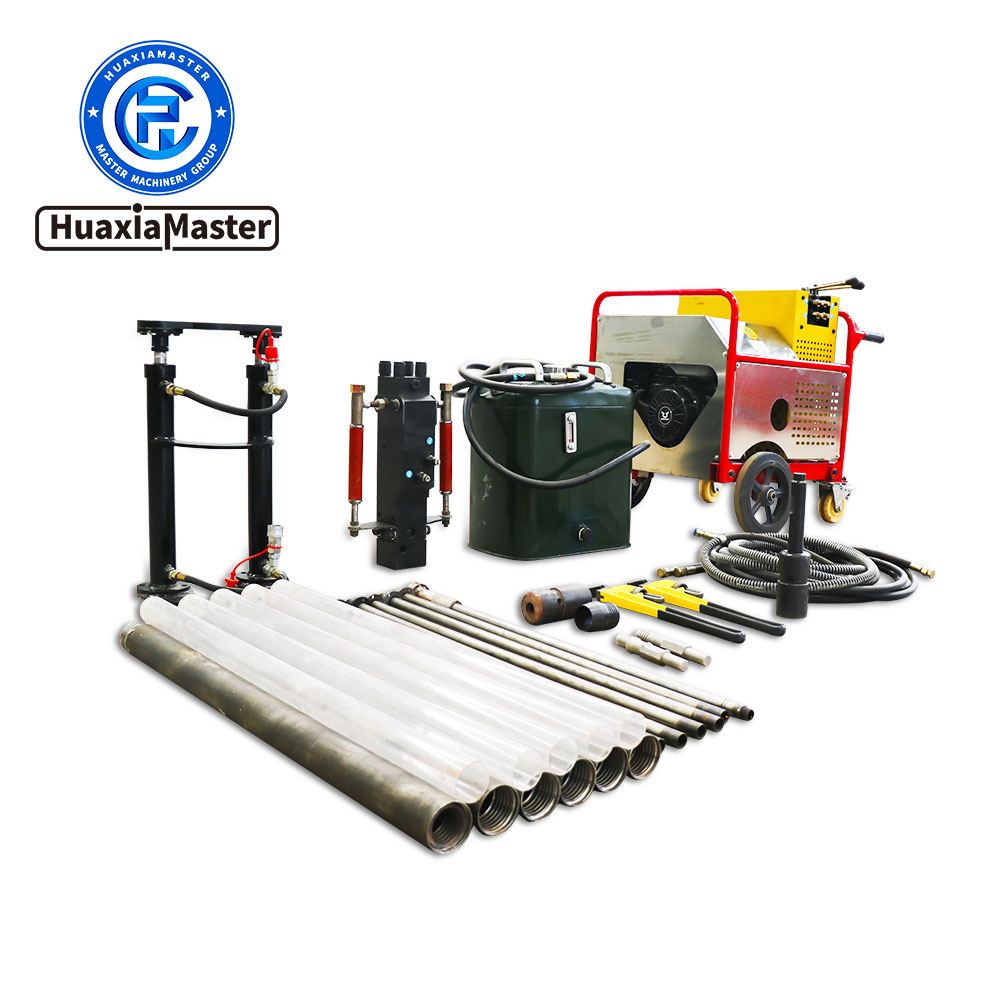

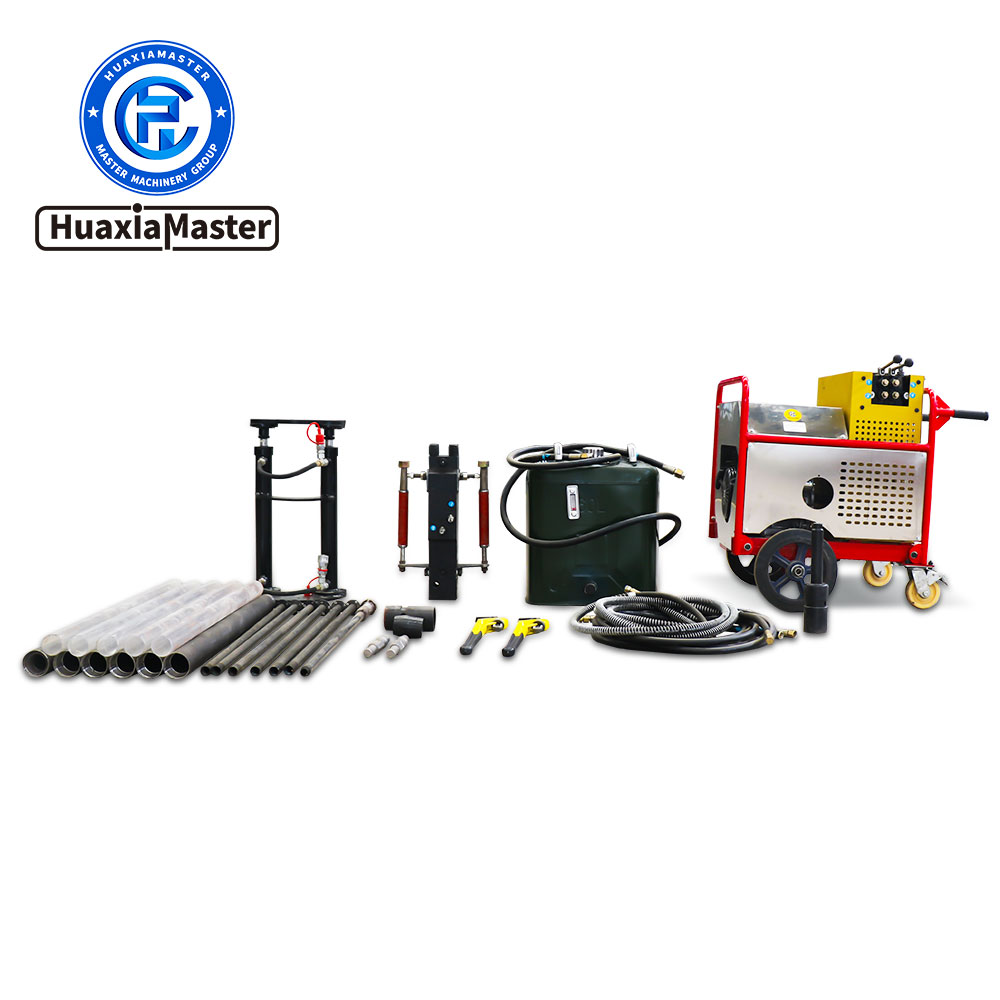

QTZ-2YS hydraulic portable soil sample drilling rig is a hydraulic soil borrowing drill. The drilling rig adopts modular design, which is mainly composed of hydraulic soil borrowing host, hydraulic pump station, hydraulic puller, etc. The structure is simple and convenient for assembly, handling and disassembly. QTZ-2YS portable soil sample drilling rig adopts the hydraulic working principle, with strong impact capacity and fast footage. It has been widely used in environmental protection testing, geological research, wetland environmental investigation, soil structure description, agricultural soil investigation, etc.t.
2、 Features Of QTZ-2YS Double-tube Soil Sampling Drilling Rig
2.1 The hydraulic pump station adopts electric starting, which reduces the labor intensity of the operator and is convenient to start in the cold season.
2.2 The hydraulic system greatly enhances the impact force of the main machine in the soil, and samples can be drilled smoothly even in relatively hard soil conditions.
2.3 It has good sampling stability, which can effectively reduce human errors in the sampling process and ensure the credibility and scientific of the data.
2.4 Double tube sampling is available, which can effectively avoid secondary pollution.
2.5 The drilling rig has simple structure, small volume and light weight, which is convenient for assembly, handling and disassembly.
3、 Parameters of QTZ-2YS Double-Tube Soil Sampling Drilling Rig
Model QTZ-2YS
Power 10.2kW/14hp
Start mode Electric start
Impact energy 150-280J
Main engine weight 42 kg
Soil extractor dia 53mm
Sampling depth 6~10m
Hydraulic pump station flow 25-30L/min
Work pressure 10-14MPa
Cooling method Air cooling
Hydraulic pump unit weight 80 kg
Hydraulic oil tank capacity 50L
Weight of hydraulic puller 40 kg
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
