Product Specification
| Condition | 新的 |
| Brand | HUAXIAMASTER |
| Warranty | 是的 |
Product Descriptions

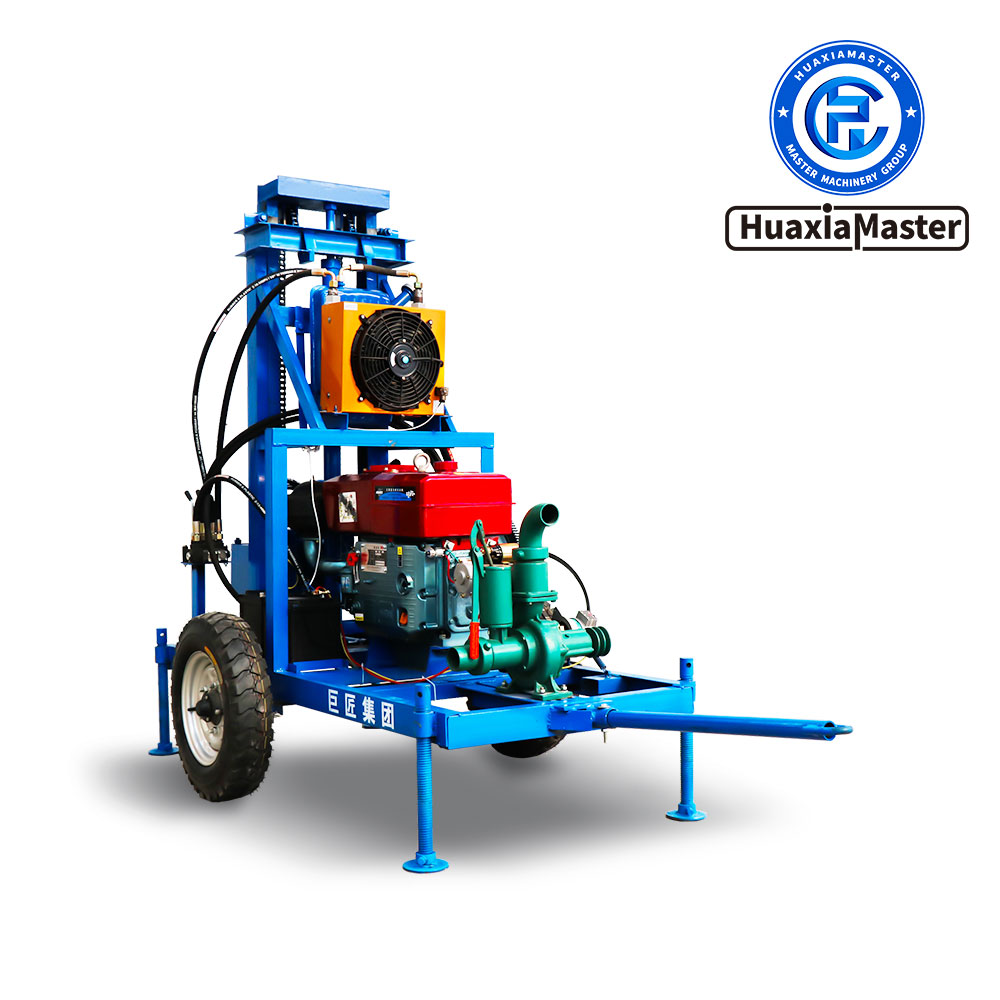

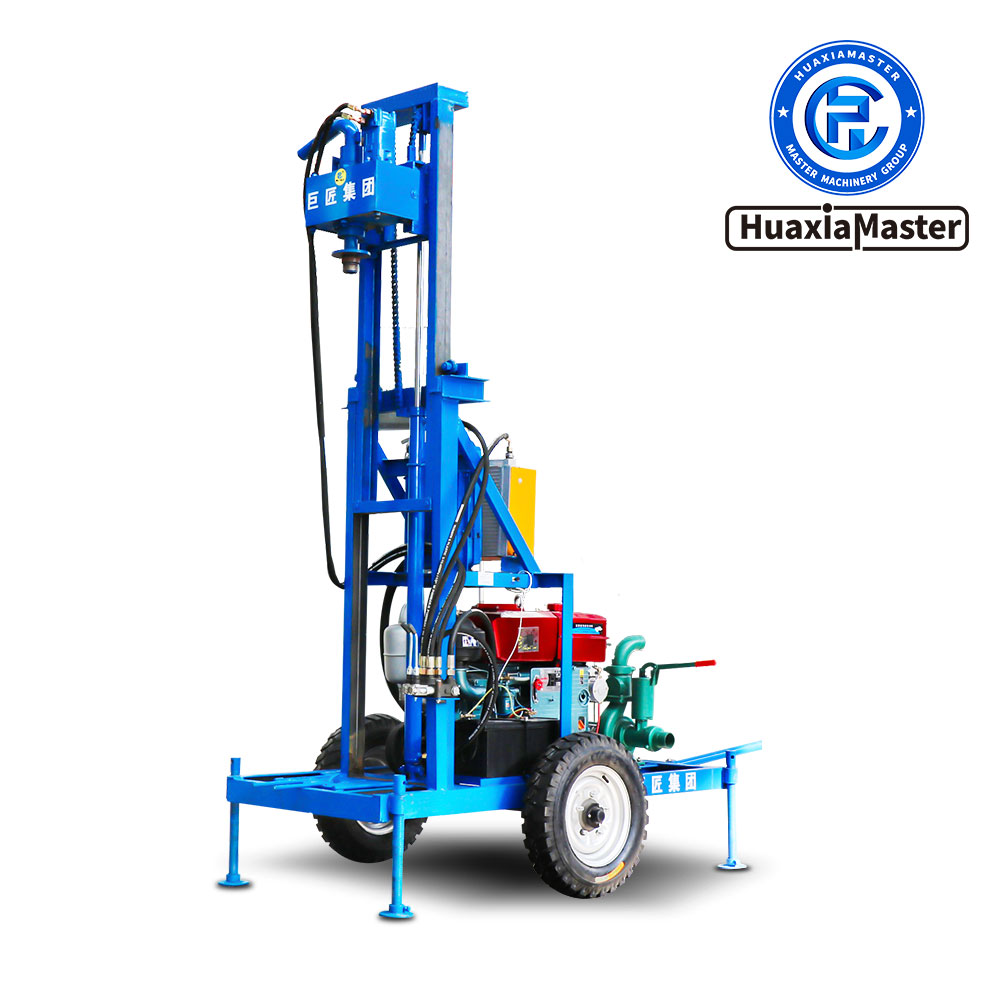

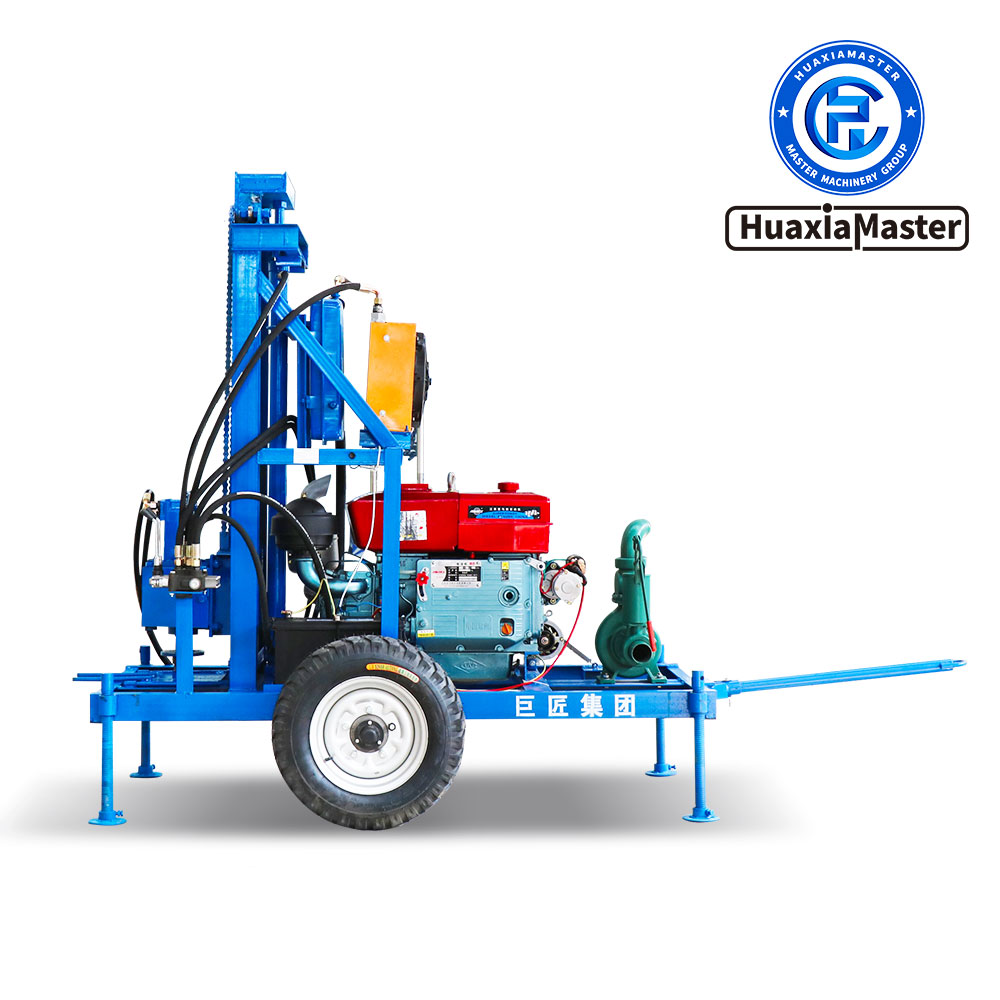

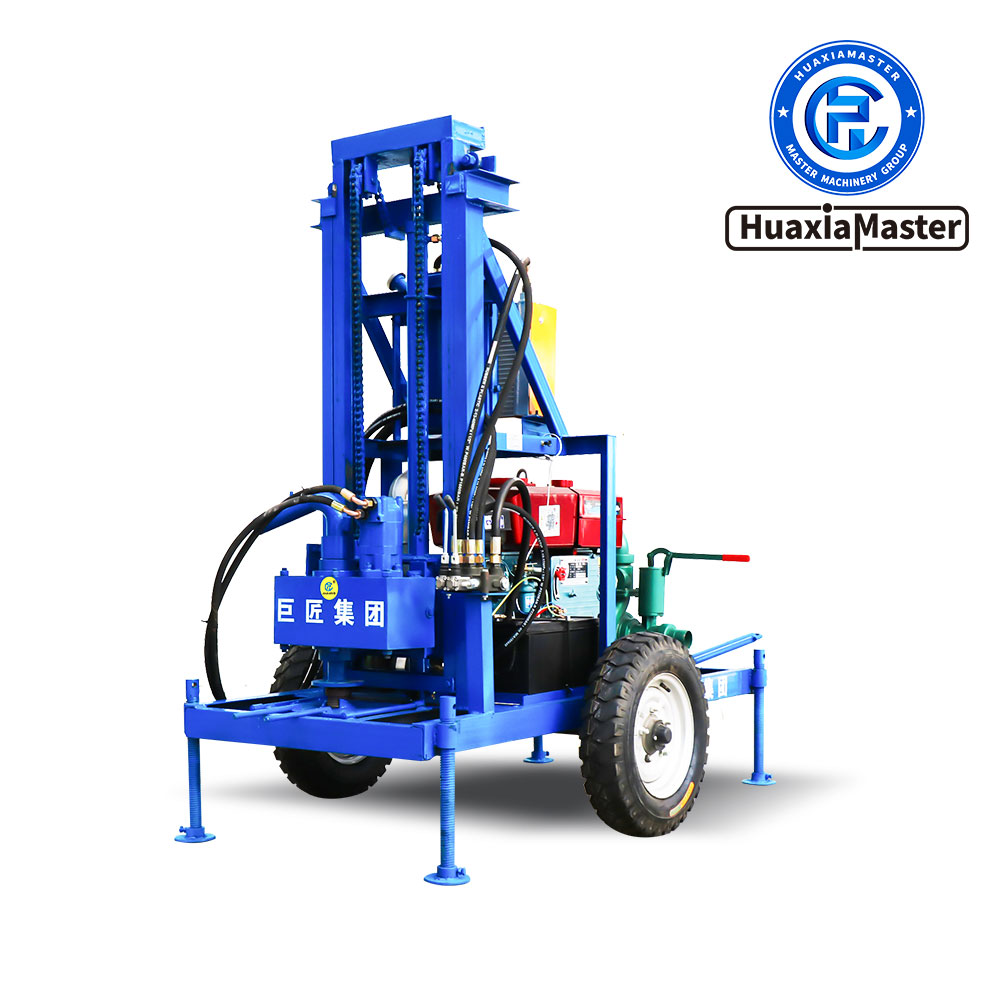

1、Introduction to SJCY Traction Diesel Hydraulic Water Well Drilling Rig
SJCY towable diesel hydraulic water well drilling rig is a hydraulic drilling rig developed and widely promoted by HUAXIAMASTER GROUP. It is suitable for drilling in soil layer, quicksand layer and a small amount of rock and soil layer. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant wells, industrial wells, etc.
2、Features of SJCY Traction Diesel Hydraulic Water Well Drilling Rig
2.1 The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.
2.2 The drilling rig adopts hydraulic working principle and is equipped with radiator, so the drilling rig can work continuously and efficiently.
2.3 Equipped with high-power hydraulic motor, the power head can rotate forward and backward.
2.4 The drill frame is equipped with hydraulic oil cylinder, and the oil pressure can be raised and lowered through the operating handle.
2.5 The drilling rig has its own water pump, which has reasonable structure, compact layout and good slag removal effect.
3、Parameters of SJCY Traction Diesel Hydraulic Water Well Drilling Rig
Drilling rig specifications | SJCY |
Machine power | Single cylinder diesel engine/22 HP |
Vehicle weight | 560KG |
Overall machine size | 1900*980*1800mm |
Power head | BM5-200 Hydraulic Motor |
Pressurized system | Hydraulic cylinder booster |
Outrigger | four screw rods |
Drill pipe specifications | 50*1500mm |
Drilling diameter | 80-300mm |
Drilling depth | 0-120m |
Slide travel | 2400mm |
Lift height | 2600mm |
One-time advancement length | 1500mm |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
