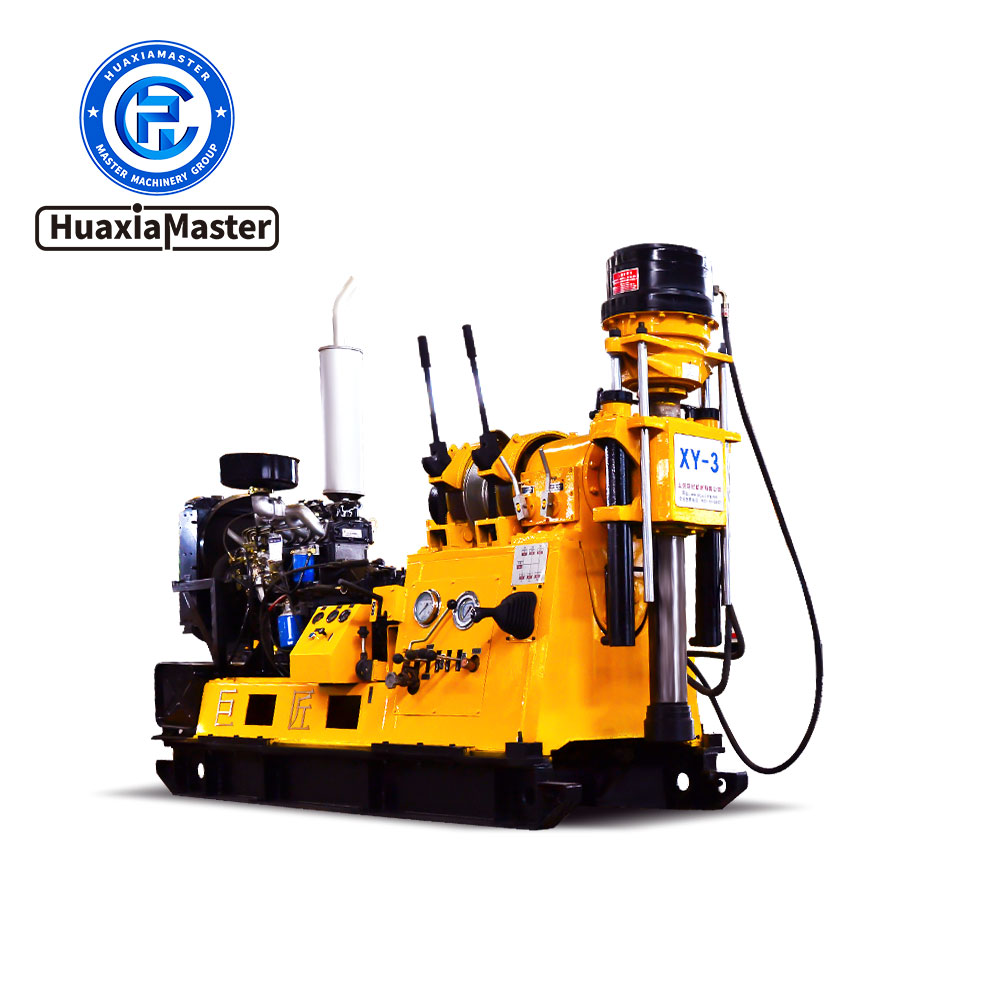

XY-3 Series Hydraulic Core Drilling Rig

1、Introduction to XY-3 Series Hydraulic Core Drilling Rig

XY-3 series hydraulic core drilling rig is a kind of medium-shallow hole vertical spindle rotary drilling rig which can meet the needs of various drilling techniques and drilling in different strata. The main types of XY-3 series drilling rig are XY-3 conventional type, XYX-3 wheel type, XYD-3 crawler type and XYC-3 truck-mounted type.

2、Features of XY-3 Hydraulic Core Drilling Rig

2.1 The drilling rig adopts the automobile gearbox assembly, which has 10-gear forward and 2-gear reverse. The rotational speed of each gear is reasonably designed to meet the requirements of different drilling technologies.

2.2 The hydraulic system realizes the control of feed pressure and speed to meet the needs of drilling in different strata.

2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.

2.4 The drilling rig has large output torque and strong bearing capacity, so it is easy to deal with various underground accidents.

3、Parameters of XY-3 Series Hydraulic Core Drilling Rig

Model	XY-3	XYX-3	XYC-3	XYD-3
Overall machine parameters	Drilling depth	600m	600m	600m	600m
Open hole dia	600mm	600mm	600mm	600mm
End hole dia	75mm	75mm	75mm	75mm
Drill pipe dia	60mm	60mm	60mm	60mm
Drilling angle	75-90°	75-90°	75-90°	75-90°
Matching power	YunneiYN27/39kW	YunneiYN27/39kW	YunneiYN27/39kW	YunneiYN27/39kW
Weight	1800kg	3600kg	22000kg	6500kg
LWH	25009001800mm	450026003300mm	900025003600mm	450026003300mm
Vertical shaft	Forward speed	32-1057r/min	32-1057r/min	32-1057r/min	32-1057r/min
Reverse speed	29-137r/min	29-137r/min	29-137r/min	29-137r/min
Stroke	600mm	600mm	600mm	600mm
Winch	Lifting force	3000kg	3000kg	3000kg	3000kg
Lifting speed	0.5-1.9m/s	0.5-1.9m/s	0.5-1.9m/s	0.5-1.9m/s
Wire rope dia	12.5mm	12.5mm	12.5mm	12.5mm
Wire rope capacity	65m	65m	65m	65m
Derrick	Height	6.5m	6.5m	6.5m	6.5m
Rated load	18t	18t	18t	18t

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
