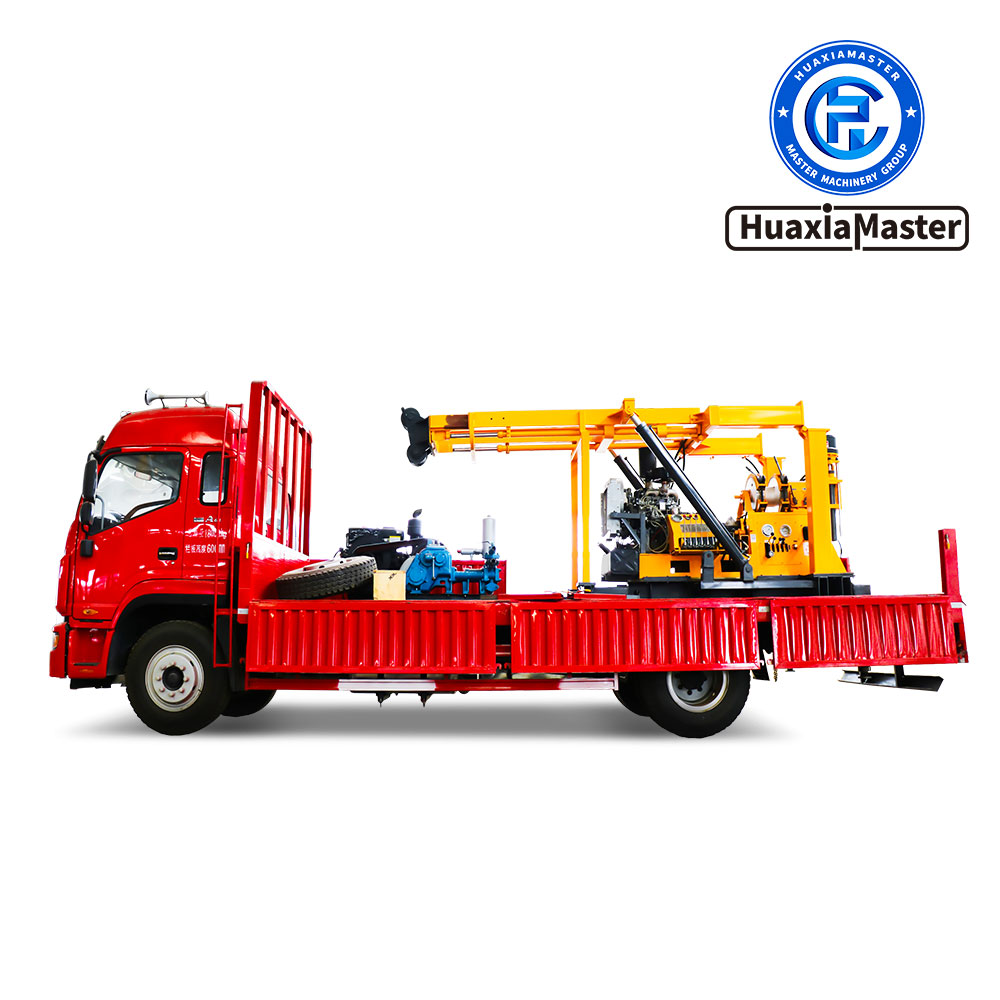

XYC-3 vehicle mounted hydraulic vertical axis rotary exploration drilling rig

Name: XYC-3 vehicle mounted hydraulic vertical axis rotary exploration drilling rig
Price: 5600 USD
Availability: 100
Rating: 5 (34 reviews)

Brand: HUAXIAMASTER·Ships from China

AED 20,552.00 / Unit

Availability: in stock

Min Order1 Unit

Condition新的

Warranty是的

Country of shippingChina

Save

Request for quotation

Free · No obligation

Add to container

Sell Similar

Trade with confidence on Abraa

Safe and secure payments using Abraa safe trade systems

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Buyer Protection

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Item Details

Product Specification

Condition	新的
Brand	HUAXIAMASTER
Warranty	是的

Product Descriptions

1、Introduction to XYC-3 Truck-mounted Hydraulic Core Drilling Rig

XYC-3 vehicle mounted hydraulic core drilling rig is a multi-functional hydraulic vehicle-mounted vertical shaft rotary drilling rig, which is mainly used in geological census exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, roadbed grouting hole drilling and direct grouting holes, civil wells, etc.

2、Features of XYC-3 Truck-mounted Hydraulic Core Drilling Rig

2.1 The truck chassis is a medium truck chassis. The rig transmission system, winch, mud pump and other important accessories are installed on the chassis. The layout is reasonable and compact, and the operation is simple.

2.2 BW-250 mud pump is equipped with high pressure and large flow to ensure the drilling depth and diameter.

2.3 The drilling rig is equipped with a mobile device, which can realize the forward and backward movement of the drilling rig host and facilitate wellhead operation.

2.4 The rig tower is equipped with hydraulic automatic telescopic drilling tower, which is safe and convenient to operate.

2.5 The hydraulic system realizes the control of feed pressure and speed to meet the needs of drilling in different strata.

3、Parameters of XYC-3 Truck-mounted Hydraulic Core Drilling Rig

Model		XYC-3
Overall machine parameters	Drilling depth	600m
	Open hole dia	600mm
	End hole dia	75mm
	Drill pipe dia	60mm
	Drilling angle	75-90°
	Matching power	YunneiYN27/39kW
	Weight	22000kg
	(LWH)Dimension	900025003600mm
Vertical shaft	Forward speed	32-1057r/min
	Reverse speed	29-137r/min
	Stroke	600mm
Winch	Lifting force	3000kg
	Lifting speed	0.5-1.9m/s
	Wire rope dia	12.5mm
	Wire rope capacity	65m
Derrick	Height	6.5m
Derrick	Rated load	18t

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
