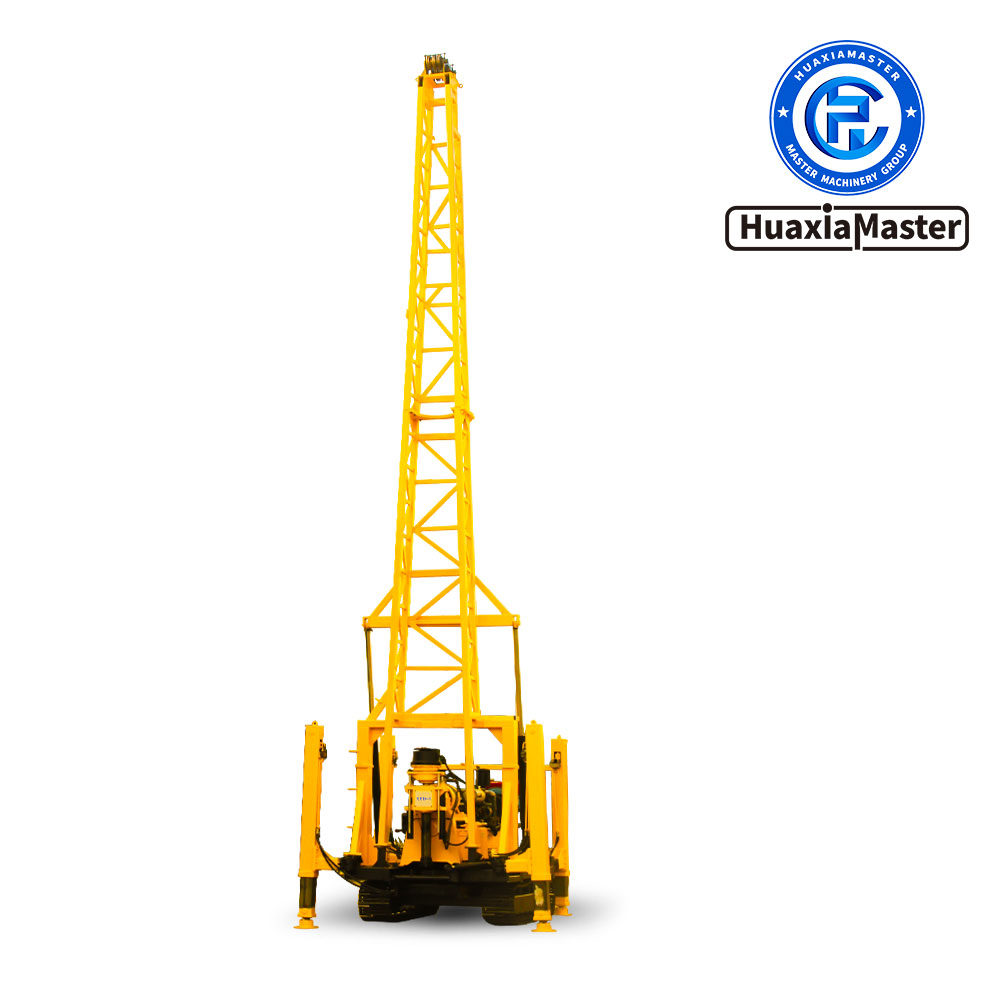

XYD-3 tracked hydraulic vertical axis rotary engineering exploration drilling rig

Name: XYD-3 tracked hydraulic vertical axis rotary engineering exploration drilling rig
Price: 3800 USD
Availability: 100
Rating: 3 (23 reviews)

Brand: HUAXIAMASTER·Ships from China

AED 13,946.00 / Unit

Availability: in stock

Min Order1 Unit

Condition新的

Warranty是的

Country of shippingChina

Save

Request for quotation

Free · No obligation

Add to container

Sell Similar

Trade with confidence on Abraa

Safe and secure payments using Abraa safe trade systems

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Buyer Protection

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Item Details

Product Specification

Condition	新的
Brand	HUAXIAMASTER
Warranty	是的

Product Descriptions

1、Introduction to XYD-3 Crawler Hydraulic Core Drilling Rig

XYD-3 crawler hydraulic core drilling rig is a multifunctional hydraulic vehicle-mounted vertical axis rotary drilling rig, mainly used in geological survey and exploration, road and high-rise building foundation exploration, as well as various concrete structure inspection holes, river embankments, roadbed grouting hole drilling and direct grouting, civil water wells, etc.

2、Features of XYD-3 Crawler Hydraulic Core Drilling Rig

2.1 The drilling rig adopts automobile gearbox assembly and Yunnei automobile power train, which has multiple speed levels and reasonable speed regulation range, large torque, strong carrying capacity, can realize long-distance control and speed change, and the operation is centralized and convenient.

2.2 It adopts crawler chassis and the outrigger cylinder stroke of 1.5m, which can be automatically loaded onto the truck, making relocation and transportation convenient.

2.3 Equipped with hydraulic feeding mechanism to improve drilling efficiency.

2.4 Equipped with a bottom hole pressure gauge to indicate the pressure, making it easy to understand the situation inside the hole.

2.5 It has a normally closed hydraulic chuck, which is convenient and flexible to operate.

2.6 It can realize the operation of vertical shaft and winch.

2.7 The vertical shaft through hole has a large diameter and can be replaced with a large hexagonal active drill rod.

3、Parameters of XYD-3 Crawler Hydraulic Core Drilling Rig

Model		XYD-3
Overall machine parameters	Drilling depth	600m
	Open hole dia	600mm
	End hole dia	75mm
	Drill pipe dia	60mm
	Drilling angle	75-90°
	Matching power	YunneiYN27/39kW
	Weight	6500kg
	LWH Dimension	450026003300mm
Vertical shaft	Forward speed	32-1057r/min
	Reverse speed	29-137r/min
	Stroke	600mm
Winch	Lifting force	3000kg
	Lifting speed	0.5-1.9m/s
	Wire rope dia	12.5mm
	Wire rope capacity	65m
Derrick	Height	6.5m
Derrick	Rated load	18t

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
