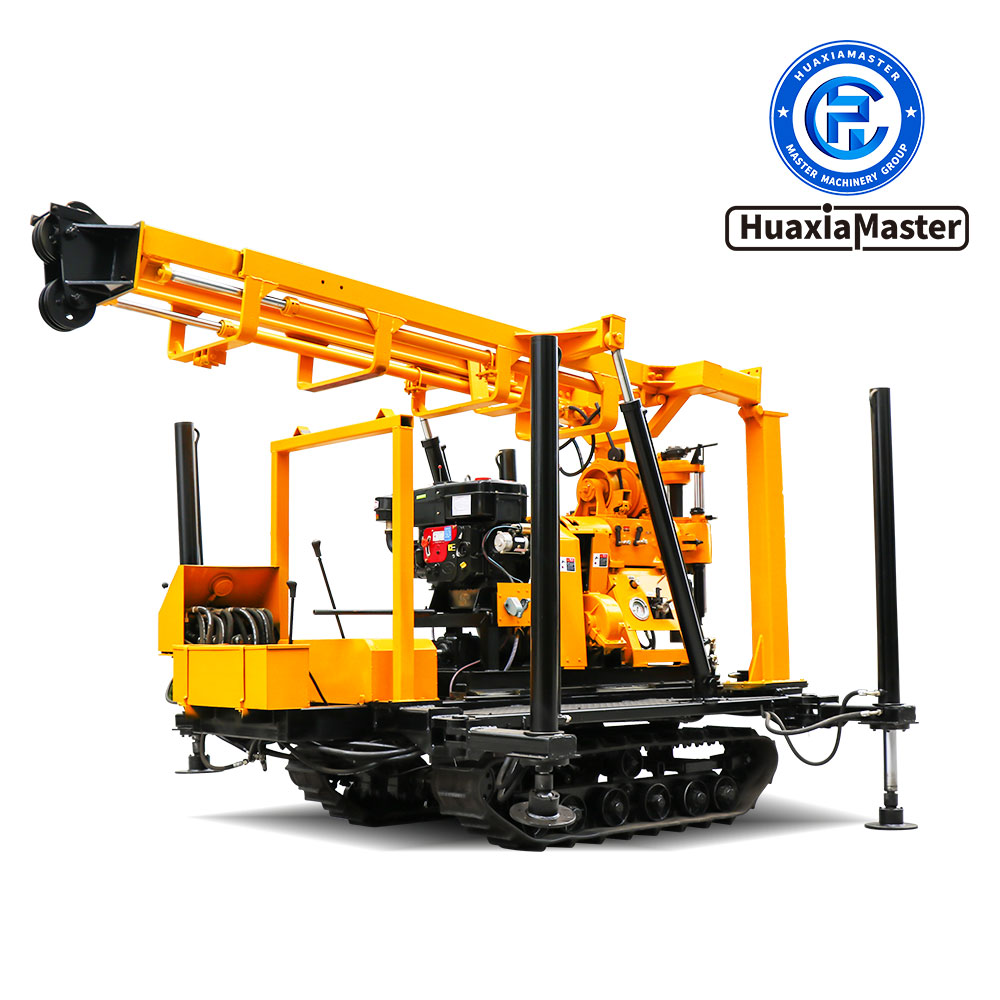

Name: XYD Series Crawler Hydraulic Core Drilling Rig
Rating: 5 (22 reviews)

Request for quotation

1、Introduction to XYD Series Crawler Hydraulic Core Drilling Rig XYD series crawler hydraulic core drilling rig is a kind of drilling rig equipped with crawler chassis and hydraulic derrick to meet the needs of high speed, high efficiency and strong maneuverability in field exploration.The drilling rig can realize mobile operation in uneven areas such as hills and virgin forests.2、Features of XYD Series Crawler Hydraulic Core Drilling Rig2.1 Rise and fall of derrick can be easily controlled by operation valves, which saves time and labor, and is safe and reliable.2.2 The chassis adopts steel wire rubber crawler, which can reduce the noise of walking and not damage the road surface when walking on urban roads.2.3 The chassis is equipped with high hydraulic legs, which can be used for leveling the drilling rig, can also realize self-loading and unloading without crane, saving a lot of lifting time and cost.2.4 The 24V electric start diesel engine is used to reduce the operator's labor intensity, making it more convenient to start in cold seasons.2.5 BW-160 mud pump has high pressure and high flow rate, which ensures drilling depth and borehole diameter.2.6 Configuration of the moving device can realize the front and back movement of the main machine and facilitate the operation of the wellhead.3、Parameters of XYD Series Crawler Hydraulic Core Drilling Rig<table class="mce-item-table"><tr><td>Drilling rig model</td><td>XYD-100</td><td>XYD-150</td><td>XYD-200</td><td>XYD-130YY</td><td>XYD-200YY</td></tr><tr><td>Overall machine parameters</td><td>Drilling depth</td><td>100m</td><td>150m</td><td>200m</td><td>130m</td><td>200m</td></tr><tr><td>Opening diameter</td><td>219mm</td><td>325mm</td><td>400mm</td><td>325mm</td><td>400mm</td></tr><tr><td>final hole diameter</td><td>75mm</td><td>75mm</td><td>75mm</td><td>75mm</td><td>75mm</td></tr><tr><td>Drill pipe diameter</td><td>42mm</td><td>42/50mm</td><td>42/50mm</td><td>42/50mm</td><td>42/50mm</td></tr><tr><td>Active drill pipe</td><td>46/51*4200mm</td><td>46/51*4200mm</td><td>53/59*4200mm</td><td>53/59*4200mm</td><td>53/59*4200mm</td></tr><tr><td>Drilling inclination</td><td>90°</td><td>90°</td><td>90°</td><td>90°</td><td>90°</td></tr><tr><td>Drilling rig weight</td><td>2900kg</td><td>3000kg</td><td>3100kg</td><td>3800kg</td><td>4000kg</td></tr><tr><td>Overall dimensions</td><td>3600*1900*2200mm</td><td>3600*1900*2200mm</td><td>3600*1900*2200mm</td><td>3600*2000*2400mm</td><td>3600*2000*2400mm</td></tr><tr><td>Vertical shaft</td><td>Vertical shaft speed</td><td>142、285、570 r/min</td><td>140、295、470、790、1010r/min</td><td>64、128、287、557r/min</td><td>142、285、570r/min</td><td>64、128、287、557r                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                       /min</td></tr><tr><td>Vertical axis travel</td><td>450mm</td><td>450mm</td><td>450mm</td><td>450mm</td><td>450mm</td></tr><tr><td>Crawler chassis</td><td>Crawler specification</td><td>350mm*90*54</td><td>350mm*90*54</td><td>350mm*90*54</td><td>350mm*90*48</td><td>360mm*90*48</td></tr><tr><td>Climbing angle</td><td>35°</td><td>35°</td><td>35°</td><td>35°</td><td>35°</td></tr><tr><td>Walking speed</td><td>10km/h</td><td>10km/h</td><td>10km/h</td><td>10km/h</td><td>10km/h</td></tr><tr><td> Hydraulic leg height</td><td>1500mm</td><td>1500mm</td><td>1500mm</td><td>1500mm</td><td>1500mm</td></tr><tr><td> Winch</td><td>Single rope lifting capacity</td><td>10kN</td><td>11kN</td><td>24kN</td><td>11kN</td><td>24kN</td></tr><tr><td>Single rope lifting speed</td><td>0.41、1.64m/min</td><td>0.41、1.64m/min</td><td>0.41、1.64m/min</td><td>0.41、1.64m/min</td><td>0.41、1.64m/min</td></tr><tr><td>Wire rope diameter</td><td>12mm</td><td>12mm</td><td>12mm</td><td>12mm</td><td>12mm</td></tr><tr><td>Wire rope capacity</td><td>35m</td><td>35m</td><td>35m</td><td>35m</td><td>35m</td></tr><tr><td>Rig tower</td><td>Effective height</td><td>6m</td><td>6m</td><td>6m</td><td>6m</td><td>6m</td></tr><tr><td>Rated load</td><td>5t</td><td>5t</td><td>5t</td><td>13t</td><td>13t</td></tr><tr><td>Mud pump</td><td>Flow</td><td>95L/min</td><td>160L/min</td><td>160L/min</td><td>160L/min</td><td>160L/min</td></tr><tr><td>Maximum pressure</td><td>1.3Mpa</td><td>1.3Mpa</td><td>1.3Mpa</td><td>1.3Mpa</td><td>1.3Mpa</td></tr><tr><td>Suction pipe diameter</td><td>50mm</td><td>50mm</td><td>50mm</td><td>50mmm</td><td>50mm</td></tr><tr><td>Outlet pipe diameter</td><td>32mm</td><td>32mm</td><td>32mm</td><td>25mm</td><td>25mm</td></tr></table>Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.

Quantity

Ship to Country

China

Member since : 05-Jul-2025

HUAXIAMASTER

Basic Member

GO TO STORE

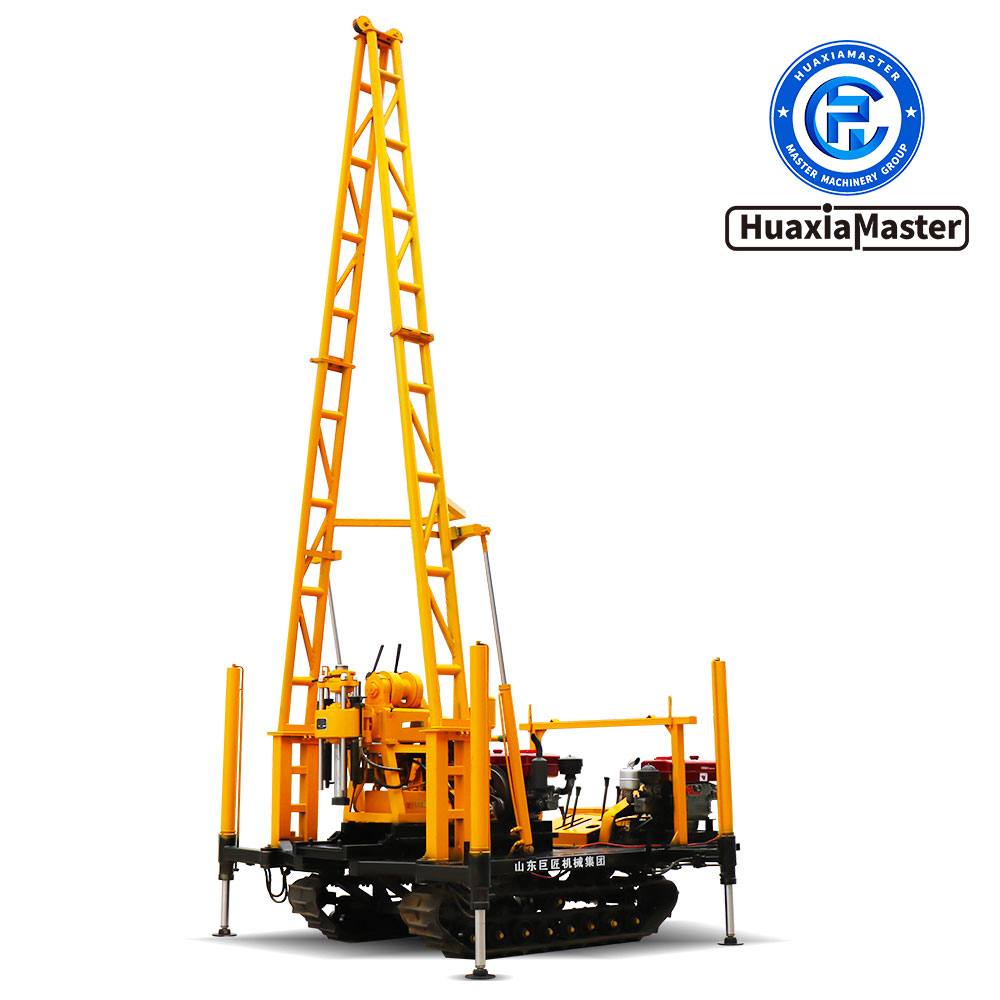

XYD Series Crawler Hydraulic Core Drilling Rig_2

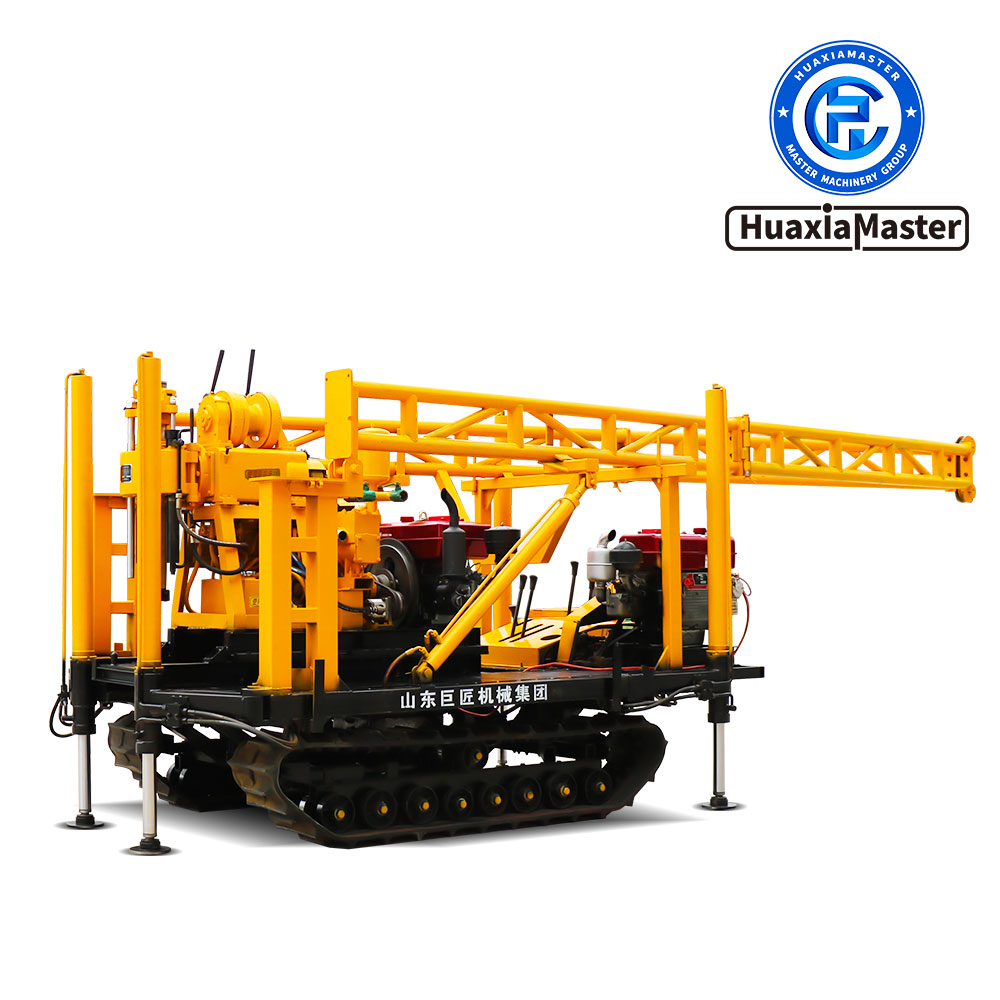

XYD Series Crawler Hydraulic Core Drilling Rig_3

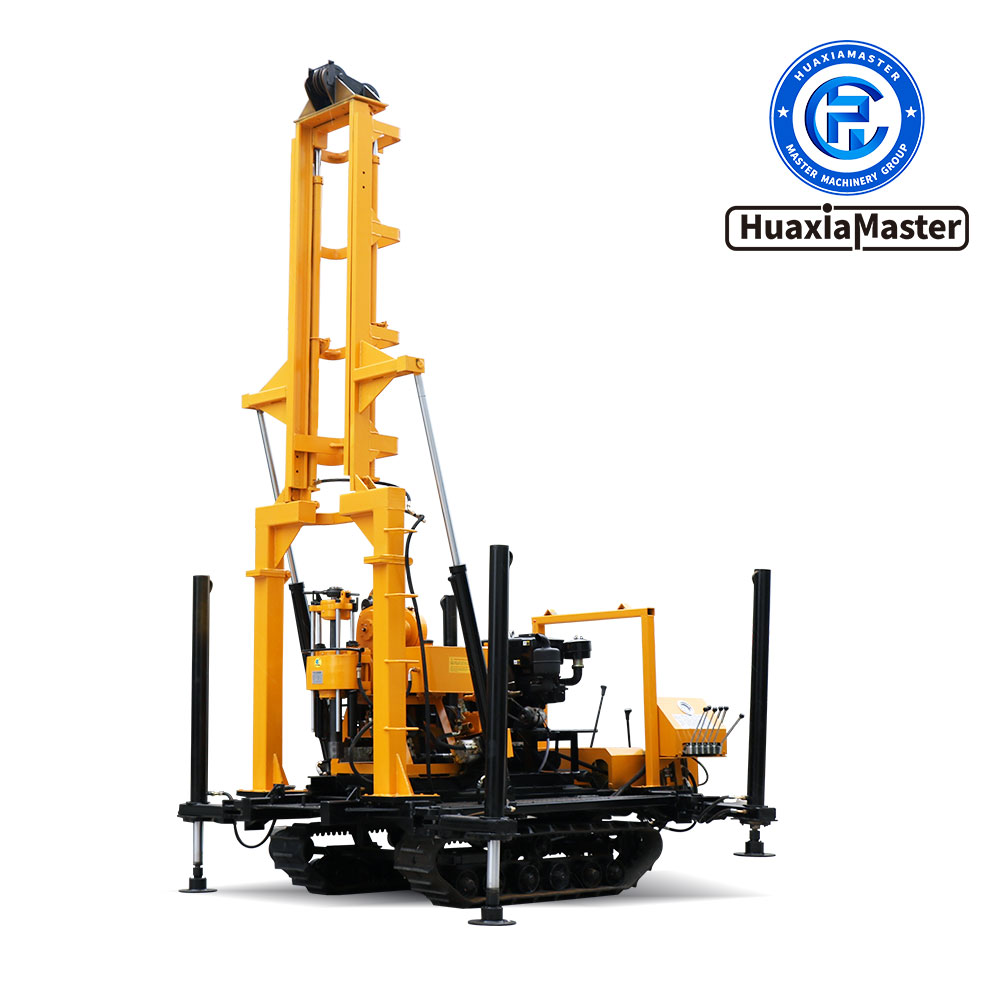

XYD Series Crawler Hydraulic Core Drilling Rig_4

XYD Series Crawler Hydraulic Core Drilling Rig_5

Request for quotation

Quantity

Ship to Country

Drilling Machine

XYD Series Crawler Hydraulic Core Drilling Rig

Highlights :

Min Order : 0
Condition : New
Warranty: : YES
Country of shipping : China

Safe and secure payments using Abraa safe trade systems

Item Details

Product Specification

Condition	New
Warranty	YES

Product Descriptions

1、Introduction to XYD Series Crawler Hydraulic Core Drilling Rig

XYD series crawler hydraulic core drilling rig is a kind of drilling rig equipped with crawler chassis and hydraulic derrick to meet the needs of high speed, high efficiency and strong maneuverability in field exploration.The drilling rig can realize mobile operation in uneven areas such as hills and virgin forests.

2、Features of XYD Series Crawler Hydraulic Core Drilling Rig

2.1 Rise and fall of derrick can be easily controlled by operation valves, which saves time and labor, and is safe and reliable.

2.2 The chassis adopts steel wire rubber crawler, which can reduce the noise of walking and not damage the road surface when walking on urban roads.

2.3 The chassis is equipped with high hydraulic legs, which can be used for leveling the drilling rig, can also realize self-loading and unloading without crane, saving a lot of lifting time and cost.

2.4 The 24V electric start diesel engine is used to reduce the operator's labor intensity, making it more convenient to start in cold seasons.

2.5 BW-160 mud pump has high pressure and high flow rate, which ensures drilling depth and borehole diameter.

2.6 Configuration of the moving device can realize the front and back movement of the main machine and facilitate the operation of the wellhead.

3、Parameters of XYD Series Crawler Hydraulic Core Drilling Rig

Drilling rig model	XYD-100	XYD-150	XYD-200	XYD-130YY	XYD-200YY
Overall machine parameters	Drilling depth	100m	150m	200m	130m	200m
Opening diameter	219mm	325mm	400mm	325mm	400mm
final hole diameter	75mm	75mm	75mm	75mm	75mm
Drill pipe diameter	42mm	42/50mm	42/50mm	42/50mm	42/50mm
Active drill pipe	46/51*4200mm	46/51*4200mm	53/59*4200mm	53/59*4200mm	53/59*4200mm
Drilling inclination	90°	90°	90°	90°	90°
Drilling rig weight	2900kg	3000kg	3100kg	3800kg	4000kg
Overall dimensions	360019002200mm	360019002200mm	360019002200mm	360020002400mm	360020002400mm
Vertical shaft	Vertical shaft speed	142、285、570 r/min	140、295、470、790、1010r/min	64、128、287、557r/min	142、285、570r/min	64、128、287、557r /min
Vertical axis travel	450mm	450mm	450mm	450mm	450mm
Crawler chassis	Crawler specification	350mm9054	350mm9054	350mm9054	350mm9048	360mm9048
Climbing angle	35°	35°	35°	35°	35°
Walking speed	10km/h	10km/h	10km/h	10km/h	10km/h
Hydraulic leg height	1500mm	1500mm	1500mm	1500mm	1500mm
Winch	Single rope lifting capacity	10kN	11kN	24kN	11kN	24kN
Single rope lifting speed	0.41、1.64m/min	0.41、1.64m/min	0.41、1.64m/min	0.41、1.64m/min	0.41、1.64m/min
Wire rope diameter	12mm	12mm	12mm	12mm	12mm
Wire rope capacity	35m	35m	35m	35m	35m
Rig tower	Effective height	6m	6m	6m	6m	6m
Rated load	5t	5t	5t	13t	13t
Mud pump	Flow	95L/min	160L/min	160L/min	160L/min	160L/min
Maximum pressure	1.3Mpa	1.3Mpa	1.3Mpa	1.3Mpa	1.3Mpa
Suction pipe diameter	50mm	50mm	50mm	50mmm	50mm
Outlet pipe diameter	32mm	32mm	32mm	25mm	25mm
