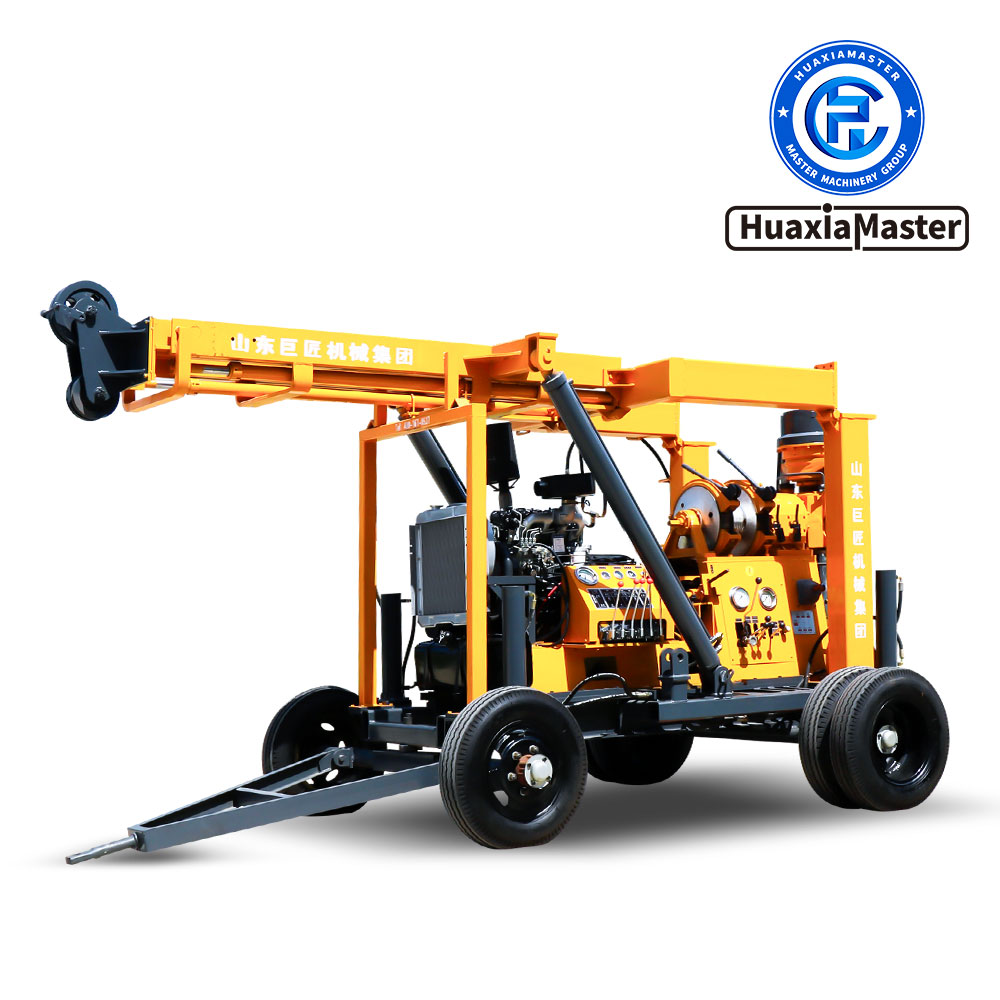

XYX-3 Wheel Hydraulic Vertical Axis Rotary Engineering Exploration Drilling Machine
Availability: in stock
Trade with confidence on Abraa
Safe and secure payments using Abraa safe trade systems
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
Buyer Protection
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
Product Specification
| Condition | 新的 |
| Brand | HUAXIAMASTER |
| Warranty | 是的 |
Product Descriptions
1、Introduction to XYX-3 Wheel Hydraulic Core Drilling Rig
XYX-3 wheeled hydraulic core drilling rig is a multi-functional traction hydraulic vertical rotary drilling rig. It is mainly used for the general survey and exploration of metal and non-metallic solid minerals, and also can be used for engineering geological exploration, hydrogeological survey, general survey and exploration of oil and gas fields, and well drilling.
2、Features of XYX-3 Wheel Hydraulic Core Drilling Rig
2.1 The drilling rig is equipped with a wheeled traveling mechanism and hydraulic cylinder support which is convenient for moving the whole machine and horizontal adjustment of the drilling rig.
2.2 With oil pressure feed mechanism, the drilling efficiency is improved.
2.3 The drilling rig is equipped with a hydraulic chuck, which can reverse the rod without stopping the machine, with high working efficiency, convenient, safe and feasible operation.
2.4 It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, so as to grasp the situation in the hole.
2.5 The tower lifting and lowering are operated by hydraulic pressure, which is convenient and feasible.
2.6 The diesel engine is electrically started to reduce the labor intensity of workers.
3、Parameters of XYX-3 Wheel Hydraulic Core Drilling Rig
Model | XYX-3 | |
Overall machine parameters | Drilling depth | 600m |
Open hole dia | 600mm | |
End hole dia | 75mm | |
Drill pipe dia | 60mm | |
Drilling angle | 75-90° | |
Matching power | YunneiYN27/39kW | |
Weight | 3600kg | |
L*W*H)Dimension | 4500*2600*3300mm | |
| Forward speed | 32-1057r/min |
Reverse speed | 29-137r/min | |
Stroke | 600mm | |
| Lifting force | 3000kg |
Lifting speed | 0.5-1.9m/s | |
Wire rope dia | 12.5mm | |
Wire rope capacity | 65m | |
Derrick | Height | 6.5m |
Rated load | 18t |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
