Mine Drilling Rig

Crawler-type gas-electric down-the-hole drill rig

Name: Crawler-type gas-electric down-the-hole drill rig
Price: 4000 USD
Availability: 100
Rating: 5 (28 reviews)

Brand: HUAXIAMASTER·Ships from China

AED 14,680.00 / Unit

Availability: in stock

Min Order1 Unit

Country of shippingChina

Save

Request for quotation

Free · No obligation

Add to container

Sell Similar

Trade with confidence on Abraa

Safe and secure payments using Abraa safe trade systems

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Buyer Protection

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Item Details

Product Specification

Brand

HUAXIAMASTER

Product Descriptions

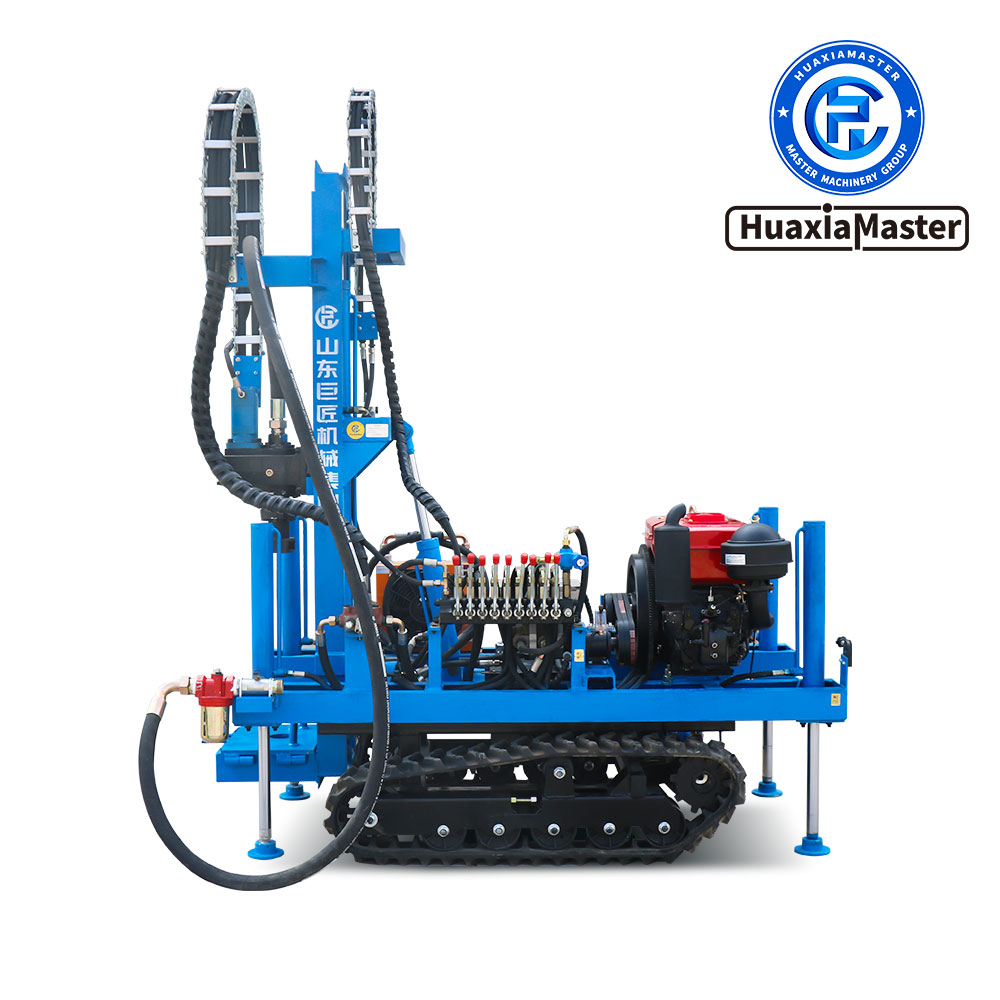

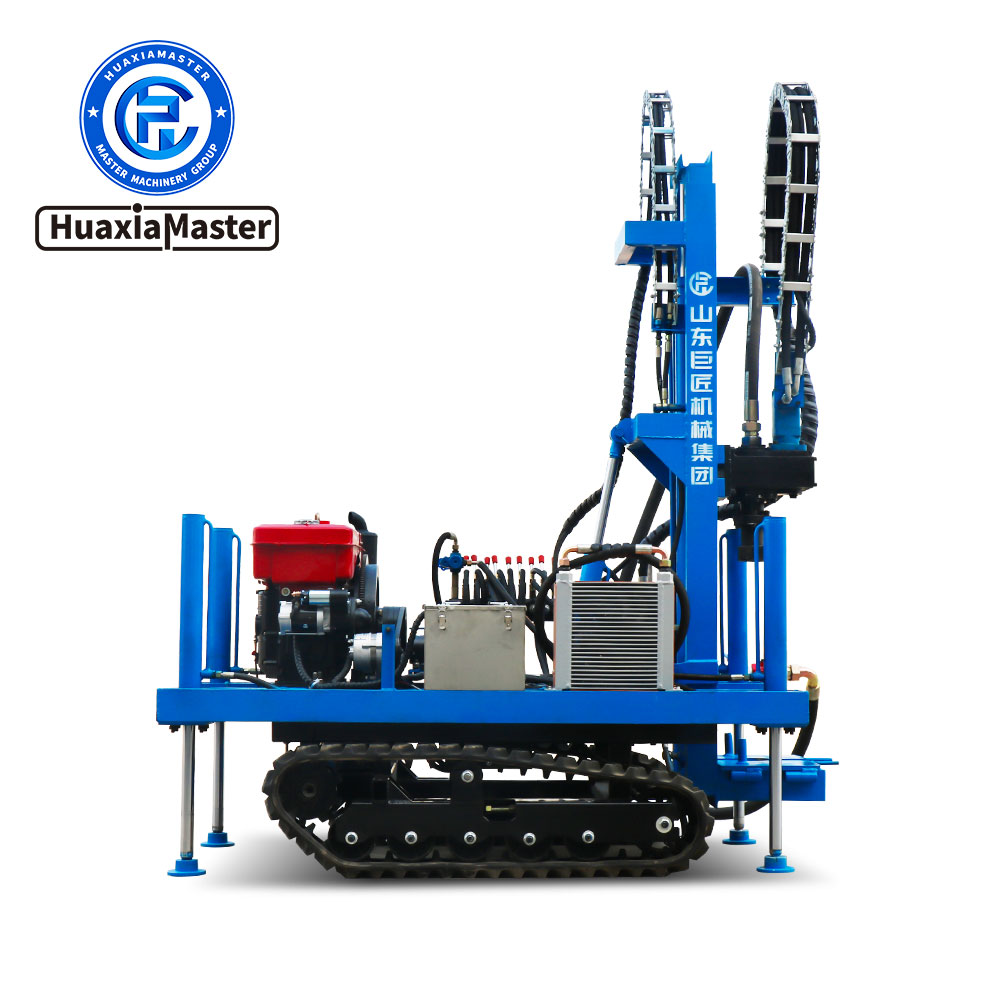

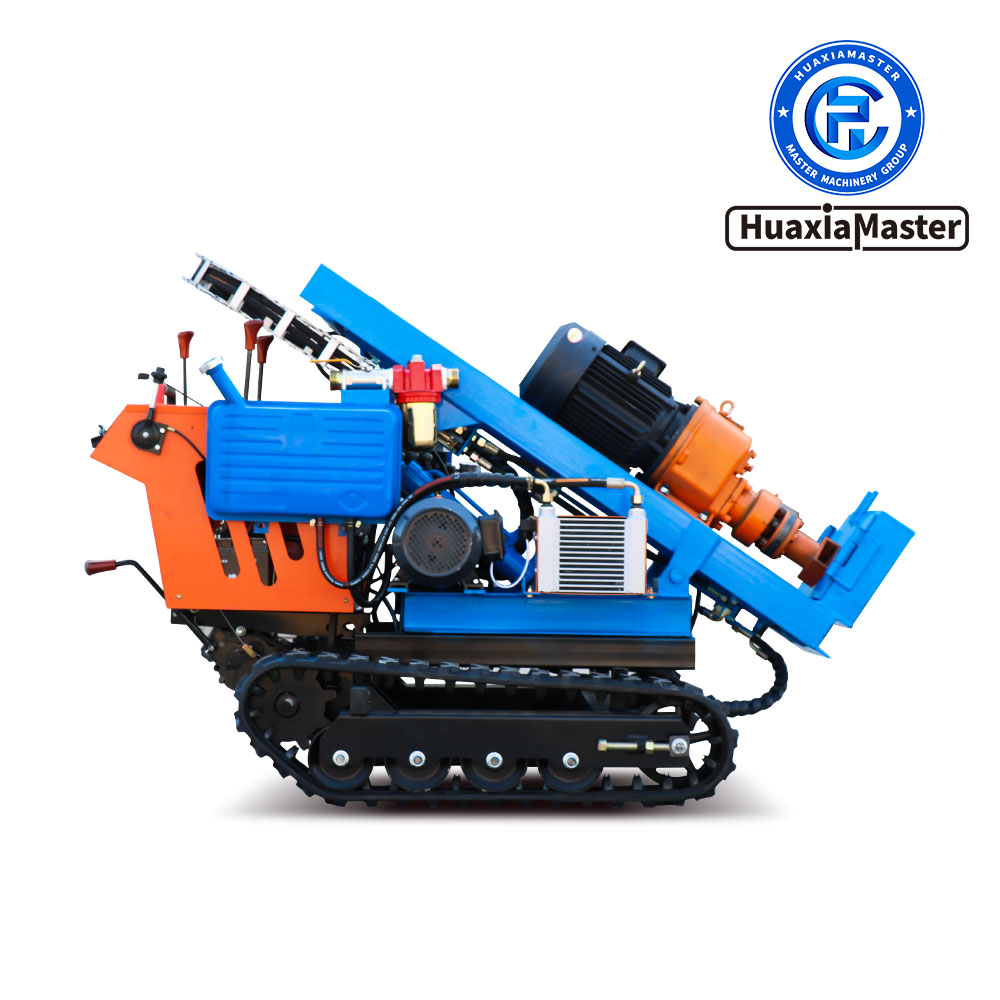

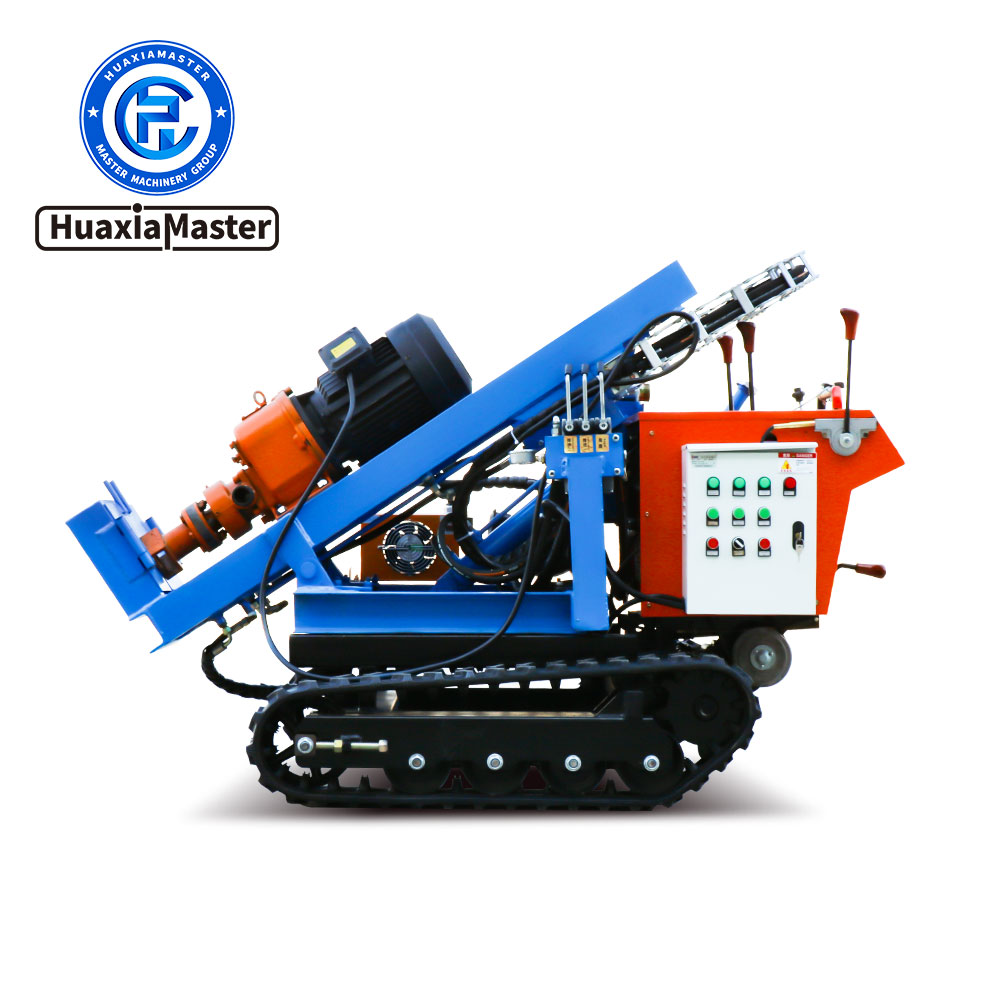

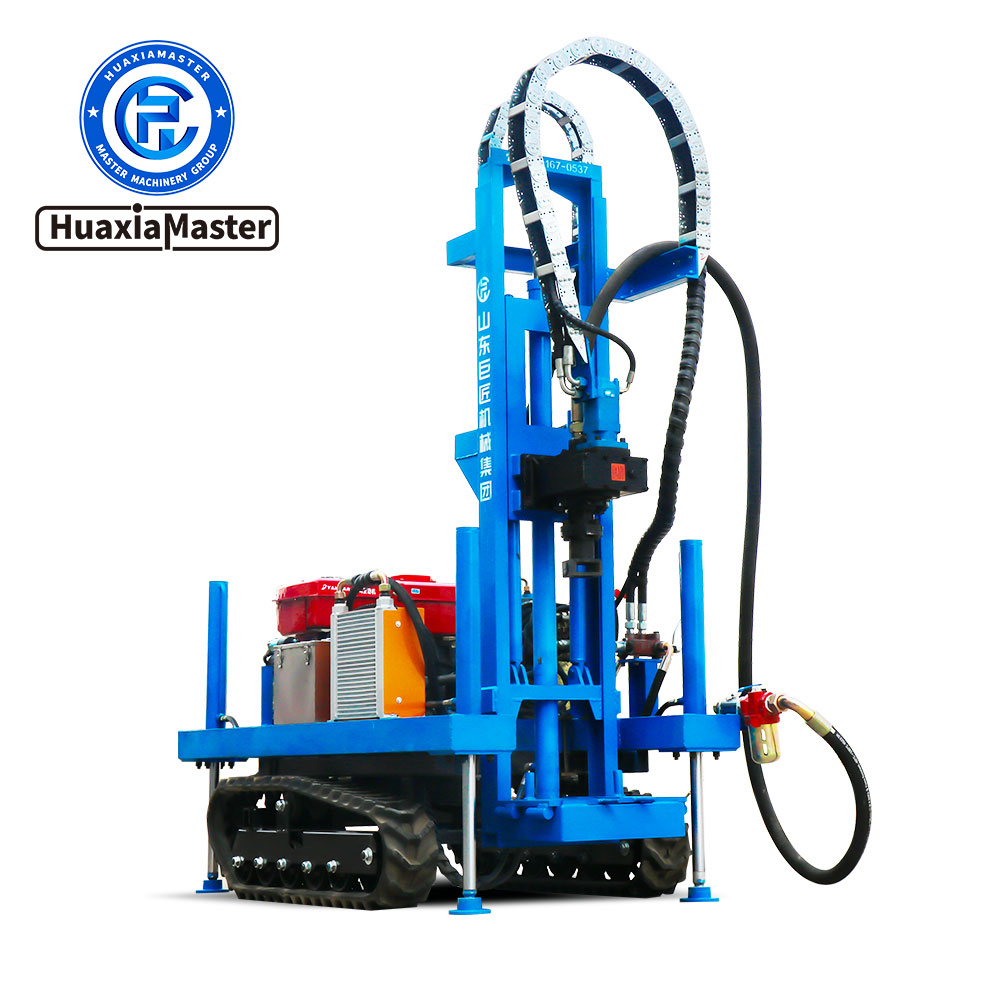

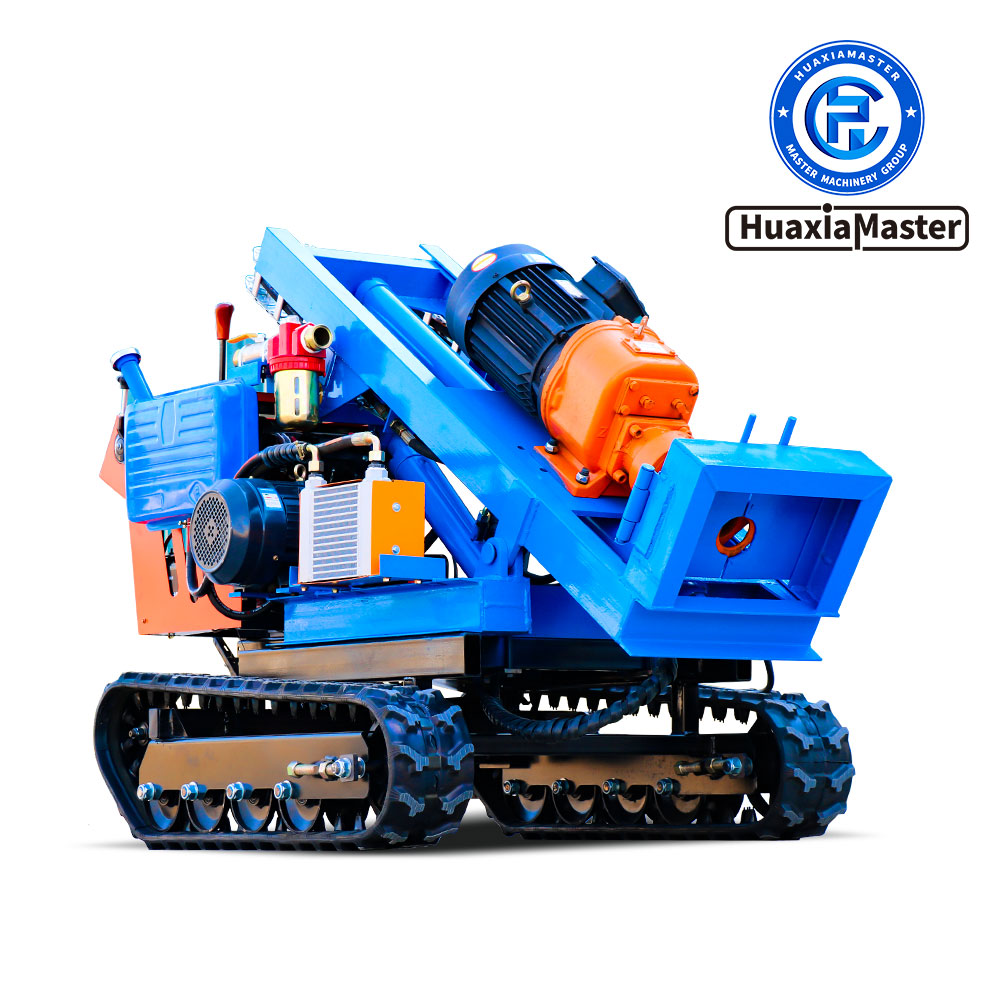

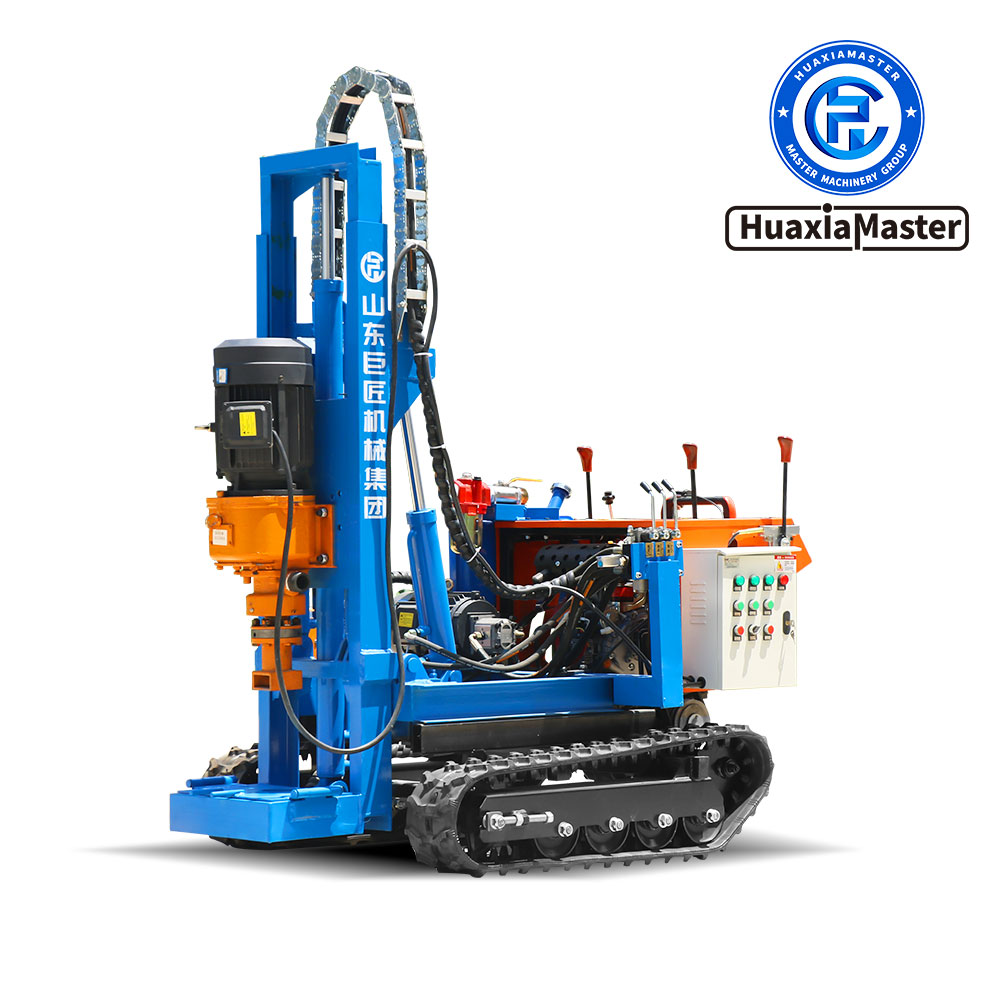

KQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig

Introduction toKQZDX Series Crawler Air-electric Linkage Down-the-hole DrillingRig

KQZDX series crawler air-electric linkage down-the-hole drilling rig is a highly efficient and flexible small open-pit crawler rock drilling equipment. It uses compressed air to drive the impactor to generate high-frequency impact force on the drill bit. At the same time, the electric motor drives the drill bit to rotate at high speed to achieve efficient rock crushing. It can adapt to a wide range of strata from soft rock to extremely hard rock. It is mainly used in open-pit mine blasting holes, large-scale stone engineering, water conservancy and hydropower construction and other fields.

Features of KQZDX Series Crawler Air-electric Linkage Down-the-hole DrillingRig

2.1 Equipped with crawler walking chassis, no need for manual movement, making it more convenient to move the machine.

2.2 The drilling rig is advanced and lifted by hydraulic cylinder, which makes the work more efficient.

2.3 The drilling frame angle can be adjusted to achieve 35-90° multi-angle drilling construction.

2.4 The power head can rotate forward, reverse and inching to meet various construction requirements.

2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.

2.6 Made of high-strength materials, it has good wear resistance and impact resistance, reducing the cost of repairing and replacing equipment.‌

ParametersofKQZDX Series Crawler Air-electric Linkage Down-the-hole Drilling Rig

Category Specifications	Drilling rig category	Crawler Type Air-electric Down-the-hole Drilling Rig
Drilling rig model	KQZDX-100D	KQZDX-100DS	KQZDX-120D
Performance parameters	Applicable rock	F=6~20	F=6~20	F=6~20
Drilling diameter	50~150mm	50~150mm	50~150mm
Drilling depth	25~30m	25~30m	30~35m
Advancement	1500mm	1500mm	1500mm
Lifting height	2800mm	2800mm	2800mm
Machine parameters	Chassis	Rubber crawler mechanical walking chassis	Rubber crawler mechanical walking chassis	Rubber crawler mechanical walking chassis
Chassis travel power	Single cylinder 8HP diesel engine	Single cylinder 8HP diesel engine	Single cylinder 8HP diesel engine
Hydraulic pump drive motor	4kW/380V	4kW/380V	4kW/380V
Motor	4kW/380V	5.5kW/380V	7.5kW/380V
Machine weight	540kg	550kg	560kg
Machine size	180010001550mm	180010001550mm	180010001550mm
Hydraulic outriggers	Four pieces(Optional)	Four pieces(Optional)	Four pieces(Optional)

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
