Product Specification
| Brand | HUAXIAMASTER |
Product Descriptions

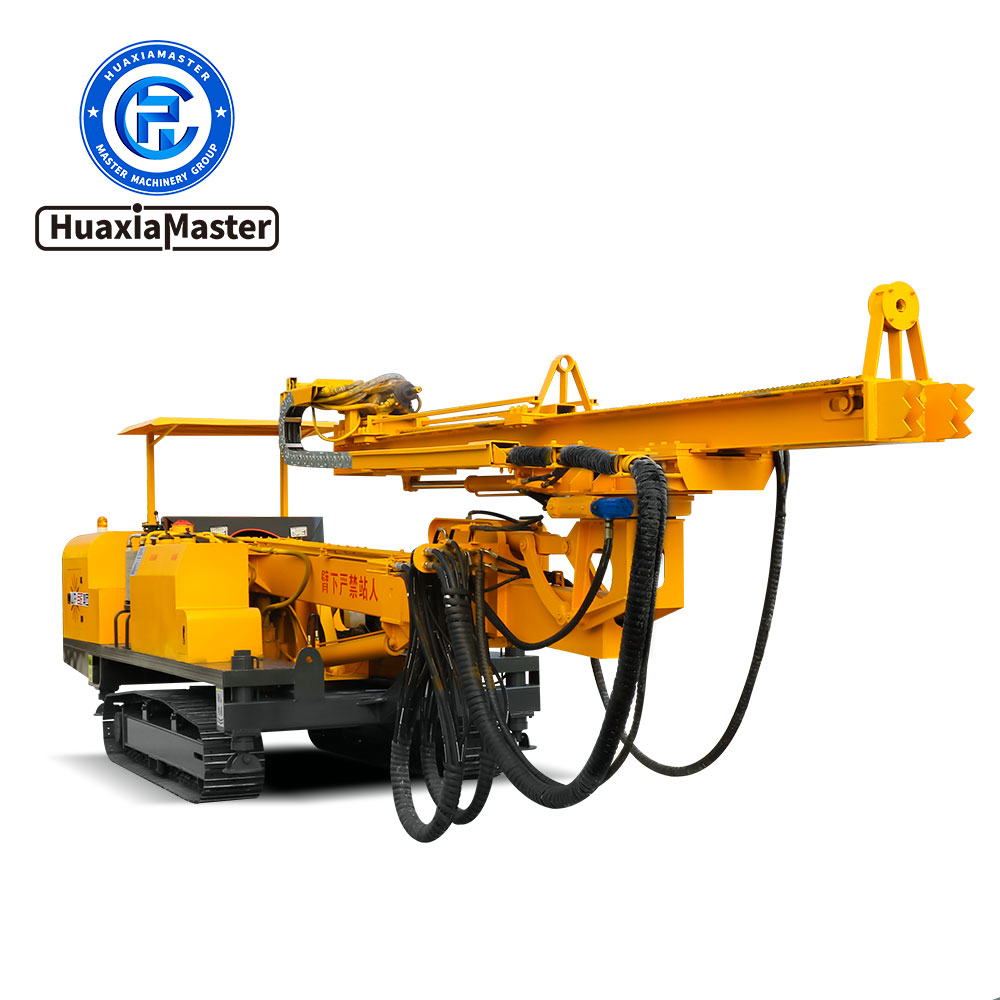

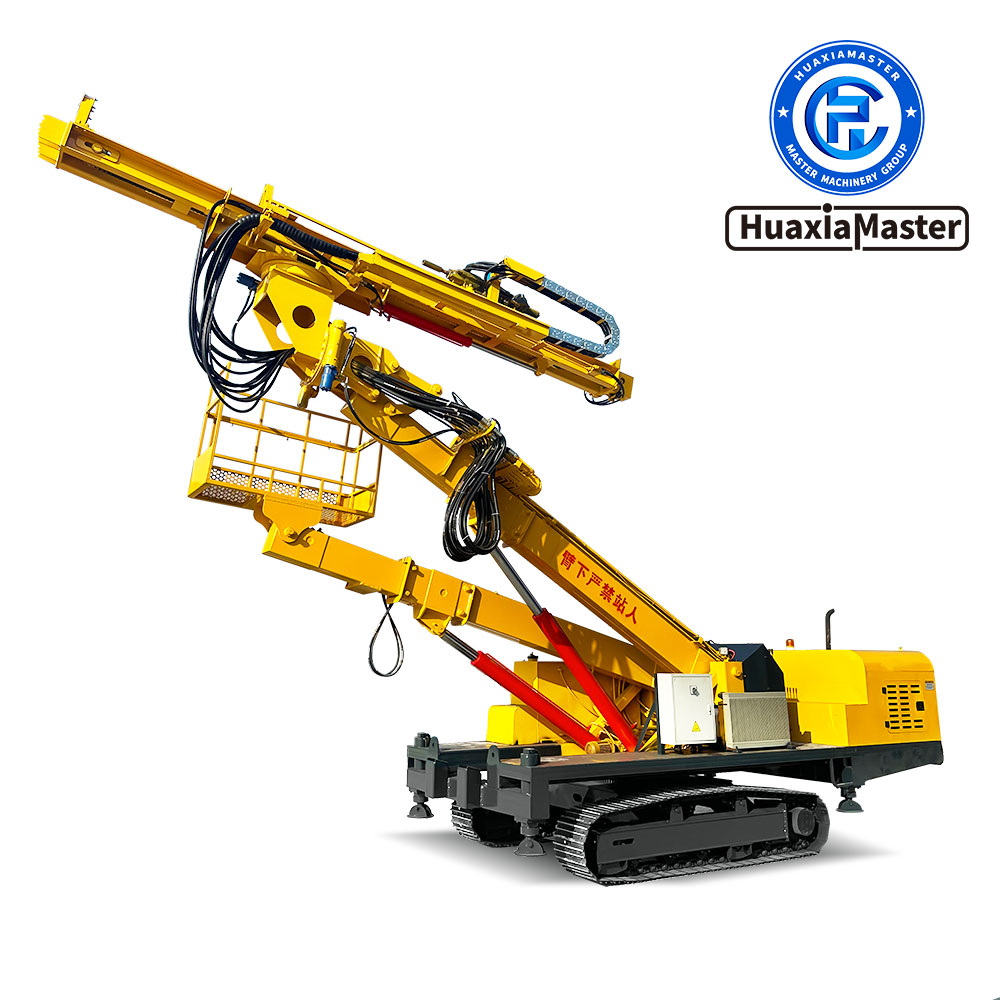

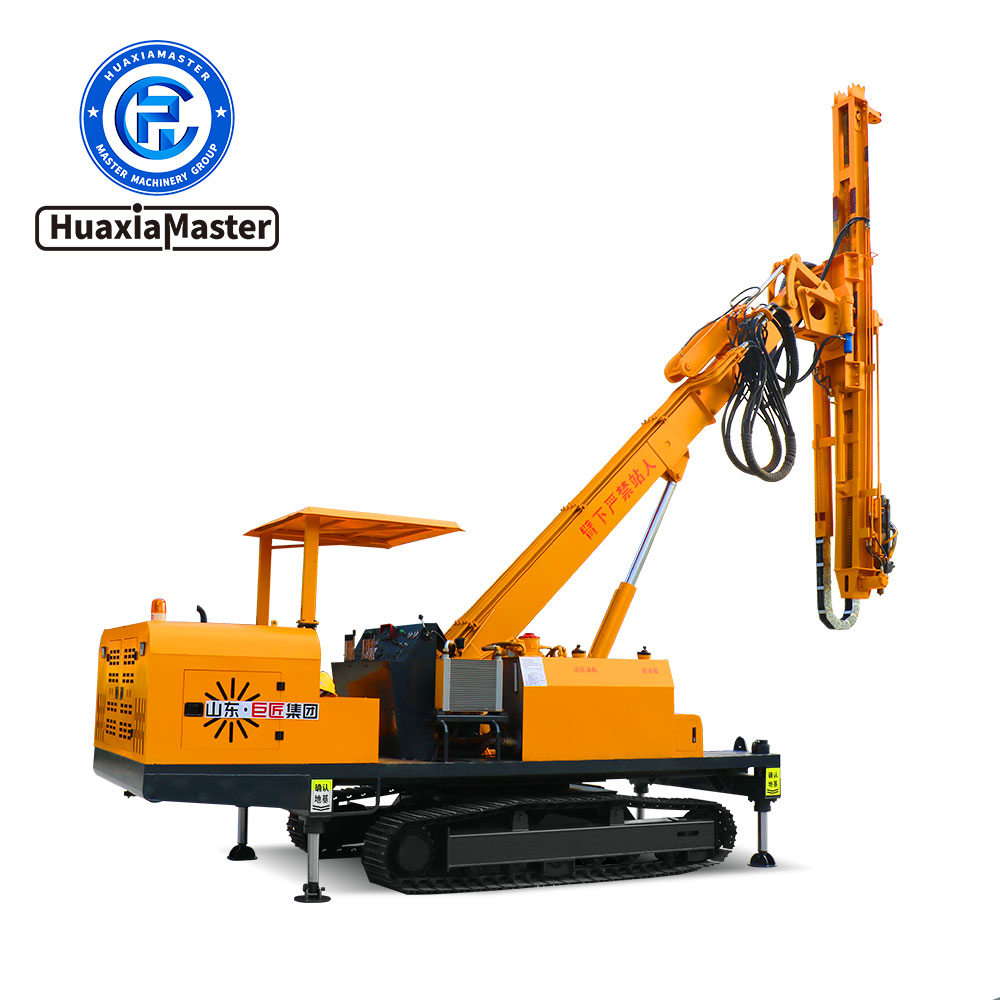

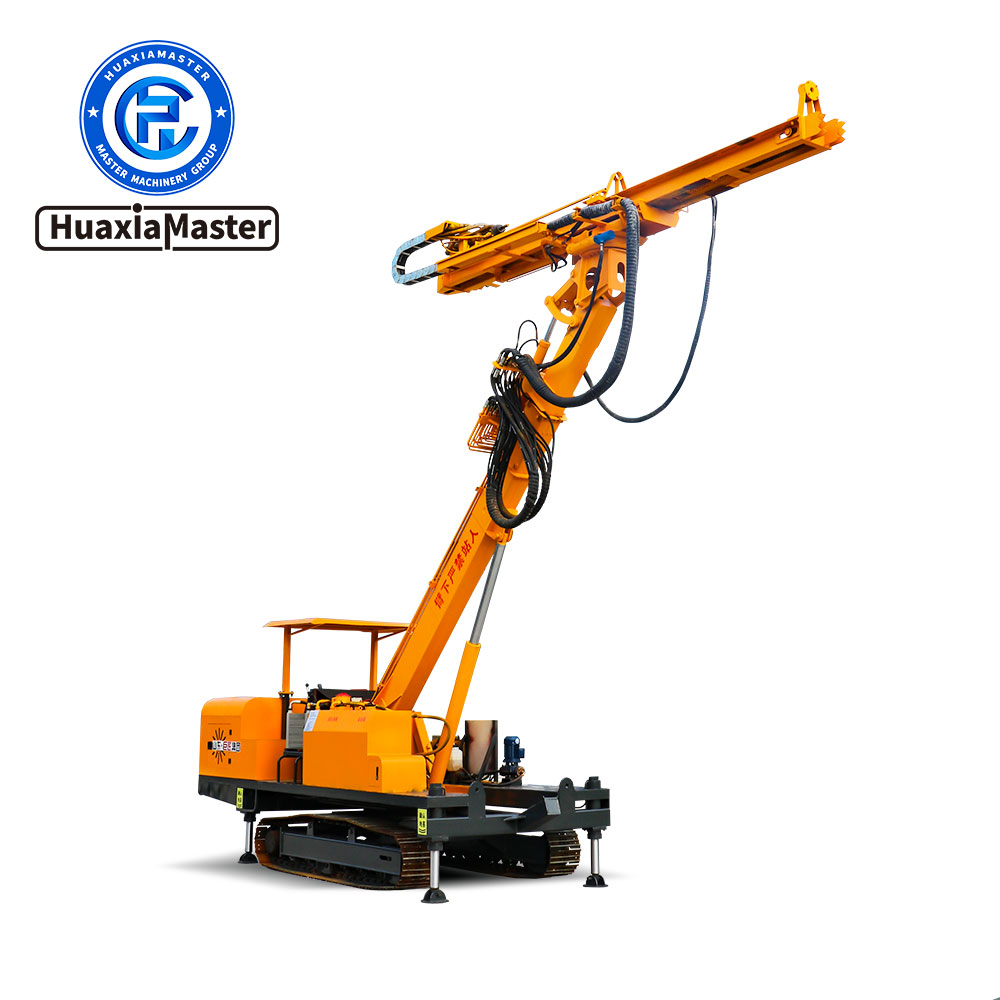

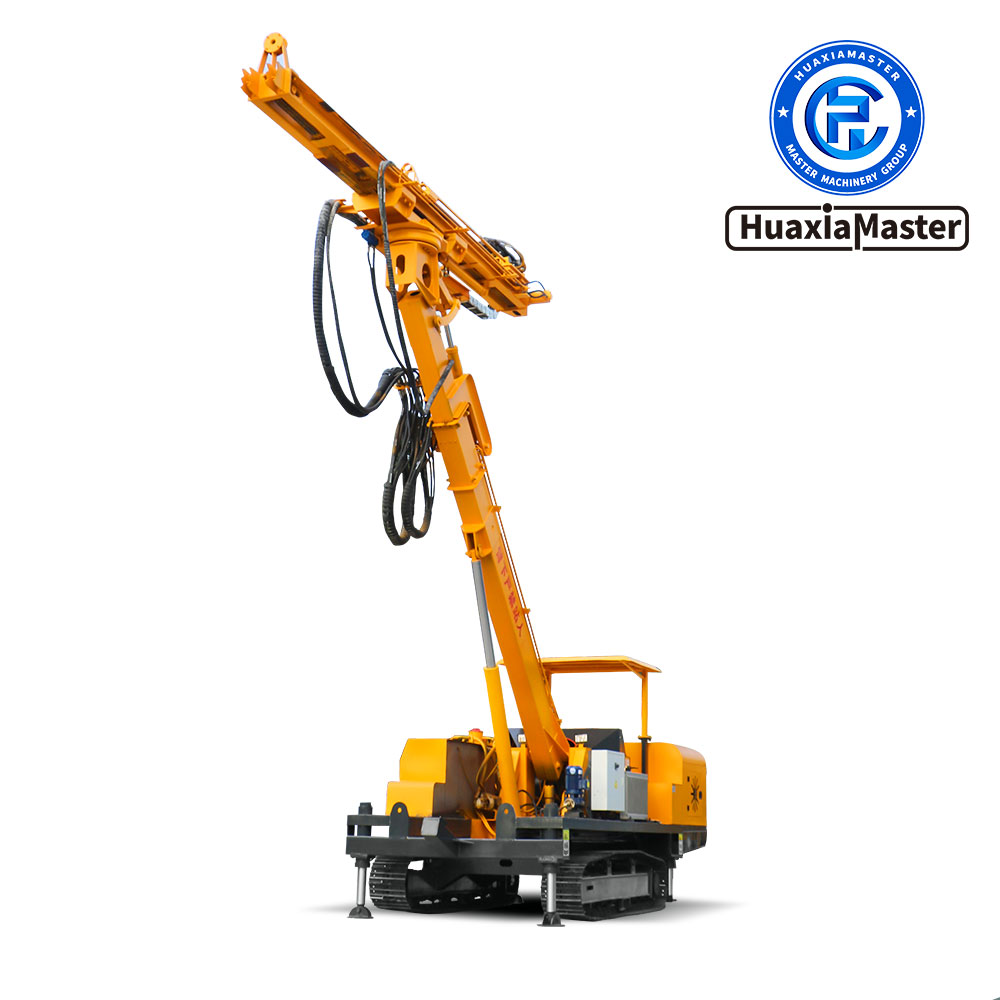

SMGZ Series Tunnel Anchor Drilling Rig
1. Introduction to SMGZ Series Tunnel Anchor Drilling Rig
The tunnel anchor drilling rig is a tunnel-specific engineering machinery equipment developed based on the construction needs of drilling and anchoring operations in tunnels. It is mainly used to accurately drill holes in the tunnel surrounding rock and assist in the installation of anchor rods, anchor cables and other supporting structures, and cooperate with grouting to enhance rock stability, prevent collapse, and ensure construction safety. The excellent operability combined with powerful power can significantly improve construction efficiency and operation accuracy, and has been recognized by the majority of construction units.
2. Features of SMGZ Series Tunnel Anchor Drilling Rig
2.1 All-round drilling: The drilling frame can rotate 360°, which can realize all-round anchoring operations in the tunnel.
2.2 Diversified operation modes: Equipped with high-performance dual hydraulic power heads or automatic impact rock drill heads to achieve diversified operations.

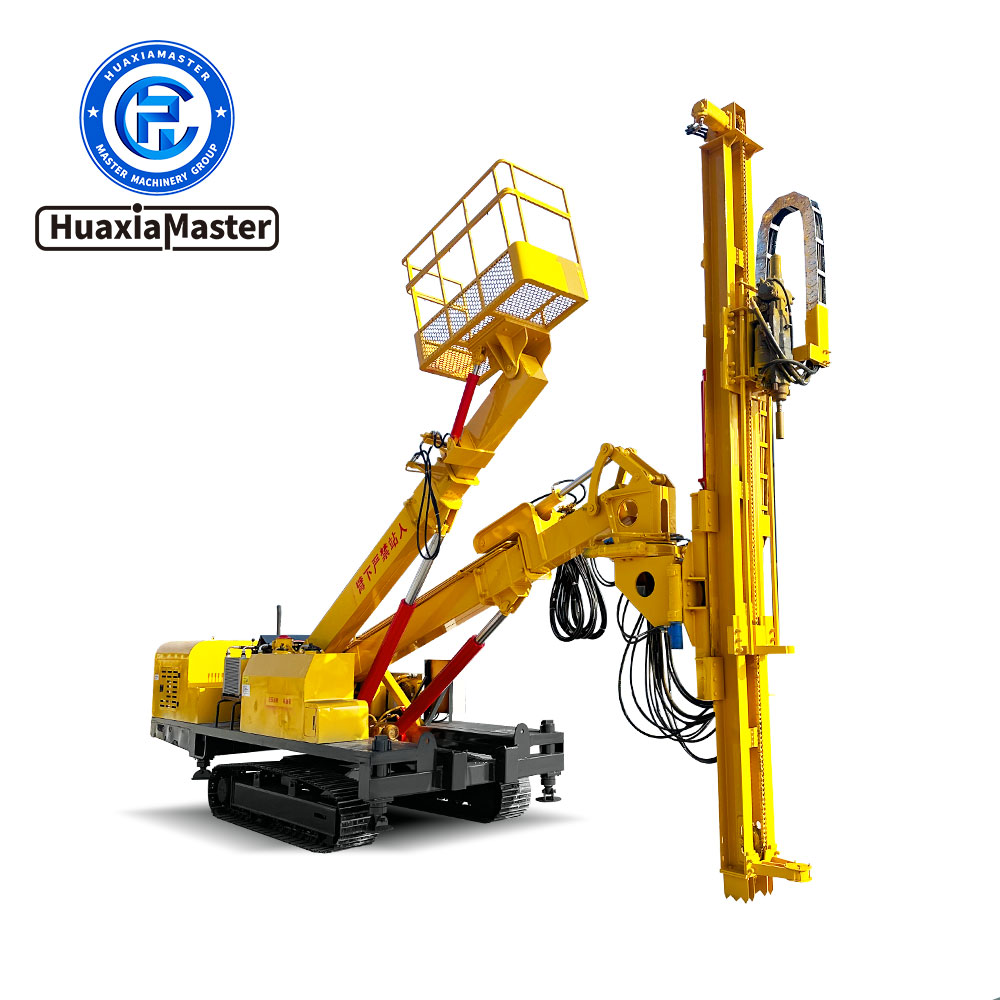

2.3 Diversified configuration: The basket arm can be configured to provide a lifting platform for auxiliary work such as charging, clearing hazards, hanging nets, etc., reducing the tedious work of scaffolding and greatly improving the safety and efficiency of construction.
2.4 Easy to move: It adopts crawler-type walking mode, which can adapt to the complex ground in the tunnel and can be flexibly maneuvered in narrow spaces.
2.5 Strong adaptability to terrain conditions: Suitable for various soil and rock conditions, showing strong environmental adaptability.
3.Parameters of SMGZ Series Tunnel Anchor Drilling Rig
Drilling rig specifications | SMGZ-8 | SMGZ-10 | SMGZ-13S | ||||
Performance parameters | Lifting height | 8m | 10m | 13m | |||
Drilling diameter | 50~300mm | 50~300mm | 50~300mm | ||||
Anchor diameter | 45~89mm | 45~89mm | 45~89mm | ||||
One-time push depth | 4m/customizable | 4m/customizable | 4m/customizable | ||||
Propulsion method | Hydraulic motor chain | Hydraulic motor chain | Hydraulic motor chain | ||||
Machine parameters | Working arm configuration | 1 drill arm | 1 drill arm | 1 drill arm 1 basket arm | |||
Drill rack rotation angle | 360° | 360° | 360° | ||||
Power head | Double hydraulic power head | Hydraulic rock drill | Double hydraulic power head | Hydraulic rock drill | Double hydraulic power head | Hydraulic rock drill | |
Power | 4108 Yuchai | 4108 Yuchai | 4108 Yuchai | ||||
Power | 91kW | 91kW | 91kW | ||||
Hydraulic Radiator | Large air cooling radiator * 2 | Large air cooling radiator * 2 | Large air cooling radiator * 2 | ||||
Chassis rotation | 360° | 360° | 360° | ||||
Track chassis size | 3000*2200mm | 3200*2400mm | 3500*2400mm | ||||
Track shoe width | 400mm | 400mm | 400mm | ||||
\
