Product Specification
Product Descriptions

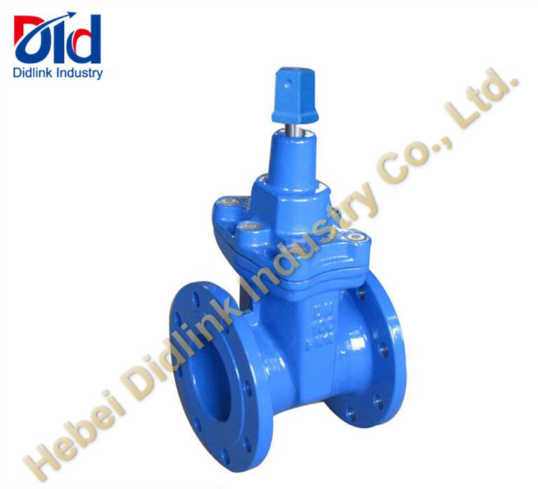

Name:DIN non return gate valve, 8 gate valve dimensions
Design confirms:DIN3352
Flanges drilled confirms:DIN2501/EN1092-2 PN10/16/25
Tightness check:API 598/ISO 5208/EN12226-1
Face-to-face conform:DIN3352/DIN3202 F4(ISO5752 Series14)/EN558-1 Series144
Normal pressure:1.6MPa
Shell test pressure:2.4Mpa
Seal test prressure:1.76Mpa
Sultable medlum:water and neutral liquid-20 to 120 centigrade.
Working temperature:(EPDM:-20 to 120, NBR: -10 to 80)
Body/Bonnet/Dlsc:Cast iron/ductile iron/CI/DI/GG25/GGG40/GGG50/HT200/QT450
Seat:EPDM/NBR
Stem:Stainless steel, brass, bronze, steel with zinc
Gland follower:Brass/ductile iron
\
