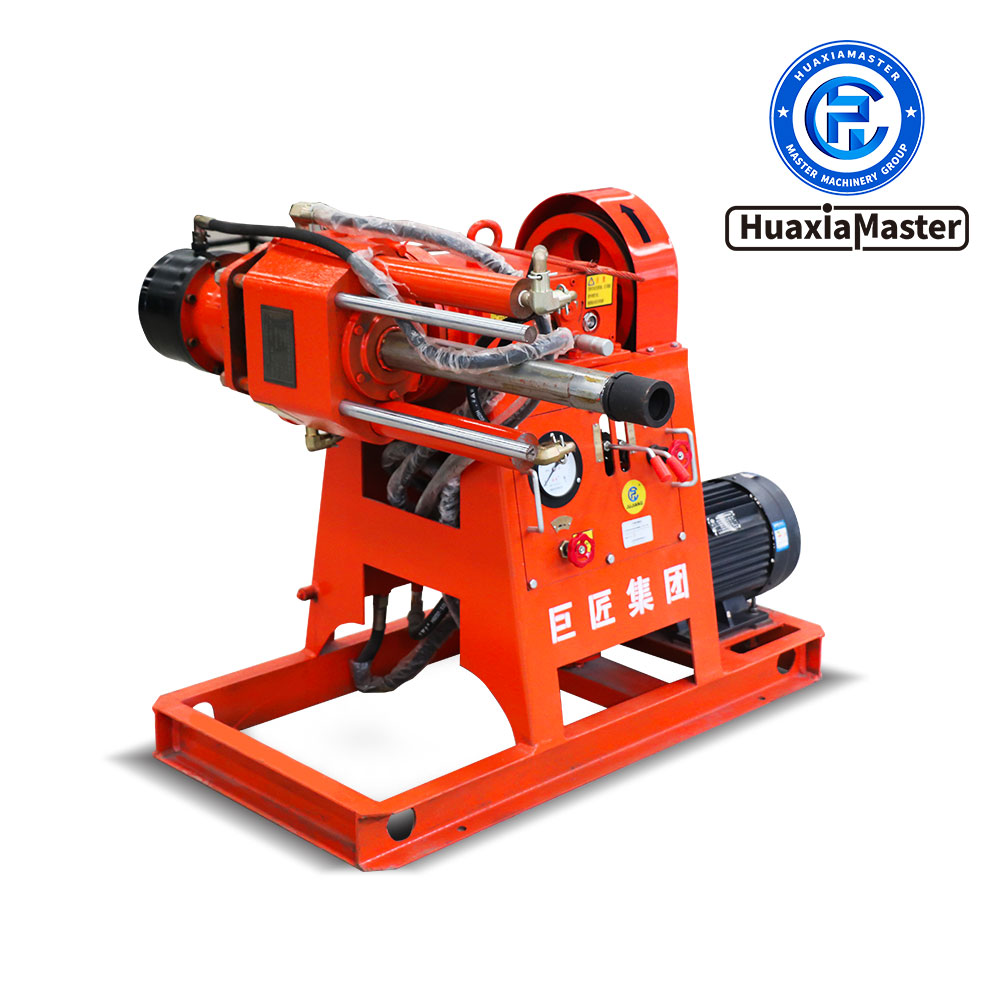

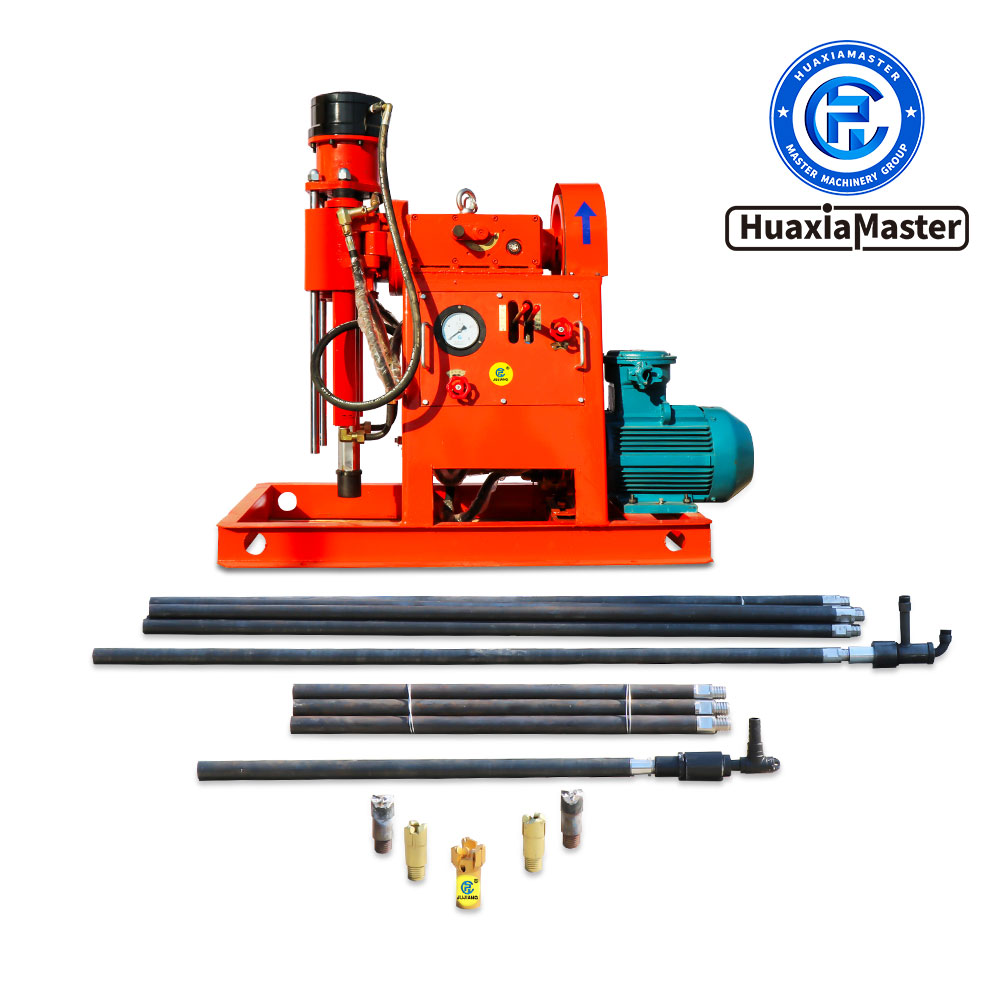

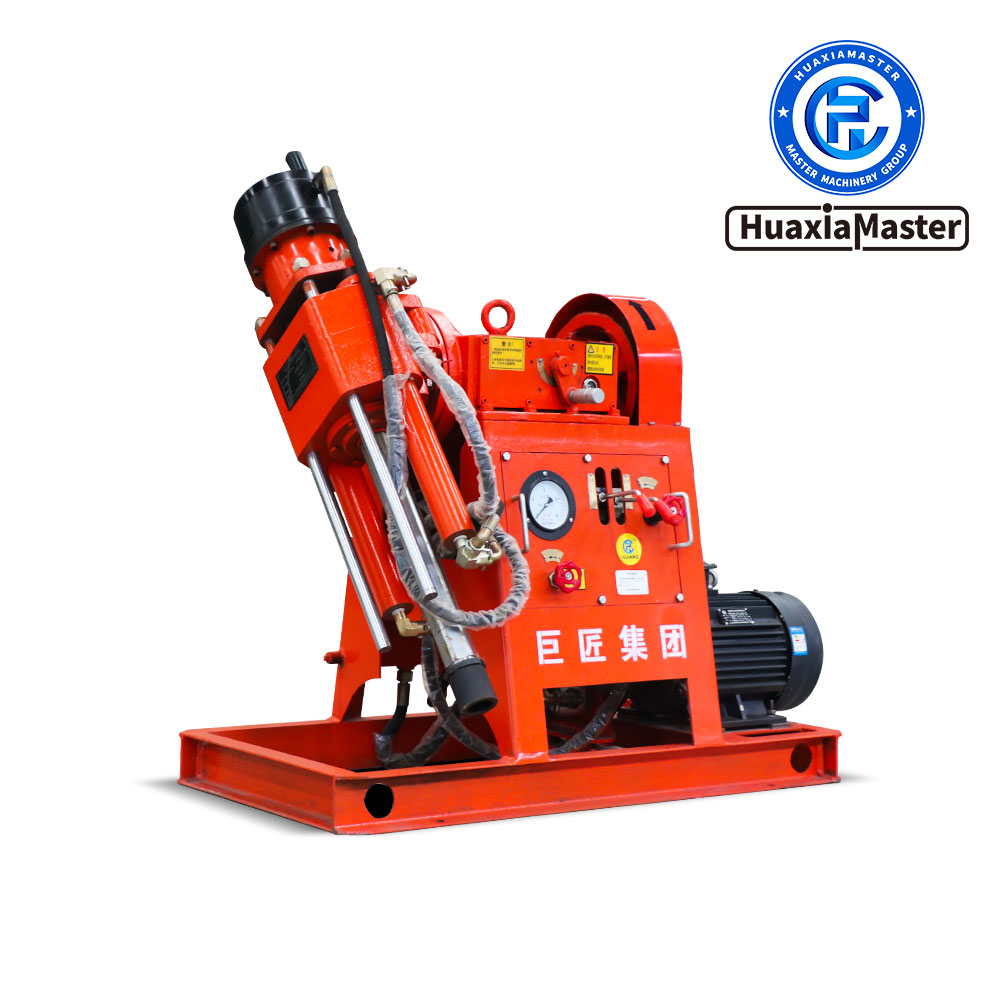

ZLJ Series Grouting Reinforcement Drilling Rig

1.Introduction to ZLJ Series Grouting Reinforcement Drilling Rig

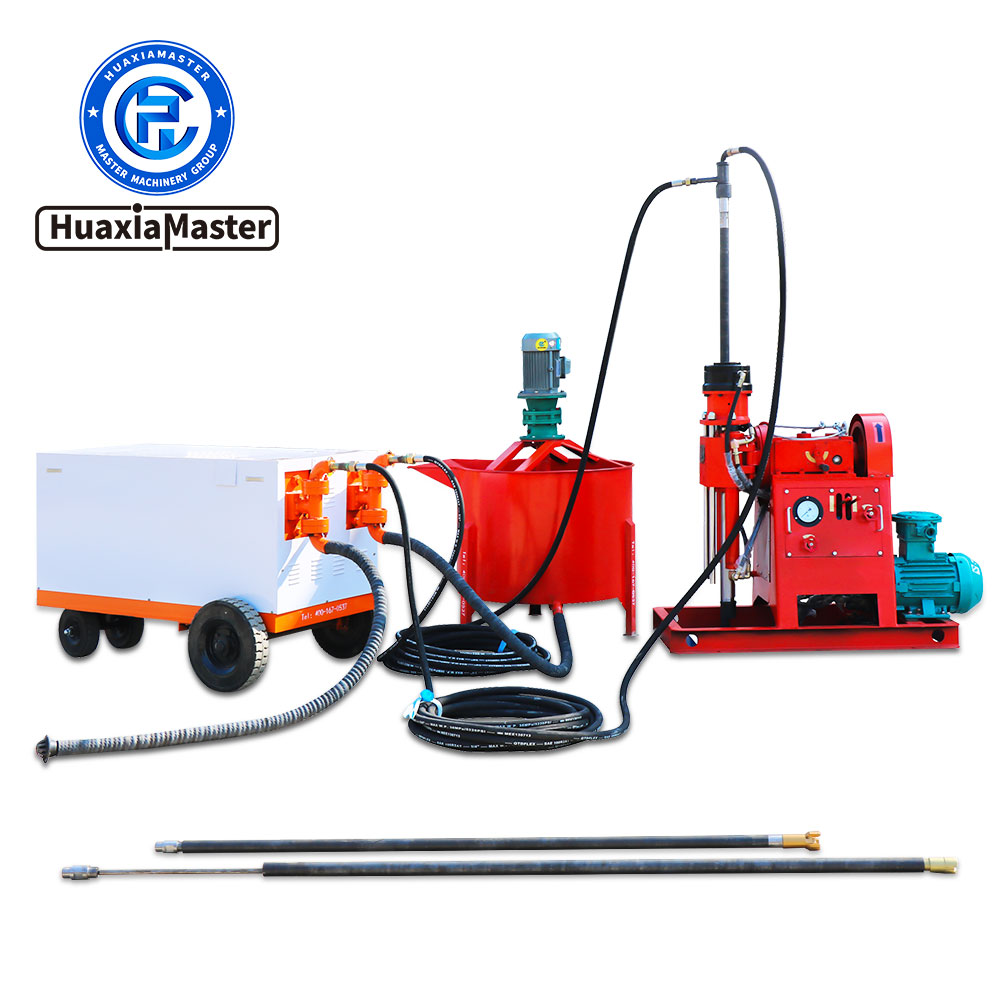

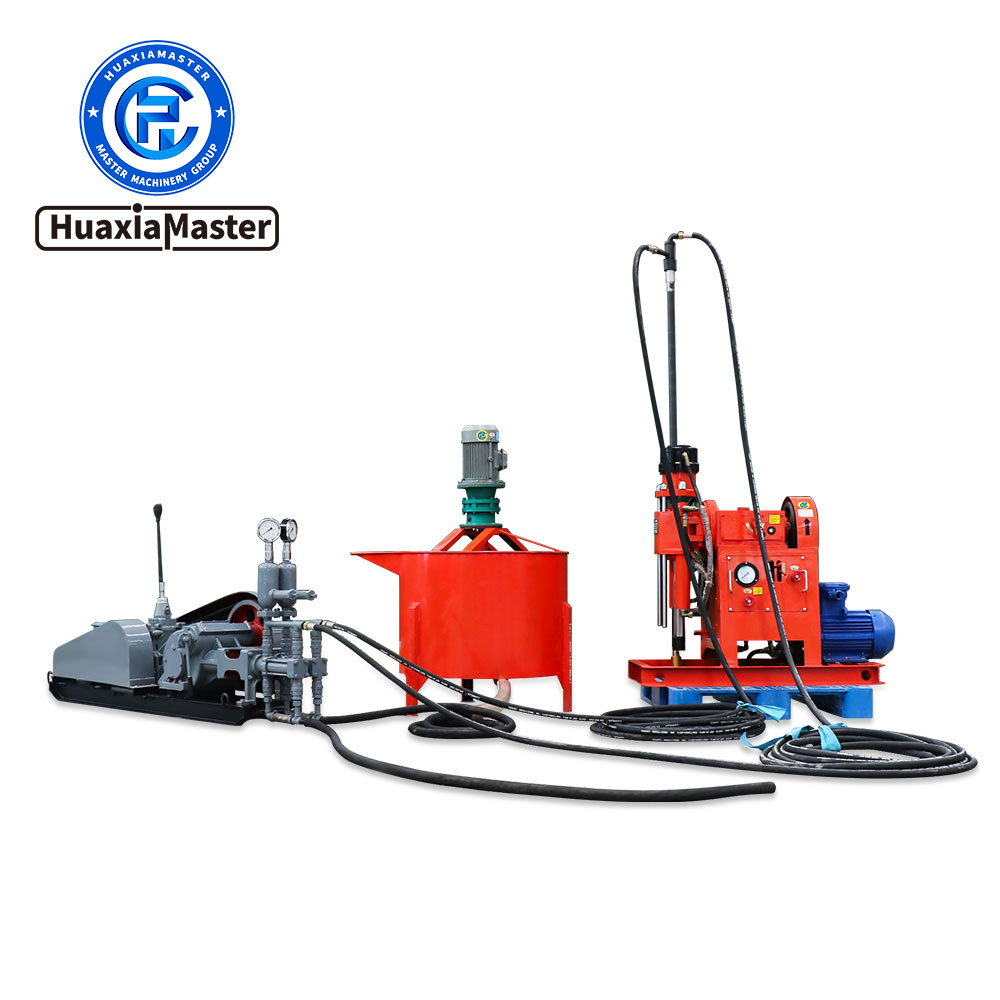

The grouting reinforcement drilling rig is a type of engineering machinery specifically designed for drilling and grouting reinforcement operations. It integrates two core functions: drilling and grouting, and is widely used in engineering fields such as tunnels, mines, water conservancy and hydropower, subways, foundation pit support, foundation treatment, slope management, and disaster prevention. It is an indispensable key equipment in modern geotechnical engineering and geological disaster control.

2.Features of ZLJ Series Grouting Reinforcement Drilling Rig

2.1 The drilling rig integrates drilling and grouting functions, eliminating the need to replace other equipment and improving construction efficiency.

2.2 The overall design of the drilling rig is compact, making it convenient for construction in narrow spaces.

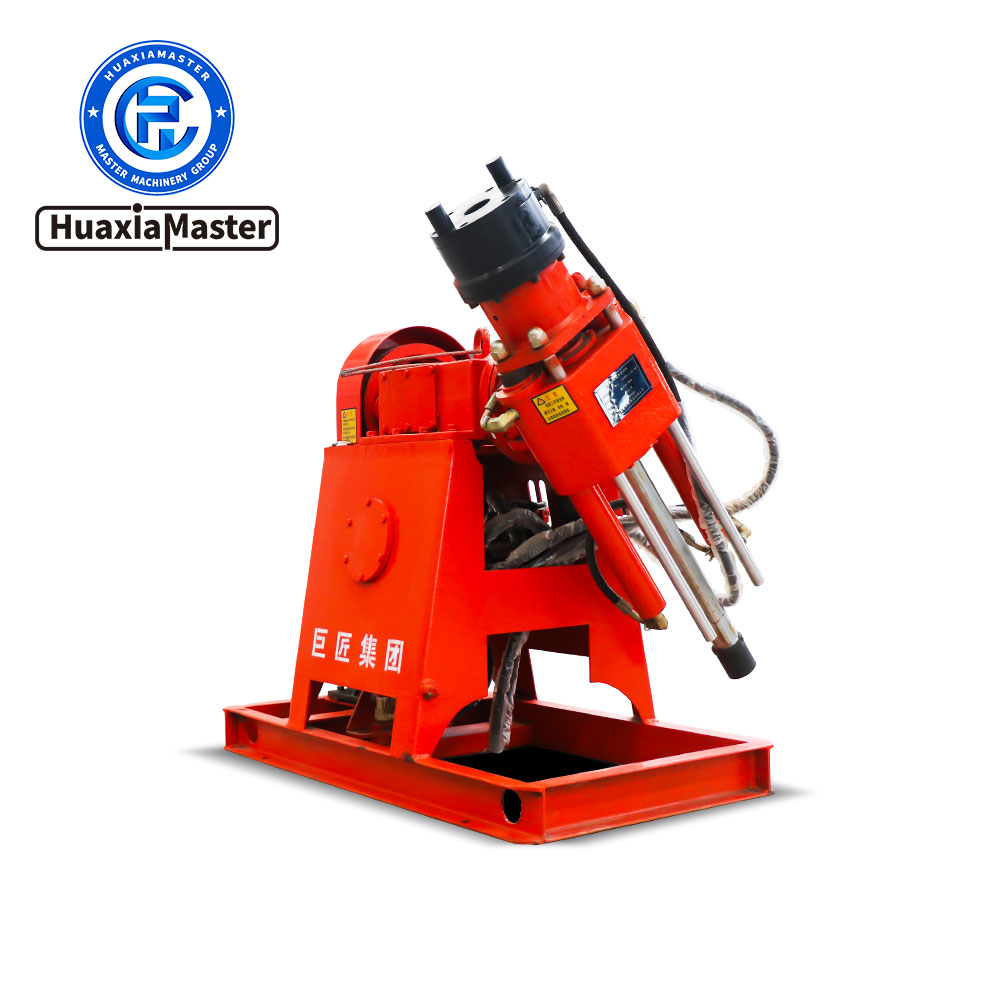

2.3 The drilling angle can be adjusted by rotating the vertical shaft to meet the needs of multi-angle grouting.

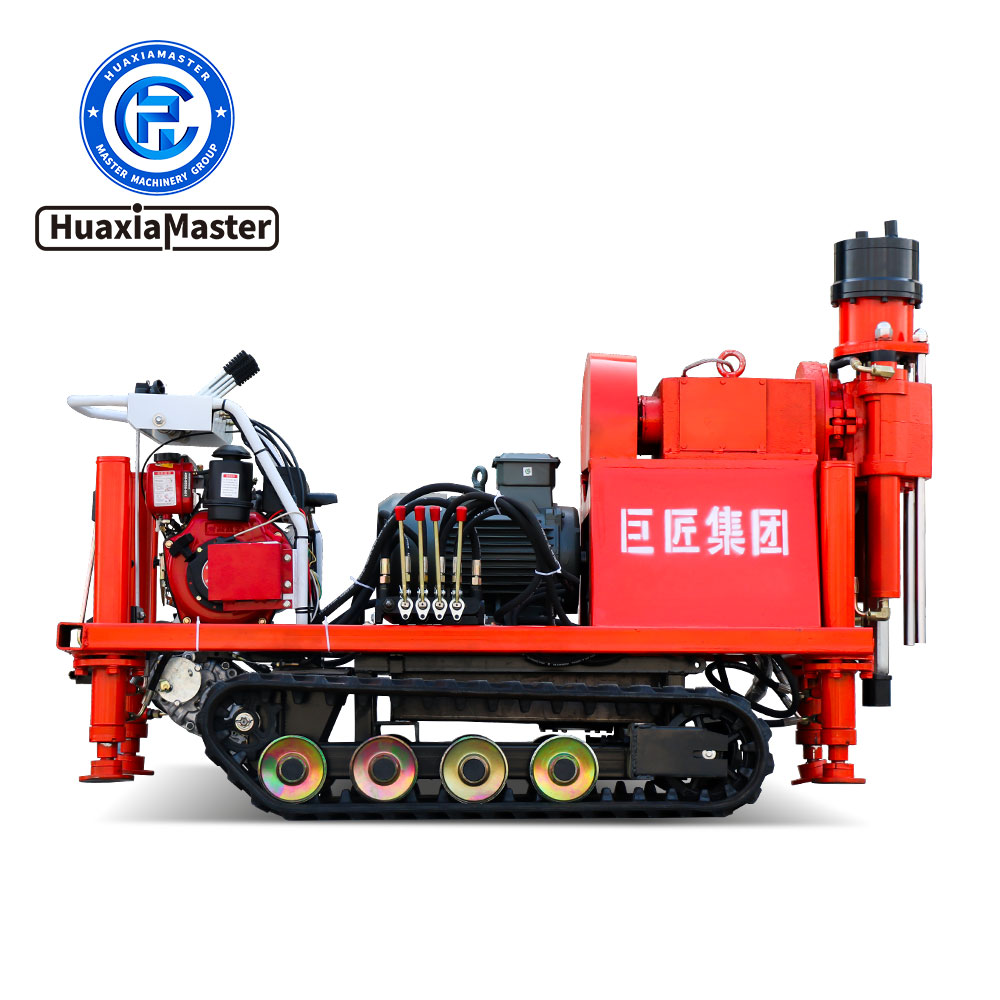

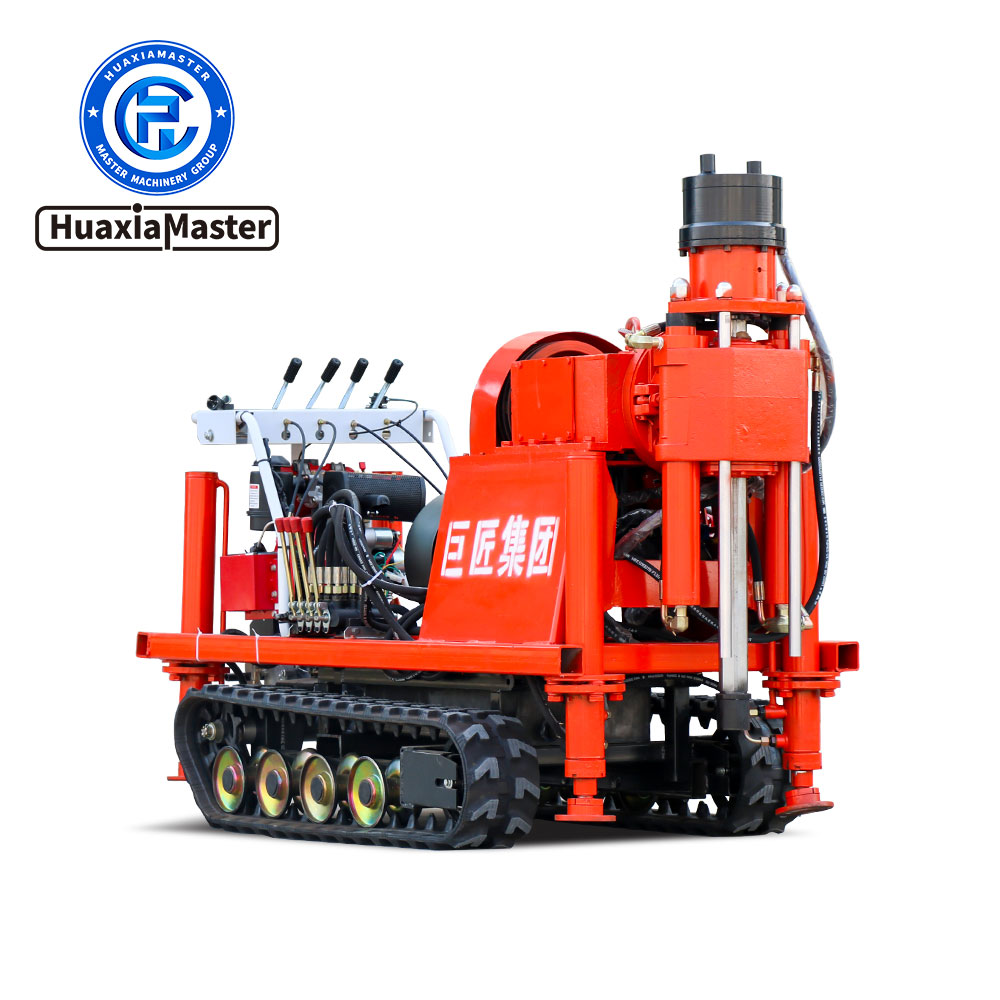

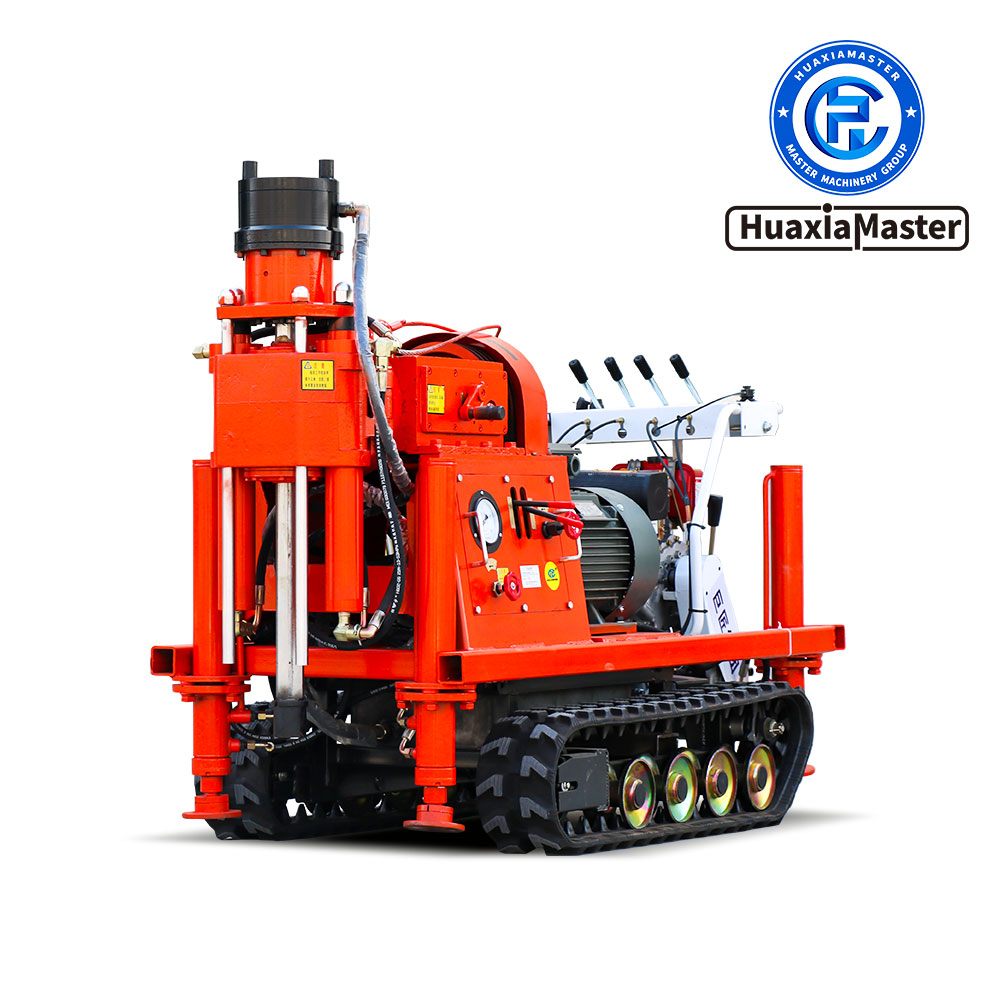

2.4 Optional rubber steel wire crawler chassis or electric three-wheeled vehicle chassis, which is convenient for moving and does not damage the road surface.

3.Parameters of ZLJ Series Grouting Reinforcement Drilling Rig

Drilling Rig Model	ZLJ-350	ZLJ-650	ZLJ-1200	ZLJ-1200D	ZLJ-1600D	ZLJ-1200C
Drilling Depth	150m	200m	200-250m	200-250m	200-250m	200-250m
Drill Pipe Diameter	42mm	42mm	42/50mm	42/50mm	42/50mm	42/50mm
Drilling Diameter	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm
Drilling Angle	0~360°	0~360°	0~360°	0~360°	0~360°	0~360°
Spindle Diameter	42mm	42mm	42/54mm	42/54mm	42/54mm	42/54mm
Spindle Speed	112/192/340r/min	88/150/270r/min	123/219/385r/min	123/219/385r/min	115/205/360r/min	123/219/385r/min
Maximum Spindle Torque	350N.m	650N.m	1200N.m	1200N.m	1600N.m	1200N.m
Spindle Feeding Stroke	400mm	400mm	400mm	400mm	400mm	400mm
Rated Feeding Force	30kN	30kN	30kN	30kN	30kN	30kN
Rated Pulling Force	50kN	50kN	50kN	50kN	50kN	50kN
Oil Pump Model	YBC-20/80	YBC-20/80	YBC-20/80	YBC-20/80	YBC-20/125	YBC-20/80
Rated Oil Pump Flow	20 L/min	20 L/min	20 L/min	20 L/min	20 L/min	20 L/min
Rated Oil Pump Pressure	12.5MPa	12.5MPa	12.5MPa	12.5MPa	20MPa	12.5MPa
Rated Pressure of Hydraulic System	8MPa	8MPa	8MPa	8MPa	12.5MPa	8MPa
Motor Power	5.5kW	7.5kW	11kW	11kW	15kW	11kW
Rated Voltage	380/660V	380/660V	380/660V	380/660V	380/660V	380/660V
Travel Chassis	/	/	/	Steel wire rubber crawler	Steel wire rubber crawler	Electric tricycle chassis
Overall Dimensions	12306301280mm	12007001280mm	14806801290mm	14806801290mm	19509001400mm	18508001380mm
Total Machine Weight	460kg	500kg	520kg	980kg	1070kg	1000kg

Note: The product is continuously improved. Changes may be made without prior notice. Please refer to the actual product.
