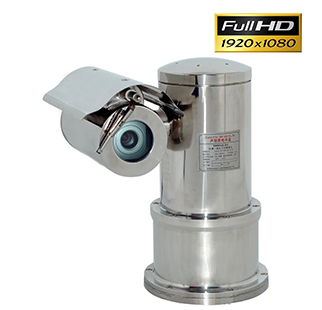

Explosion-proof PTZ Camera
DESCRIPTION Explosion-proof Integrated PTZ Camera System is used in the places, where is classified as Zone1 or Zone2, contained GroupⅡA, GroupⅡB and GroupⅡC gases, contained the mixture circumstance with the explosive gas atmospheres and flammable mists or dusts , where is classified as Zone21 or Zone 22. Temperature group T1~T6. It is ideal for weak light、hazardous environment and farther range control applications. With outside washer and reservoir and all mechanical structure, it has integrated design, compact structure, small shape as well as easy installation and maintenance. With functions of maximum cruise speed for Ex products and characteristic speed change, it has flexible operation and quicker feedback.

<table>
<tr>
<td>Certificate of Conformity (Electrical Apparatus for  Explosive Atmospheres)：ATEX</td>
<td></td>
<td></td>
</tr>
<tr>
<td>Marking：ExdII CT6/DIP A20 TA, T6</td>
</tr>
<tr>
<td>Ingress Protection ：IP68</td>
<td></td>
<td></td>
</tr>
<tr>
<td>Configuration Mode：Integrated configuration without external connection; Fixed cable entry</td>
<td></td>
<td></td>
</tr>
<tr>
<td>MAIN FEATURES</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Applicable to Zone 0 and dust-ignition environment</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   316L, 316, 304 stainless steel optional</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Integrated configuration, built-in multifunctional decoder</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Design and manufacture on GB3836-2000 and GB12476.1-2000 basis</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Polished finish appearance, corrosion-proof treated internal parts</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Sunshield, wash and water tank, wiper, heater, presets, camera optional</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Camera Full HD 1080p</td>
<td></td>
<td></td>
</tr>
<tr>
<td>GENERAL</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   316L, 316, 304 stainless steel optional</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Electro-polished surfaces</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Silicone O-ring seals</td>
<td></td>
<td></td>
</tr>
<tr>
<td>MECHANICAL</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Unit weight: 16kg</td>
<td></td>
<td></td>
</tr>
<tr>
<td>ELECTRICAL</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Input Power : DC12V(AC220V) Optional)</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Electrical Connectivity: Composite Cable</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Cable Requirement: Power Supply: 2×1.0mm²(24V)/2×0.75mm²(220V AC) Communication： Shield 2×0.3mm²  Video:75Ω</td>
</tr>
<tr>
<td>   Cable Entry Holes: 1 × G-1/2″</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Horizontal speed (°/s): ixed (6-20) / 4-20 adjustable / 0.1~40 adjustable</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Vertical Speed (°/s):  Fixed (6-20) / 4-20 adjustable / 0.1~40 adjustable</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Pan Range: Continuously 360° rotation</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Tilt Range: ±90°</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Preset: Optional</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Electric Motor：The permanent magnetism electrical motors of high torque matches the </td>
<td></td>
<td></td>
</tr>
<tr>
<td>                           planetary gear reducer of high precision</td>
<td></td>
<td></td>
</tr>
<tr>
<td>CAMERA</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Image Sensor:     1/2.8" Progressive Scan CMOS</td>
</tr>
<tr>
<td>   Available Resolutions : 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080); 50HZ:25fps(1280x720) 60HZ:30fps(1280x720)</td>
</tr>
<tr>
<td>   Signal Format: NTSC, PAL</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Min. Illumination: Color: 0.05Lux @ (F1.6，AGC ON),  B/W: 0.01Lux @ (F1.6，AGC ON)</td>
<td></td>
<td></td>
</tr>
<tr>
<td>COMPRESSION STANDARD</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Video Compression: H.265/H.264</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Video Bit Rate: 32kbps-12Mbps</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Audio Compression:  G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM</td>
<td></td>
<td></td>
</tr>
<tr>
<td>LENS</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Focus: f=4.7mm - 94mm</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Optical Zoom: 20X</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Field Angle: 61.4°-2.9°</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Day/Night: Support IR-CUT</td>
<td></td>
<td></td>
</tr>
<tr>
<td>NETWORK</td>
<td>　</td>
<td>　</td>
</tr>
<tr>
<td>   Connector: RJ45, 10BASE-T/100BASE-T</td>
<td></td>
<td></td>
</tr>
<tr>
<td>   Supported Protocols: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,ONVIF</td>
<td></td>
</tr>
<tr>
<td>   Communication: PELCO-D</td>
<td></td>
<td></td>
</tr>
</table>

Quantity

Ship to Country

China

Member since : 21-Feb-2017

MAX TSUI

Basic Member

GO TO STORE

Request for quotation

Quantity

Ship to Country

Explosion-proof PTZ Camera

Highlights :

Min Order : 1

Safe and secure payments using Abraa safe trade systems

Item Details

Product Descriptions

Explosion-proof PTZ Camera

DESCRIPTION
Explosion-proof Integrated PTZ Camera System is used in the places, where is classified as Zone1 or Zone2,
contained GroupⅡA, GroupⅡB and GroupⅡC gases, contained the mixture circumstance with the explosive gas atmospheres and flammable mists or dusts , where is classified as Zone21 or Zone 22. Temperature group T1~T6. It is ideal for weak light、hazardous environment and farther range control applications. With outside washer and reservoir and all mechanical structure, it has integrated design, compact structure, small shape as well as easy installation and maintenance. With functions of maximum cruise speed for Ex products and characteristic speed change, it has flexible operation and quicker feedback.

Certificate of Conformity (Electrical Apparatus for Explosive Atmospheres)：ATEX
Marking：ExdII CT6/DIP A20 TA, T6
Ingress Protection ：IP68
Configuration Mode：Integrated configuration without external connection; Fixed cable entry
MAIN FEATURES
Applicable to Zone 0 and dust-ignition environment
316L, 316, 304 stainless steel optional
Integrated configuration, built-in multifunctional decoder
Design and manufacture on GB3836-2000 and GB12476.1-2000 basis
Polished finish appearance, corrosion-proof treated internal parts
Sunshield, wash and water tank, wiper, heater, presets, camera optional
Camera Full HD 1080p
GENERAL
316L, 316, 304 stainless steel optional
Electro-polished surfaces
Silicone O-ring seals
MECHANICAL
Unit weight: 16kg
ELECTRICAL
Input Power : DC12V(AC220V) Optional)
Electrical Connectivity: Composite Cable
Cable Requirement: Power Supply: 2×1.0mm²(24V)/2×0.75mm²(220V AC) Communication： Shield 2×0.3mm² Video:75Ω
Cable Entry Holes: 1 × G-1/2″
Horizontal speed (°/s): ixed (6-20) / 4-20 adjustable / 0.1~40 adjustable
Vertical Speed (°/s): Fixed (6-20) / 4-20 adjustable / 0.1~40 adjustable
Pan Range: Continuously 360° rotation
Tilt Range: ±90°
Preset: Optional
Electric Motor：The permanent magnetism electrical motors of high torque matches the
planetary gear reducer of high precision
CAMERA
Image Sensor: 1/2.8" Progressive Scan CMOS
Available Resolutions : 50HZ:25fps(1920x1080) 60HZ:30fps(1920x1080); 50HZ:25fps(1280x720) 60HZ:30fps(1280x720)
Signal Format: NTSC, PAL
Min. Illumination: Color: 0.05Lux @ (F1.6，AGC ON), B/W: 0.01Lux @ (F1.6，AGC ON)
COMPRESSION STANDARD
Video Compression: H.265/H.264
Video Bit Rate: 32kbps-12Mbps
Audio Compression: G.722.1、G.711-a law、G.711-u law、MP2L2、G.726、AAC、PCM
LENS
Focus: f=4.7mm - 94mm
Optical Zoom: 20X
Field Angle: 61.4°-2.9°
Day/Night: Support IR-CUT
NETWORK
Connector: RJ45, 10BASE-T/100BASE-T
Supported Protocols: TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP,ONVIF
Communication: PELCO-D
