Fully hydraulic engineering exploration drilling rig
Availability: in stock
Trade with confidence on Abraa
Safe and secure payments using Abraa safe trade systems
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
Buyer Protection
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
Product Specification
| Brand | HUAXIAMASTER |
Product Descriptions

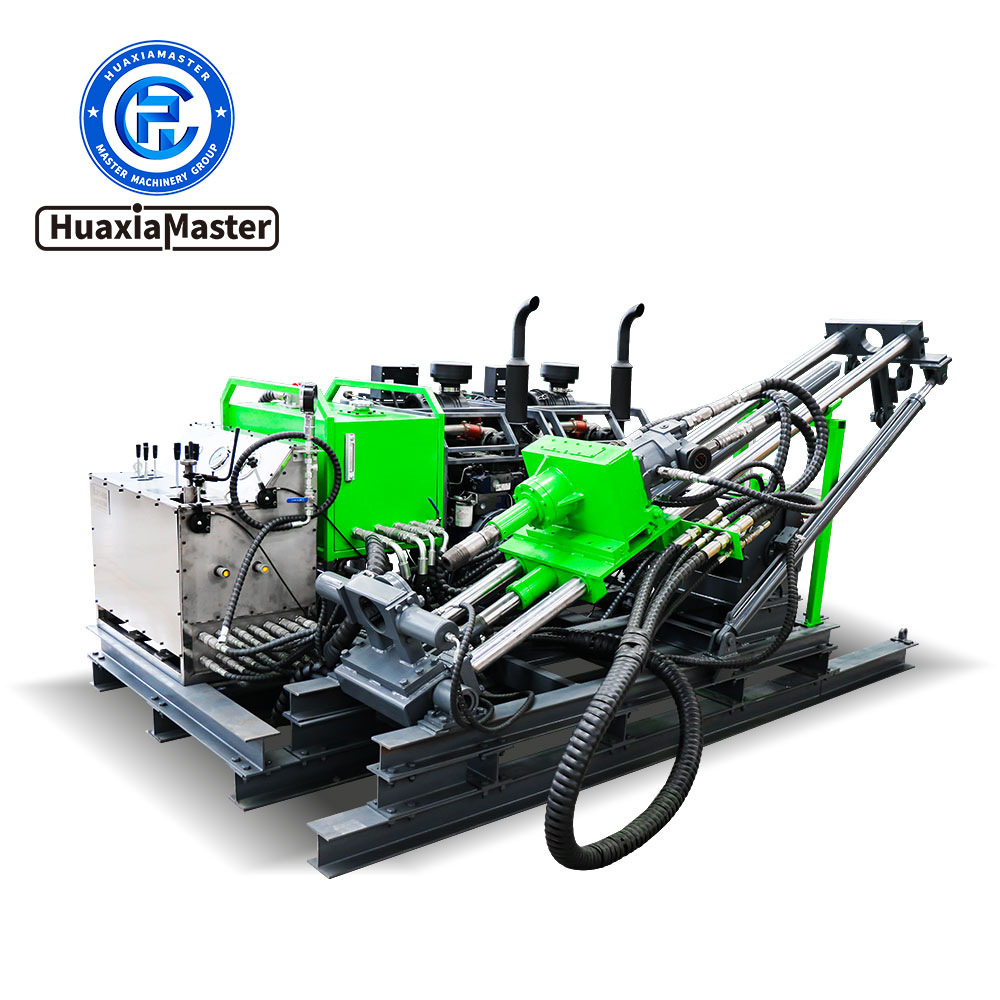

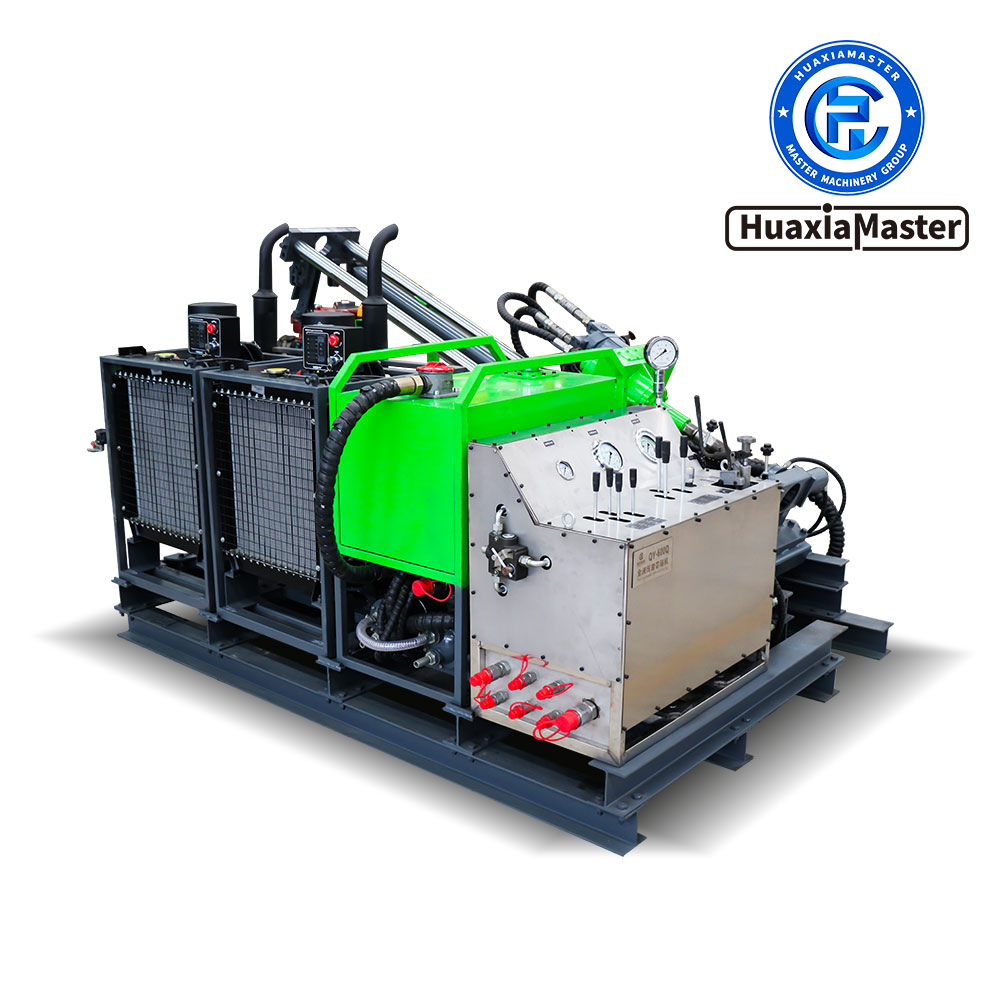

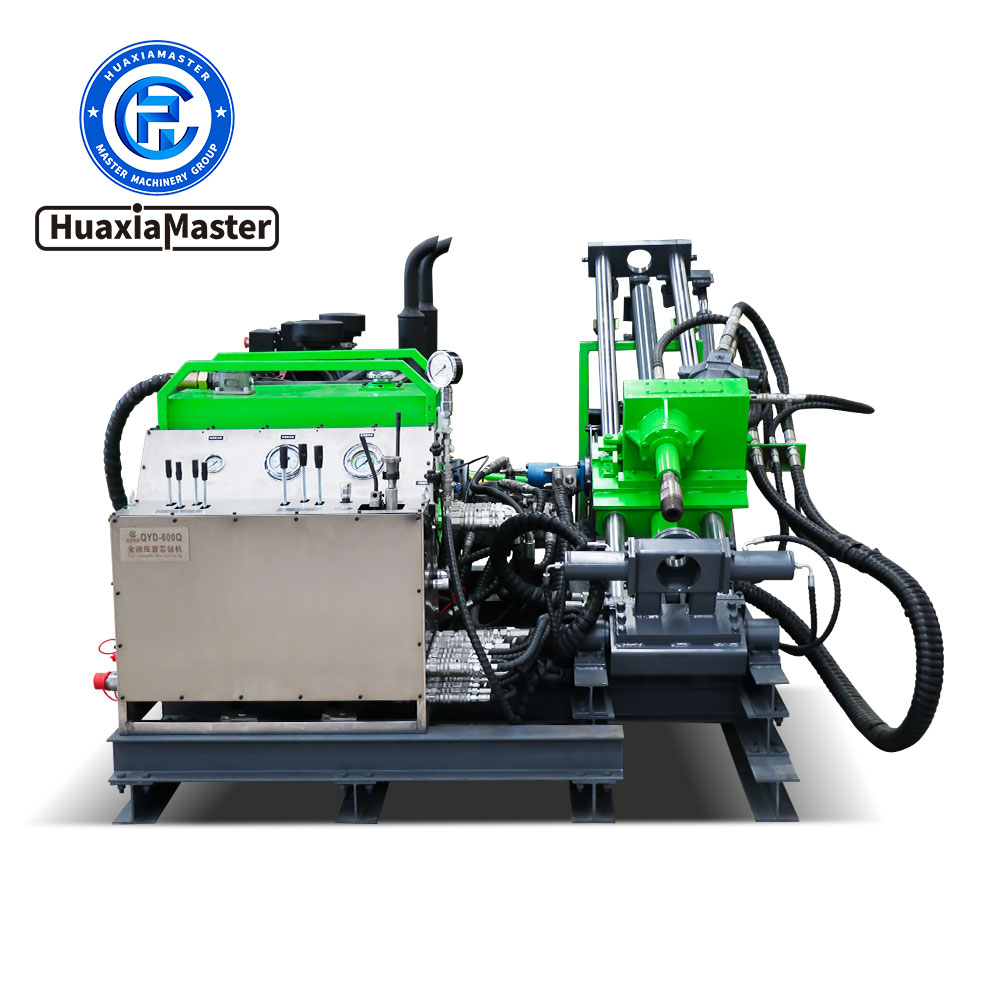

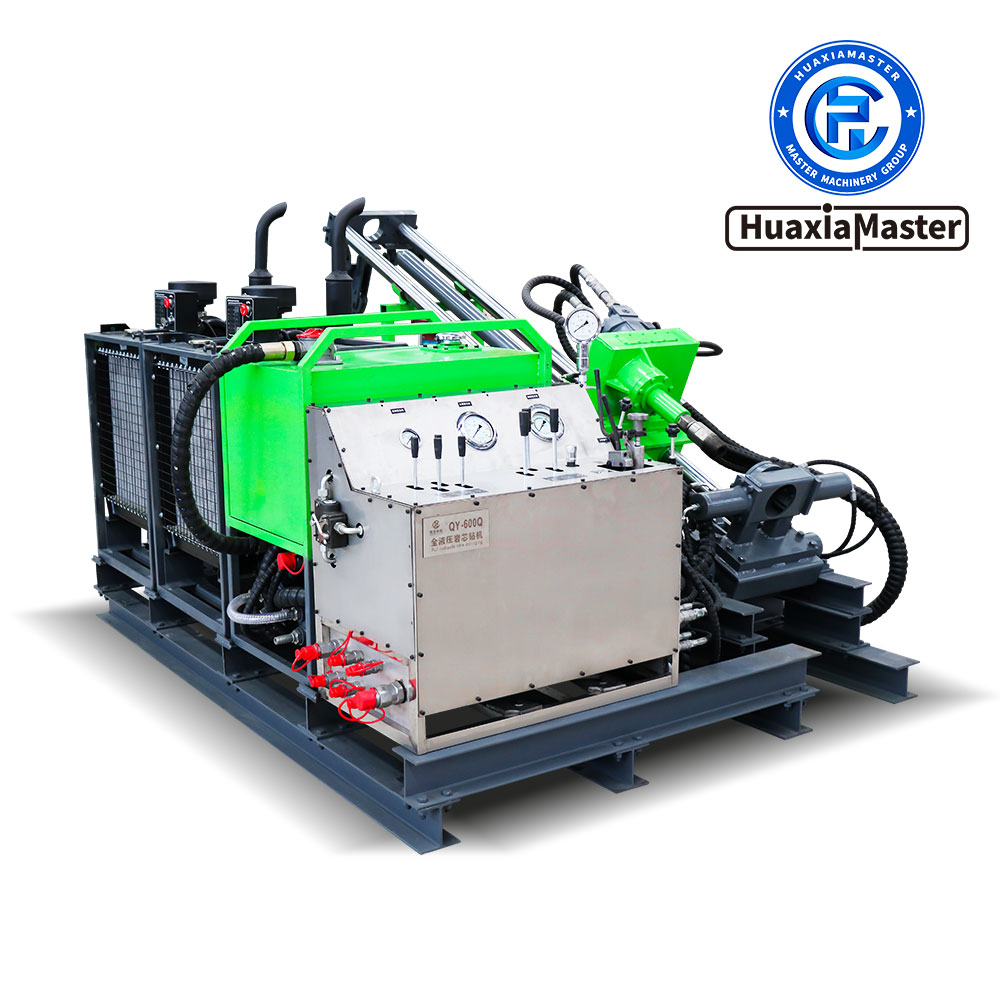

QY series portable fully hydraulic core drilling rig
1、Introduction to QY Series Portable Fully Hydraulic Core Drilling Rig
Fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.
2、Features of QY Series Portable Fully Hydraulic Core Drilling Rig
2.1 Modular design, light weight, easy to disassemble and carry.
2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.
2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure.
2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°.
2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.
2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.
3、Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig
Drilling rig model | QY-600 | QY-800 | QY-1000 | |
Drilling capacity | BTW | 600m | 800m | 1000m |
NTW | 400m | 600m | 800m | |
HTW | 200m | 400m | 400mm | |
PQ | / | / | / | |
Hydraulic system | Rated pressure | 20mpa | 20mpa | 20mpa |
cooling mode | water cooling | water cooling | water cooling | |
Engine | Engine type | Yunnei | Yunnei | Yunnei |
Rated power | 55kW*2 | 58kW*3 | 55kW*3 | |
Power head | Maximum torque | 1200N.m | 1600N.m | 500-1460N.m |
Maximum rotate speed | 1100rpm | 1100rpm | 1300rpm | |
Feeding stroke | 1800mm | 1800mm | 1800mm | |
Lifting force | 100kN | 120kN | 160kN | |
Propulsion force | 75kN | 85kN | 80kN | |
Wire-line coring winch | Rope capacity | 600m | 800m | 1000m |
Lifting force | 15kN | 15kN | 24kN | |
Lifting speed | 110m/min | 110m/min | 110m/min | |
Mast parameters | Full height | 5.8m | 5.8m | 5.8m |
Drilling angle | 45-90° | 45-90° | 45-90° | |
Transport size | L*W*H | 3.8*1.5*1.3m | 4.8*1.5*1.3m | 5.6*2.0*1.3m |
Whole machine weight | 1.6T | 2T | 2.3T |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
