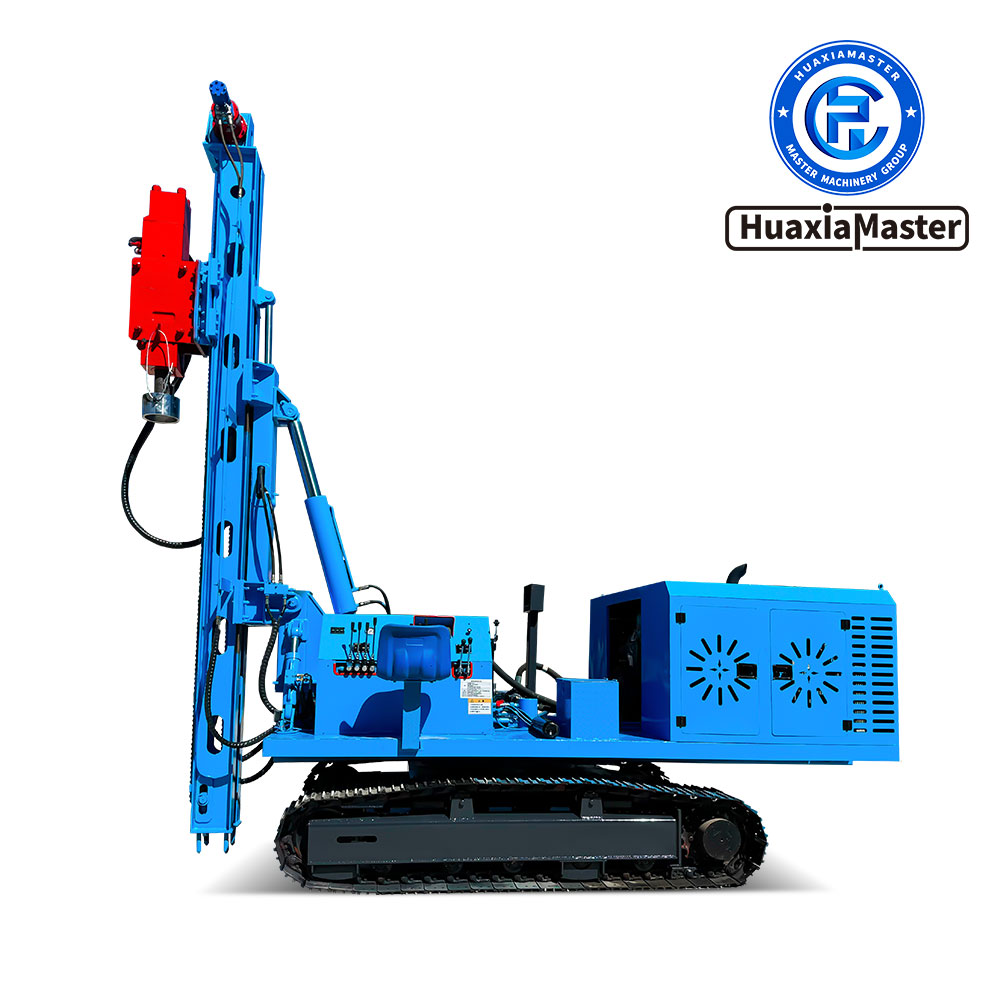

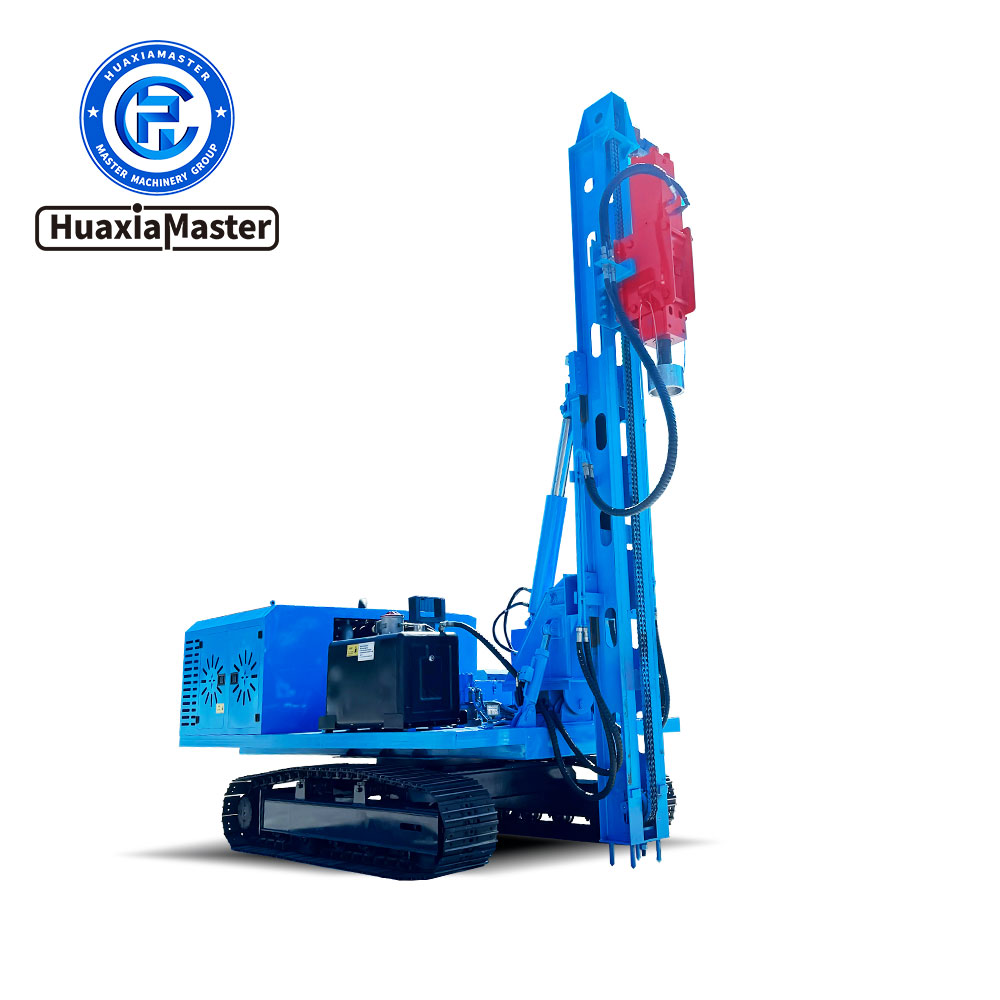

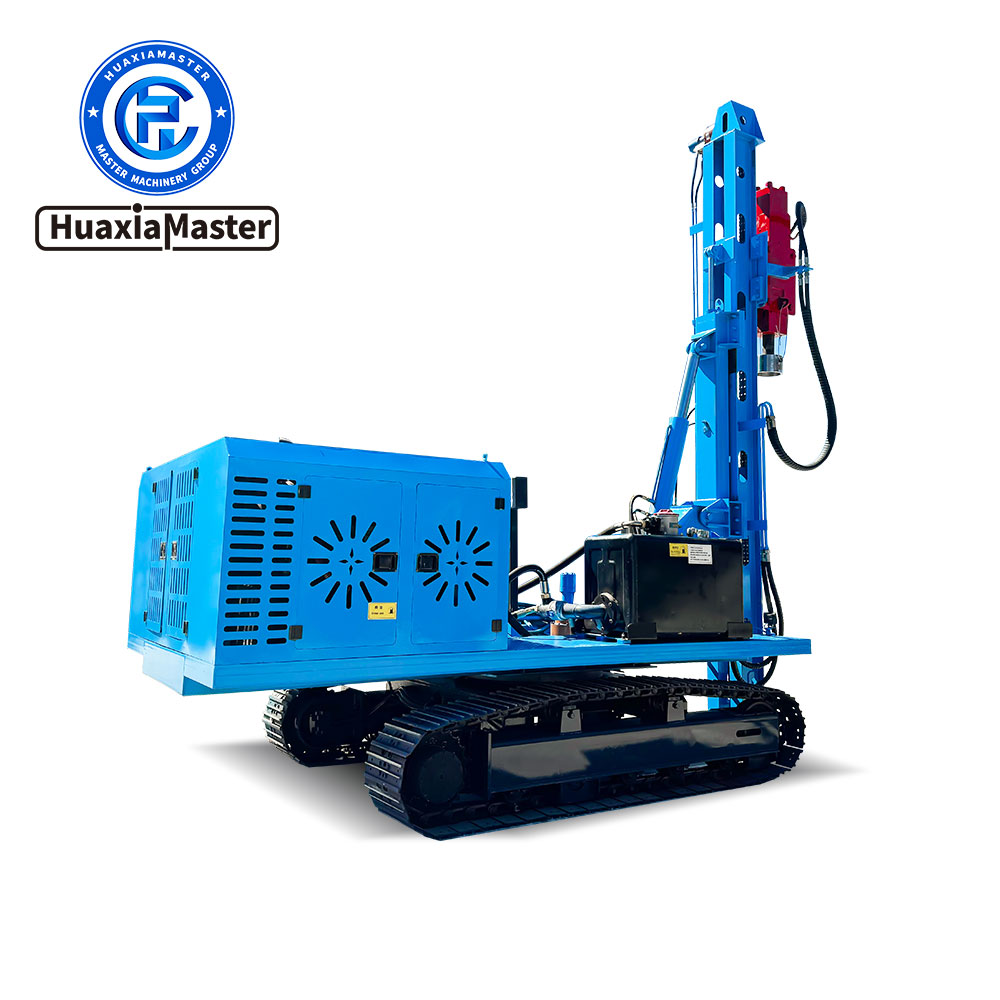

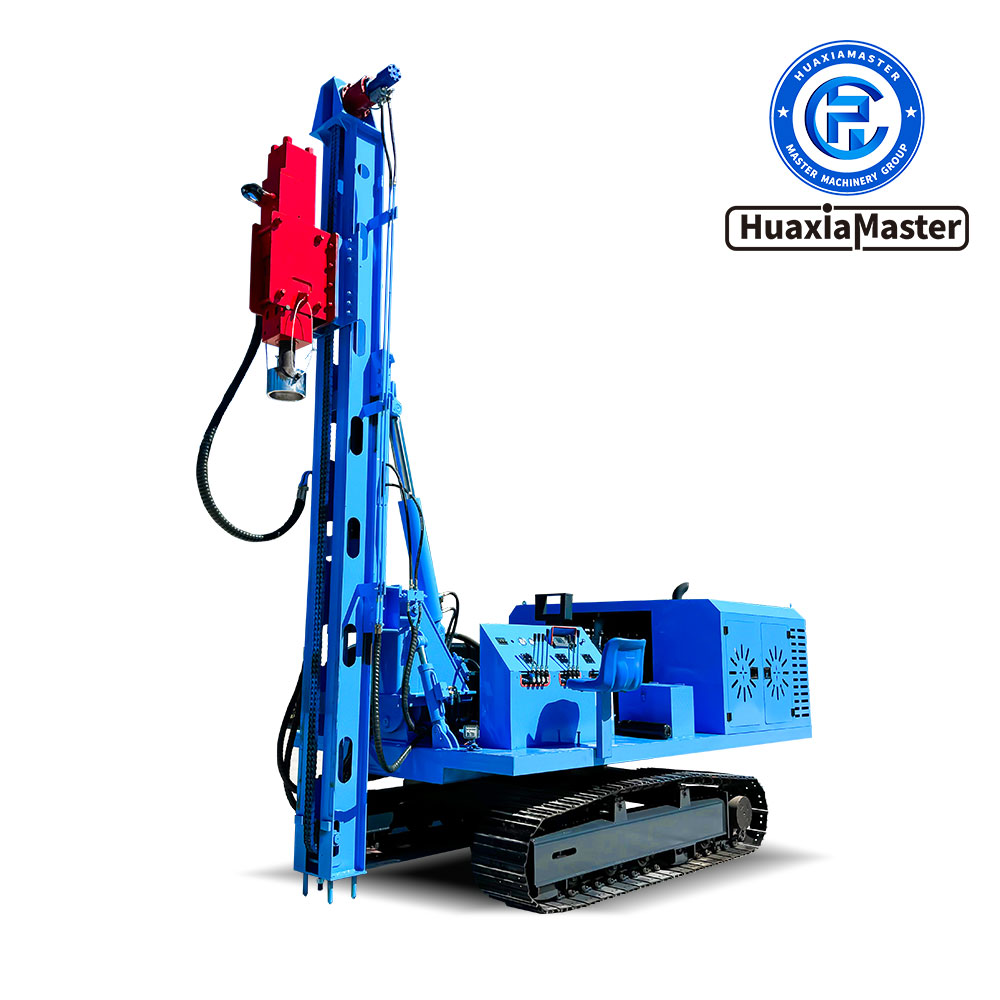

GFCY Photovoltaic hydraulic hammer pile driver with high hammering frequency
Availability: in stock
Trade with confidence on Abraa
Safe and secure payments using Abraa safe trade systems
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
Buyer Protection
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
Product Specification
| Condition | 新的 |
| Brand | HUAXIAMASTER |
| Warranty | 是的 |
Product Descriptions
1. Introduction to GFCY Series Photovoltaic Hydraulic Pile Hammer
GFCY series photovoltaic hydraulic pile hammer machine is a commonly used pile foundation construction equipment in the construction of photovoltaic power stations. The machine uses hydraulic hammering to drive the pile foundation into the ground. The pile driving speed is fast and can quickly complete the construction of steel sheet piles, I-beams, U-shaped steels, cement piles, wooden piles and other pile foundations.
2. Features of GFCY Series Photovoltaic Hydraulic Pile Hammer
2.1 It has higher hammering energy and hammering frequency, which significantly improves the efficiency of pile hammering, shortens the construction period and reduces construction costs.
2.2 The chassis uses special engineering tracks with wide and stable track shoes, which have good off-road performance and can adapt to various complex and changeable terrains.
2.3 The chassis is configured to rotate 360° to achieve all-round pile foundation construction.
2.4 Equipped with a slide pitch cylinder, a slide swing cylinder and a slide telescopic compensation cylinder, the trinity can accurately locate the pile hole position, ensuring the verticality of the pile and reducing errors.
2.5 The operation console is centrally controlled, easy to operate, safe and reliable.
2.6 The overall welding of the equipment is rigorous, and the wear-resistant parts adopt heat treatment technology to avoid structural deformation. It has a long service life and a low failure rate.
3. Parameters of GFCY Series Photovoltaic Hydraulic Pile Hammer
Pile driver model | GFCY-4000 | GFCY-5000 | GFCY-6000 | ||||||||||
Run parameters | Hydraulic hammer specifications | 75 | 85 | 100 | 75 | 85 | 100 | 75 | 85 | 100 | |||
Hydraulic hammer flow | 80~110L/min | 80~110L/min | 80~110L/min | ||||||||||
Hydraulic hammer working pressure | 20~25mpa | 20~25mpa | 20~25mpa | ||||||||||
Impact frequency | 450~900brm | 450~900brm | 450~900brm | ||||||||||
Slide travel | 5500mm | 6500mm | 7500mm | ||||||||||
Piling depth | 4000mm | 5000mm | 6000mm | ||||||||||
Machine parameters | Diesel engine | 4108 four cylinder | 6108 six cylinder | 4108 four cylinder | 6108 six cylinder | 4108 four cylinder | 6108 six cylinder | ||||||
Rated Power | 78kW | 92kW | 78kW | 92kW | 78kW | 92kW | |||||||
Track chassis | 8T | 8T | 8T | ||||||||||
Gradeability | 30° | 30° | 30° | ||||||||||
Walking speed | 3km/h | 3km/h | 3km/h | ||||||||||
L*W*H | 5600*2200*2700mm | ||||||||||||
\
