Product Descriptions

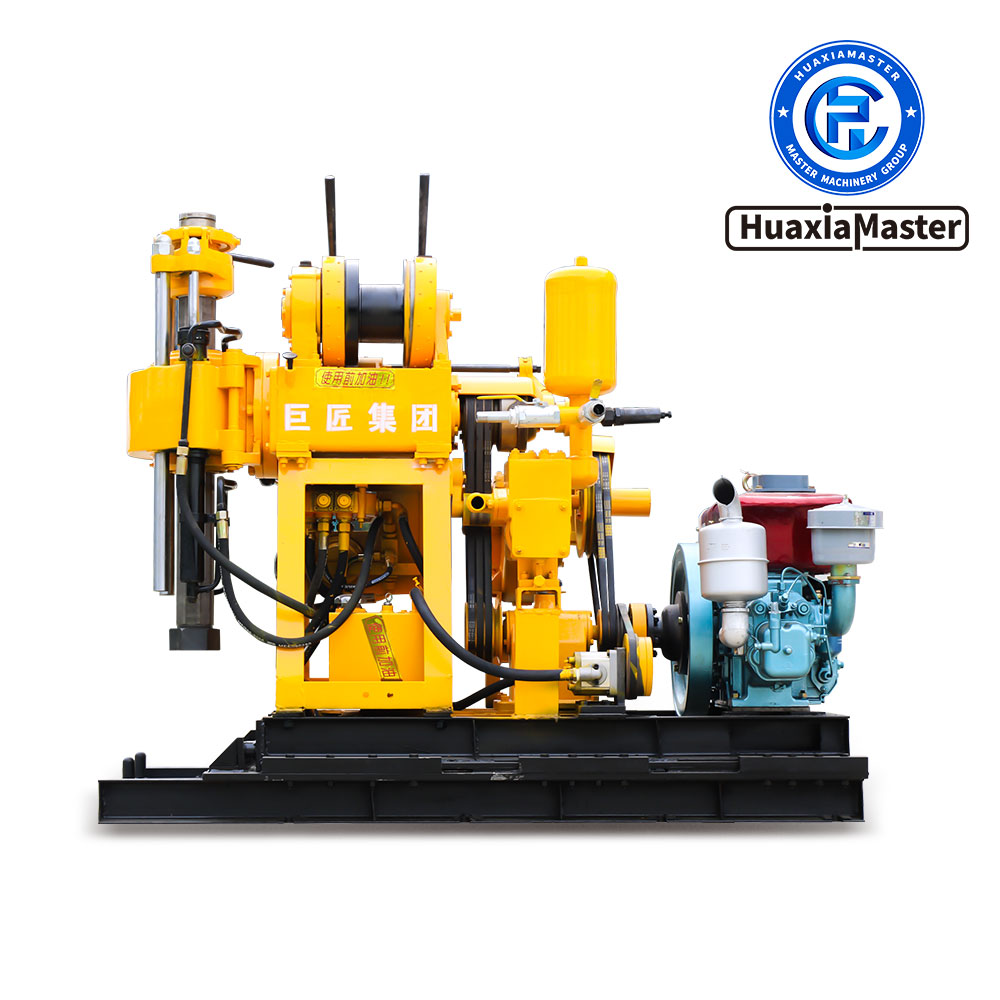

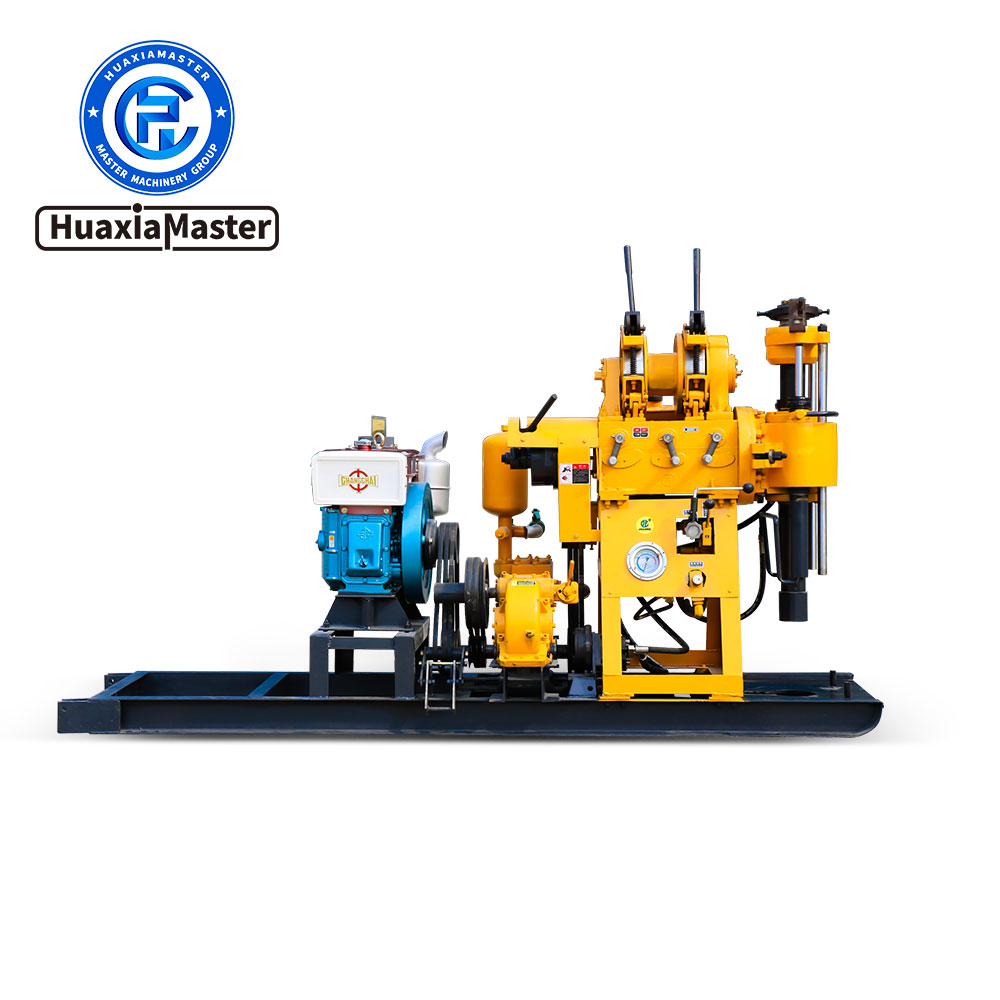

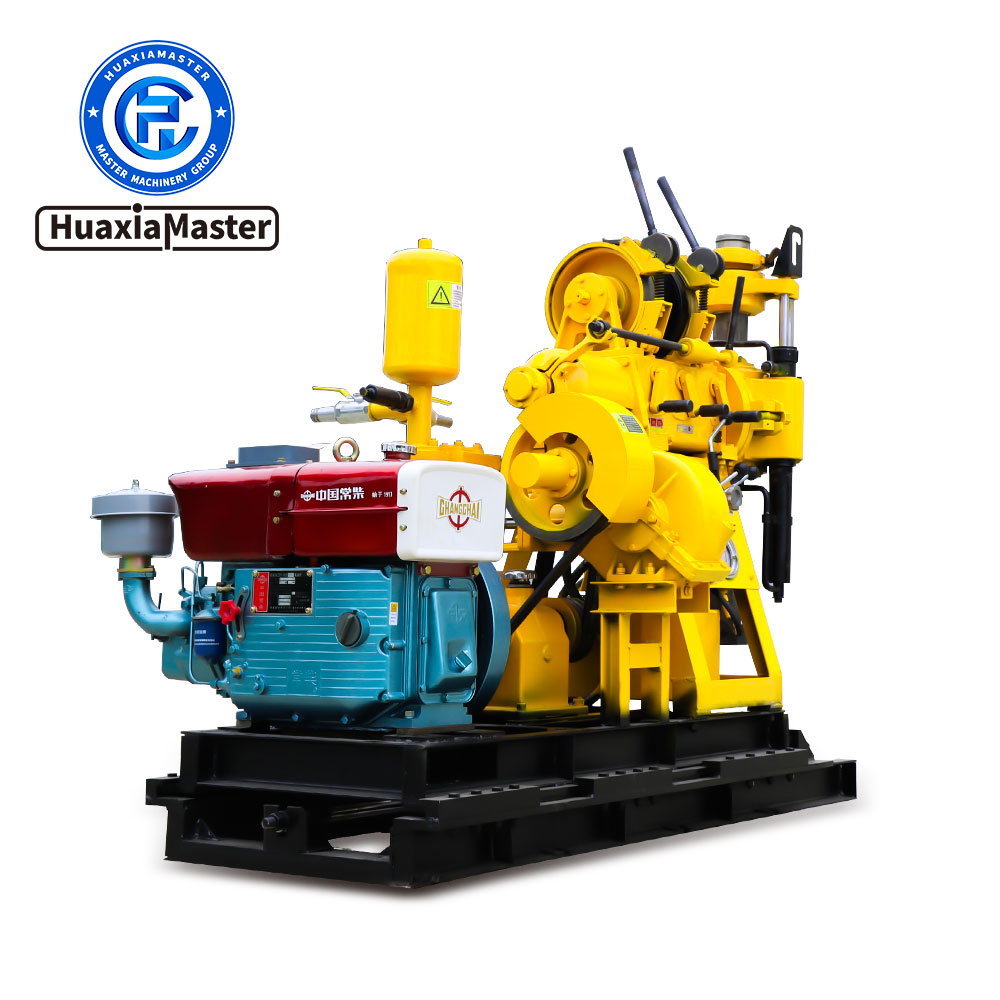

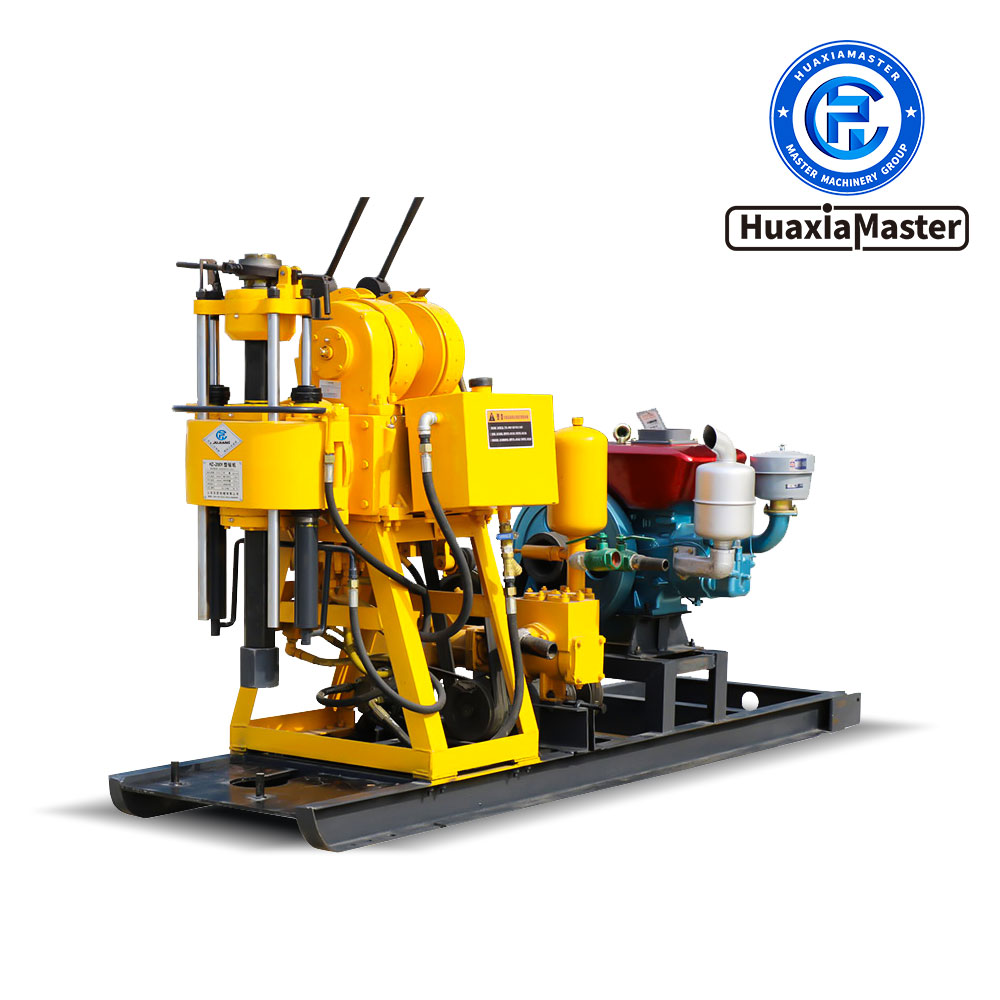

XY Series Hydraulic Core Drilling Rig
1、Introduction to XY Series Hydraulic Core Drilling Rig
XY series drilling rig is a medium-shallow hole core drilling rig with hydraulic feed and mechanical transmission. It can be used in geological core drilling, grouting hole drilling and hydro logical well drilling. Diamond, composite and alloy bits can be selected for drilling according to different strata.
2、Features of XY Series Hydraulic Core Drilling Rig
2.1 It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2.2 The steel ball clamping device can replace drill pipe without stopping, easy to operate, safe and reliable.
2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.
2.4 Compact structure, centralized handle, small area, easy to move.
2.5 With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient.
3、Parameters of XY Series Hydraulic Core Drilling Rig
<Regular floor-mounted model> XY series hydraulic core drilling rig | ||||||
Drilling rig model | XY-80 | XY-100 | XY-150 | XY-180 | XY-200 | |
Drilling capacity | Drilling depthDrilling depthDrilling depth | 80m | 100m | 150m | 180m | 200m |
Open hole dia. | 219mm | 325mm | 325mm | 375mm | 400mm | |
End hole dia. | 75mm | 75mm | 75mm | 75mm | 75mm | |
Drill pipe dia | 42mm | 42/50mm | 42/50mm | 42/50mm | 42/50mm | |
Drilling angle | 75-90° | 75-90° | 75-90° | 75-90° | 75-90° | |
| Vertical shaft speed | 142、285r/min | 142、285、570r/min | 140、295、470、790、1010r/min | 71、142、310、620r/min | 71、142、310、620r/min |
Vertical axis travel | 450mm | 450mm | 450mm | 450mm | 450mm | |
Hydraulic oil pump | Pressure | 1.2Mpa | 1.2Mpa | 1.2Mpa | 1.2Mpa | 1.2Mpa |
Speed | 1500r/min | 1500r/min | 1800r/min | 1800r/min | 2000r/min | |
Hoist | Lifting capacity | 9.3kN | ||||
\
