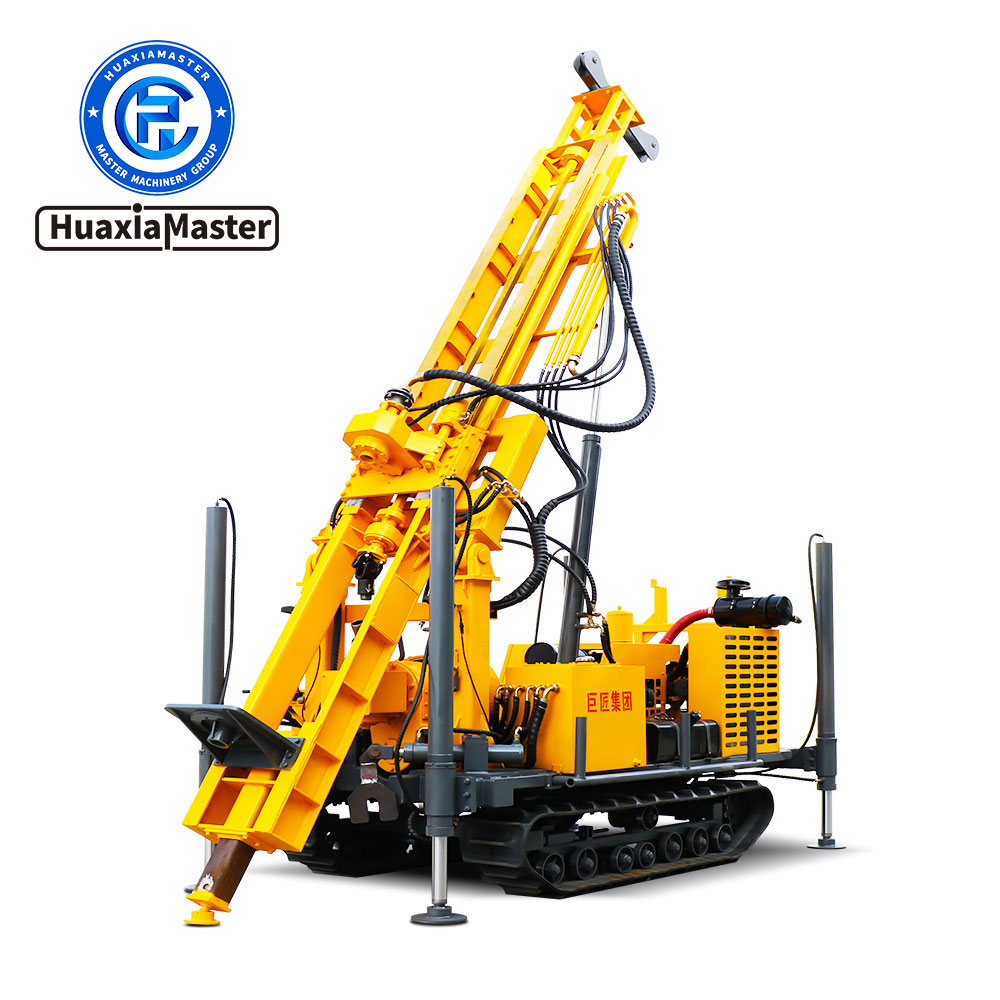

Name: JDL Series Mechanical Top Drive Core Drilling Rig
Price: 3600 USD
Availability: 100
Rating: 4 (32 reviews)

Request for quotation

1、Introduction of JDL Series Mechanical Top Drive Core Drilling RigJDL series drilling rig is a mechanical top-drive water well drilling equipment which integrates mud drilling with air drilling. It solves the problems of difficult drilling by air DTH hammer in soil layer air drilling and low drilling efficiency in hard rock, gravel and pebble layer mud drilling. Mechanical top-drive drilling rig can adapt to various strata, and drilling efficiency is efficient and energy-saving.2、Features of JDL Series Mechanical Top Drive Core Drilling Rig2.1 The function integration of mud drilling and air drilling is realized.2.2 Some functional interfaces are reserved in the hydraulic control system of drilling rig, which can be extended according to the technological requirements of different users.2.3 The main spindle of the drilling rig adopts mechanical transmission, the transmission efficiency is doubled, and the power consumption is greatly reduced.2.4 The drilling rig adopts mechanical top-drive power head and long stroke double speed mechanism to improve drilling efficiency and reduce drilling blockage and burning accidents.2.5 The drilling rig adopts mechanical winch, which has fast lifting speed and is easy to handle 3、Parameters of JDL Series Mechanical Top Drive Core Drilling Rig<table class="MsoNormalTable" border="1" cellspacing="0" style="border-collapse:collapse;width:769.8500pt;border:none;
mso-border-left-alt:0.7500pt solid rgb(204,204,204);mso-border-top-alt:0.7500pt solid rgb(204,204,204);mso-border-right-alt:0.7500pt solid rgb(204,204,204);
mso-border-bottom-alt:0.7500pt solid rgb(204,204,204);mso-border-insideh:0.7500pt outset windowtext;mso-border-insidev:0.7500pt outset windowtext;
mso-padding-alt:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;"><tr style="height:17.1000pt;"><td width="312" valign="center" colspan="2" style="width:234.3000pt;padding:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;border-left:1.0000pt outset windowtext;
mso-border-left-alt:0.7500pt outset windowtext;border-right:1.0000pt solid windowtext;mso-border-right-alt:0.5000pt solid windowtext;
border-top:1.0000pt outset windowtext;mso-border-top-alt:0.7500pt outset windowtext;border-bottom:1.0000pt outset windowtext;
mso-border-bottom-alt:0.7500pt outset windowtext;">Model</td><td width="226" valign="center" style="width:170.1000pt;padding:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt outset windowtext;mso-border-right-alt:0.7500pt outset windowtext;
border-top:1.0000pt outset windowtext;mso-border-top-alt:0.7500pt outset windowtext;border-bottom:1.0000pt outset windowtext;
mso-border-bottom-alt:0.7500pt outset windowtext;">JDL-280</td><td width="245" valign="center" style="width:184.3000pt;padding:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt outset windowtext;mso-border-right-alt:0.7500pt outset windowtext;
border-top:1.0000pt outset windowtext;mso-border-top-alt:0.7500pt outset windowtext;border-bottom:1.0000pt outset windowtext;
mso-border-bottom-alt:0.7500pt outset windowtext;">JDL-350</td><td width="241" valign="center" style="width:181.1500pt;padding:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;border-left:1.0000pt solid windowtext;
mso-border-left-alt:0.5000pt solid windowtext;border-right:1.0000pt outset windowtext;mso-border-right-alt:0.7500pt outset windowtext;
border-top:1.0000pt outset windowtext;mso-border-top-alt:0.7500pt outset windowtext;border-bottom:1.0000pt outset windowtext;
mso-border-bottom-alt:0.7500pt outset windowtext;">JDL-5</td></tr><tr style="height:17.1000pt;"><td width="312" valign="center" colspan="2" style="width: 234.3pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt solid windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Working strata</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Loose soil and bedrock (hardness F6~20)</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: 1pt solid windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Loose soil and bedrock (hardness F6~20)</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: 1pt solid windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Loose soil and bedrock (hardness F6~20)</td></tr><tr style="height:33.4500pt;"><td width="312" valign="center" colspan="2" style="width: 234.3pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt solid windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling method</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"> Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: 1pt solid windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"> Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: 1pt solid windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"> Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling</td></tr><tr style="height:17.1000pt;"><td width="132" valign="center" rowspan="4" style="width: 99.65pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"> Drilling capacity</td><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt solid windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling diameter</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">75-350mm</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: 1pt solid windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">75-350mm</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-width: 1pt; border-style: outset outset outset solid; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">75-350mm</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Mud drilling</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">450m</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">530m</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1000m</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Pneumatic Drilling</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">280m</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">350m</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">800m</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">NQ Rope Drilling</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">500m</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">600m</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1200m</td></tr><tr style="height:17.1000pt;"><td width="132" valign="center" rowspan="3" style="width: 99.65pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Power</td><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Diesel model</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">YN27</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">YN33</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">YN48GBZ</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rated power</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42kW</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">58kW</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">92kW</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rated speed</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">2400r/min</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">2400r/min</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">2400r/min</td></tr><tr style="height:17.1000pt;"><td width="132" valign="center" rowspan="3" style="width: 99.65pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Power head</td><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rotation speed</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">33~1120r/min</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">27~901r/min</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">43-1080r/min</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Torque</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0-9800N.m</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0-10500N.m</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0-16500N.m</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Journey</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">2300mm</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">3500mm</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">3500mm</td></tr><tr style="height:17.1000pt;"><td width="132" valign="center" rowspan="2" style="width: 99.65pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Feeding system</td><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Lifting power</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">100kN</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">120kN</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">240kN</td></tr><tr style="height:17.1000pt;"><td width="179" valign="center" style="width: 134.65pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><p class="p" align="center" style="margin-left:10.5000pt;text-indent:-10.5000pt;mso-char-indent-count:-1.0000;
tab-stops:left blank 18.0500pt center blank 39.7500pt ;mso-pagination:widow-orphan;text-align:center;">Propulsion</td><td width="226" valign="center" style="width: 170.1pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">50kN</td><td width="245" valign="center" style="width: 184.3pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">85kN</td><td width="241" valign="center" style="width: 181.15pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;"><span style="font-family: 仿宋; font-size: 10.5pt; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">180kN</td></tr><tr style="height:22.0500pt;">

Quantity

Ship to Country

Add to container

China

Member since : 24-Jun-2025

SHANDONG MASTER MACHINERY GROUP CO., LTD. DRILLING EQUIPMENT BRANCH

Basic Member

GO TO STORE

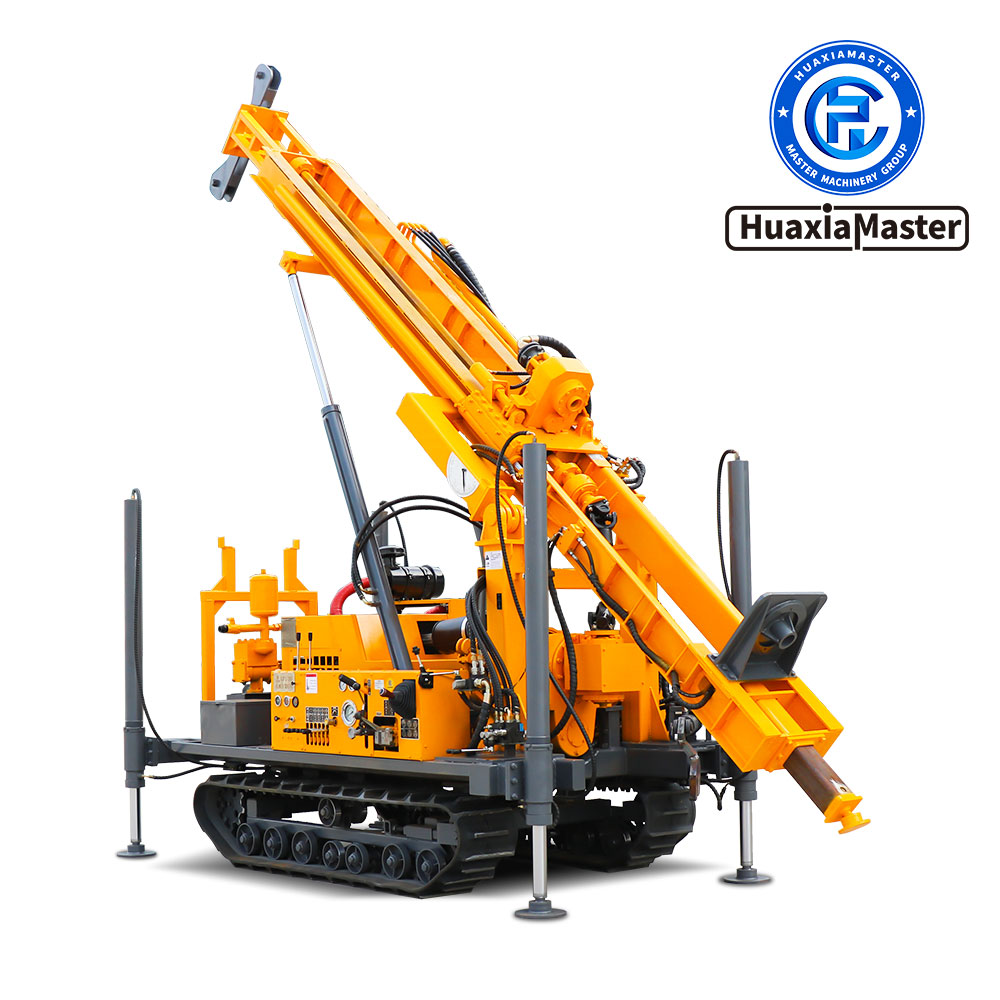

JDL Series Mechanical Top Drive Core Drilling Rig_2

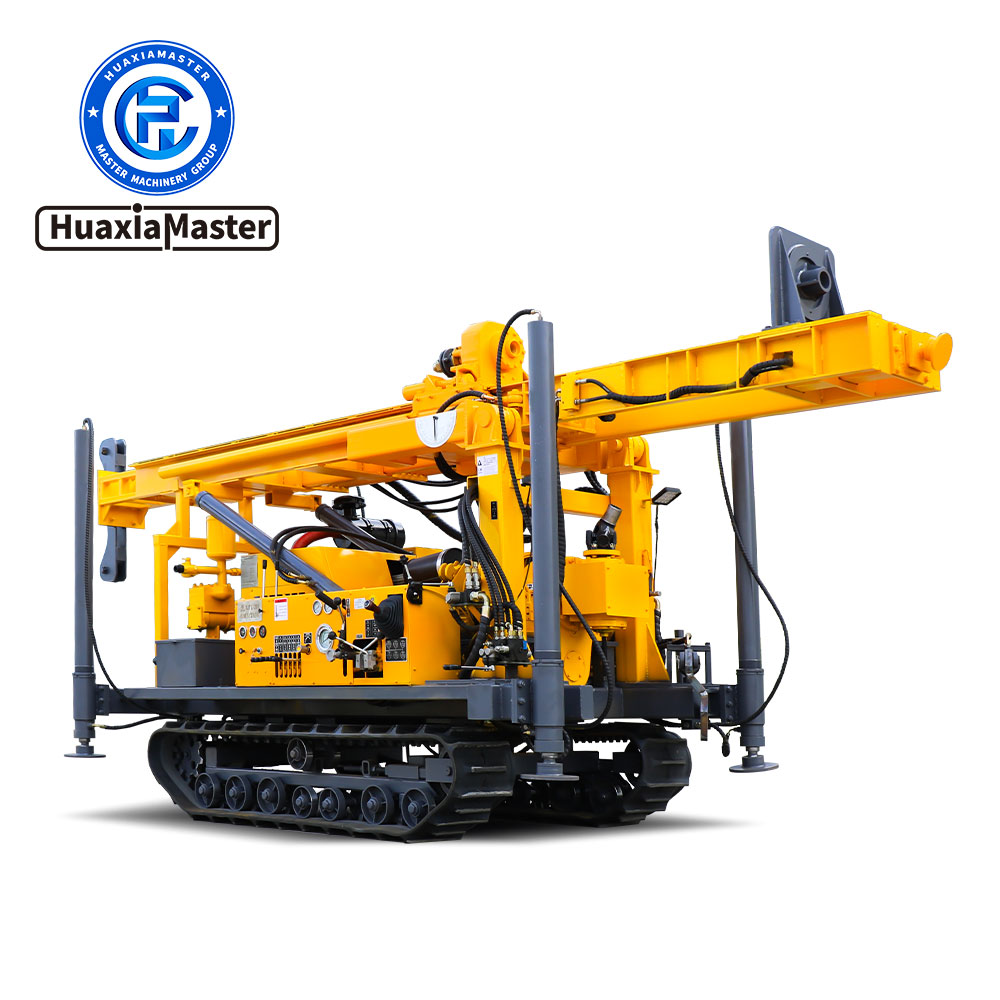

JDL Series Mechanical Top Drive Core Drilling Rig_3

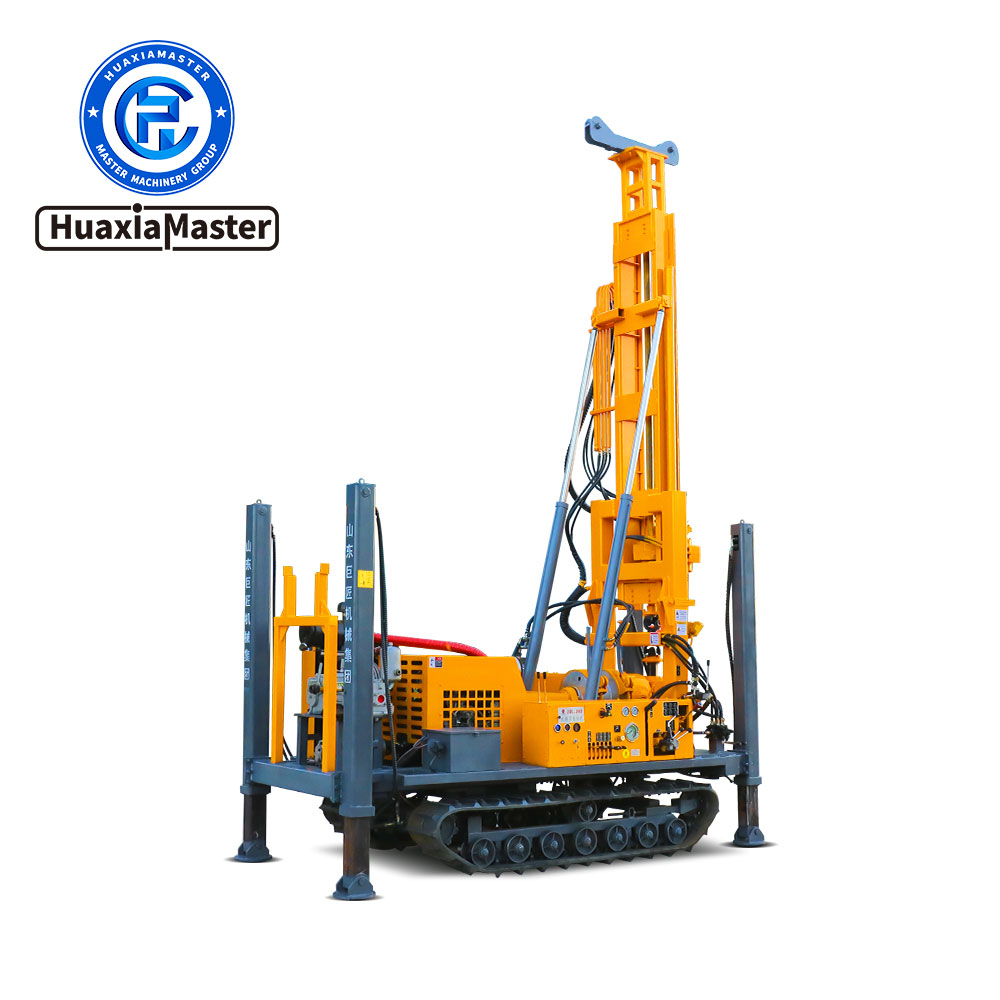

JDL Series Mechanical Top Drive Core Drilling Rig_4

JDL Series Mechanical Top Drive Core Drilling Rig_5

Request for quotation

Quantity

Ship to Country

Add to container

Mine Drilling Rig

JDL Series Mechanical Top Drive Core Drilling Rig

AED 13,212.00 / Unit

Availability: in stock

Highlights :

Min Order : 1
Country of shipping : China

Safe and secure payments using Abraa safe trade systems

Item Details

Product Specification

Brand

HUAXIAMASTER

Product Descriptions

1、Introduction of JDL Series Mechanical Top Drive Core Drilling Rig

JDL series drilling rig is a mechanical top-drive water well drilling equipment which integrates mud drilling with air drilling. It solves the problems of difficult drilling by air DTH hammer in soil layer air drilling and low drilling efficiency in hard rock, gravel and pebble layer mud drilling. Mechanical top-drive drilling rig can adapt to various strata, and drilling efficiency is efficient and energy-saving.

2、Features of JDL Series Mechanical Top Drive Core Drilling Rig

2.1 The function integration of mud drilling and air drilling is realized.

2.2 Some functional interfaces are reserved in the hydraulic control system of drilling rig, which can be extended according to the technological requirements of different users.

2.3 The main spindle of the drilling rig adopts mechanical transmission, the transmission efficiency is doubled, and the power consumption is greatly reduced.

2.4 The drilling rig adopts mechanical top-drive power head and long stroke double speed mechanism to improve drilling efficiency and reduce drilling blockage and burning accidents.

2.5 The drilling rig adopts mechanical winch, which has fast lifting speed and is easy to handle

3、Parameters of JDL Series Mechanical Top Drive Core Drilling Rig

No Feedbacks yet.

Your Rating

Similar Products

MOQ 100 PCs

Bentonite

MOQ 1 PCs

YQZ-50A Hydraulic Light Core ...

AED 53,875.60

MOQ 1 PCs

XY Series Hydraulic Core ...

AED 53,875.60

MOQ 1 PCs

HJD Horizontal Mountain ...

AED 53,875.60

MOQ 1 PCs

XYC-3 Truck-mounted Hydraulic ...

AED 67,344.50

MOQ 1 PCs

SJCY Traction Diesel ...

AED 53,875.60

MOQ 1 PCs

JFD Series Crawler Reverse ...

AED 53,875.60

MOQ 1 PCs

QTZ Series Portable Soil ...

AED 53,875.60

MOQ 1 PCs

XYX Series Wheel Hydraulic ...

AED 53,875.60

QYD履带式全液�

AED 134,689.00

Product Added To Container Successfuly !

View Container

An error occured while adding the product
please try again later !

You can't order less than 1

Welcome to Abraa !

Subscribe now to receive the Abraa Newsletter with latest products, best offers and current deals directly to your email !

Model		JDL-280	JDL-350	JDL-5
Working strata		Loose soil and bedrock (hardness F6~20)	Loose soil and bedrock (hardness F6~20)	Loose soil and bedrock (hardness F6~20)
Drilling method		Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling	Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling	Top drive mechanical rotary hydraulic propulsion，Mud drilling or pneumatic down-the-hole hammer drilling
Drilling capacity	Drilling diameter	75-350mm	75-350mm	75-350mm
	Mud drilling	450m	530m	1000m
	Pneumatic Drilling	280m	350m	800m
	NQ Rope Drilling	500m	600m	1200m
Power	Diesel model	YN27	YN33	YN48GBZ
	Rated power	42kW	58kW	92kW
	Rated speed	2400r/min	2400r/min	2400r/min
Power head	Rotation speed	33~1120r/min	27~901r/min	43-1080r/min
	Torque	0-9800N.m	0-10500N.m	0-16500N.m
	Journey	2300mm	3500mm	3500mm
Feeding system	Lifting power	100kN	120kN	240kN
Feeding system	Propulsion	50kN	85kN	180kN
