Master YQZ-30 core sampling drilling rig

Name: Master YQZ-30 core sampling drilling rig
Price: 7500 USD
Availability: 100
Rating: 3 (15 reviews)

Marka: MASTER

AED 27,525.00 / Unit

Kullanılabilirlik: depoda

Asgari Sipariş1 Unit

Kaydet

Teklif İste

Free · No obligation

Kapsayıcıya ekle

Sell Similar

Trade with confidence on Abraa

Abraa güvenli ticaret sistemlerini kullanarak güvenli ve emniyetli ödemeler

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Alıcı Koruması

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Ürün Detayları

Ürün Özellikleri

MASTER

Product Descriptions

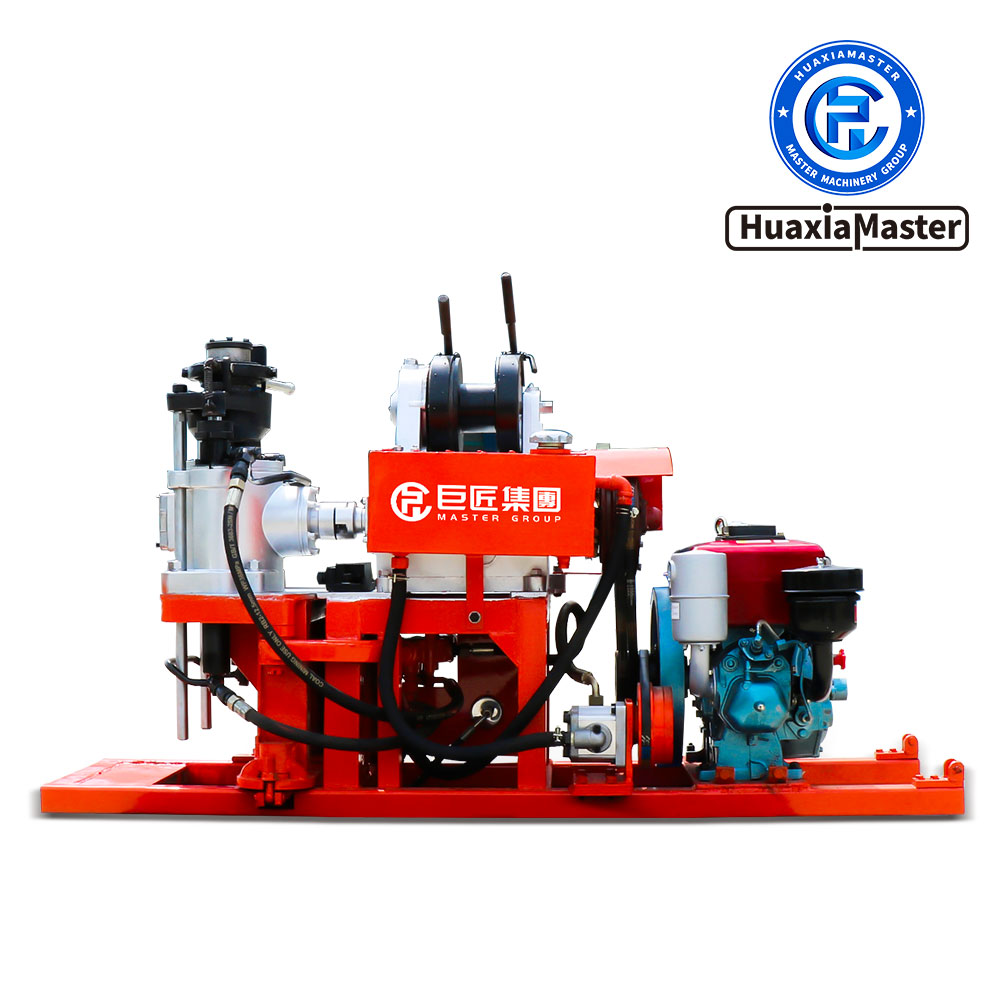

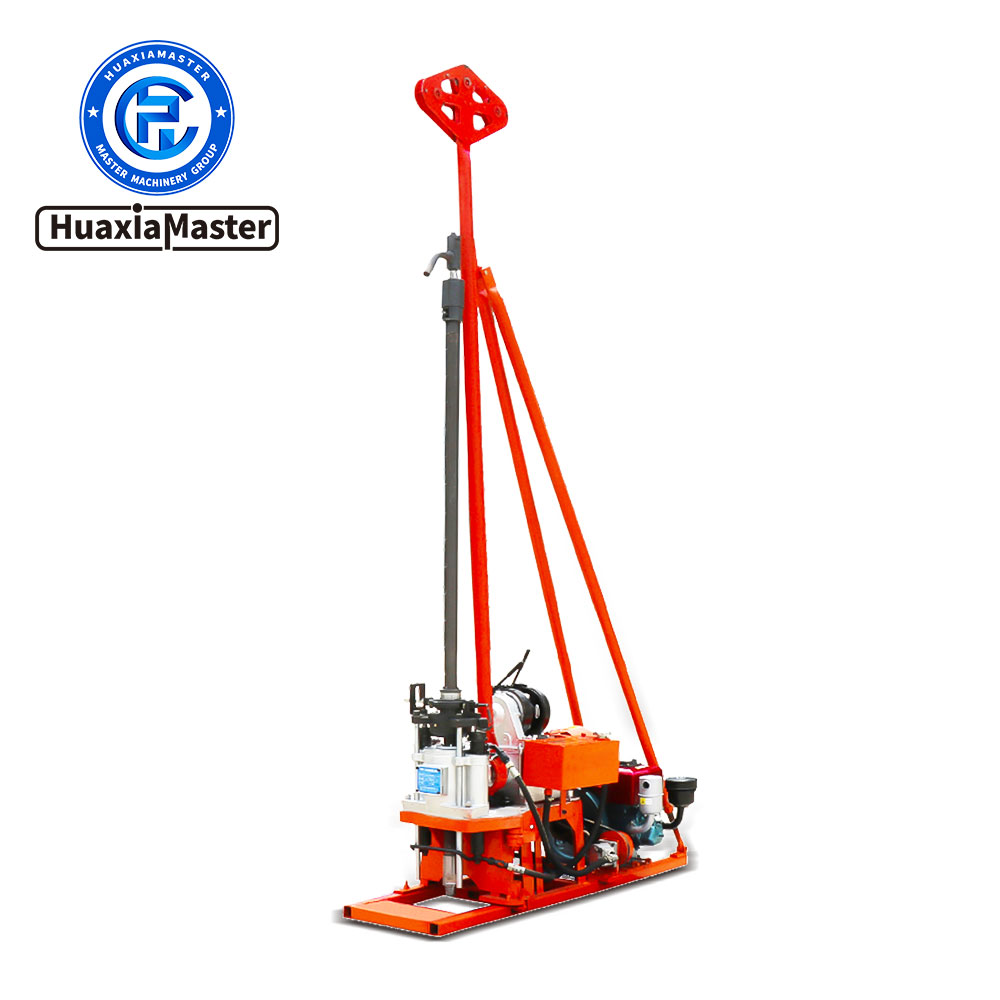

YQZ-30 Hydraulic Light Core Drilling Rig

1、Introduction to YQZ-30 Hydraulic Light Core Drill Rig

YQZ-30 hydraulic portable core drilling rig is a small portable crawler type hydraulic drilling machine, which is mainly used for general survey, geophysical exploration, road and construction drilling, shallow oil, natural gas and groundwater drilling, as well as dam grouting, tunnel ventilation and drainage engineering drilling.

2、Features of YQZ-30 Hydraulic Light Core Drilling Rig

2.1 It has oil pressure automatic feeding mechanism and high drilling efficiency.

2.2 The clamping rod can not be used to stop the machine.

2.3 The handle is centralized, easy to operate, safe and feasible.

2.4 It has compact structure and small space occupation.

2.5 The shell of the rotary gear and gearbox of the drilling rig is made of aluminum alloy, which reduces the weight of the body

2.6 It is suitable for complex terrain, easy to decompose and work in hilly area.

3、Parameters of YQZ-30 Hydraulic Light Core Drilling Rig

Model	YQZ-30
Borehole dia.	75mm
Sampling depth	30m
Drill pipe	42mm
Vertical shaft speed	136/338/578rpm
Vertical shaft travel	400mm
Vertical shaft lifting force	10kN
Lifting force of winch	0-4kN
Main engine power	Diesel engine R180
Drill size	16309501050mm
Weight	375kg

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
