مواصفات المنتج
| الماركة | HUAXIAMASTER |
مواصفات المنتج
PMGZ Series Crawler High Lift Slope Anchor Drilling Rig

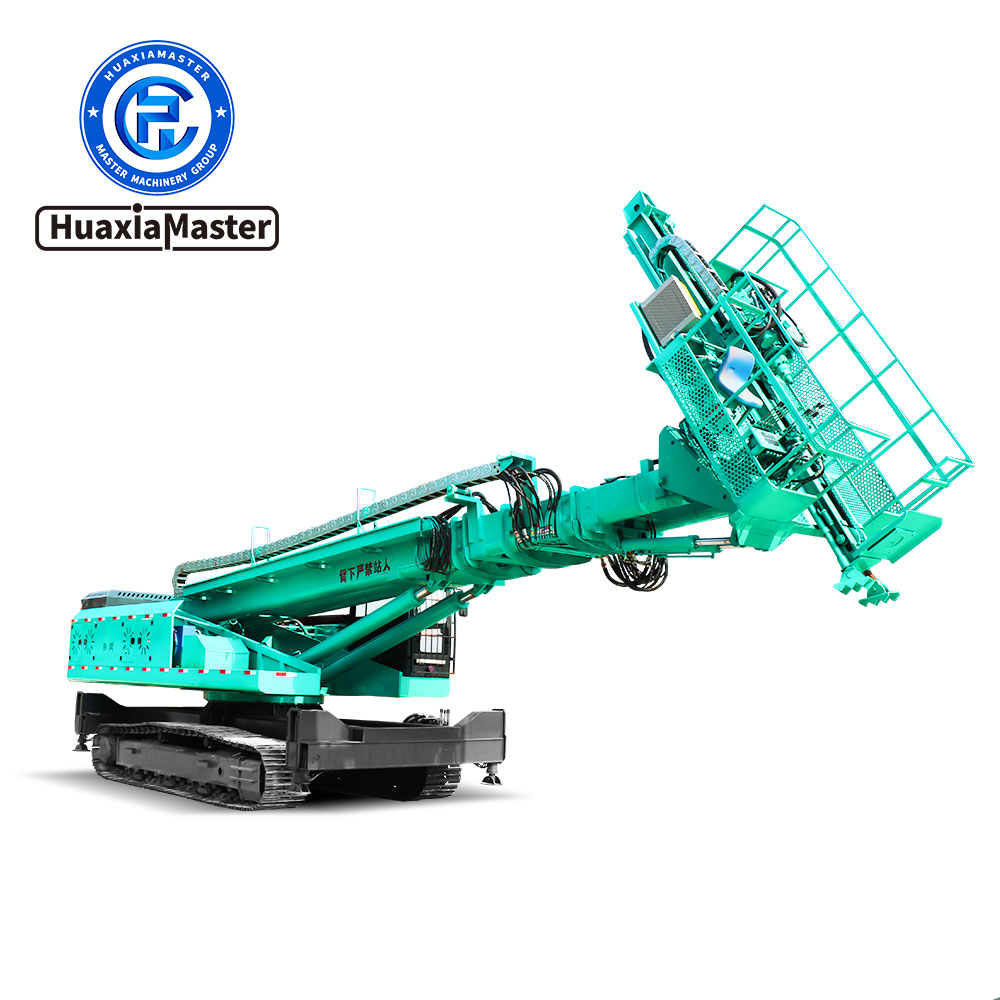

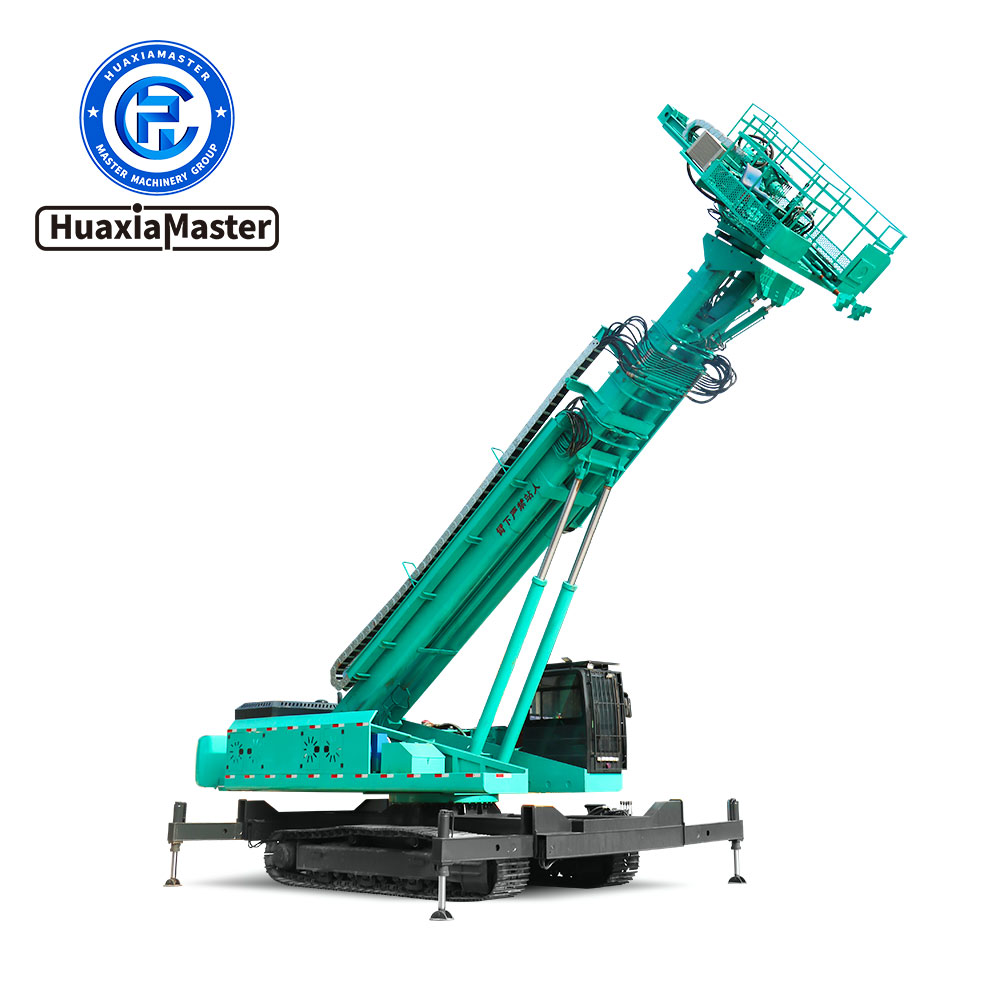

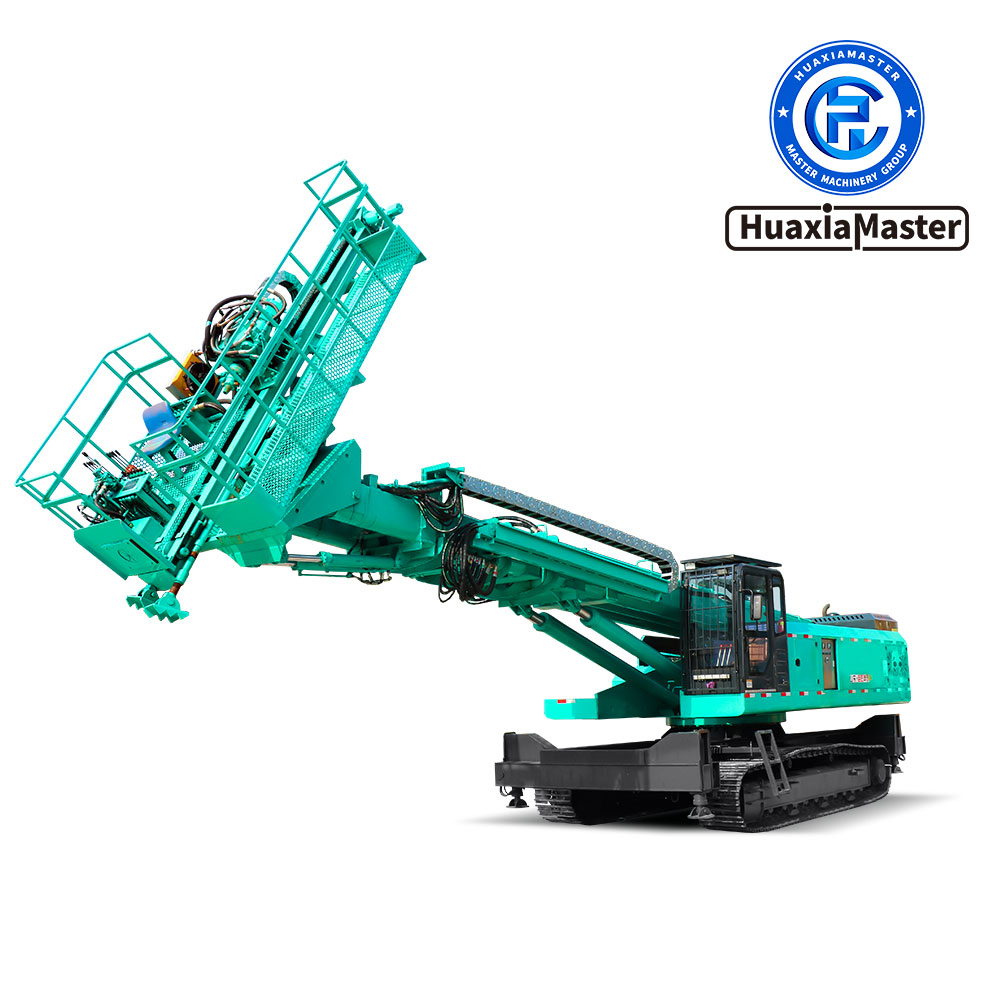

1. Introduction to PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
The PMGZ series crawler high-lift slope anchor drilling rig is a construction equipment for geological disaster prevention and control projects. The drilling rig is equipped with a hydraulic telescopic boom, which can be extended section by section through the hydraulic system to easily cover the slope area with a large vertical height and a long horizontal distance. The boom has a pitch adjustment function. Combined with the telescopic action, it can accurately locate any slope position and perform vertical, inclined or horizontal hole drilling to meet the needs of complex anchoring construction. It is mainly used in landslide control and dangerous rock anchoring projects. At the same time, the drilling rig is also widely used in urban deep foundation pit support, anti-floating anchors and foundation grouting reinforcement engineering holes, blasting holes in blasting projects, tunnel anchor projects, tunnel pipe shed support, and water conservancy and hydropower high slope rock anchoring projects.
2. Features of PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
2.1 Convenient high-altitude construction: The drilling platform is equipped with a drilling rig, an operating platform and a drilling tool placement platform, which makes it more convenient for construction workers to cooperate with construction at high altitudes.
2.2 There is no need to frequently move the drilling rig, and the high-lift telescopic arm can cover a large construction area, improving construction efficiency while avoiding the risk of landslides caused by the equipment being close to unstable slopes.
2.3 Support various drilling methods such as conventional down-the-hole drilling, pipe drilling, spiral drilling, etc., to efficiently cope with complex and changeable formation conditions.
2.4 Equipped with a large torque hydraulic power head, it has strong drilling capability and improves construction efficiency.
2.5 Equipped with an engineering steel crawler chassis, the drilling rig can move easily in various complex terrains.
2.6 The key components are thickened and treated with wear-resistant treatment, the whole machine is sturdy and durable, the quality is reliable, and the failure rate and maintenance cost are reduced.
3. Parameters of PMGZ Series Crawler High Lift Slope Anchor Drilling Rig
Drilling rig specifications | PMGZ-18 | PMGZ-22 | PMGZ-30 | PMGZ-35 | |
Performance parameters | Lifting height | 18m | 22m | 30m | 35m |
Maximum drilling diameter | 250mm | 250mm | 250mm | 250mm | |
Maximum drilling depth | 50m | 50m | 50m | 50m | |
Drill pipe specifications | φ50/φ76/φ89 | φ50/φ76/φ89 | φ50/φ76/φ89 | φ50/φ76/φ89 | |
Ways of advancement | Hydraulic motor Chain | Hydraulic motor Chain | Hydraulic motor Chain | Hydraulic motor Chain | |
One-time push depth | 3.5m | 3.5m | 3.5m | 3.5m | |
Machine parameters | Diesel engine | 6108 six-cylinder Yuchai engine | 6108 six-cylinder Yuchai engine | 6108 six-cylinder Yuchai engine | 6108 six-cylinder Yuchai engine |
Diesel engine power range | 92-130kW | 92-130kW | 92-130kW | 92-130kW | |
Hydraulic oil pump | 63/63/32 | 63/63/32 | 63/63/32 | 63/63/32 | |
Hydraulic Radiator | Large air cooling radiator * 2 | Large air cooling radiator * 2 | Large air cooling radiator * 2 | Large air cooling radiator * 2 | |
Drill arm | Strengthened double-rod drill arm | Strengthened double-rod drill arm | Strengthened double-rod drill arm | Strengthened double-rod drill arm | |
Drilling platform rotation angle | 360° | ||||
\
