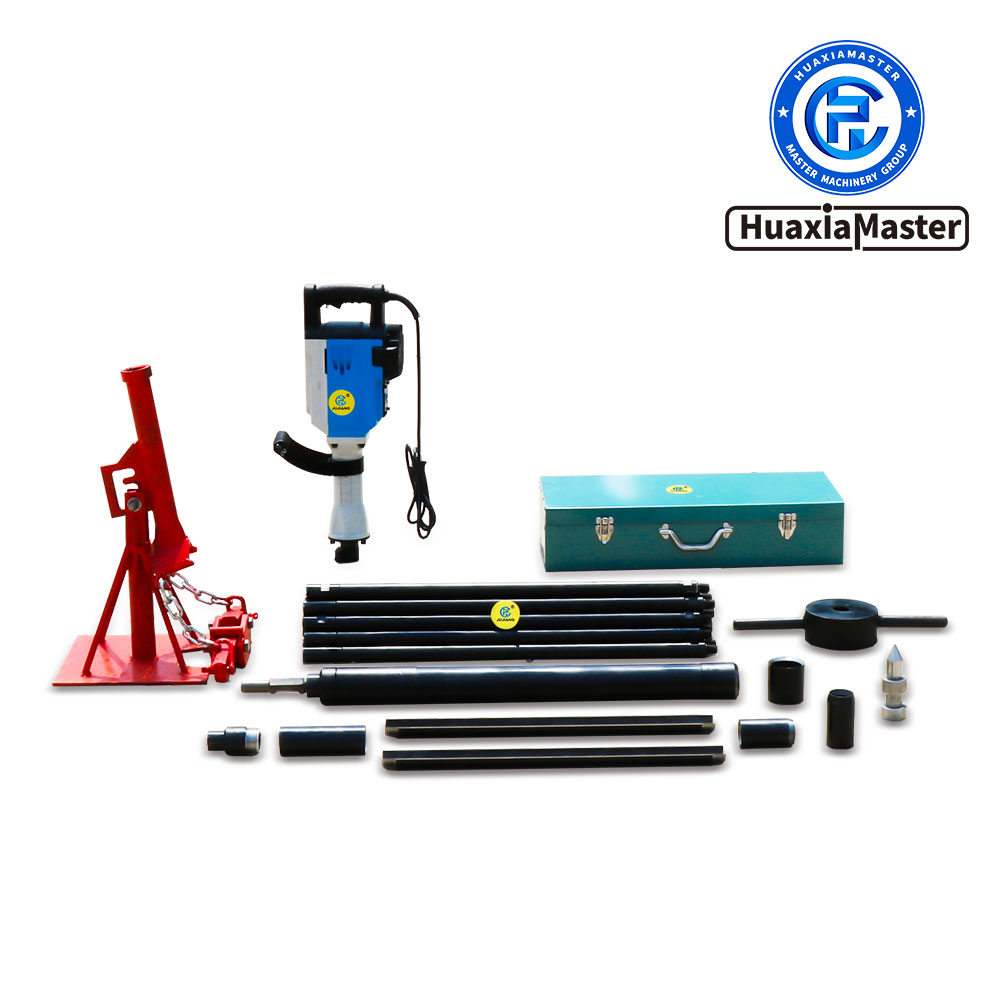

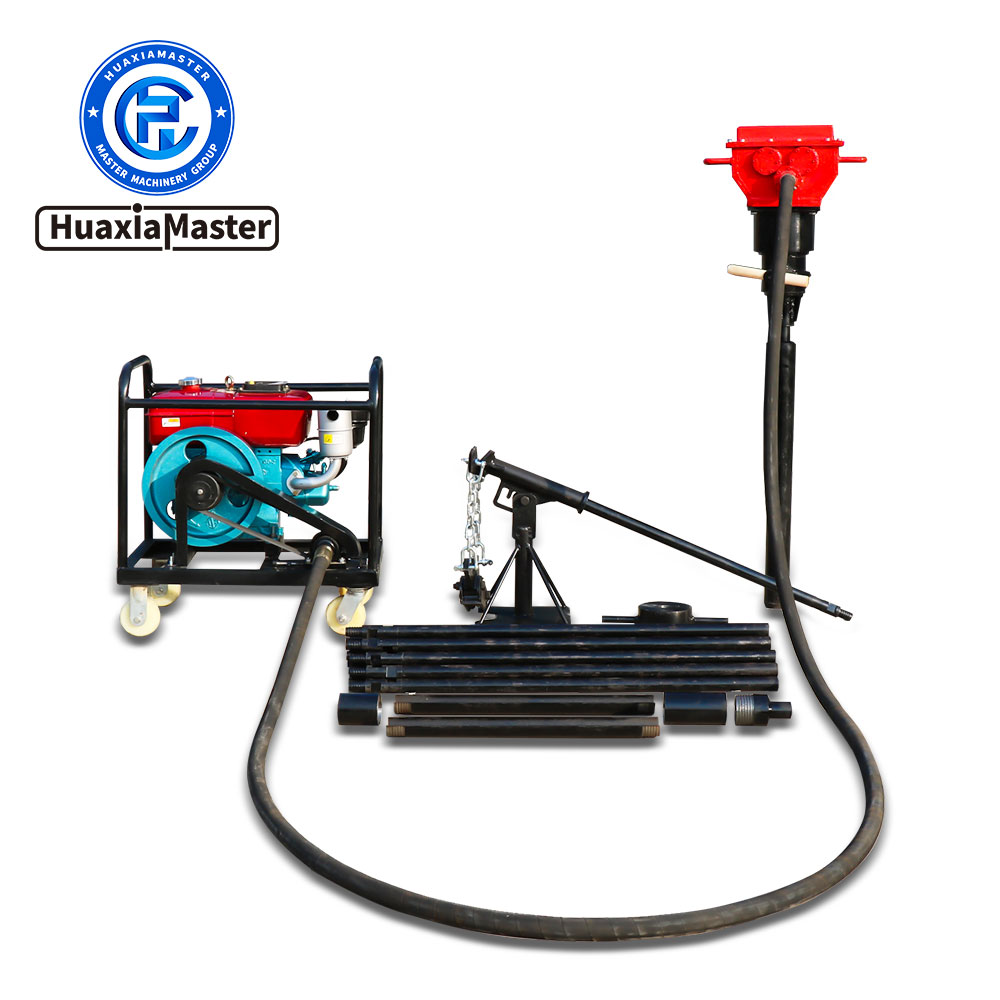

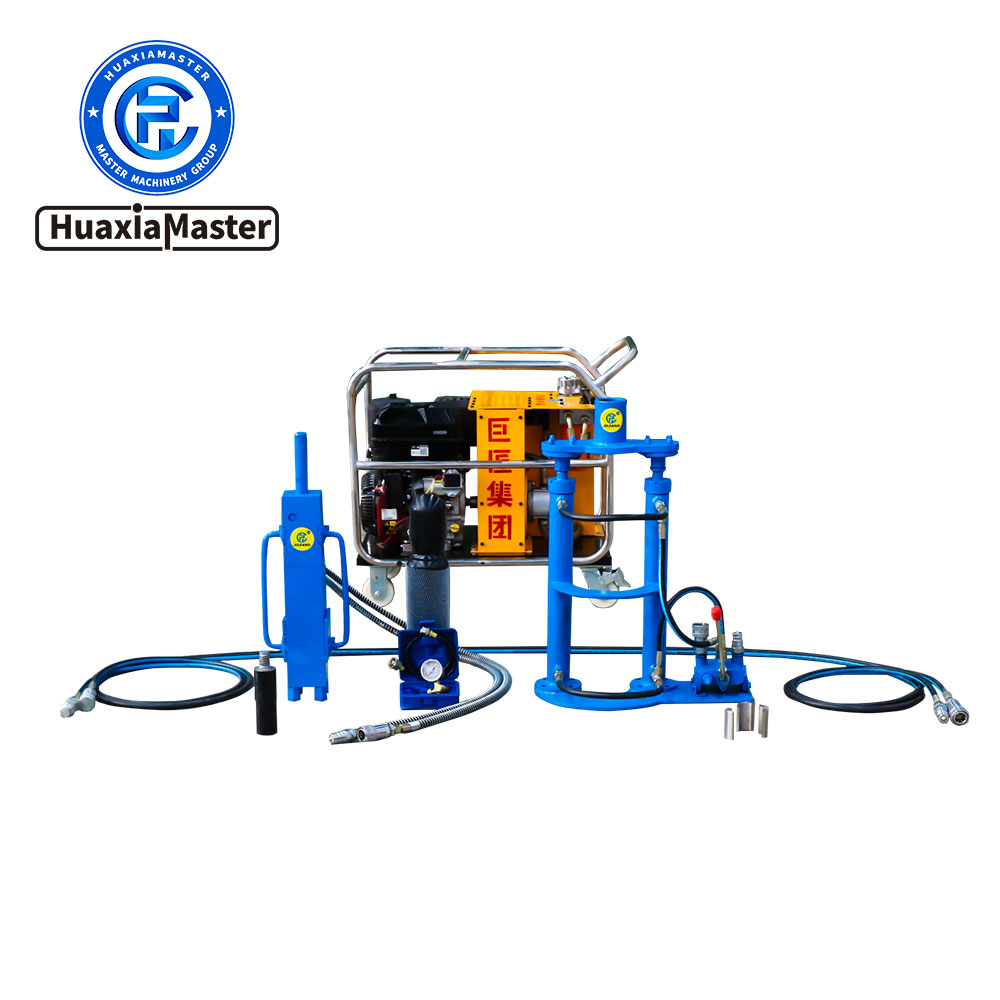

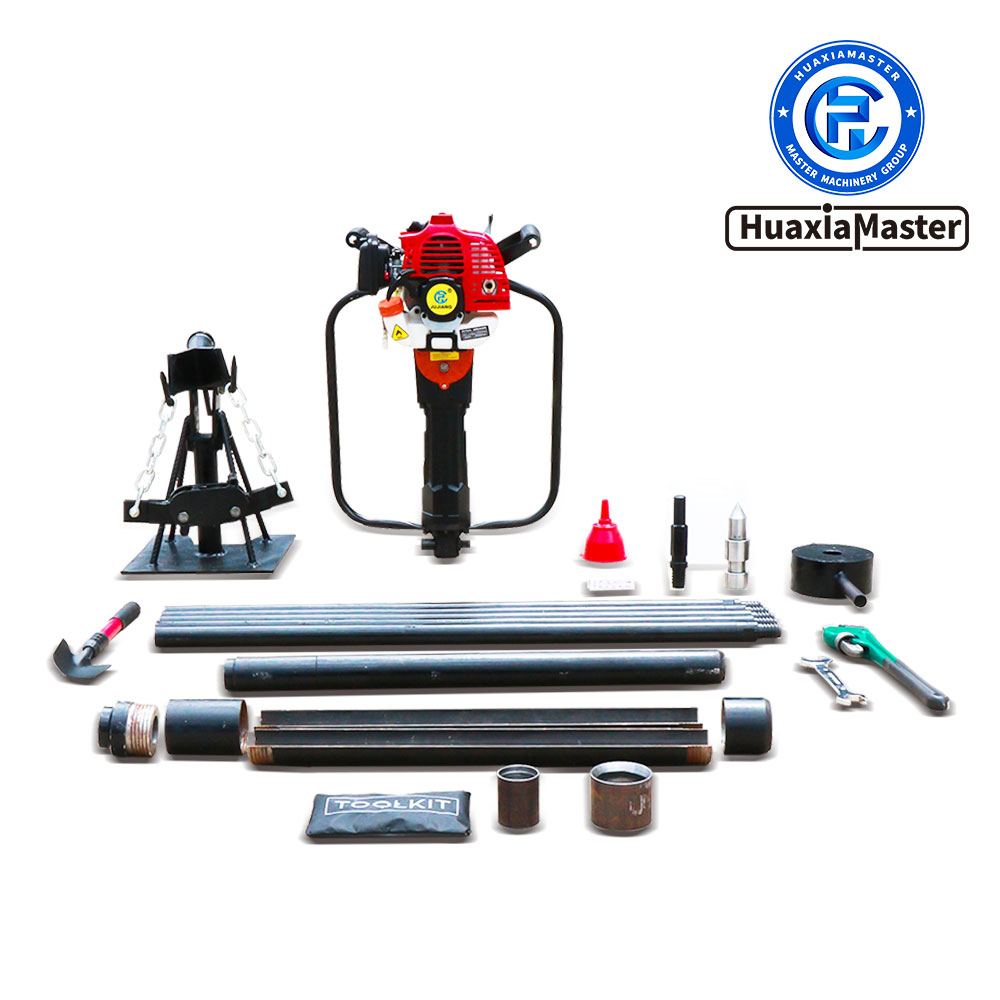

QTZ-1S Double-tube Soil Sampling Drilling Rig
1、Introduction to QTZ-1S Double-tube Soil Sampling Drilling Rig
QTZ-1S portable double-tube soil sample drilling rig is a portable soil sampling drill held by one person. The drilling rig is powered by gasoline engine, with simple operation, high safety and stable performance, and can conduct double tube sampling. In the process of double tube sampling, it can effectively avoid secondary pollution, and has no pollution and little disturbance to the sampled soil. It is a kind of high efficiency and high quality soil sampling equipment.
2、Features Of QTZ-1S Double-tube Soil Sampling Drilling Rig
2.1 Double tube sampling is available, which can effectively avoid secondary pollution.
2.2 Equipped with hydraulic lifting device, no need to lift the drill, saving time and labor.
2.3 Strong impact capacity and fast footage. Powerful and durable.
2.4 The drilling rig has simple structure, small volume and light weight, which is convenient for assembly, handling and disassembly.
3、Parameters of QTZ-1S Double-tube Soil Sampling Drilling Rig
Model | QTZ-1S |
Power | 2.8HP gasoline engine |
Impact energy | 20~55J |
Main engine weight | 23kg |
Soil extractor dia | 50mm |
Sampling depth | 5~10m |
Hydraulic pump station power | 6HP gasoline engine |
Hydraulic puller pulling force | 60kN |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
