Product Descriptions

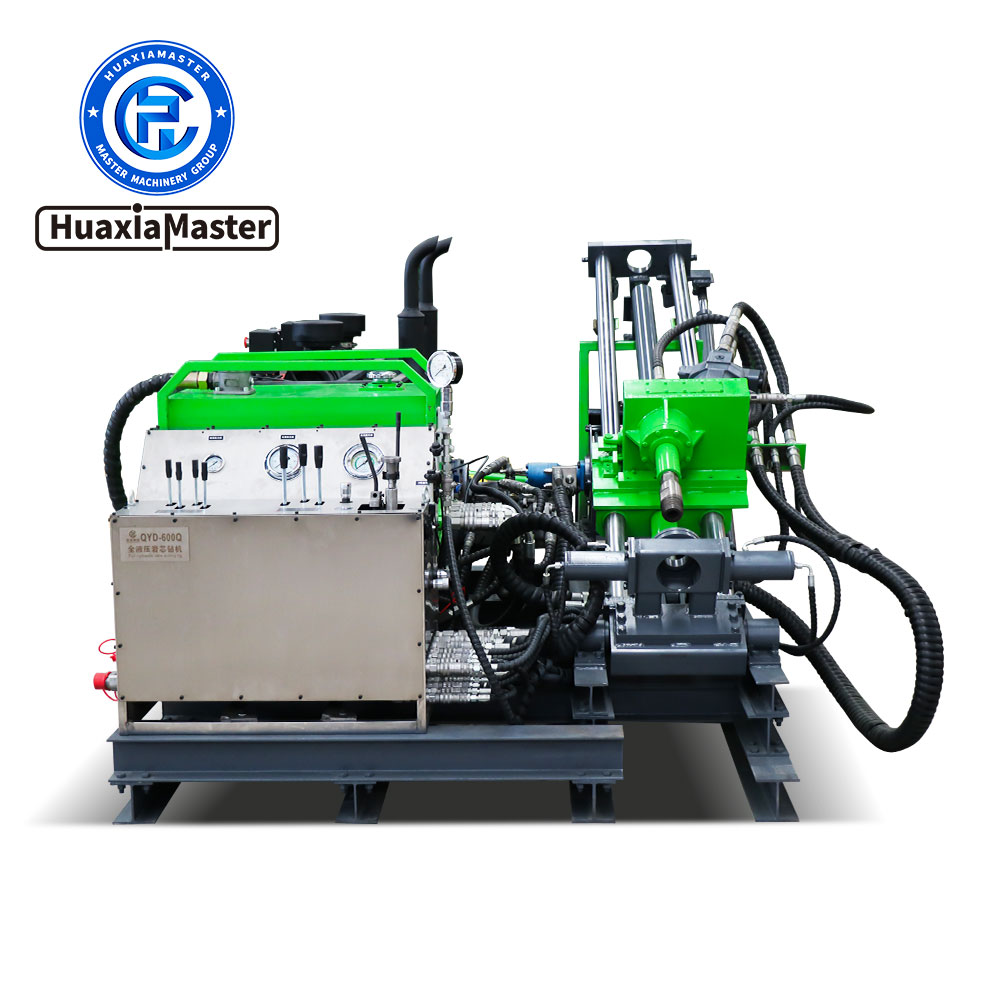

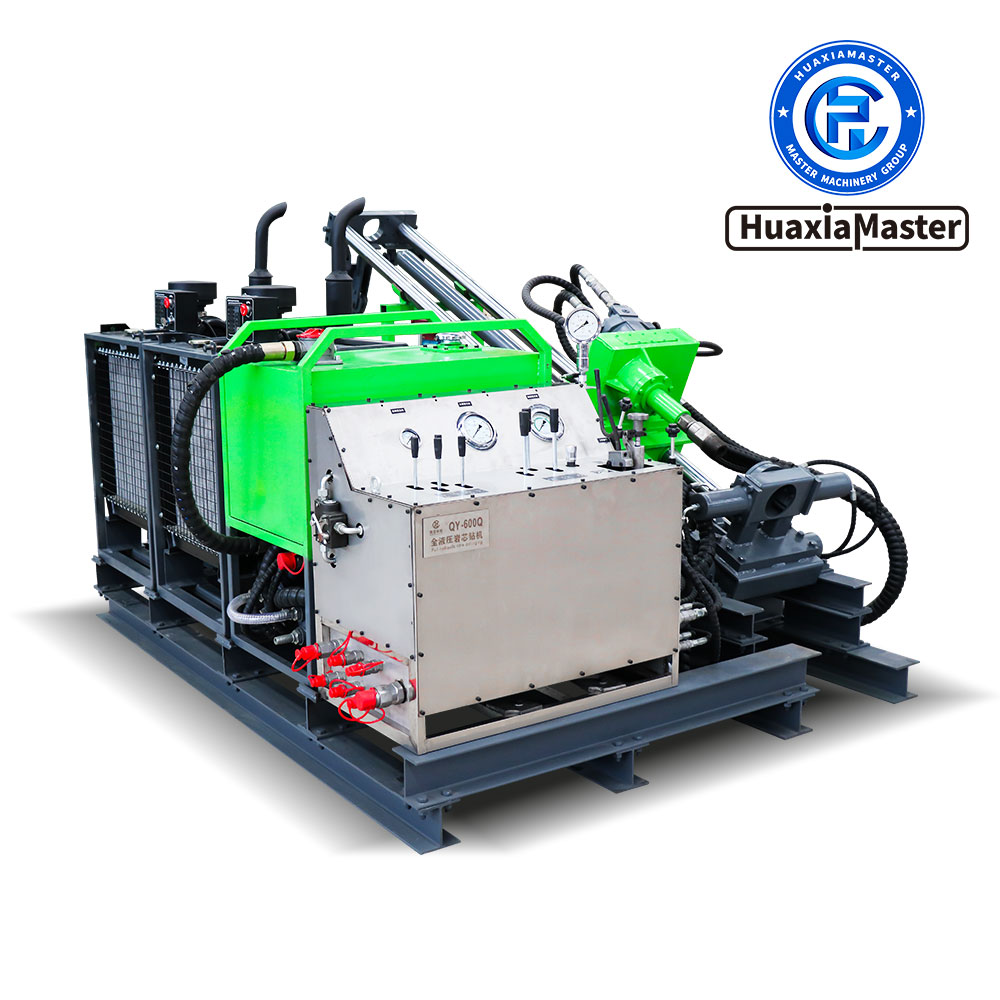

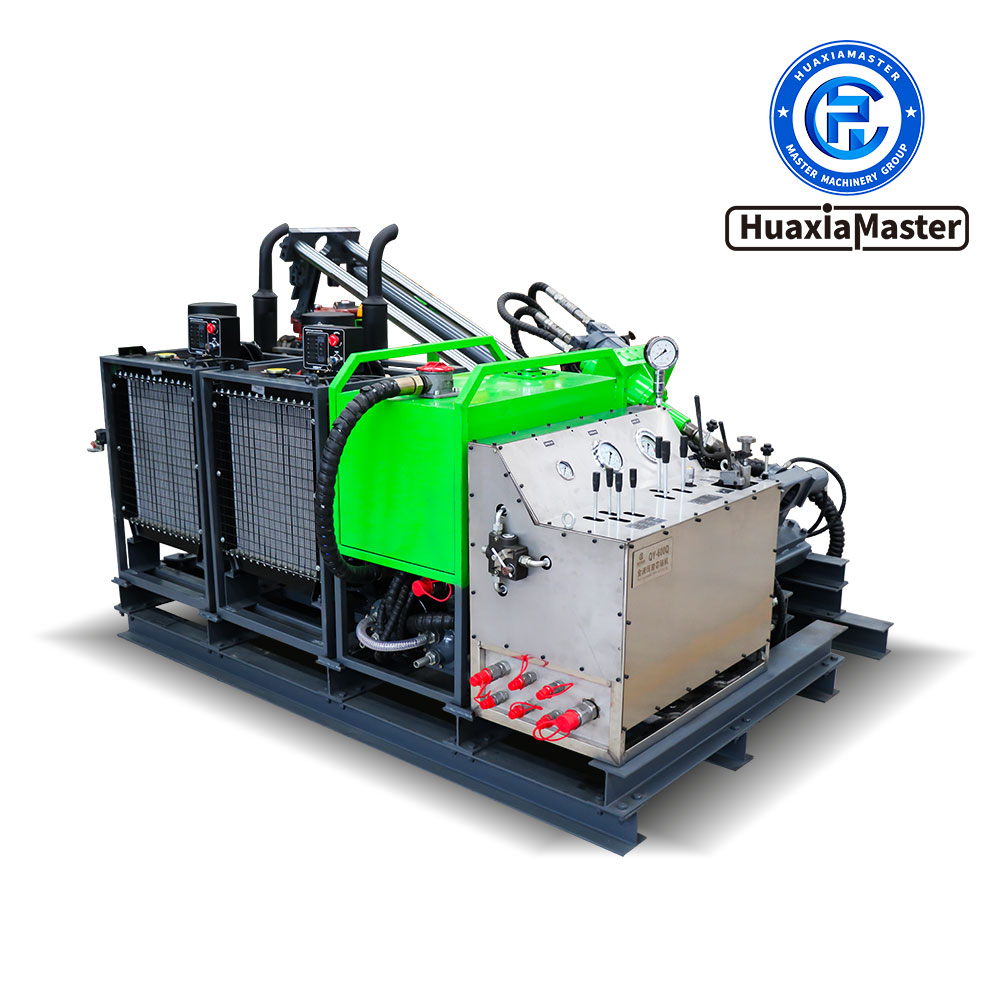

QY series portable fully hydraulic core drilling rig

1、Introduction to QY Series Portable Fully Hydraulic Core Drilling Rig

Fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.

2、Features of QY Series Portable Fully Hydraulic Core Drilling Rig

2.1 Modular design, light weight, easy to disassemble and carry.

2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.

2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure.

2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°.

2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.

2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.

3、Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig

还没有反馈

Your Rating

类似产品

MOQ 1 PCs

YQZ-30 Hydraulic Light Core ...

AED 53,875.60

MOQ 1 PCs

ZLJ Series Grouting ...

AED 53,875.60

MOQ 1 PCs

China master high-efficiency ...

AED 101,016.75

MOQ 1 PCs

China high quality wheel core ...

AED 53,875.60

MOQ 1 PCs

China-made high-quality and ...

AED 101,016.75

MOQ 1 PCs

China's most popular ...

AED 101,016.75

KQZ Series Air-electric ...

MOQ 1 PCs

Environmental sampling drill ...

AED 53,875.60

MOQ 1 PCs

QTZ-1S portable double-tube ...

Product Added To Container Successfuly !

View Container

An error occured while adding the product
please try again later !

You can't order less than 1

欢迎来到阿布拉！

立即订阅以直接将最新产品、最优惠和当前交易的 Abraa 时事通讯发送到您的电子邮箱！

Drilling rig model		QY-600	QY-800	QY-1000
Drilling capacity	BTW	600m	800m	1000m
	NTW	400m	600m	800m
	HTW	200m	400m	400mm
	PQ	/	/	/
Hydraulic system	Rated pressure	20mpa	20mpa	20mpa
Hydraulic system	cooling mode	water cooling	water cooling	water cooling
Engine	Engine type	Yunnei	Yunnei	Yunnei
Engine	Rated power	55kW*2	58kW*3	55kW*3
Power head	Maximum torque	1200N.m	1600N.m	500-1460N.m
	Maximum rotate speed	1100rpm	1100rpm	1300rpm
	Feeding stroke	1800mm	1800mm	1800mm
	Lifting force	100kN	120kN	160kN
	Propulsion force	75kN	85kN	80kN
Wire-line coring winch	Rope capacity	600m	800m	1000m
	Lifting force	15kN	15kN	24kN
