MASTER (JINING) HEAVY INDUSTRY MACHINERY CO., LTD.
طريقة دفعة آمنة وموثوقة باستخدام منصة عبرة للدفع عبر الانترنت مواصفات المنتج
| 新增功能 | |
| الماركة | HUAXIAMASTER |
| الكفالة | 是的 |
| الوزن (كيلوجرام) | 6200 |
| نوع المحرك | 其他 |
| النوع | 岩芯钻机 |
مواصفات المنتج
1.Introduction to QZ Series Light Core Drilling Rig
QZ series light drilling rig is a light multi-purpose geological engineering drilling rig, which is mainly suitable for geological exploration, advanced drilling, standard penetration test (SPT), blasting hole drilling, dredging acoustic hole testing, etc.
2.Features of QZ Series Light Core Drilling Rig
2.1 Compact structure and small occupation area.
2.2 Light weight and easy disassembly, easy to move.
2.3 Two gears speed change, easy to deal with different strata.
2.4 If equipped with winch, more convenient to lift.

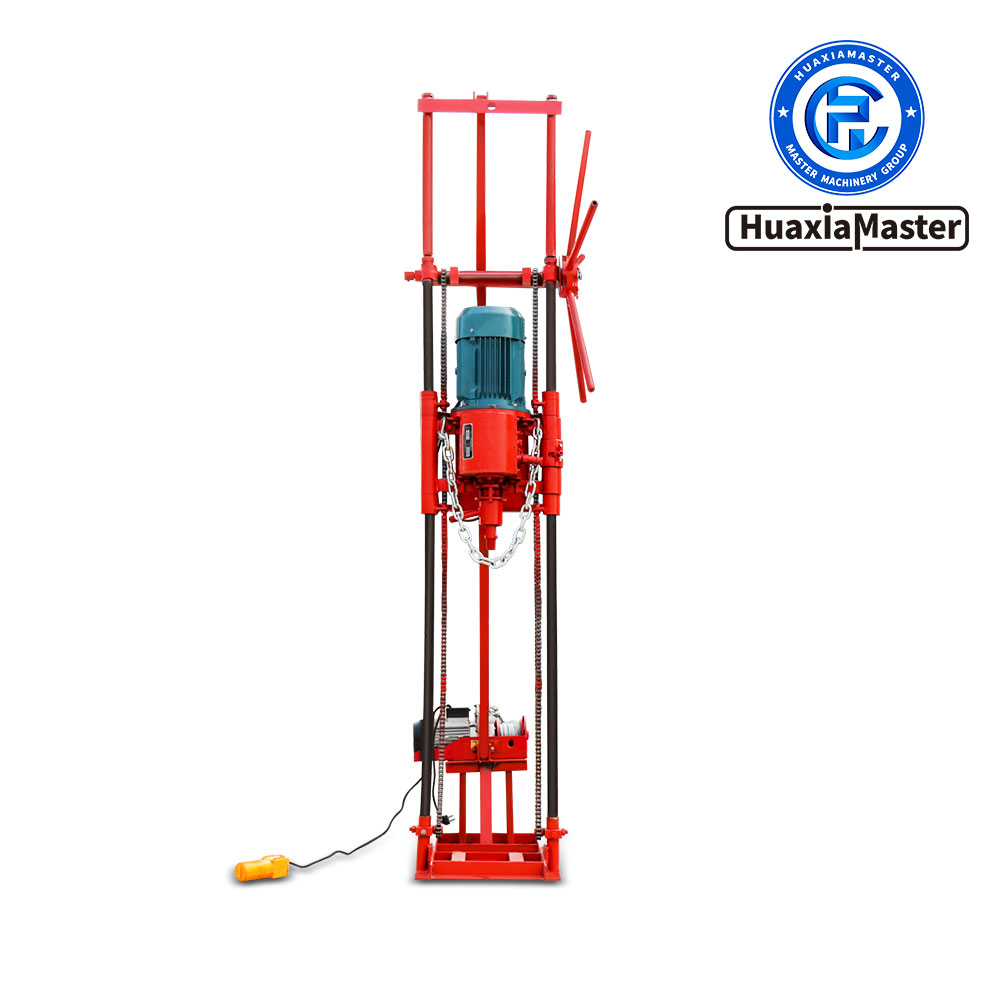

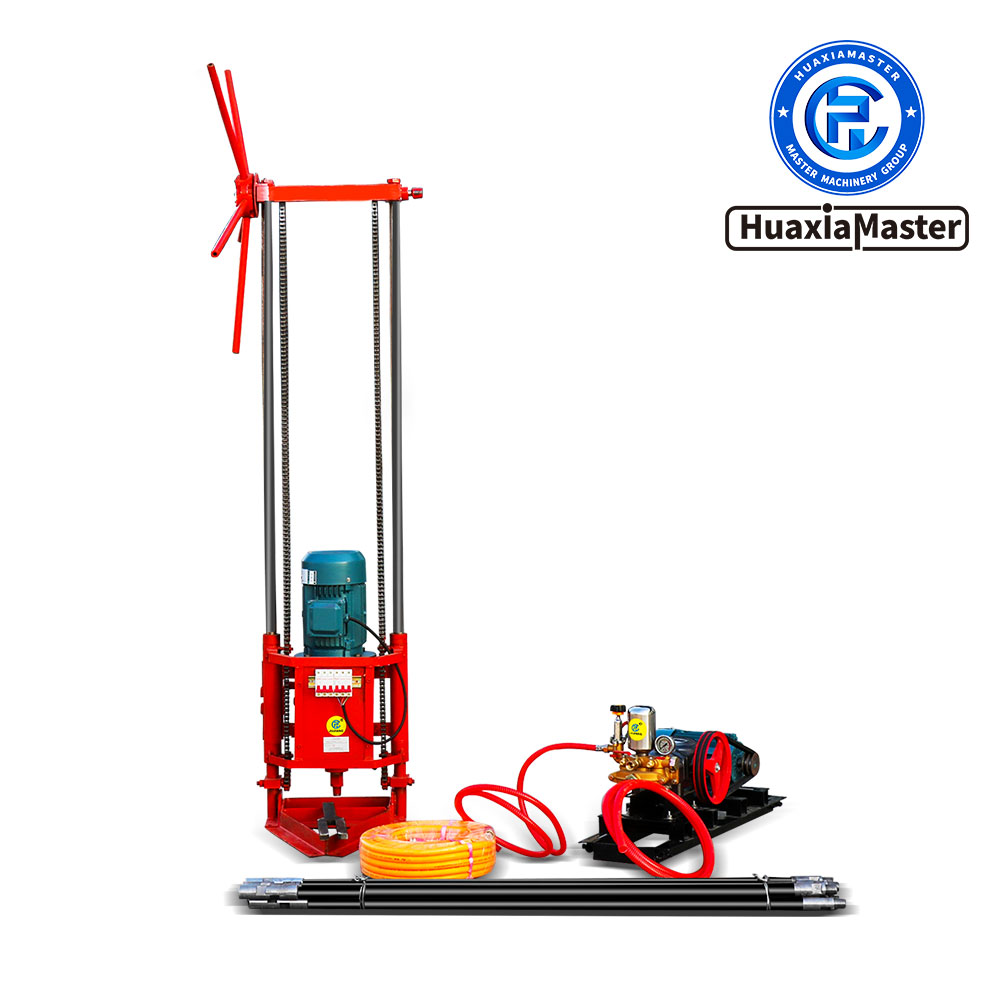

3. Parameters of QZ Series Electric Light Core Drilling Rig
Model | QZ-1A | QZ-2A | QZ-2D | QZ-2DS |
Engine | Two-phase electricity | Three-phase electricity | Three-phase electricity | Three-phase electricity |
Power | 1.5kW | 3kW | 4kW | 4kW |
Borehole dia. | 33～46mm | 33～91mm | 33～91mm | 46～91mm |
Sampling depth | Soil layerφ46: 20～25m Rockφ46：15～20m | Soil layerφ91: 10～15m Rockφ91: 0～5m Rockφ75: 5～10m Rockφ60: 10～15m Rockφ46: 15～20m | Soil layerφ91: 10～15m Rockφ91: 0～5m Rockφ75: 5～10m Rockφ60: 10～15m Rockφ46: 15～20m | Soil layerφ91: 15～20m Rockφ91: 10～15m Rockφ75: 15～20m Rockφ60: 20～25m Rockφ46: 25～30m |
Drill pipe dia. | 25mm | 32mm | 32mm | 32mm |
Dimension | 600*450*1900mm | 600*450*1900mm | 600*450*1900mm | 600*450*2500mm |
Weight | 80kg | 95kg | 100kg | 115kg |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.

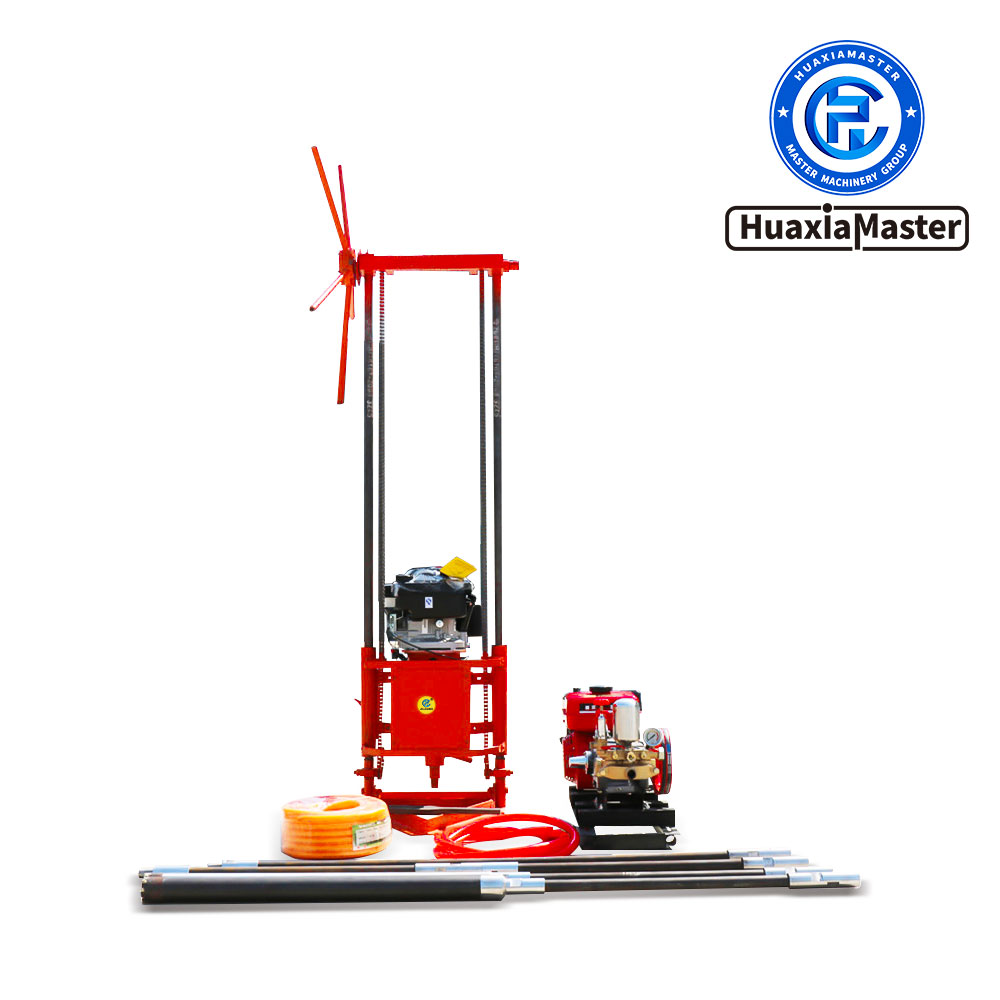

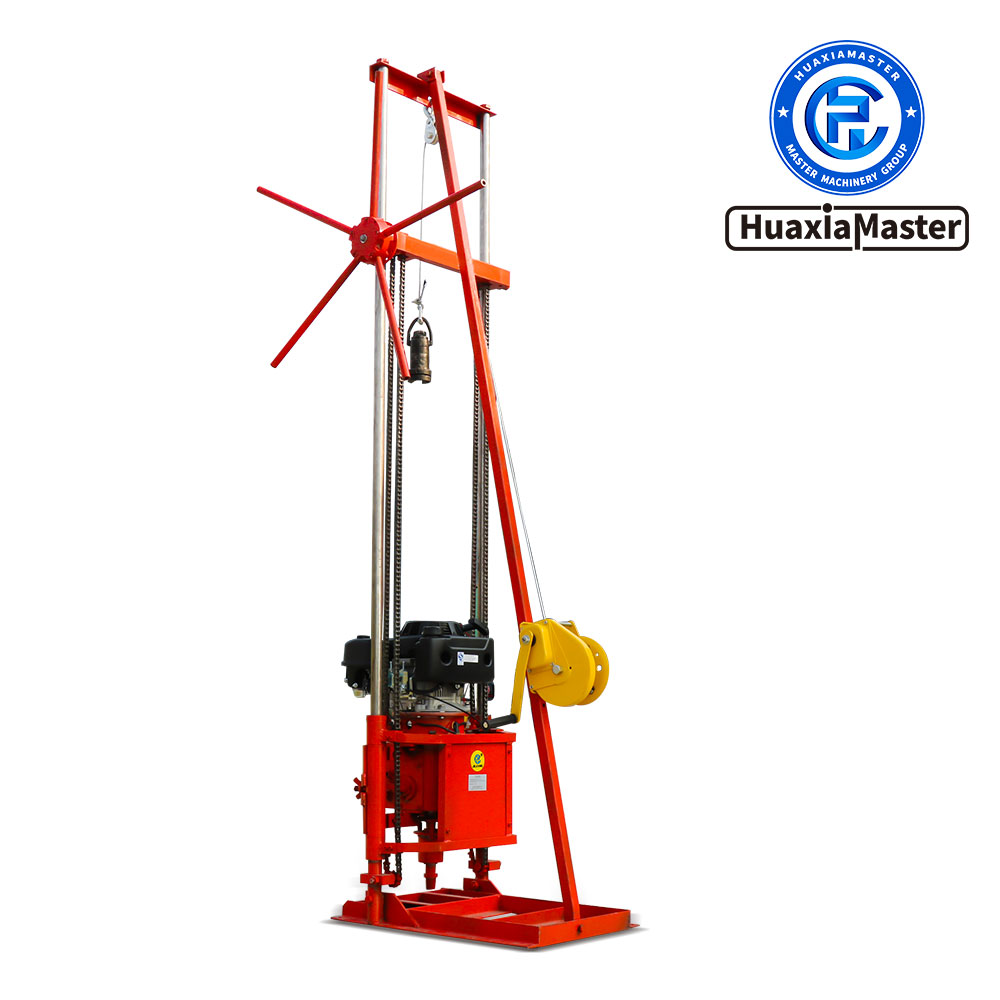

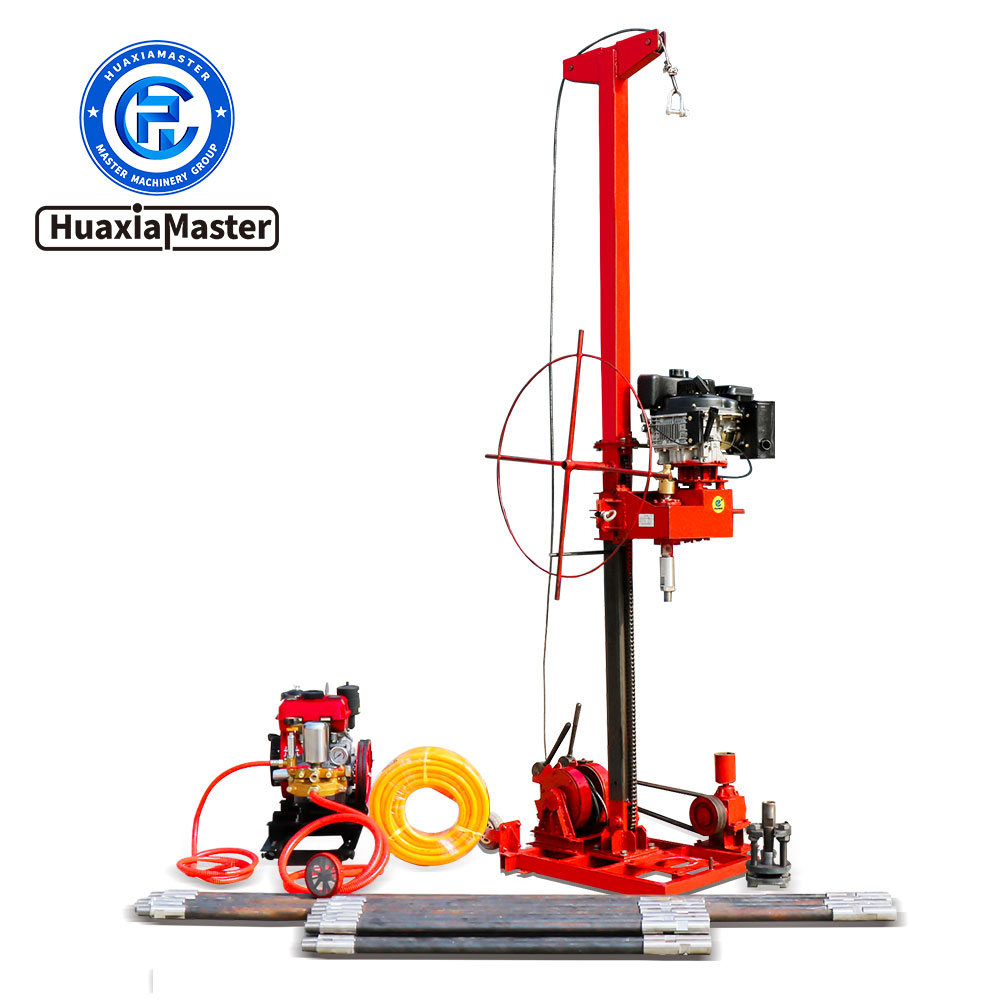

4. Parameters of QZ Series Internal Combustion Engine Lightweight Core Drilling Rig
Model | QZ-1B | QZ-2B | QZ-2C | QZ-2CS | QZ-3 |
Engine | gasoline engine | gasoline engine | gasoline engine |
\
