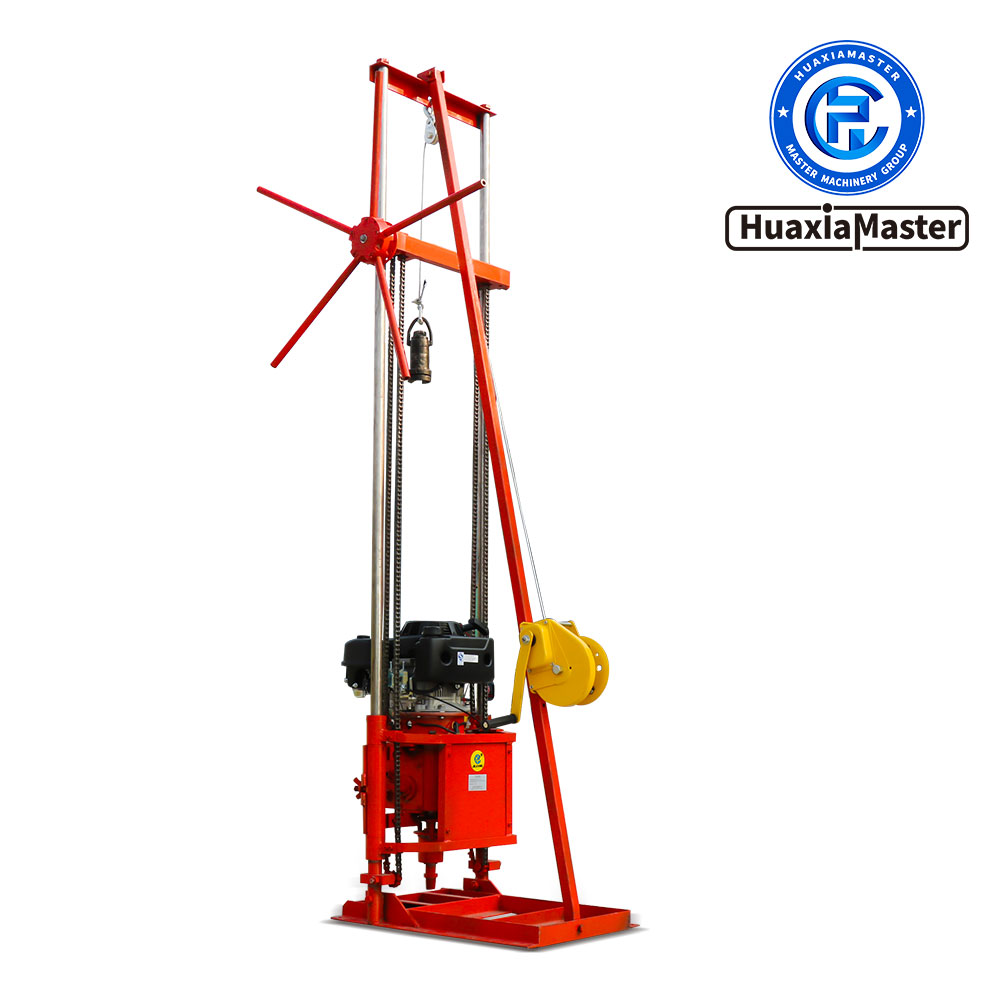

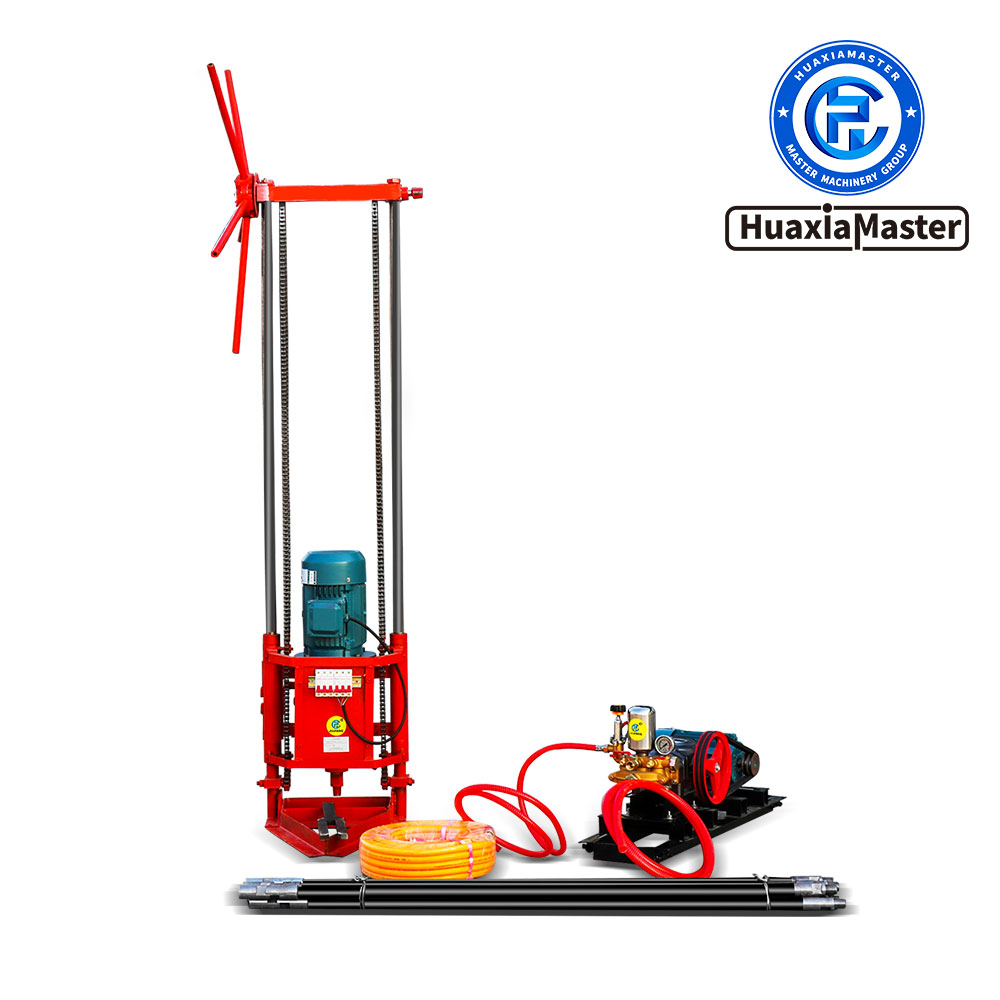

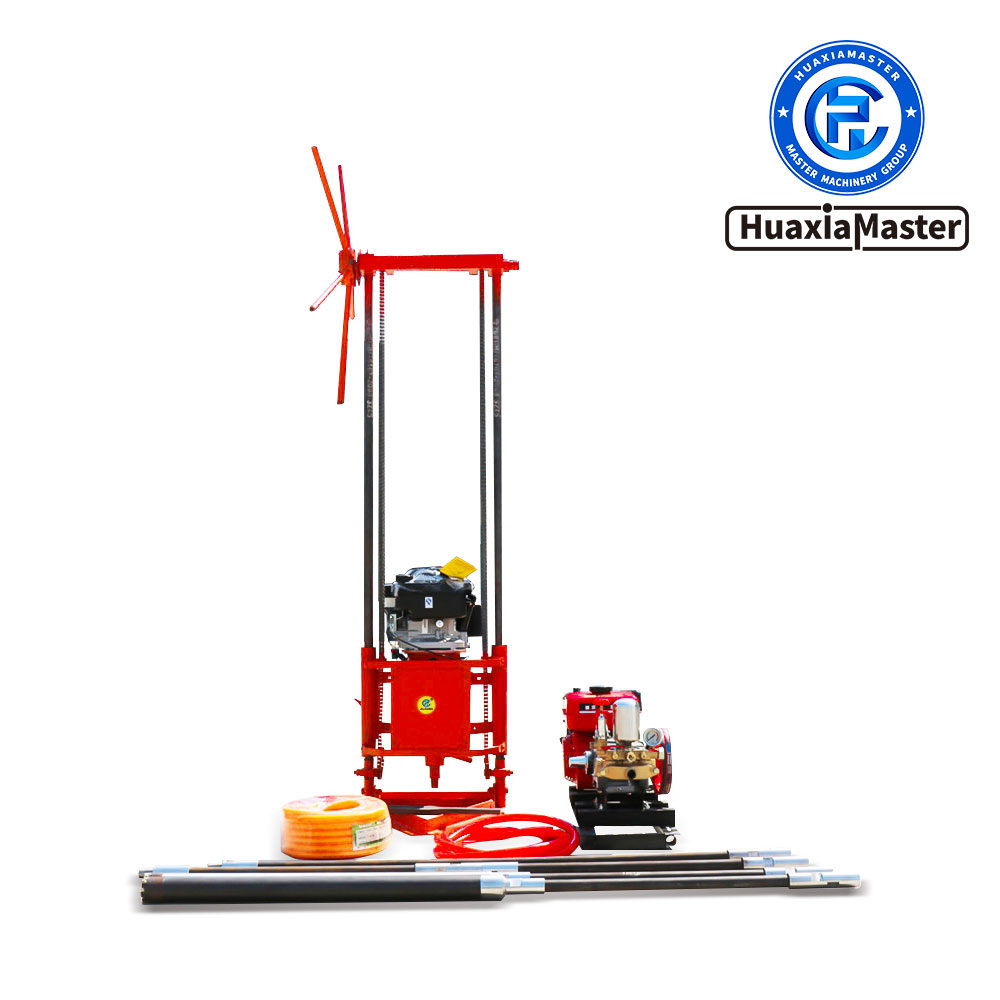

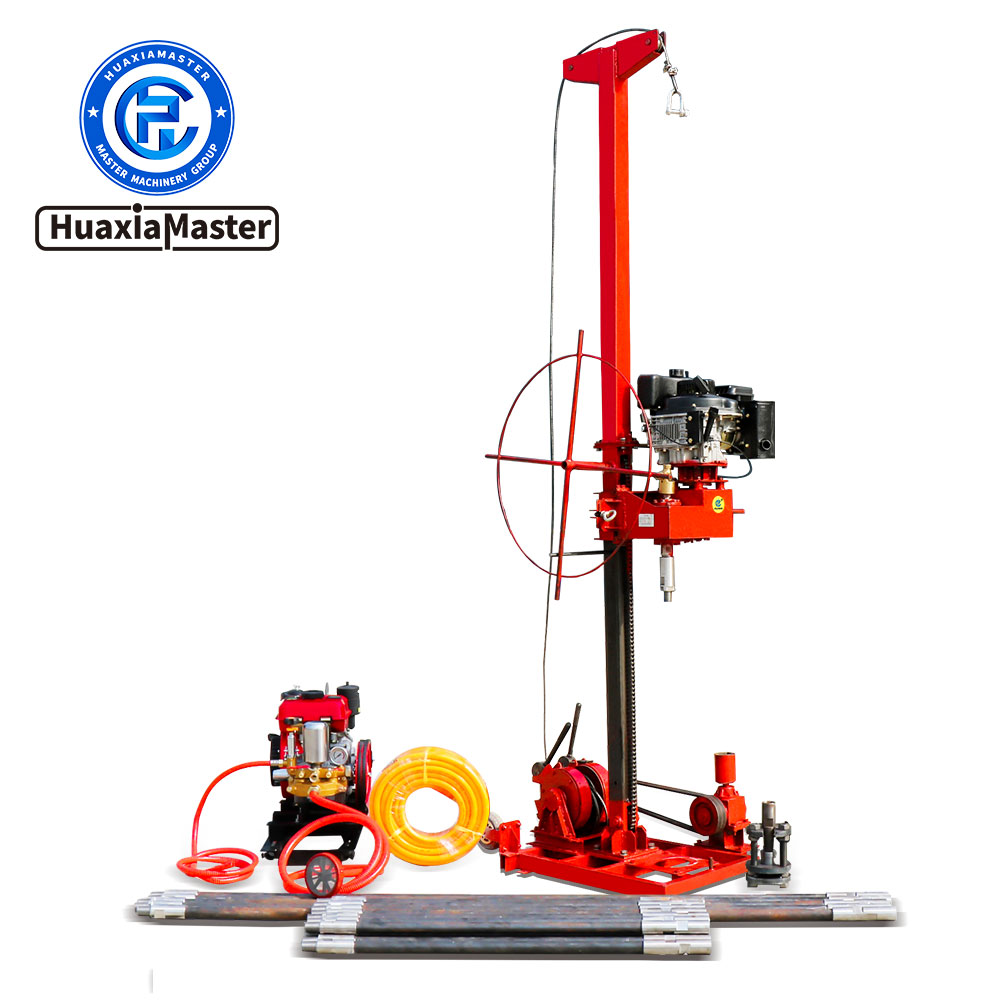

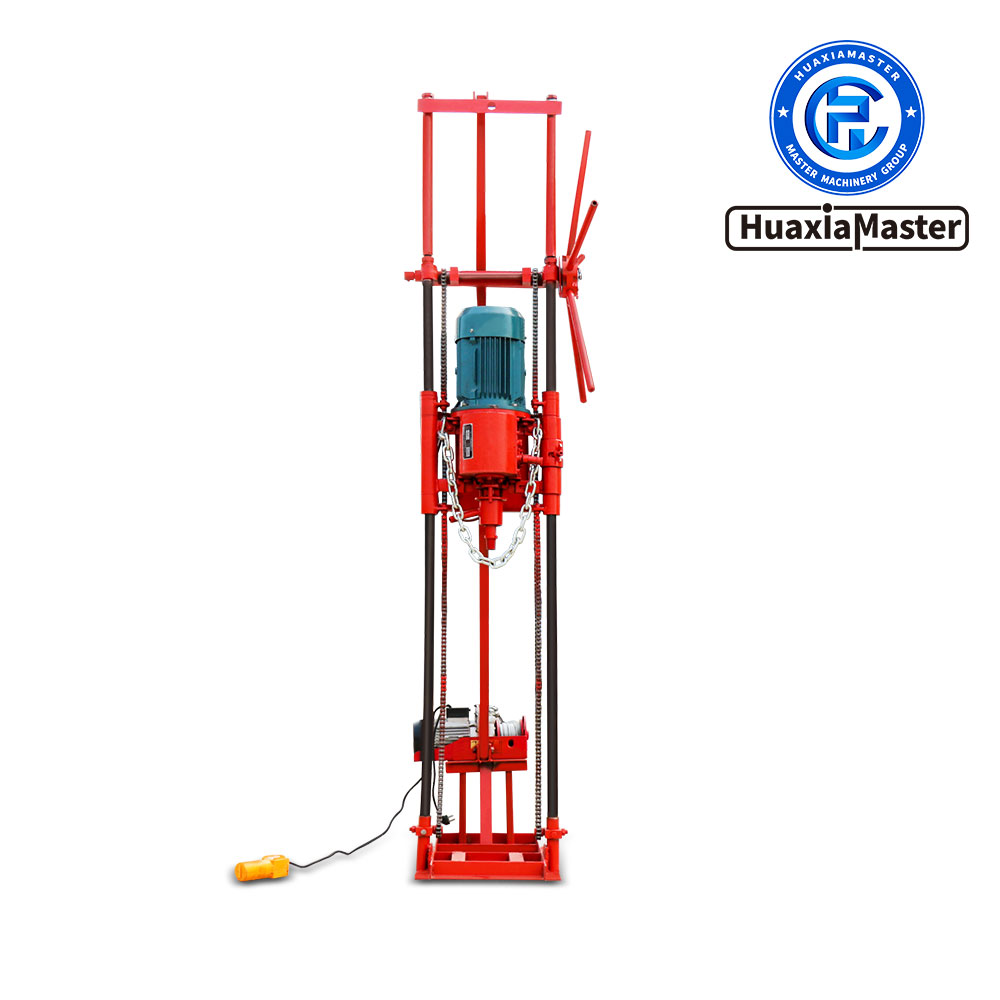

QZ stand-up geological exploration core drill rig

Name: QZ stand-up geological exploration core drill rig
Price: 7500 USD
Availability: 100
Rating: 5 (17 reviews)

Brand: MASTER·Ships from China

AED 27,525.00 / Unit

Availability: in stock

Min Order1 Unit

Country of shippingChina

Save

Request for quotation

Free · No obligation

Add to container

Sell Similar

Trade with confidence on Abraa

Safe and secure payments using Abraa safe trade systems

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Buyer Protection

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Item Details

Product Specification

Brand

MASTER

Product Descriptions

QZ Series Portable Core Drilling Rig

1、Introduction to QZ Series Light Core Drilling Rig

QZ series light drilling rig is a light multi-purpose geological engineering drilling rig, which is mainly suitable for geological exploration, advanced drilling, standard penetration test (SPT), blasting hole drilling, dredging acoustic hole testing, etc.

2、Features of QZ Series Light Core Drilling Rig

2.1 Compact structure and small occupation area.

2.2 Light weight and easy disassembly, easy to move.

2.3 Two gears speed change, easy to deal with different strata.

2.4 If equipped with winch, more convenient to lift.

3、Parameters of QZ Series Electric Light Core Drilling Rig

Model	QZ-1A	QZ-2A	QZ-2D	QZ-2DS
Engine	Two-phase electricity	Three-phase electricity	Three-phase electricity	Three-phase electricity
Power	1.5kW	3kW	4kW	4kW
Borehole dia	33～46mm	33～91mm	33～91mm	46～91mm
Sampling depth	Soil layerφ46: 20～25m Rockφ46：15～20m	Soil layerφ91: 10～15m Rockφ91: 0～5m Rockφ75: 5～10m Rockφ60: 10～15m Rockφ46: 15～20m	Soil layerφ91: 10～15m Rockφ91: 0～5m Rockφ75: 5～10m Rockφ60: 10～15m Rockφ46: 15～20m	Soil layerφ91: 15～20m Rockφ91: 10～15m Rockφ75: 15～20m Rockφ60: 20～25m Rockφ46: 25～30m
Drill pipe dia	25mm	32mm	32mm	32mm
Dimension	6004501900mm	6004501900mm	6004501900mm	6004502500mm
Weight	80kg	95kg	100kg	115kg

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.

4、Parameters of QZ Series Internal Combustion Engine Lightweight Core Drilling Rig

Model	QZ-1B	QZ-2B	QZ-2C	QZ-2CS	QZ-3
Engine	gasoline engine	gasoline engine	gasoline engine	gasoline engine	Diesel engine
Power	3.5kW	3.5kW	4.5kW	4.5kW	6kW
Displacement	224cc	196cc	224cc	224cc	499cc
Borehole dia	33～91mm	33～91mm	46～91mm	46～91mm	46～110mm
Sampling depth	Soil layerφ91: 10～15m Rockφ91: 0～5m Rockφ75: 5～10m Rockφ60：10～15m Rockφ46：15～20m	Soil layerφ91：10～15m Rockφ91：0～5m Rockφ75: 5～10m Rockφ60: 10～15m Rockφ46: 15～20m	Soil layerφ91: 15～20m Rockφ91: 10～15m Rockφ75: 15～20m Rockφ60: 20～25m Rockφ46: 25～30m	Soil layerφ91: 15～20m Rockφ91: 10～15m Rockφ75: 15～20m Rockφ60: 20～25m Rockφ46: 25～30m	Soil layerφ110: 20～25m Rockφ91: 20～25m Rockφ75: 25～30m Rockφ60: 25～30m Rockφ46: 40～50m;
Drill pipe dia	25mm	28mm	30mm	30mm	30mm
Rotate speed	200~570r/min	200~570r/min	200~570r/min	200~570r/min	3600r/min
Torque	110N.m	110N.m	110N.m	110N.m	180N.m
Dimension	6004501900mm	6004501900mm	6004501900mm	6004501900mm	68012003800mm (Highly customizable)
Weight	90kg	90kg	95kg	95kg	165kg

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
