SJCY Wheel Diesel Hydraulic Drilling Water Well Equipment with Heat Sink
Availability: in stock
Trade with confidence on Abraa
Safe and secure payments using Abraa safe trade systems
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
Buyer Protection
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
Product Specification
| Condition | 新的 |
| Brand | HUAXIAMASTER |
| Warranty | 是的 |
Product Descriptions

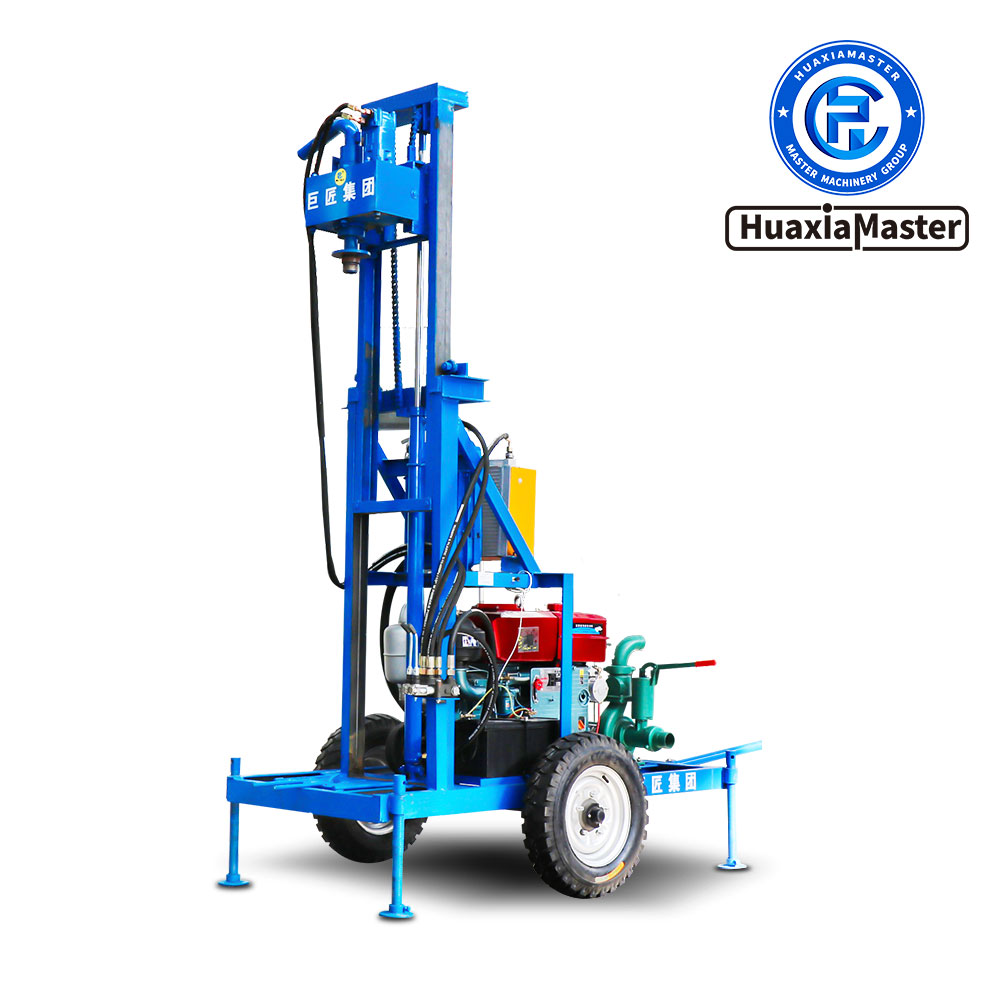

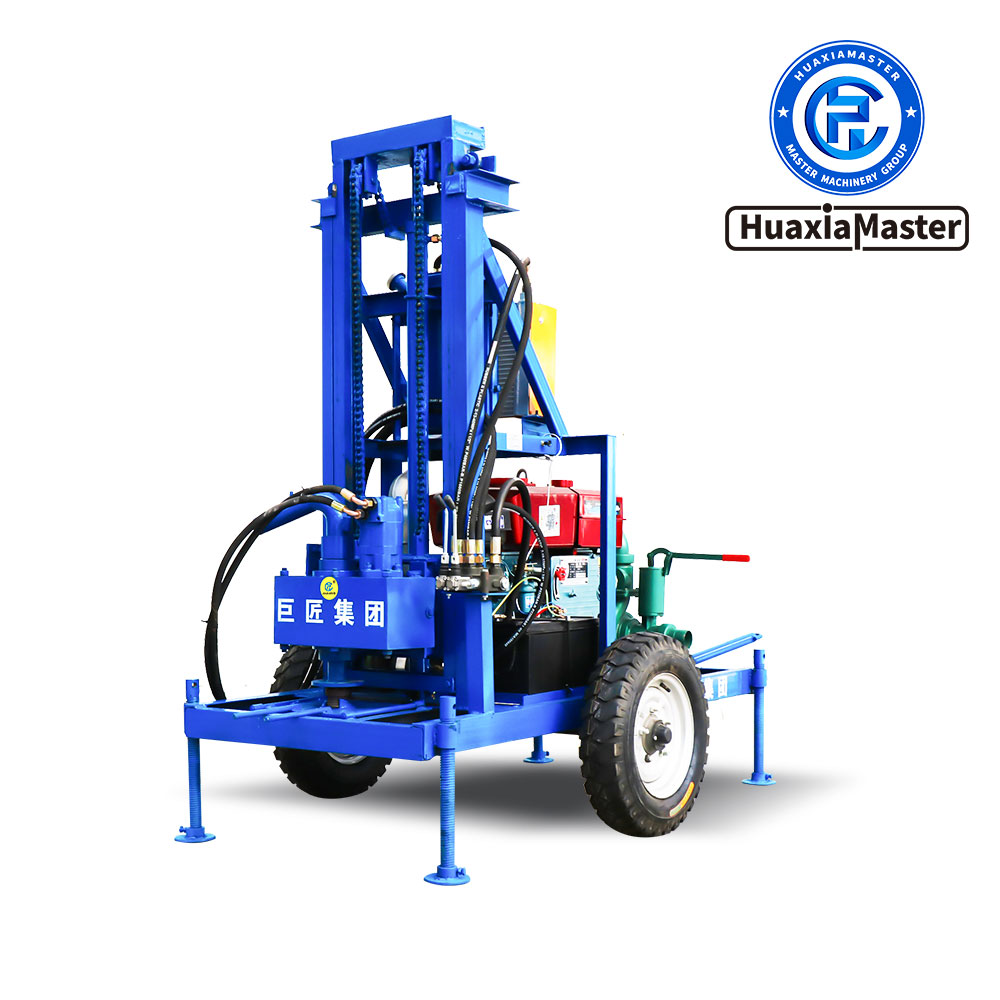

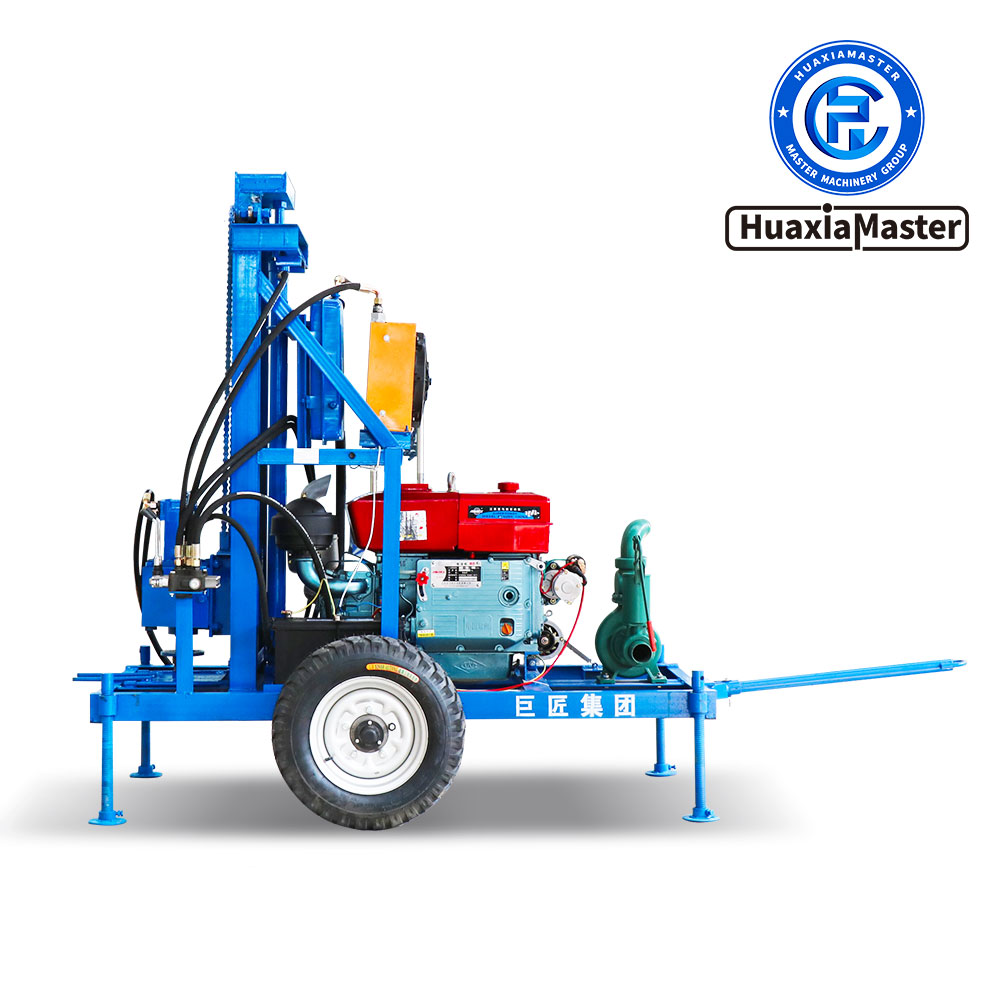

1. Introduction to SJCY Series Wheeled Diesel Hydraulic Water Well Drilling Rig
SJCY series wheeled diesel hydraulic water well drilling rig is a hydraulic drilling rig developed and widely promoted by HUAXIAMASTER GROUP. It is suitable for drilling in soil layer, quicksand layer and a small amount of rock and soil layer. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant wells, industrial wells, etc.
2. Features of SJCY Series Wheeled Diesel Hydraulic Water Well Drilling Rig
2.1 The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.

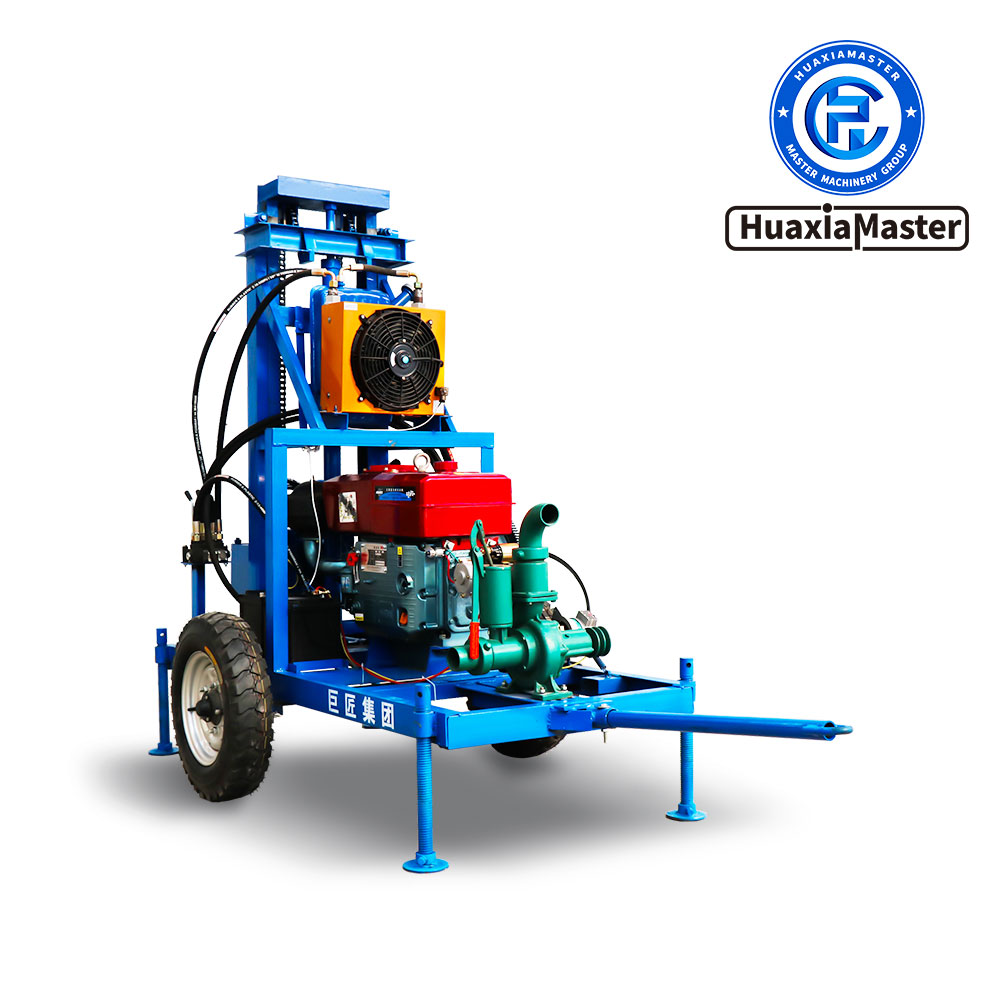

2.2 The drilling rig adopts hydraulic working principle and is equipped with radiator, so the drilling rig can work continuously and efficiently.
2.3 Equipped with high-power hydraulic motor, the power head can rotate forward and backward.
2.4 The drill frame is equipped with hydraulic oil cylinder, and the oil pressure can be raised and lowered through the operating handle.
2.5 The drilling rig has its own water pump, which has reasonable structure, compact layout and good slag removal effect.
2.6 It can be equipped with a motorcycle tricycle chassis for easy movement and transfer.
3. Parameters of SJCY Series Wheeled Diesel Hydraulic Water Well Drilling Rig
Drilling rig model | SJCY | SJCY-C |
Walking style | Tire traction | Motorcycle tricycle |
Machine power | Single cylinder diesel engine/22 HP | Single cylinder diesel engine/22 HP |
Vehicle weight | 560kg | 1500kg |
Overall machine size | 1900*980*1800mm | 3900mm*1400mm*1850mm |
Power head | BM5-200 Hydraulic Motor | BM5-200 Hydraulic Motor |
Pressurized system | Hydraulic cylinder booster | Hydraulic cylinder booster |
Screw legs | 4 | 2 |
Drill pipe specifications | 50*1500mm | 50*1500mm |
Drilling diameter | 80-300mm | 80-300mm |
Drilling depth | 0-120m | 0-120m |
Slide travel | 2400mm | 2400mm |
Lift height | 2600mm | 2600mm |
One-time advancement length | 1500mm | 1500mm |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
