SPJ Series Grinding Disc Water Well Drilling Rig

1. Introduction of SPJ Series Grinding Disc Water Well Drilling Rig

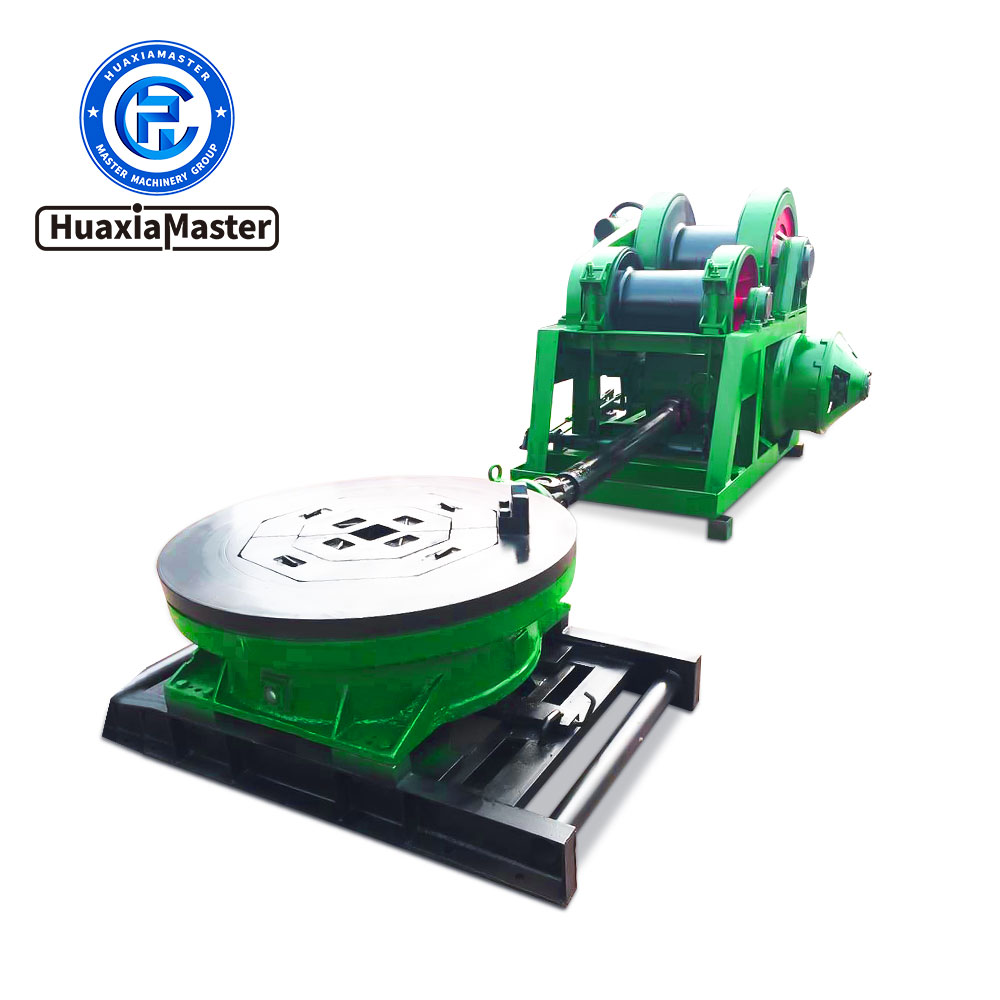

The SPJ series grinding disc drilling rig is a multifunctional large-diameter drilling rig. Its core disc-shaped power head drives the drill to rotate and cut the strata. It has the advantages of good hole quality, high efficiency, and strong adaptability. It can perform large-diameter and deep-hole drilling operations in soil, sand, gravel, and soft rock layers. It is widely used in water well drilling and pile foundation construction of various construction projects, bridge projects, municipal projects, etc. At the same time, the grinding disc drilling rig can also be customized into trailer-type, vehicle-mounted, or crawler-type according to customer needs.‌
2. Features of SPJ Series Grinding Disc Water Well Drilling Rig
2.1 The grinding disc drilling rig is equipped with a diesel generator set and a distribution box. In areas with electricity, it can also be directly connected to the power supply through the distribution box to work, and the power selection is more flexible.
2.2 The drilling rig adopts modular design, which is convenient for assembly and disassembly, and easy for transfer and transportation.
2.3 The winch is configured to realize the lifting of drilling tools, lowering of well pipes, and vertical placement of drilling towers, making the construction convenient and efficient.
2.4 The drilling tower adopts heavy-duty structural design, with key parts resistant to shock and wear, strong structural stability and outstanding anti-overturning performance.
2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.
3.Parameters of SPJ Series Grinding Disc Water Well Drilling Rig
Drilling rig model SPJ-400 SPJ-600 SPJ-1000
Drilling diameter 500mm-1800mm 500mm-2500mm 500mm-2500mm
Drilling depth 50m-400m 50m-600m 50m-1000m
Active drill pipe 108*108*12mm 108*108*12mm 133*133*12mm
Drill pipe 89mm 89mm 89mm/114mm
Main winch lifting capacity 32T 60T 60T
Main winch wire rope diameter 18mm 20-21.5mm 20-21.5mm
Main winch wire rope capacity 150m 240m 280m
Auxiliary winch lifting capacity 15T 32T 32T
Auxiliary winch wire rope diameter 14mm 18mm 18mm
Auxiliary winch wire rope capacity 150m 150m 280
Diameter of turntable hole 500mm 605mm 670mm
Turntable speed (forward, reverse) 40、70、128r/min 50、70、128r/min 36、60、90、130r/min
Drilling tower Type A Type A Type A
Vertical height of drilling tower 13m 13m 18m
Weight of the whole set (without drill rod) 9T 11T 15T
Dimensions 6000*2200*13000mm 6000*4000*13500 6000*4500*18000
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
