Product Descriptions

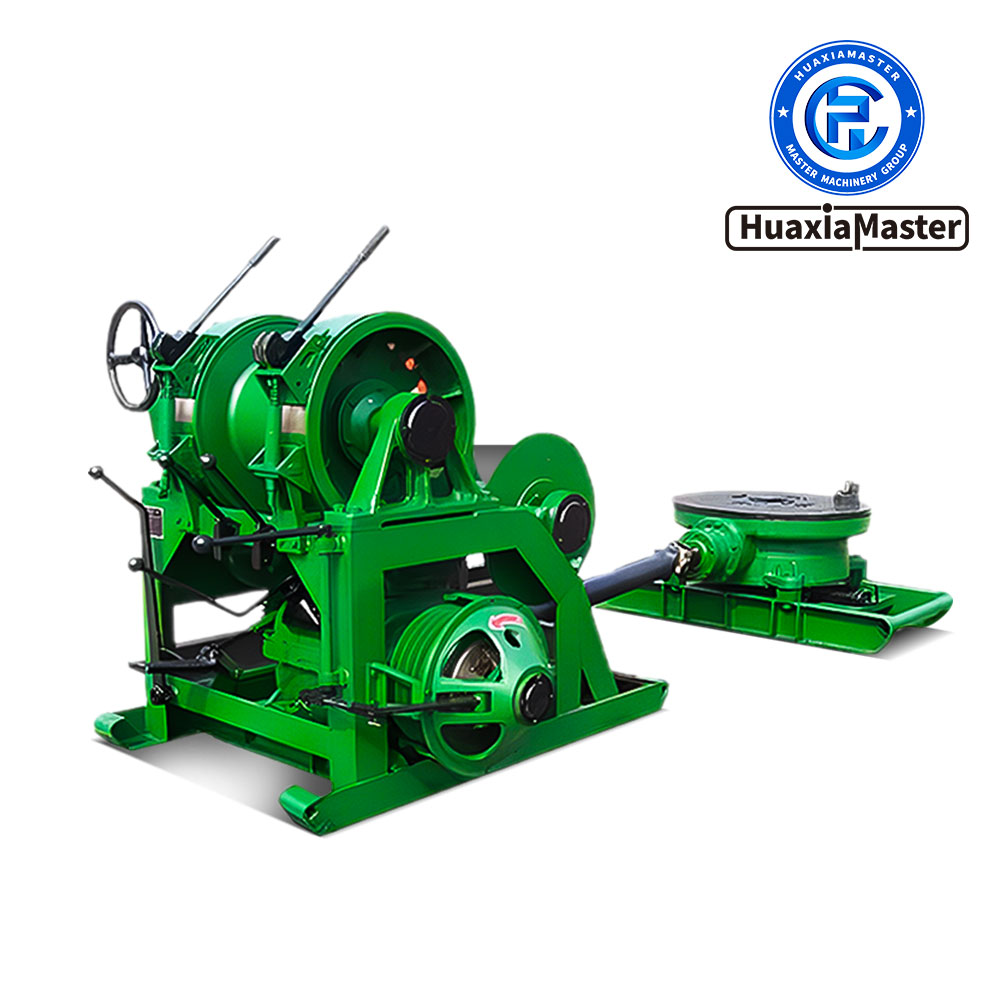

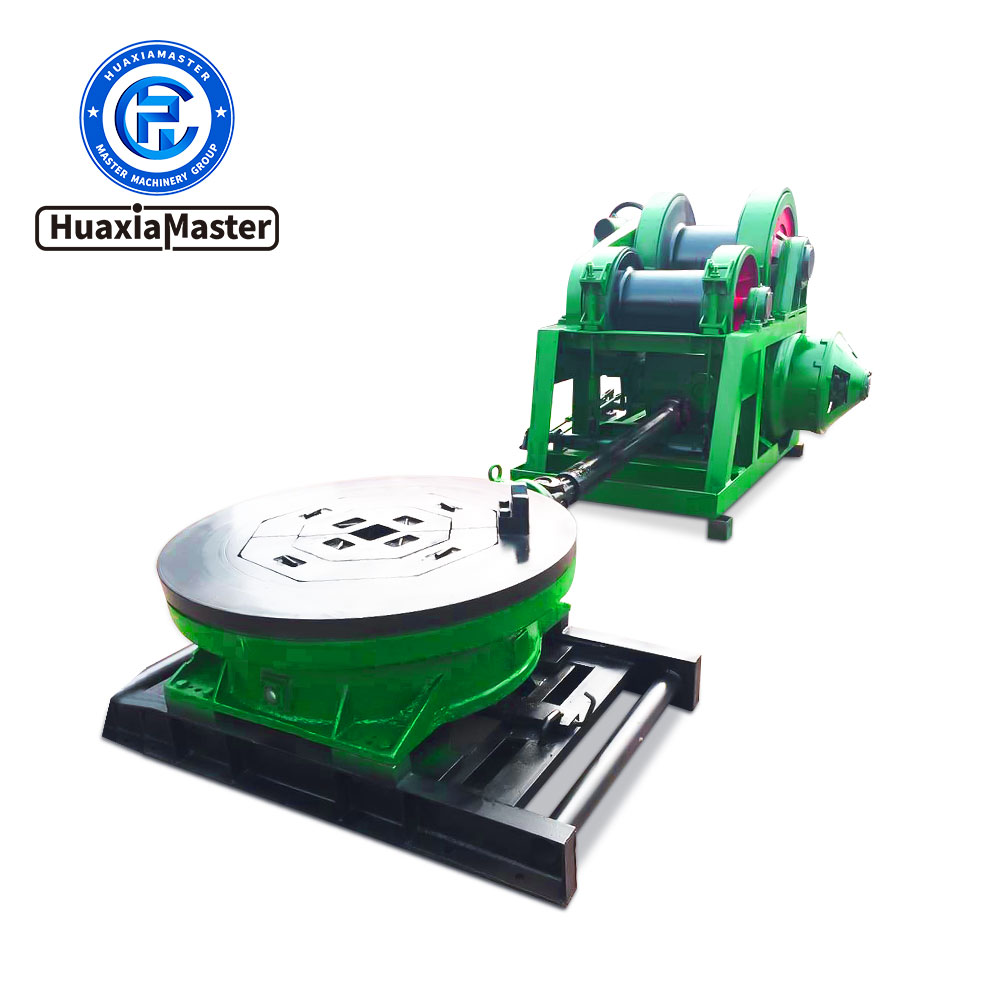

1. Introduction to SPJ Series Grinding Disc Water Well Drilling Rig
The SPJ series grinding disc drilling rig is a multifunctional large-diameter drilling rig. Its core disc-shaped power head drives the drill to rotate and cut the strata. It has the advantages of good hole quality, high efficiency, and strong adaptability. It can perform large-diameter and deep-hole drilling operations in soil, sand, gravel, and soft rock layers. It is widely used in water well drilling and pile foundation construction of various construction projects, bridge projects, municipal projects, etc. At the same time, the grinding disc drilling rig can also be customized into trailer-type, vehicle-mounted, or crawler-type according to customer needs.
2. Features of SPJ Series Grinding Disc Water Well Drilling Rig
2.1 The grinding disc drilling rig is equipped with a diesel generator set and a distribution box. In areas with electricity, it can also be directly connected to the power supply through the distribution box to work, and the power selection is more flexible.
2.2 The drilling rig adopts modular design, which is convenient for assembly and disassembly, and easy for transfer and transportation.
2.3 The winch is configured to realize the lifting of drilling tools, lowering of well pipes, and vertical placement of drilling towers, making the construction convenient and efficient.
2.4 The drilling tower adopts heavy-duty structural design, with key parts resistant to shock and wear, strong structural stability and outstanding anti-overturning performance.
2.5 The drilling rig is simple and easy to learn, and novices can quickly get started, reducing dependence on manual labor.
3.Parameters of SPJ Series Grinding Disc Water Well Drilling Rig
Drilling rig model | SPJ-400 | SPJ-600 | SPJ-1000 |
Drilling diameter | 500mm-1800mm | 500mm-2500mm | 500mm-2500mm |
Drilling depth | 50m-400m | 50m-600m | 50m-1000m |
Active drill pipe | 108*108*12mm | 108*108*12mm | 133*133*12mm |
Drill pipe | 89mm | 89mm | 89mm/114mm |
Main winch lifting capacity | 32T | 60T | 60T |
Main winch wire rope diameter | 18mm | 20-21.5mm | 20-21.5mm |
Main winch wire rope capacity | 150m | 240m | 280m |
Auxiliary winch lifting capacity | 15T | 32T | 32T |
Auxiliary winch wire rope diameter | 14mm | 18mm | 18mm |
Auxiliary winch wire rope capacity | 150m | 150m | 280 |
Diameter of turntable hole | 500mm | 605mm | 670mm |
Turntable speed (forward, reverse) | 40、70、128r/min | 50、70、128r/min | 36、60、90、130r/min |
Drilling tower | Type A | Type A | Type A |
Vertical height of drilling tower | 13m | 13m | 18m |
Weight of the whole set (without drill rod) |
\
