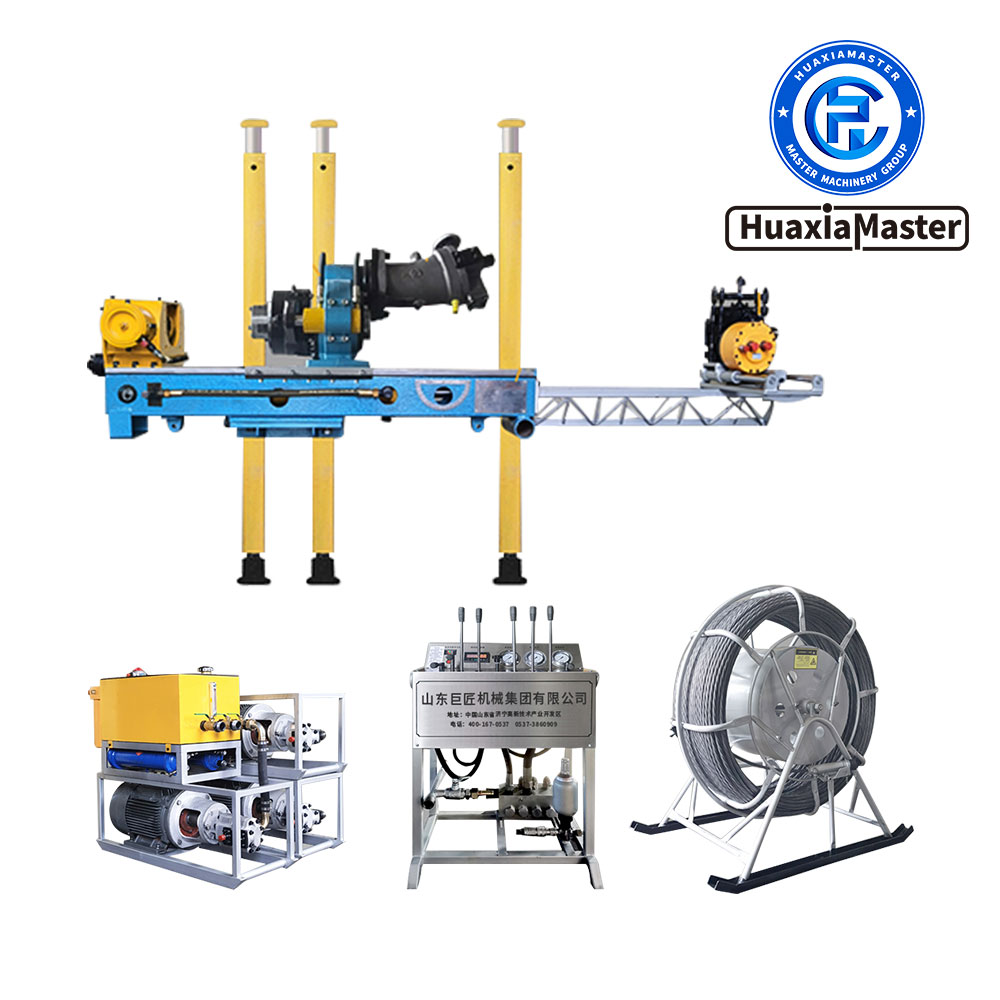

KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig

1.Introduction of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig

KY-6075 fully hydraulic exploration drilling rig can meet the most advanced steel strand wire core drilling technology. In the process of drilling, when the core is full of the inner pipe of the core, there is no need to lift the drill pipe, but take the drill pipe as the channel to lift the inner pipe of the core stored outside the hole with the help of prestressed steel strand and special fishing tools to obtain the core. In view of the characteristics of high strength and small deformation of prestressed steel strand, the steel strand wire core drilling rig can achieve 360 °all-round drilling.

2.Features of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig

2.1 In the process of drilling, it is unnecessary to lift the core, and 360 °core drilling can be realized.

2.2 Reduce the auxiliary time of lifting drill pipe and increase the pure drilling time. The deeper the borehole is, the more significant the economic effect is.

2.3 If the core is blocked, it can be immediately fished out to improve the core recovery rate.

2.4 lt can reduce the wear of drill pipe thread during screwing and unloading, and the wear of bitcleaning, prolong the service life of drill pipe and reduce the consumption of pipe material.

2.5 Reduce flushing fluid suction and hole wall pressure balance, so as to reduce accidents in thehole.

2.6 Reduce the mechanical wear of lifting and delivering drill pipe, and increase the service life ofthe drill.

2.7 Reduce borehole curvature and improve borehole quality.

2.8 It is conducive to drilling compiex stratum and avoiding hoie wait coliapse and biock faiing.

2.9 The inclinometer can be set in the drill pipe with steel strand wire to measure the inclinometer.

3.Parameters of KY-6075 Fully Hydraulic Steel Cable Coring Exploration Drilling Rig

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
