Name: Working condition drilling rig
Price: 4000 USD
Availability: 100
Rating: 3 (25 reviews)

报价请求

ZLJ Series Grouting Reinforcement Drilling Rig1.Introduction to ZLJ Series Grouting Reinforcement Drilling RigThe grouting reinforcement drilling rig is a type of engineering machinery specifically designed for drilling and grouting reinforcement operations. It integrates two core functions: drilling and grouting, and is widely used in engineering fields such as tunnels, mines, water conservancy and hydropower, subways, foundation pit support, foundation treatment, slope management, and disaster prevention. It is an indispensable key equipment in modern geotechnical engineering and geological disaster control.2.Features of ZLJ Series Grouting Reinforcement Drilling Rig2.1 The drilling rig integrates drilling and grouting functions, eliminating the need to replace other equipment and improving construction efficiency.2.2 The overall design of the drilling rig is compact, making it convenient for construction in narrow spaces.2.3 The drilling angle can be adjusted by rotating the vertical shaft to meet the needs of multi-angle grouting.2.4 Optional rubber steel wire crawler chassis or electric three-wheeled vehicle chassis, which is convenient for moving and does not damage the road surface.3.Parameters of ZLJ Series Grouting Reinforcement Drilling Rig<table class="MsoNormalTable" border="0" cellspacing="0" style="border-collapse:collapse;width:737.6500pt;margin-left:5.4000pt;
mso-table-layout-alt:fixed;border:none;mso-padding-alt:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;"><tr style="height:17.0000pt;"><td width="145" valign="center" style="width:108.7500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:1.0000pt solid rgb(0,0,0);
mso-border-left-alt:0.5000pt solid rgb(0,0,0);border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">Drilling Rig Model</td><td width="130" valign="center" style="width:97.9000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-350</td><td width="136" valign="center" style="width:102.3500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-650</td><td width="140" valign="center" style="width:105.4000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-1200</td><td width="153" valign="center" style="width:114.7500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-1200D</td><td width="140" valign="center" style="width:105.3500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-1600D</td><td width="137" valign="center" style="width:103.1500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:1.0000pt solid rgb(0,0,0);mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">ZLJ-1200C</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling Depth</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">150m</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200m</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200-250m</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200-250m</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200-250m</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200-250m</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drill Pipe Diameter</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42mm</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42mm</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/50mm</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/50mm</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/50mm</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/50mm</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling Diameter</td><td width="130" valign="center" style="width:97.9000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:none;mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">45/55/65/75/85/110mm</td><td width="136" valign="center" style="width:102.3500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:none;mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">45/55/65/75/85/110mm</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">45/55/65/75/85/110mm</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">45/55/65/75/85/110mm</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">45/55/65/75/85/110mm</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">45/55/65/75/85/110mm</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling Angle</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">0~360°</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Spindle Diameter</td><td width="130" valign="center" style="width:97.9000pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:none;mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">42mm</td><td width="136" valign="center" style="width:102.3500pt;padding:0.0000pt 5.4000pt 0.0000pt 5.4000pt ;border-left:none;
mso-border-left-alt:none;border-right:1.0000pt solid rgb(0,0,0);mso-border-right-alt:0.5000pt solid rgb(0,0,0);
border-top:none;mso-border-top-alt:0.5000pt solid rgb(0,0,0);border-bottom:1.0000pt solid rgb(0,0,0);
mso-border-bottom-alt:0.5000pt solid rgb(0,0,0);">42mm</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/54mm</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/54mm</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/54mm</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">42/54mm</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Spindle Speed</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">112/192/340r/min</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">88/150/270r/min</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">123/219/385r/min</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">123/219/385r/min</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">115/205/360r/min</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">123/219/385r/min</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Maximum Spindle Torque</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">350N.m</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">650N.m</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1200N.m</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1200N.m</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1600N.m</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1200N.m</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Spindle Feeding Stroke</td><td width="130" valign="center" style="width: 97.9pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td><td width="136" valign="center" style="width: 102.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td><td width="140" valign="center" style="width: 105.4pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td><td width="153" valign="center" style="width: 114.75pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td><td width="140" valign="center" style="width: 105.35pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td><td width="137" valign="center" style="width: 103.15pt; padding: 0pt 5.4pt; border-left: none; border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td></tr><tr style="height:17.0000pt;"><td width="145" valign="center" style="width: 108.75pt; padding: 0pt 5.4pt; border-left: 1pt solid rgb(0, 0, 0); border-right: 1pt solid rgb(0, 0, 0); border-top: none; border-bottom: 1pt solid rgb(0, 0, 0); background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rated Feeding Force</td>

數量

Ship to Country

添加到容器

Member since : 16-六月-2025

SHANDONG MASTER MACHINERY GROUP CO., LTD.

'基本成员'

去商店

报价请求

數量

Ship to Country

添加到容器

矿用钻机

Working condition drilling rig

AED 14,680.00 / Unit

可用性: 有存货

强调 :

最低订购 : 1
Country of shipping :

使用 Abraa 安全交易系统进行安全可靠的支付

项目详细信息

產品規格

Product Descriptions

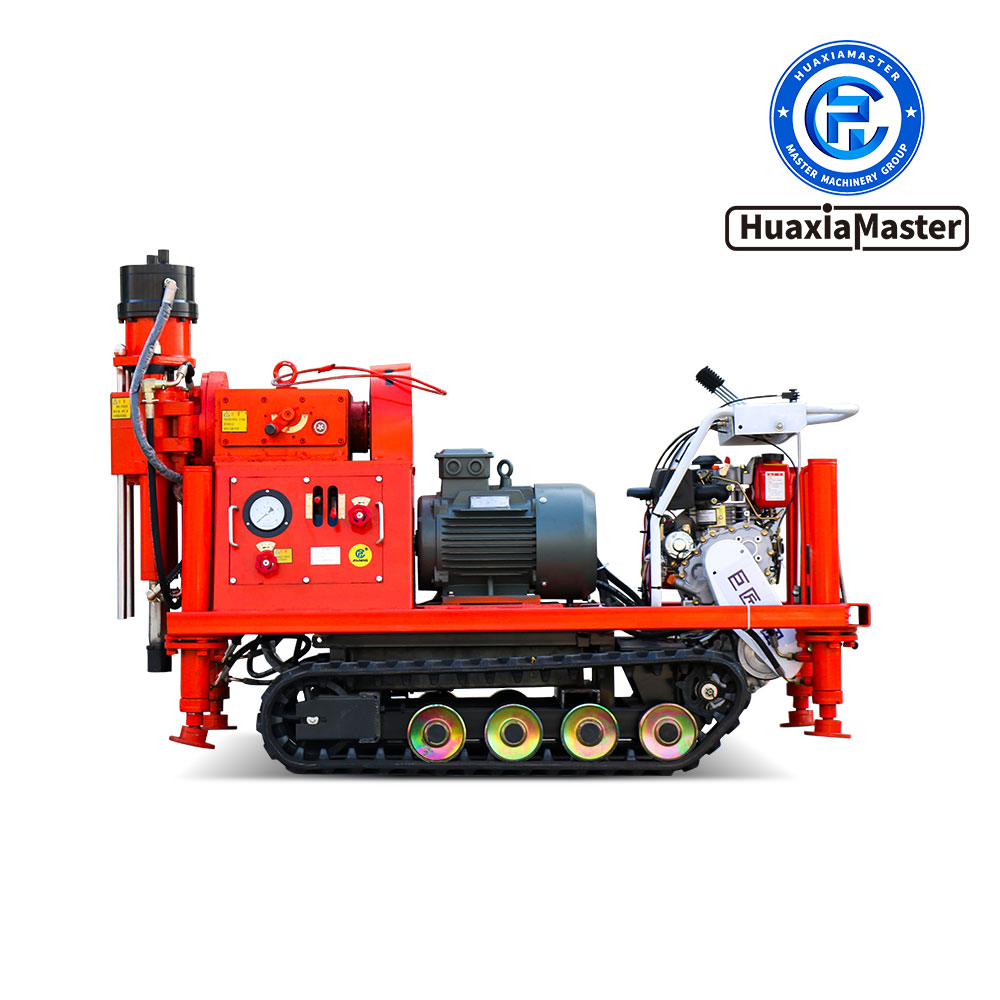

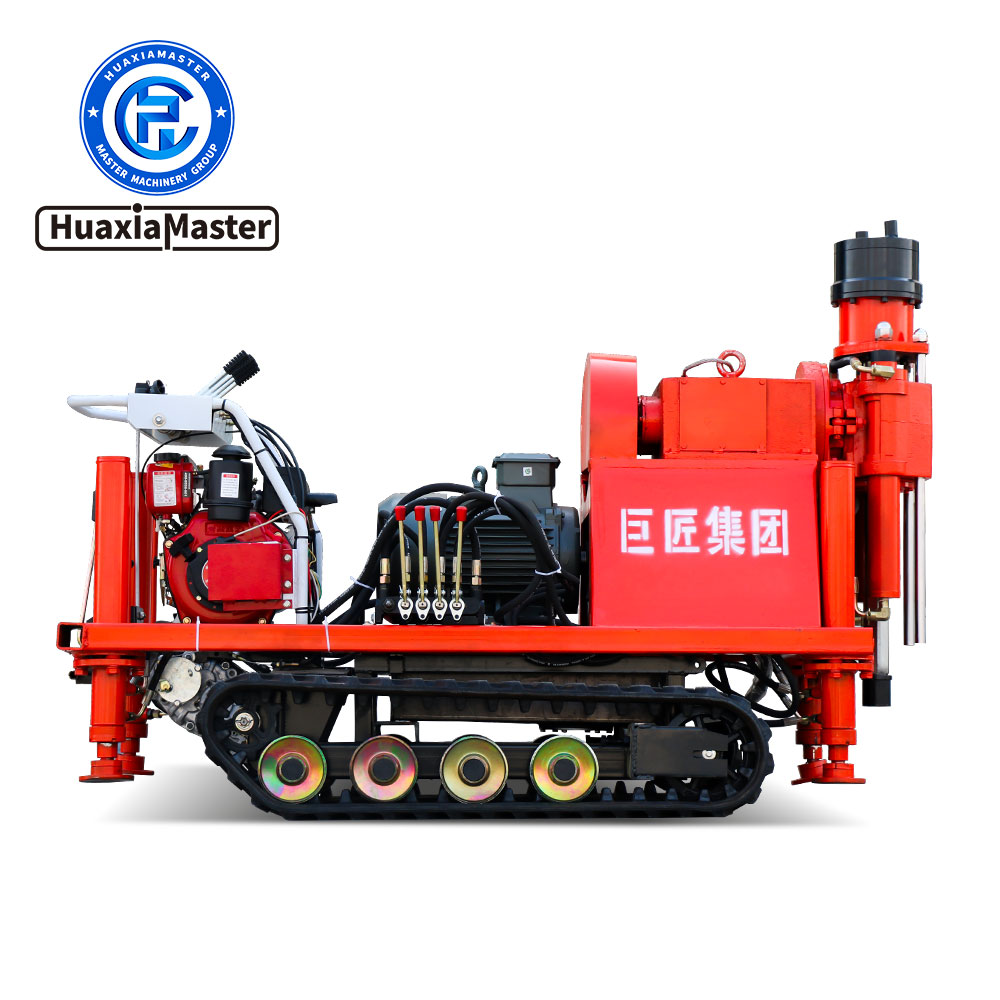

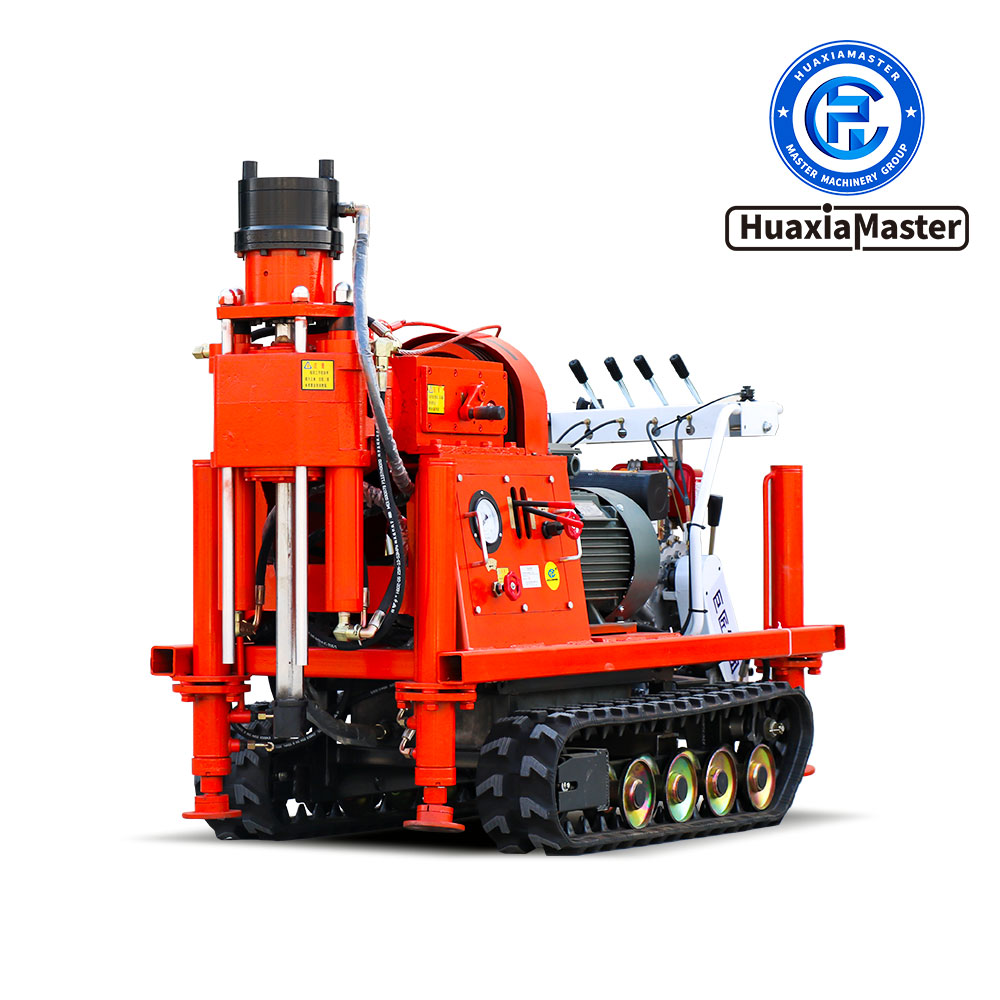

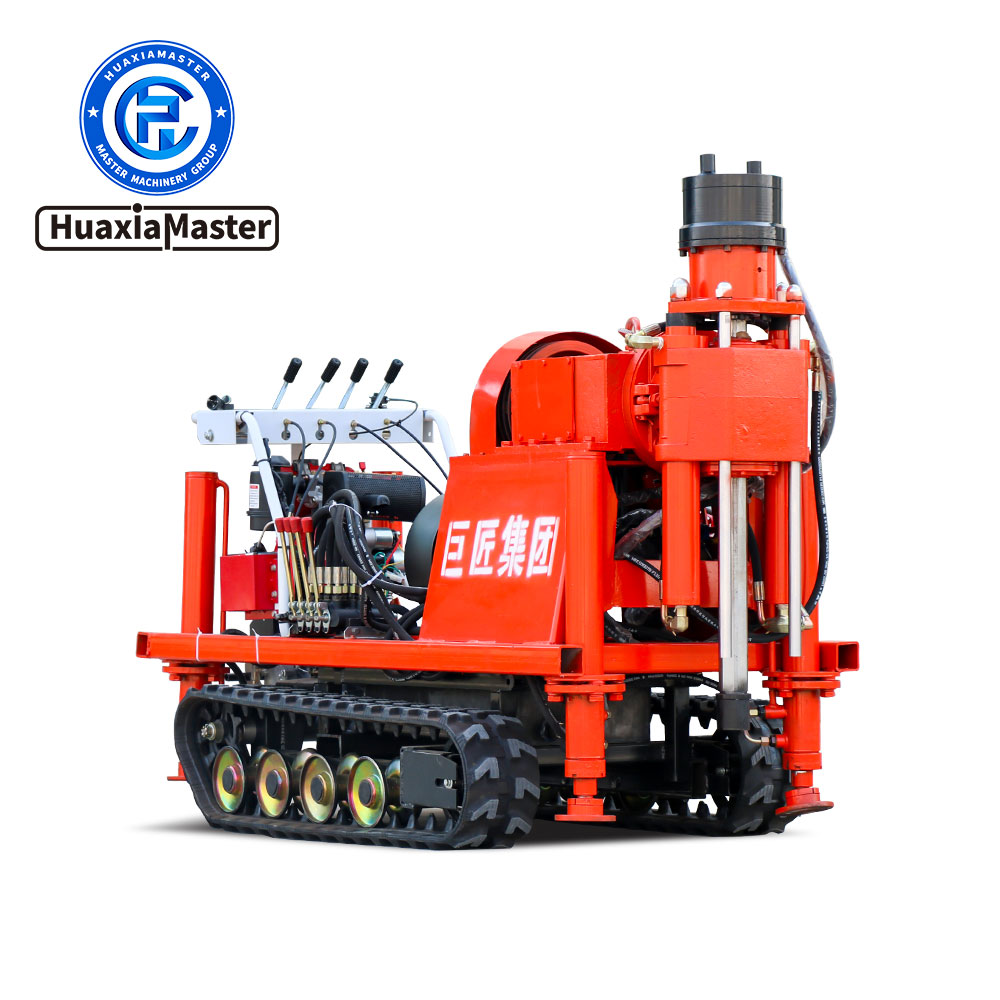

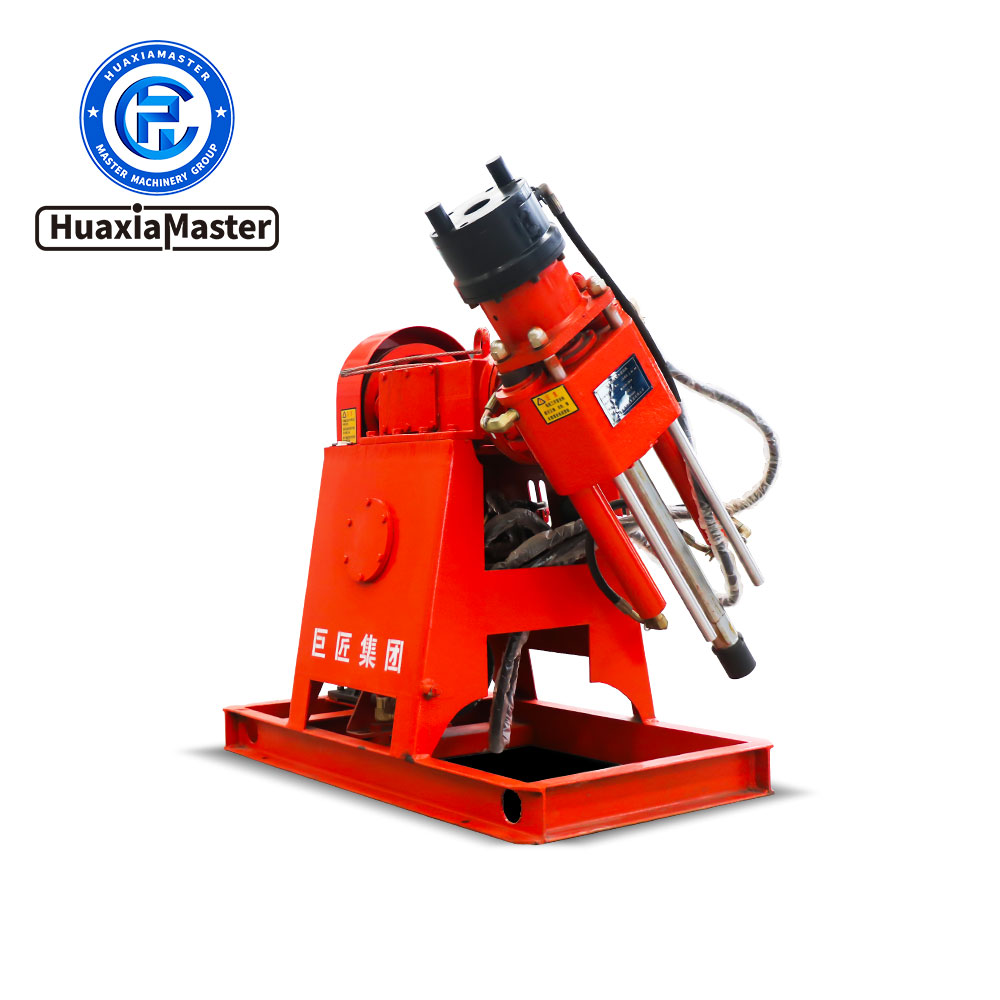

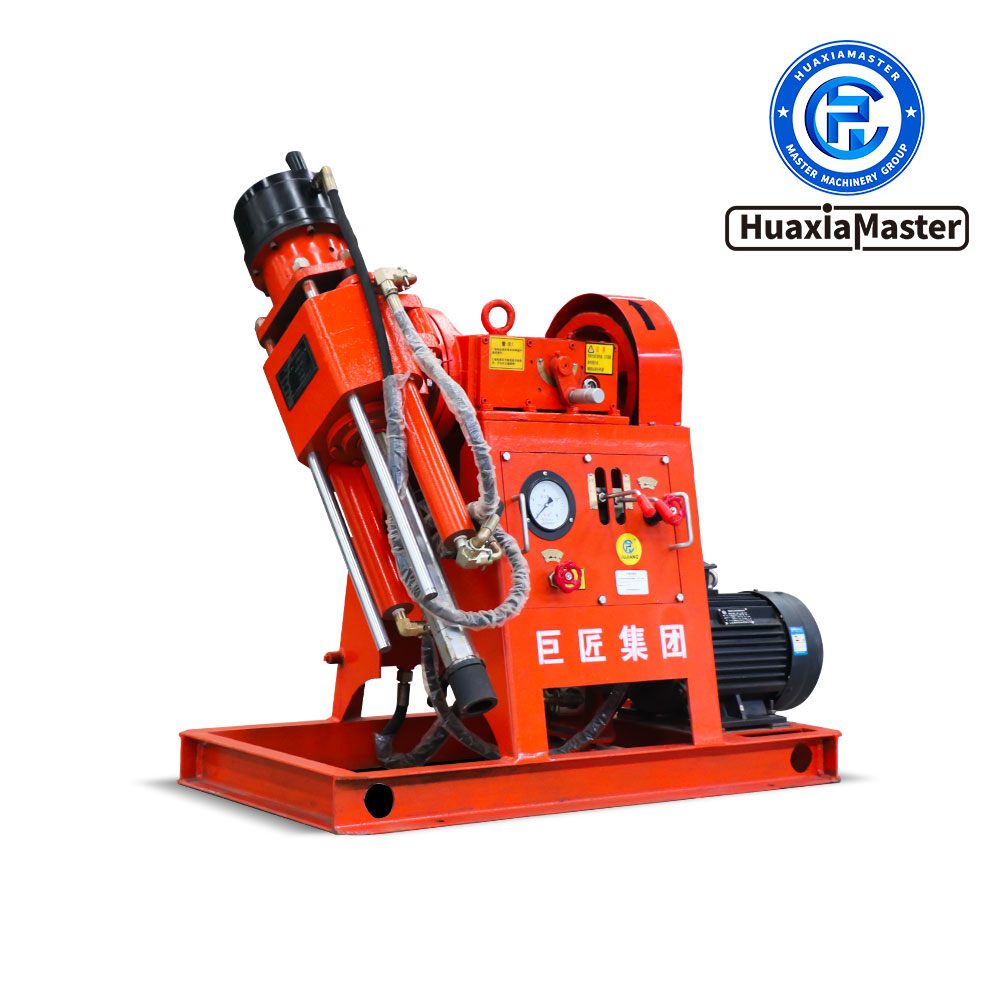

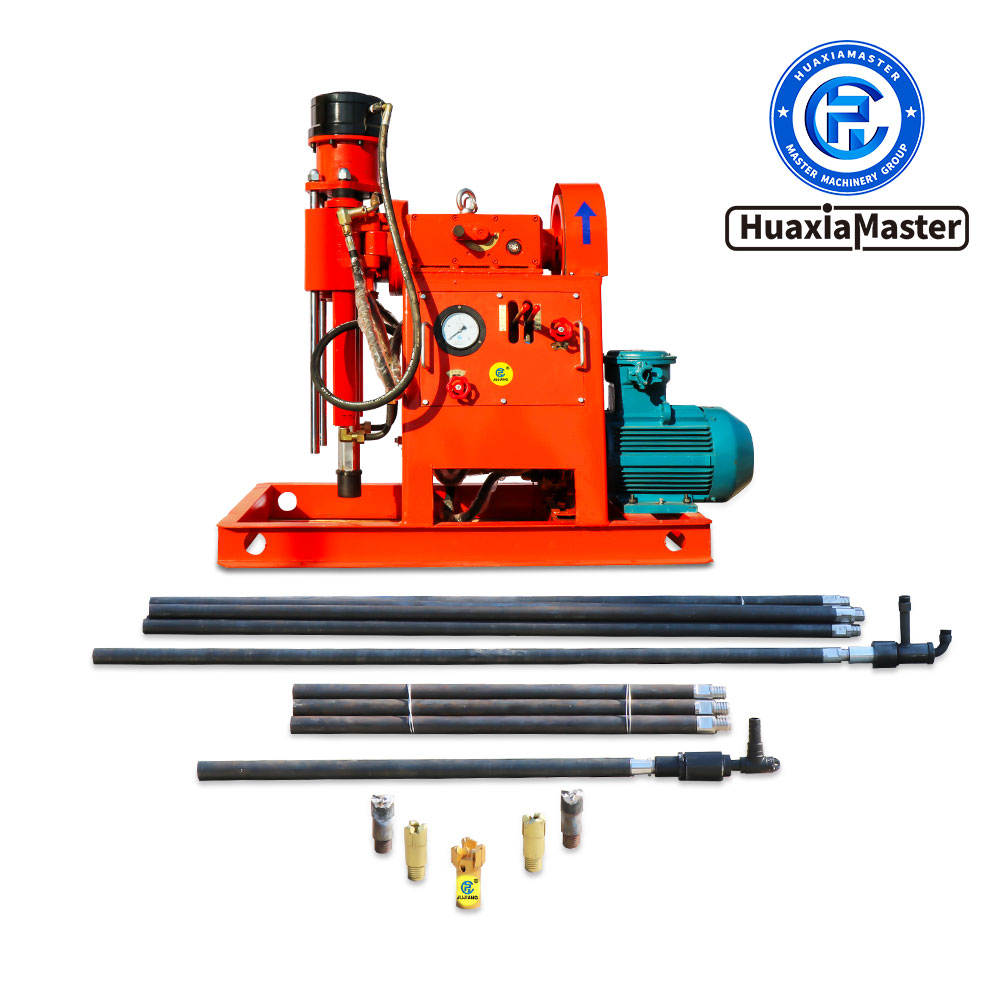

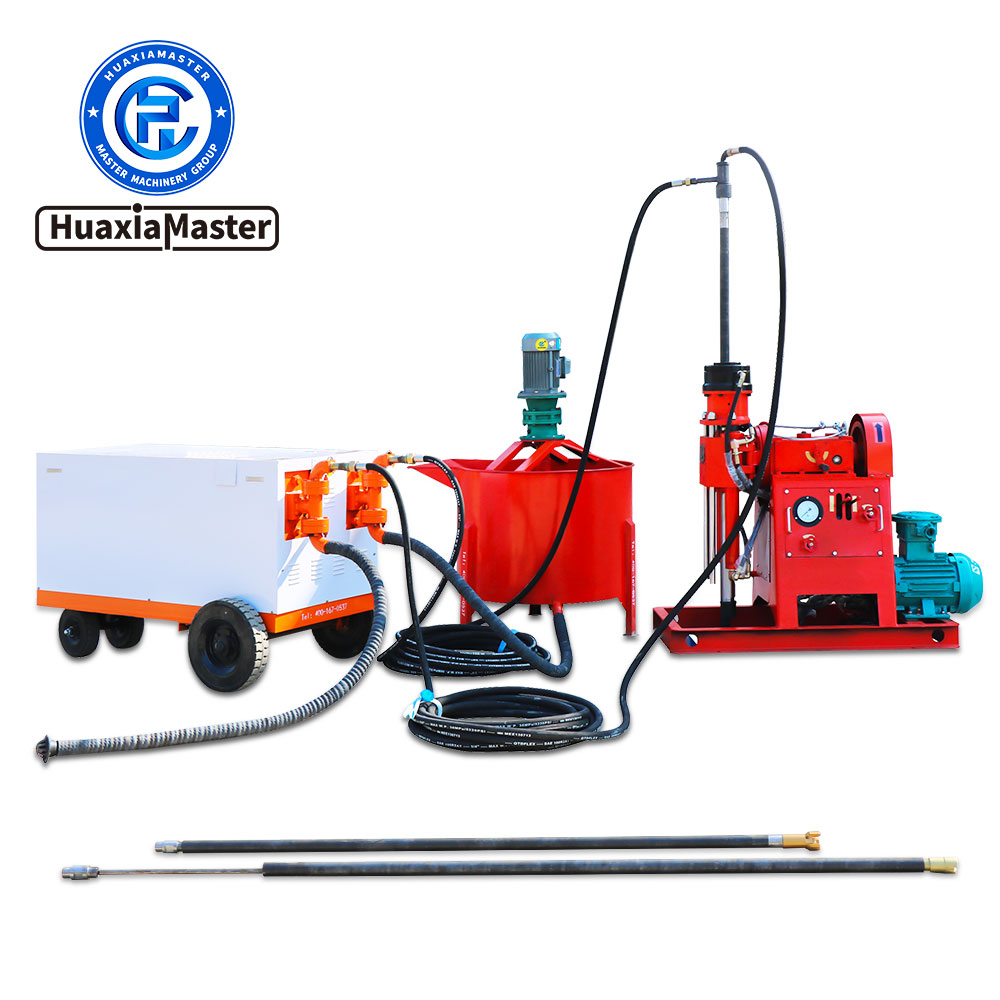

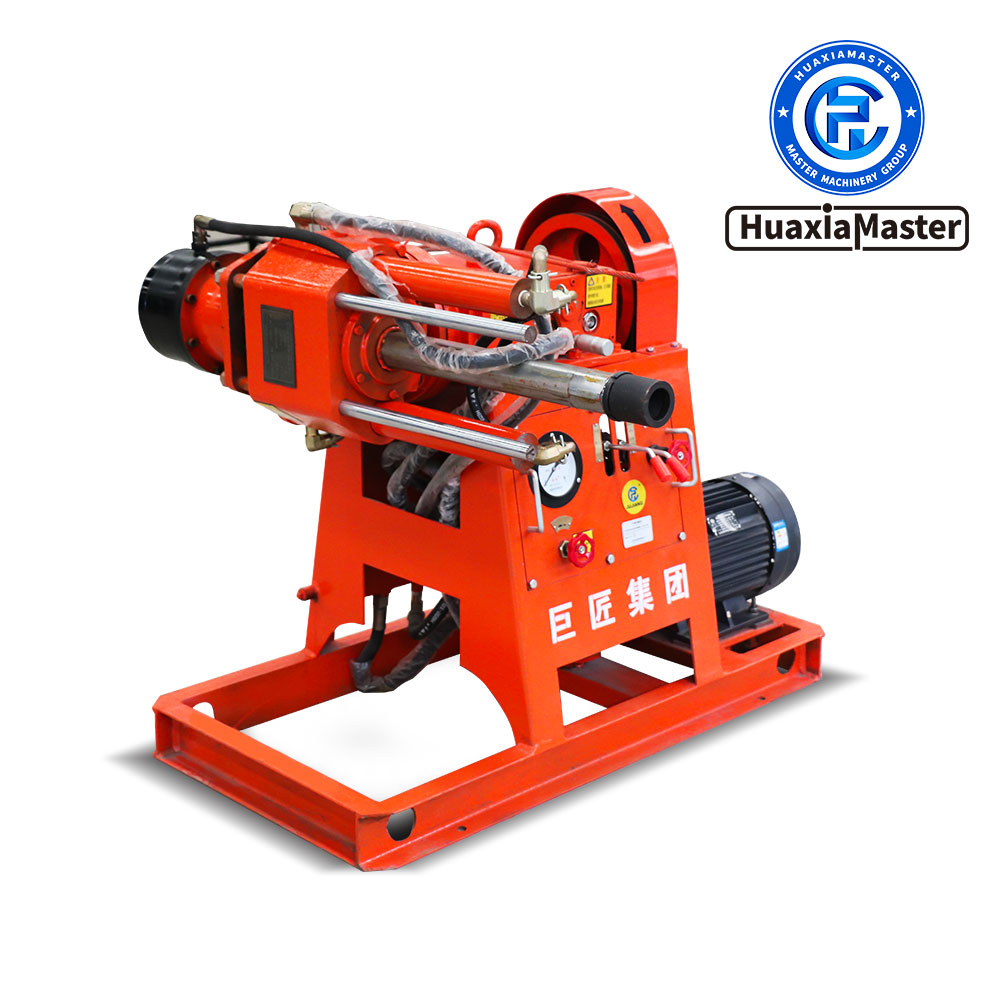

ZLJ Series Grouting Reinforcement Drilling Rig

1.Introduction to ZLJ Series Grouting Reinforcement Drilling Rig

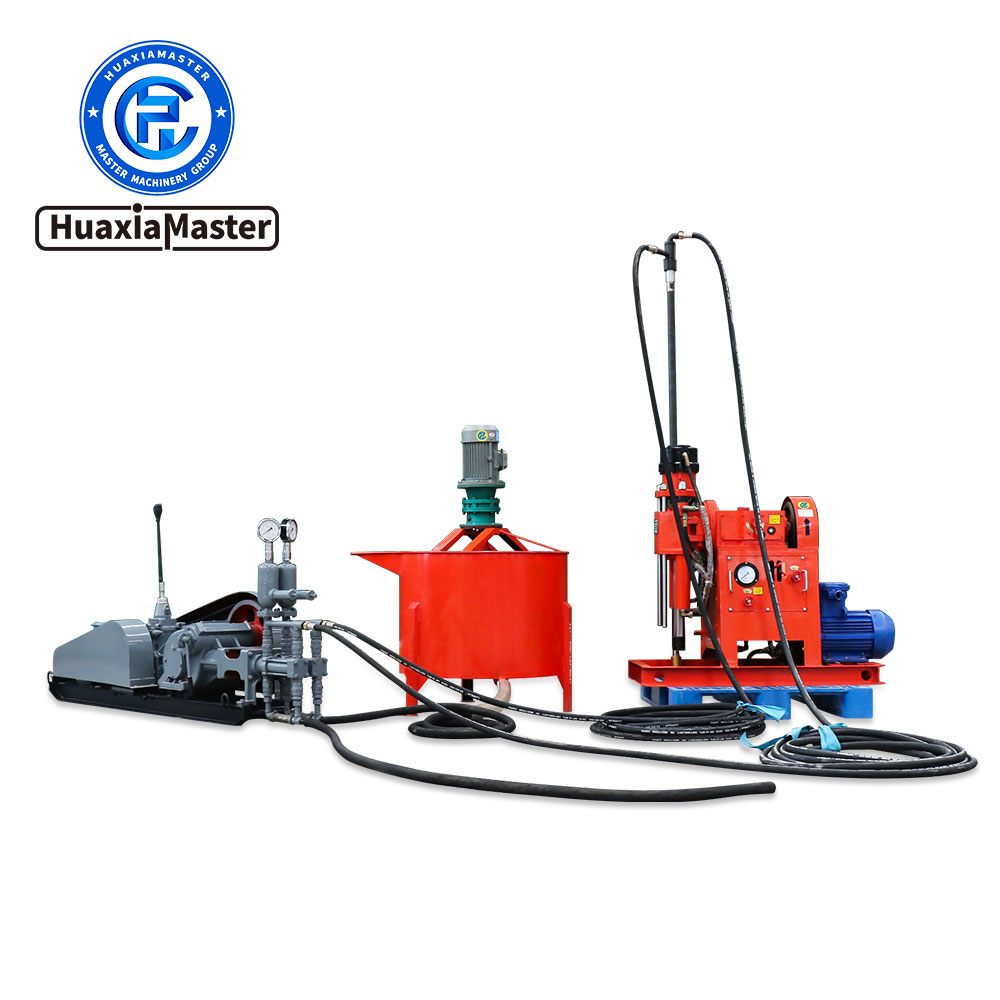

The grouting reinforcement drilling rig is a type of engineering machinery specifically designed for drilling and grouting reinforcement operations. It integrates two core functions: drilling and grouting, and is widely used in engineering fields such as tunnels, mines, water conservancy and hydropower, subways, foundation pit support, foundation treatment, slope management, and disaster prevention. It is an indispensable key equipment in modern geotechnical engineering and geological disaster control.

2.Features of ZLJ Series Grouting Reinforcement Drilling Rig

2.1 The drilling rig integrates drilling and grouting functions, eliminating the need to replace other equipment and improving construction efficiency.

2.2 The overall design of the drilling rig is compact, making it convenient for construction in narrow spaces.

2.3 The drilling angle can be adjusted by rotating the vertical shaft to meet the needs of multi-angle grouting.

2.4 Optional rubber steel wire crawler chassis or electric three-wheeled vehicle chassis, which is convenient for moving and does not damage the road surface.

3.Parameters of ZLJ Series Grouting Reinforcement Drilling Rig

还没有反馈

Your Rating

类似产品

MOQ 1 PCs

Fully hydraulic coring ...

AED 53,875.60

MOQ 1 PCs

Slope support anchor drilling ...

AED 53,875.60

MOQ 1 PCs

China Master coring ...

XJ Series Well Washing Machine

AED 53,875.60

MOQ 1 PCs

Hydraulic portable drilling ...

AED 53,875.60

MOQ 1 PCs

Grouting reinforcement ...

AED 53,875.60

MOQ 1 PCs

Top Drive Core Sampling ...

AED 53,875.60

MOQ 1 PCs

SJCY-D Crawler Diesel ...

AED 53,875.60

MOQ 1 PCs

HUAXIAMASTER Screw Air ...

AED 53,875.60

Product Added To Container Successfuly !

View Container

An error occured while adding the product
please try again later !

You can't order less than 1

欢迎来到阿布拉！

立即订阅以直接将最新产品、最优惠和当前交易的 Abraa 时事通讯发送到您的电子邮箱！

Drilling Rig Model	ZLJ-350	ZLJ-650	ZLJ-1200	ZLJ-1200D	ZLJ-1600D	ZLJ-1200C
Drilling Depth	150m	200m	200-250m	200-250m	200-250m	200-250m
Drill Pipe Diameter	42mm	42mm	42/50mm	42/50mm	42/50mm	42/50mm
Drilling Diameter	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm	45/55/65/75/ 85/110mm
Drilling Angle	0~360°	0~360°	0~360°	0~360°	0~360°	0~360°
Spindle Diameter	42mm	42mm	42/54mm	42/54mm	42/54mm	42/54mm
Spindle Speed	112/192/340r/min	88/150/270r/min	123/219/385r/min	123/219/385r/min	115/205/360r/min	123/219/385r/min
Maximum Spindle Torque	350N.m	650N.m	1200N.m	1200N.m	1600N.m	1200N.m
Spindle Feeding Stroke	400mm	400mm	400mm	400mm	400mm	400mm
Rated Feeding Force
