XY-3 Series Hydraulic Core Drilling Rig

Name: XY-3 Series Hydraulic Core Drilling Rig
Rating: 5 (19 reviews)

Brand: HUAXIAMASTER·Ships from China

Price on request

Send a free RFQ and get the supplier's best price.

Min Order0 Unit

Condition使用

Warranty是的

Country of shippingChina

Save

Request for quotation

Free · No obligation

Sell Similar

Trade with confidence on Abraa

Safe and secure payments using Abraa safe trade systems

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

Buyer Protection

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

Item Details

Product Specification

Condition	使用
Brand	HUAXIAMASTER
Warranty	是的
Weight(KG)	6200
Motor Type	其他
Type	岩芯钻机

Product Descriptions

Introductionto XY-3 Series Hydraulic Core Drilling Rig

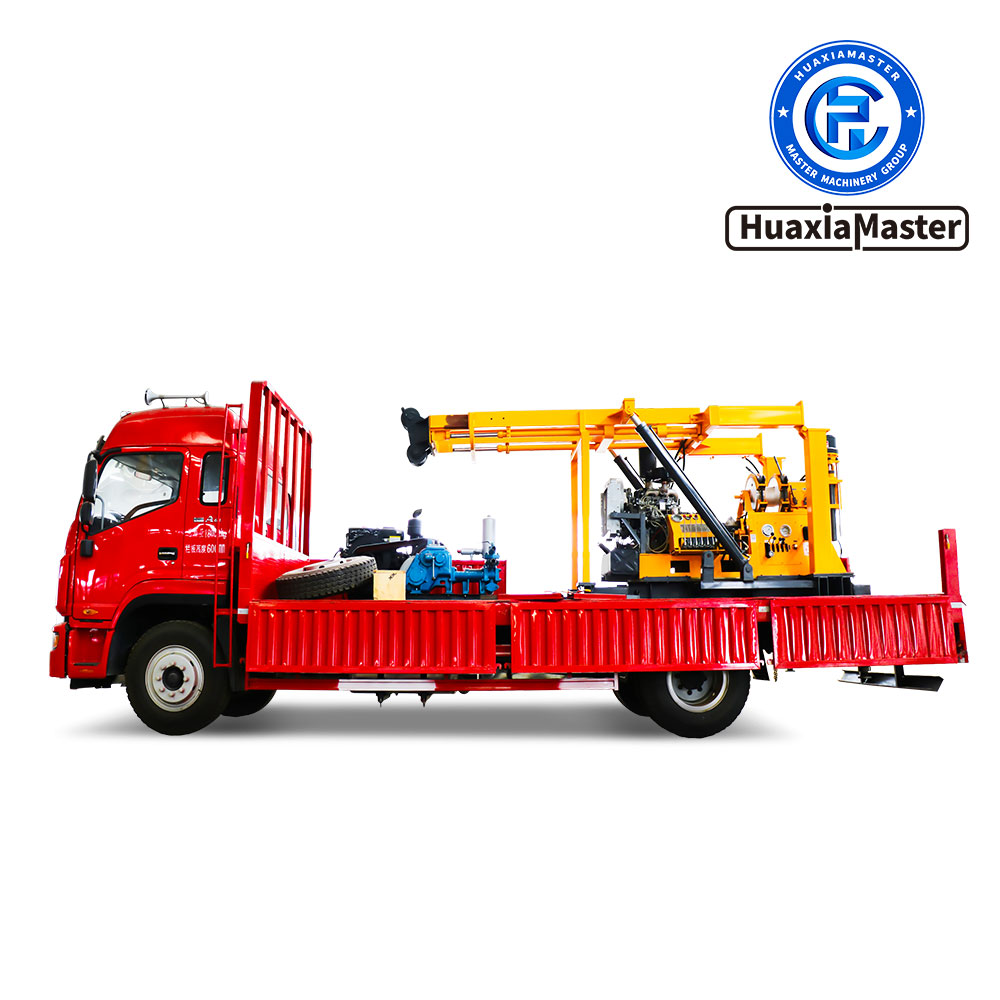

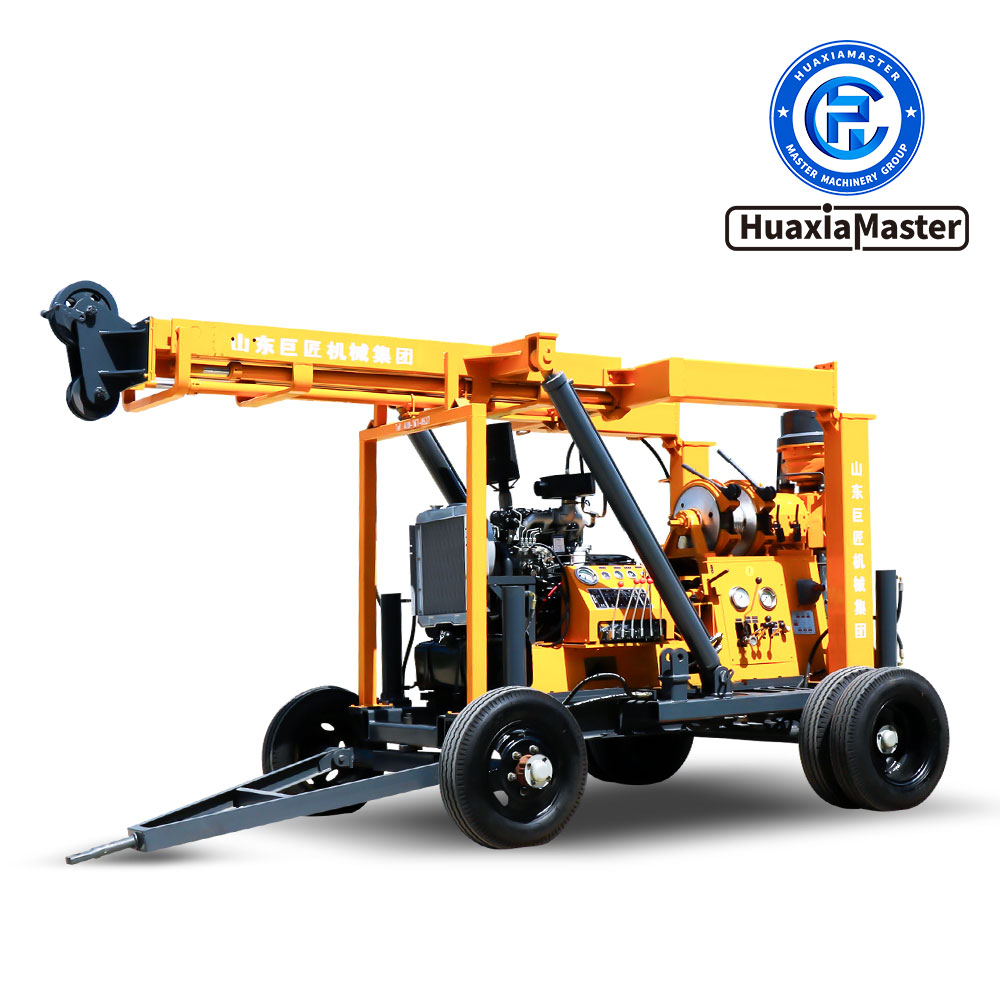

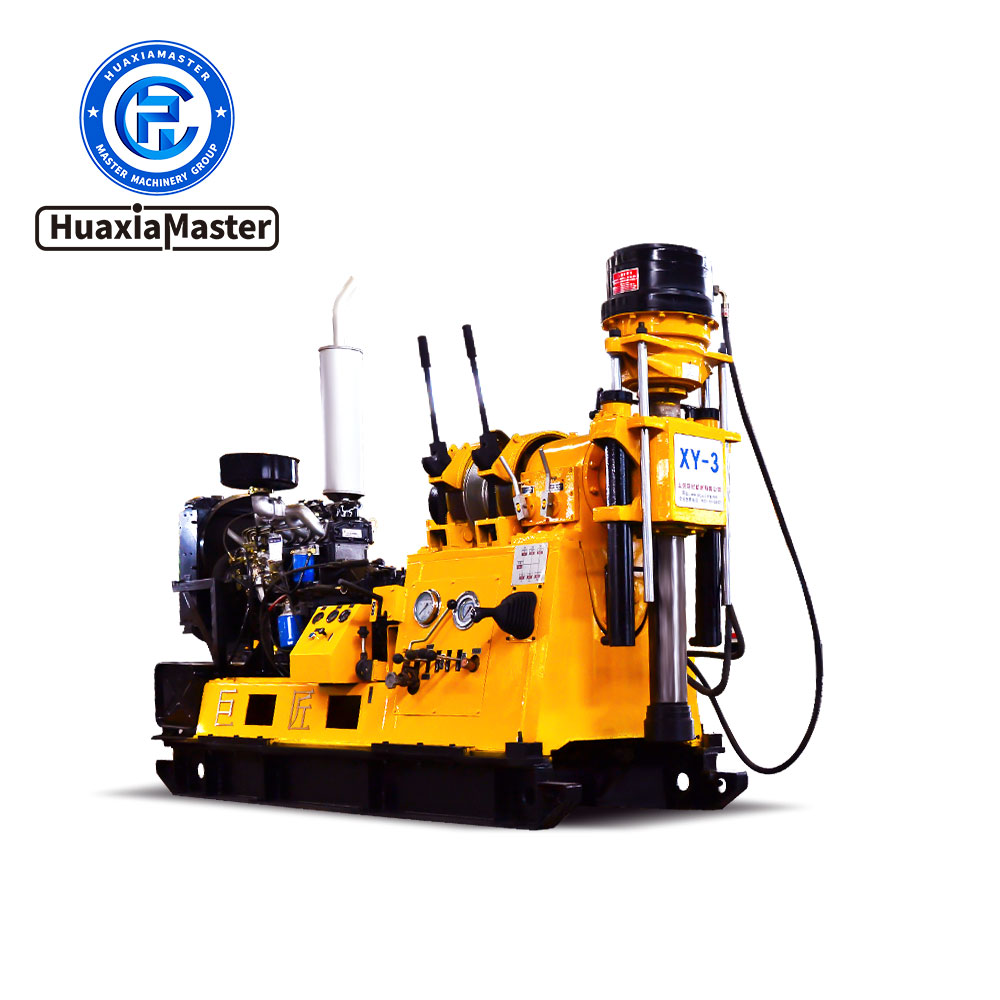

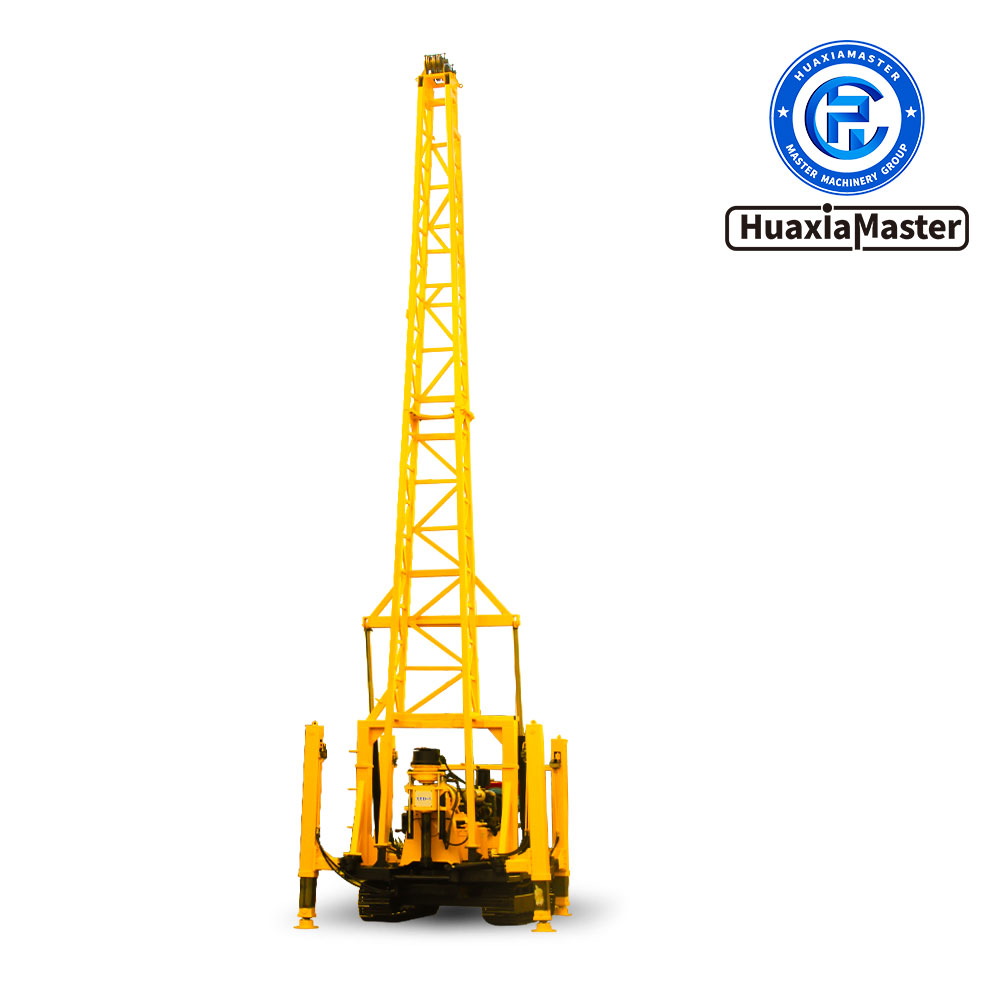

XY-3 series hydraulic core drilling rig is a kind of medium-shallow hole vertical spindle rotary drilling rig which can meet the needs of various drilling techniques and drilling in different strata. The main types of XY-3 series drilling rig are XY-3 conventional type, XYX-3 wheel type, XYD-3 crawler type and XYC-3 truck-mounted type.

Features of XY-3 Hydraulic Core Drilling Rig

2.1 The drilling rig adopts the automobile gearbox assembly, which has 10-gear forward and 2-gear reverse. The rotational speed of each gear is reasonably designed to meet the requirements of different drilling technologies.

2.2 The hydraulic system realizes the control of feed pressure and speed to meet the needs of drilling in different strata.

2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.

2.4 The drilling rig has large output torque and strong bearing capacity, so it is easy to deal with various underground accidents.

3.Parametersof XY-3 Series Hydraulic Core Drilling Rig

Model	XY-3	XYX-3	XYC-3	XYD-3
Overall machine parameters	Drilling depth	600m	600m	600m	600m
Open hole dia	600mm	600mm	600mm	600mm
End hole dia	75mm	75mm	75mm	75mm
Drill pipe dia	60mm	60mm	60mm	60mm
Drilling angle	75-90°	75-90°	75-90°	75-90°
Matching power	YunneiYN27/39kW	YunneiYN27/39kW	YunneiYN27/39kW	YunneiYN27/39kW
Weight	1800kg	3600kg	22000kg	6500kg
LWH	25009001800mm	450026003300mm	900025003600mm	450026003300mm
Vertical shaft	Forward speed	32-1057r/min	32-1057r/min	32-1057r/min	32-1057r/min
Reverse speed	29-137r/min	29-137r/min	29-137r/min	29-137r/min
Stroke	600mm	600mm	600mm	600mm
Winch	Lifting force	3000kg	3000kg	3000kg	3000kg
提升速度	0.5-1.9米/秒	0.5-1.9米/秒	0.5-1.9米/秒	0.5-1.9米/秒
钢丝绳直径	12.5 毫米	12.5 毫米	12.5 毫米	12.5 毫米
钢丝绳容量	65 分钟	65 分钟	65 分钟	65 分钟
井架	高度	6.5 米	6.5 米	6.5 米	6.5 米
额定负载	18 吨	18 吨	18 吨	18 吨

注意：产品不断改进。任何更改都不会单独通知。请以实物为准。
