XY Series Hydraulic Core Drilling Rig
Availability: in stock
Trade with confidence on Abraa
Safe and secure payments using Abraa safe trade systems
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
Buyer Protection
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
Product Specification
| Condition | 新的 |
| Brand | HUAXIAMASTER |
| Warranty | 是的 |
| Power(W) | 350 |
| Weight(KG) | 8000 |
| Motor Type | 其他 |
| Type | 岩芯钻机 |
| Certification | 其他 |
Product Descriptions

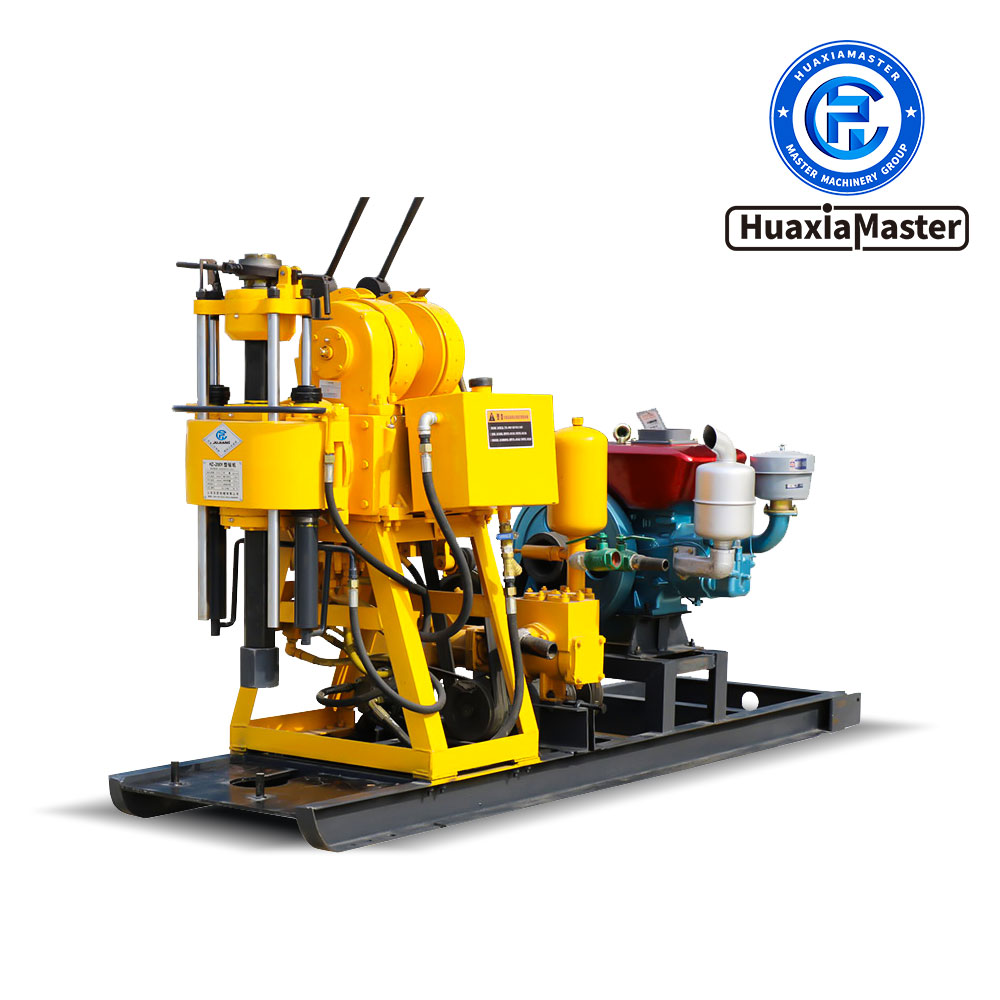

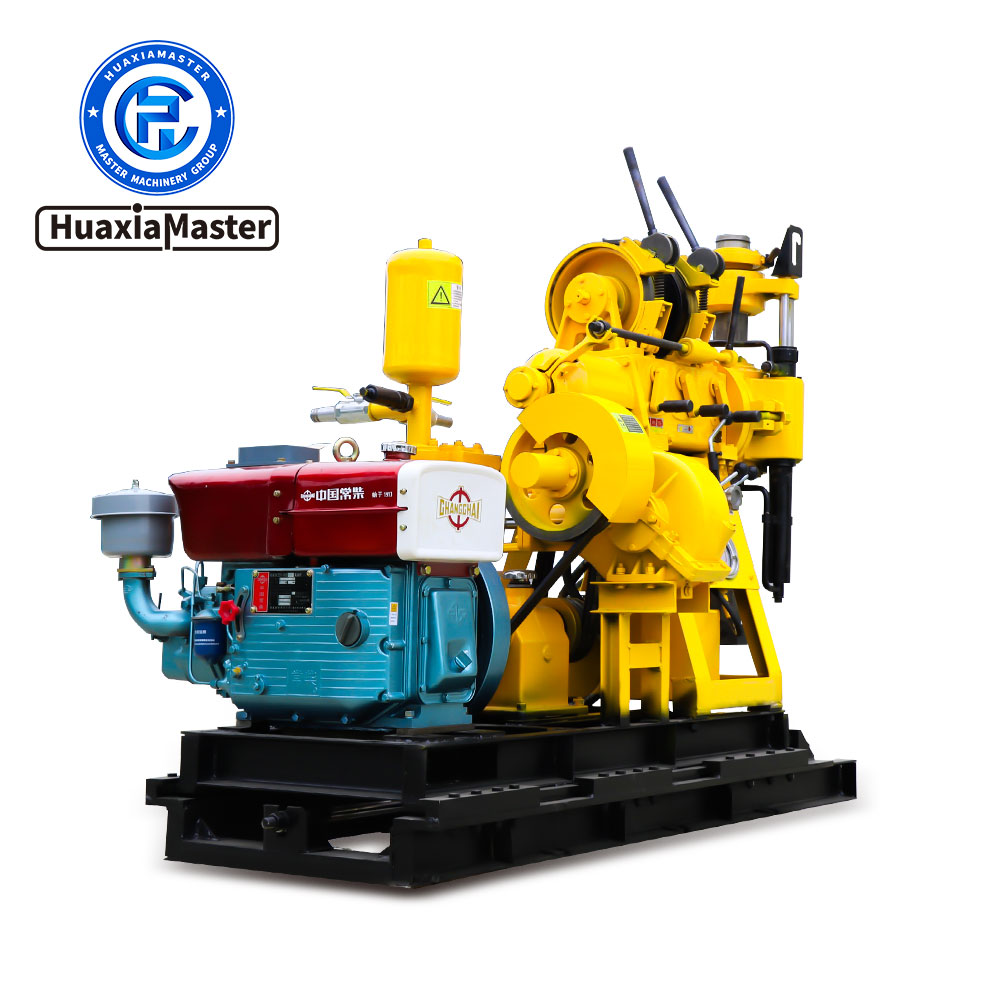

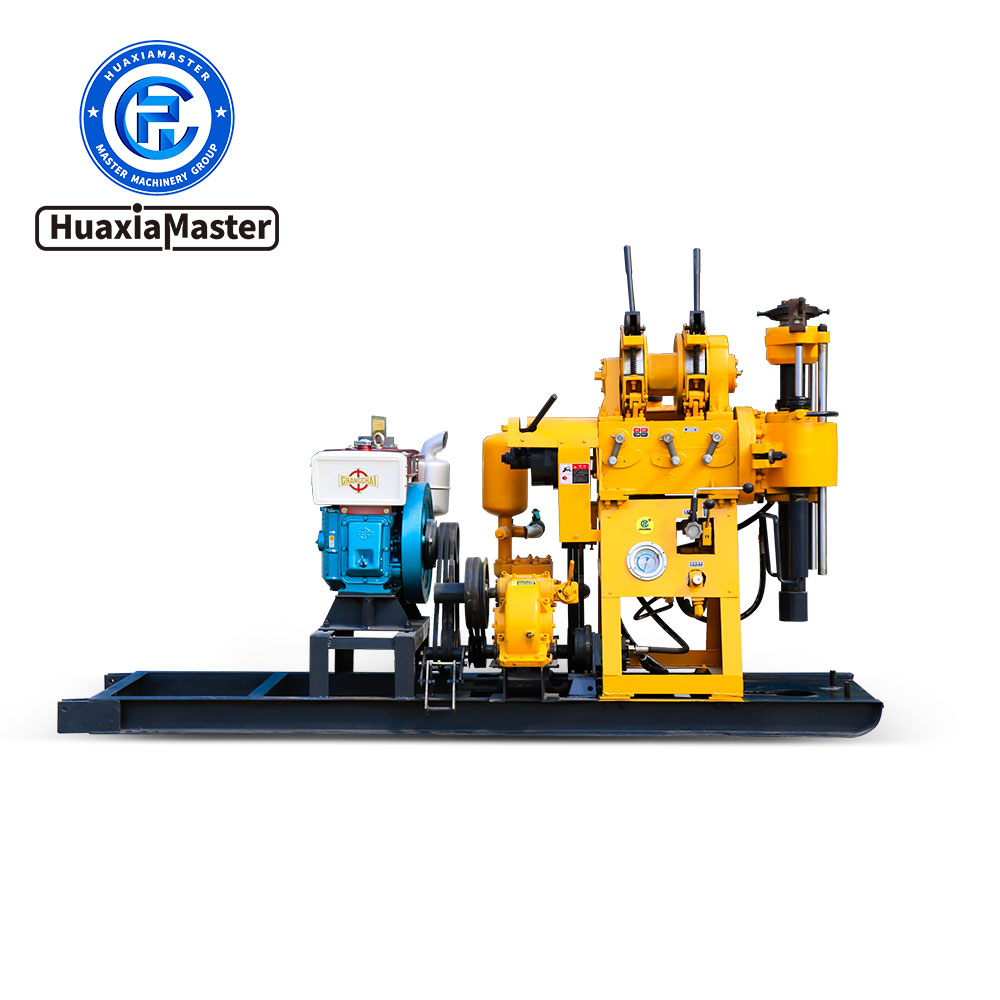

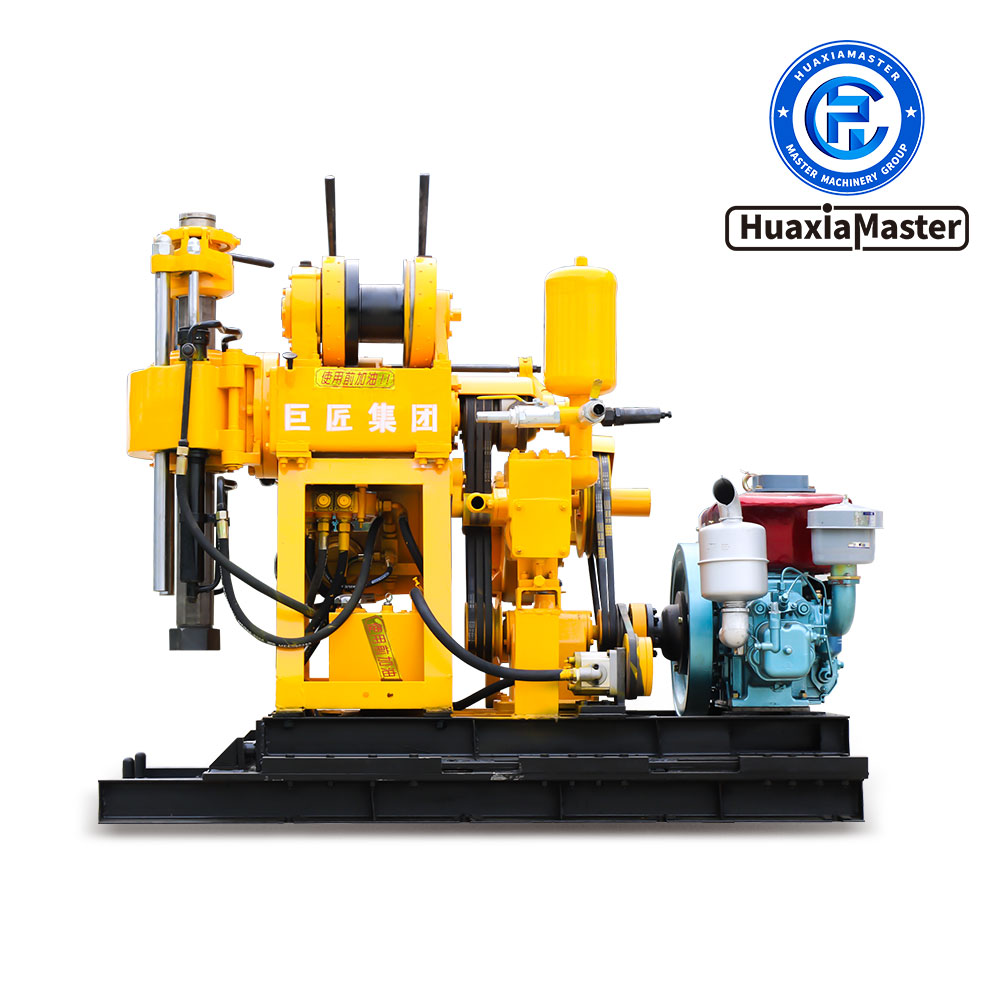

XY Series Hydraulic Core Drilling Rig
1、Introduction of XY Series Hydraulic Core Drilling Rig
XY series drilling rig is a medium-shallow hole core drilling rig with hydraulic feed and mechanical transmission. It can be used in geological core drilling, grouting hole drilling and hydro logical well drilling. Diamond, composite and alloy bits can be selected for drilling according to different strata.
2、Features of XY Series Hydraulic Core Drilling Rig
2.1 It has automatic hydraulic feeding mechanism to improve drilling efficiency and reduce labor intensity.
2.2 The steel ball clamping device can replace drill pipe without stopping, easy to operate, safe and reliable.
2.3 Equipped with hole bottom pressure gauge, easy to grasp the situation in the hole.
2.4 Compact structure, centralized handle, small area, easy to move.
2.5 With large torque and strong bearing capacity, it can realize remote control and speed change, and the operation is centralized and convenient.
3、Parameters of XY Series Hydraulic Core Drilling Rig
<Regular floor-mounted model> XY series hydraulic core drilling rig
Drilling rig model XY-80 XY-100 XY-150 XY-180 XY-200
Drilling capacity Drilling depthDrilling depthDrilling depth 80m 100m 150m 180m 200m
Open hole dia. 219mm 325mm 325mm 375mm 400mm
End hole dia. 75mm 75mm 75mm 75mm 75mm
Drill pipe dia 42mm 42/50mm 42/50mm 42/50mm 42/50mm
Drilling angle 75-90° 75-90° 75-90° 75-90° 75-90°
Vertical shaft Vertical shaft speed 142、285r/min 142、285、570r/min 140、295、470、790、1010r/min 71、142、310、620r/min 71、142、310、620r/min
Vertical axis travel 450mm 450mm 450mm 450mm 450mm
Hydraulic oil pump Pressure 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa
Speed 1500r/min 1500r/min 1800r/min 1800r/min 2000r/min
Hoist Lifting capacity 9.3kN 9.8kN 14kN 15kN 20kN
Wire rope capacity 27m 35m 35m 35m 35m
Wire diameter 12mm 12mm 12mm 12mm 12mm
Power Matching power S1100 Diesel Engine S1100 diesel engine
10kw motor S1105 diesel engine
11kw motor S1115 diesel engine
15kw motor S1115 diesel engine
15kw motor
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
<Floor-mounted mobile machine> XY series hydraulic core drilling rig
Drilling rig model XY-100Y XY-150Y XY-180Y XY-200Y
Shape Mobile model Mobile model Mobile model Mobile model
Drilling capacity Drilling depthDrilling depthDrilling depth 100m 150m 180m 200m
Open hole dia 325mm 325mm 375mm 400mm
End hole dia 75mm 75mm 75mm 75mm
Drill pipe dia 42/50mm 42/50mm 42/50mm 42/50mm
Drilling angle 75-90° 75-90° 75-90° 75-90°
Spindle speed 142、285、570r/min 140、295、470、790、1010r/min 71、142、310、620r/min 71、142、310、620r/min
Spindle stroke 450mm 450mm 450mm 450mm
Hydraulic pump Hydraulic pump pressure 1.2Mpa 1.2Mpa 1.2Mpa 1.2Mpa
Hydraulic pump speed 1500r/min 1800r/min 1800r/min 2000r/min
Hoist Lifting capacity 9.8kN 14kN 15kN 20kN
Wire rope capacity 35m 35m 35m 35m
Wire diameter 12mm 12mm 12mm 12mm
Power Matching power S1100 diesel engine
10kw motor S1105 diesel engine
11kw motor S1115 diesel engine
15kw motor S1115 diesel engine
15kw motor
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
