Item Details

Product Specification

Condition	新的
Brand	HUAXIAMASTER
Warranty	是的

Product Descriptions

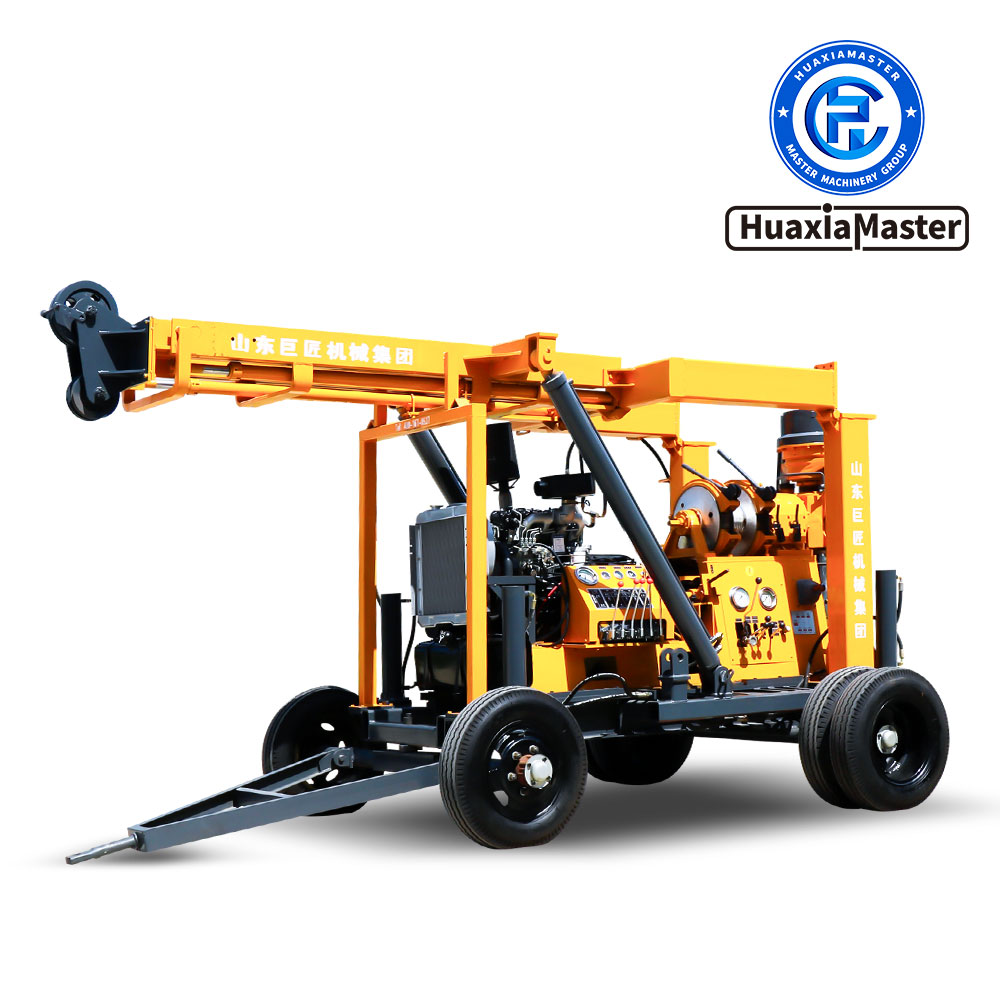

1、Introduction to XYX-3 Wheel Hydraulic Core Drilling Rig

XYX-3 wheeled hydraulic core drilling rig is a multi-functional traction hydraulic vertical rotary drilling rig. It is mainly used for the general survey and exploration of metal and non-metallic solid minerals, and also can be used for engineering geological exploration, hydrogeological survey, general survey and exploration of oil and gas fields, and well drilling.

2、Features of XYX-3 Wheel Hydraulic Core Drilling Rig

2.1 The drilling rig is equipped with a wheeled traveling mechanism and hydraulic cylinder support which is convenient for moving the whole machine and horizontal adjustment of the drilling rig.

2.2 With oil pressure feed mechanism, the drilling efficiency is improved.

2.3 The drilling rig is equipped with a hydraulic chuck, which can reverse the rod without stopping the machine, with high working efficiency, convenient, safe and feasible operation.

2.4 It is equipped with a pressure gauge at the bottom of the hole to indicate the pressure, so as to grasp the situation in the hole.

2.5 The tower lifting and lowering are operated by hydraulic pressure, which is convenient and feasible.

2.6 The diesel engine is electrically started to reduce the labor intensity of workers.

3、Parameters of XYX-3 Wheel Hydraulic Core Drilling Rig

Model		XYX-3
Overall machine parameters	Drilling depth	600m
	Open hole dia	600mm
	End hole dia	75mm
	Drill pipe dia	60mm
	Drilling angle	75-90°
	Matching power	YunneiYN27/39kW
	Weight	3600kg
	LWH)Dimension	450026003300mm
Vertical shaft	Forward speed	32-1057r/min
	Reverse speed	29-137r/min
	Stroke	600mm
Winch	Lifting force	3000kg
	Lifting speed	0.5-1.9m/s
	Wire rope dia	12.5mm
	Wire rope capacity	65m
Derrick	Height	6.5m
Derrick	Rated load	18t

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
