YQZ-30 الهيدروليكية الخفيفة الأساسية حفر منصة
التوفر: في المستودع
Trade with confidence on Abraa
طريقة دفعة آمنة وموثوقة باستخدام منصة عبرة للدفع عبر الانترنت
Supplier verification not completed
Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.
Secure Payment
Pay through Abraa, never by direct transfer to a supplier.
Product Inspection
Book a check before shipping to confirm quality and quantity.
حماية المشتري
Get support and refunds if goods arrive not as described.
Verified Suppliers
Licence, address and on-site checks by the Abraa team.
مواصفات المنتج
| الماركة | HUAXIAMASTER |
| الكفالة | 是的 |
| الوزن (كيلوجرام) | 6200 |
| النوع | 岩芯钻机 |
مواصفات المنتج

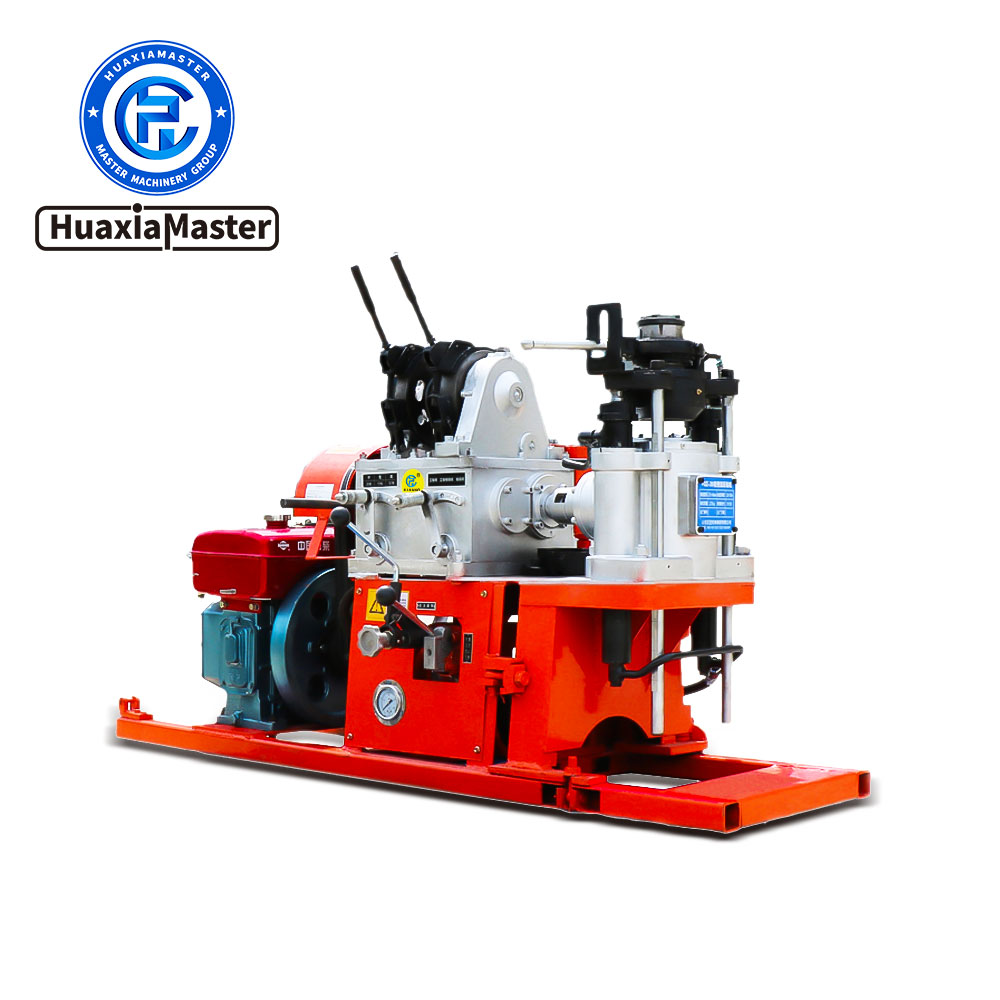

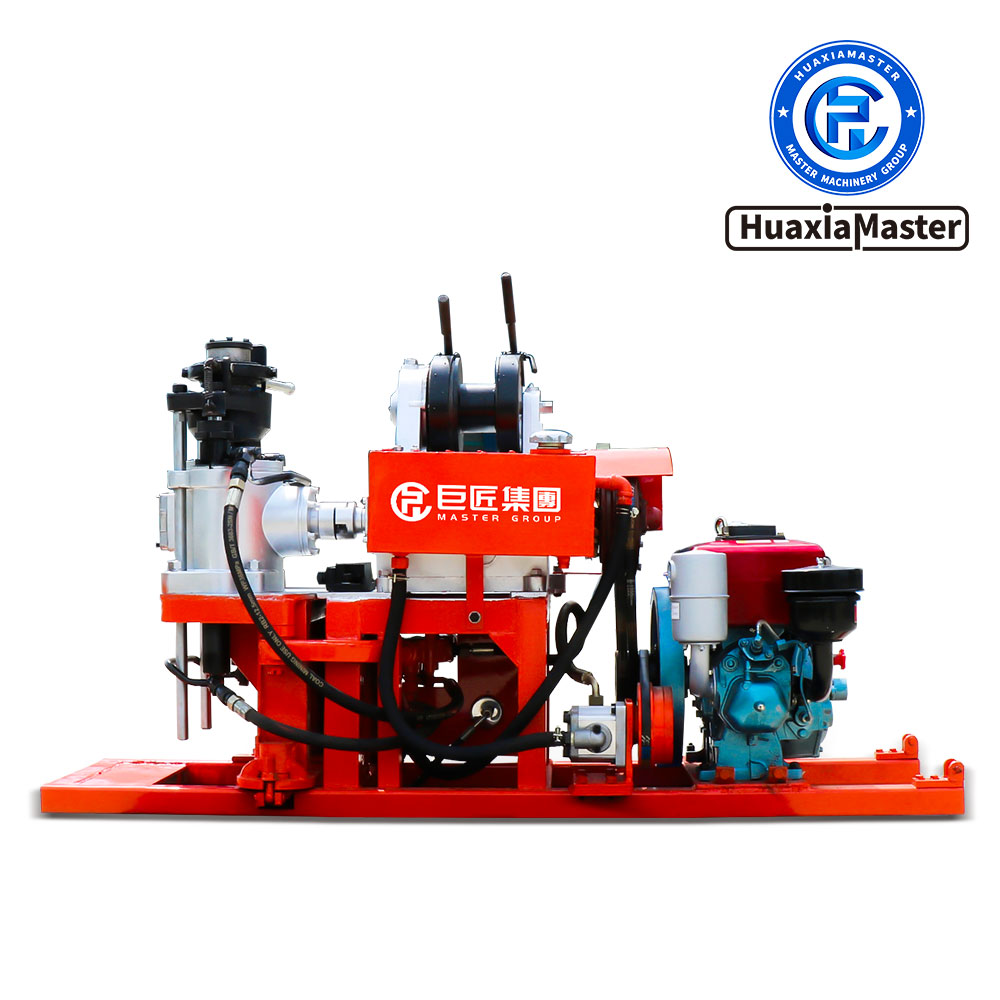

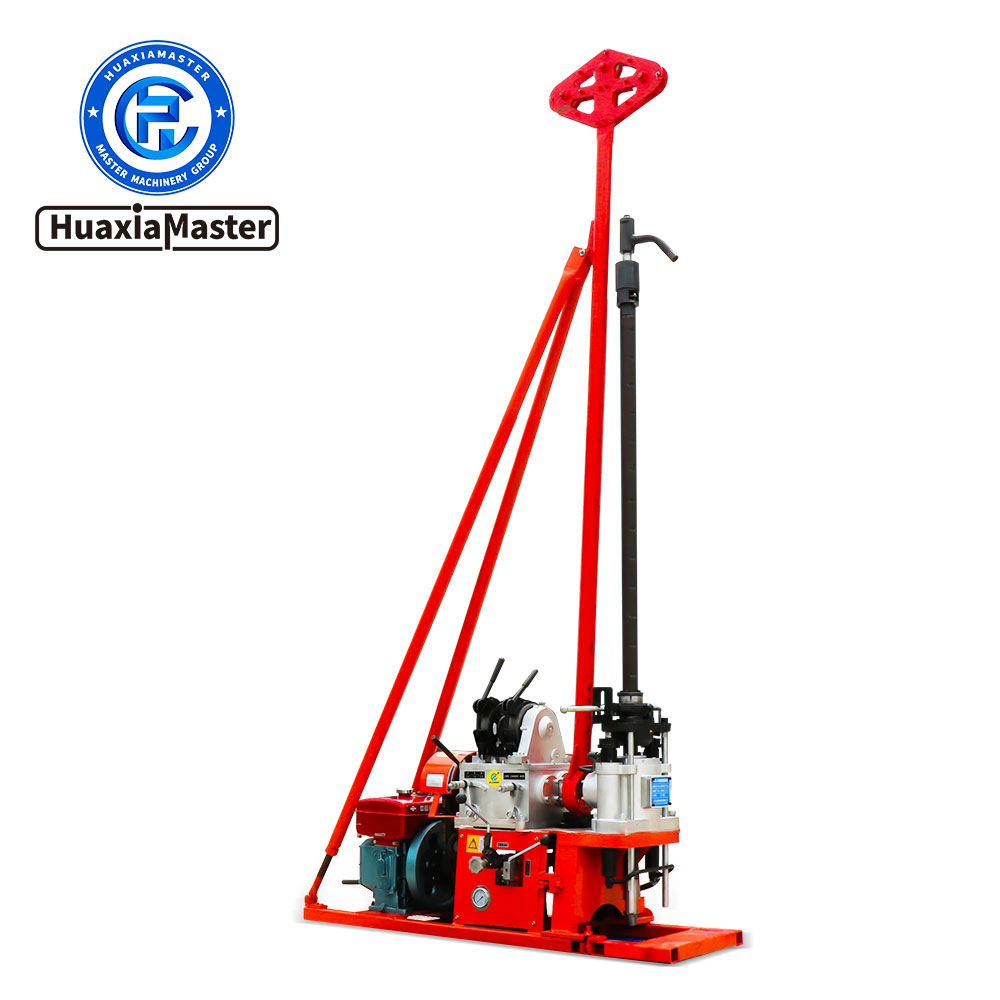

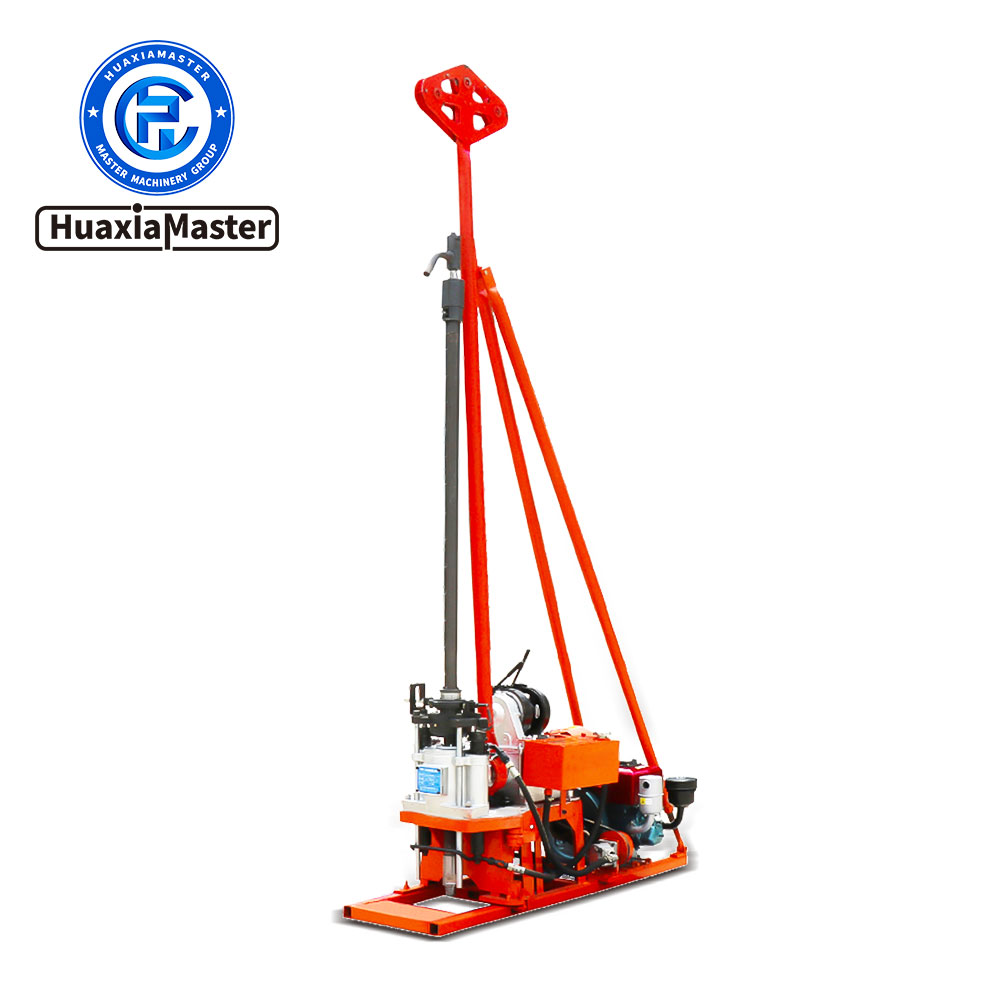

- Introduction to YQZ-30 Hydraulic Light Core Drill Rig
YQZ-30 hydraulic portable core drilling rig is a small portable crawler type hydraulic drilling machine, which is mainly used for general survey, geophysical exploration, road and construction drilling, shallow oil, natural gas and groundwater drilling, as well as dam grouting, tunnel ventilation and drainage engineering drilling.
- Features of YQZ-30 Hydraulic Light Core Drilling Rig
2.1 It has oil pressure automatic feeding mechanism and high drilling efficiency.
2.2 The clamping rod can not be used to stop the machine.
2.3 The handle is centralized, easy to operate, safe and feasible.
2.4 It has compact structure and small space occupation.
2.5 The shell of the rotary gear and gearbox of the drilling rig is made of aluminum alloy, which reduces the weight of the body
2.6 It is suitable for complex terrain, easy to decompose and work in hilly area.
- 3.Parametersof YQZ-30 Hydraulic Light Core Drilling Rig
Model | YQZ-30 |
Borehole dia. | 75mm |
Sampling depth | 30m |
Drill pipe | 42mm |
Vertical shaft speed | 136/338/578rpm |
Vertical shaft travel | 400mm |
竖轴提升力 | 10 千牛 |
绞车的提升力 | 0-4 千牛 |
主机功率 | 柴油机 R180 |
钻孔尺寸 | 1630 * 950 * 1050毫米 |
重量 | 375 公斤 |
注意：产品不断改进。任何更改都不会单独通知。请参考作
\
