Item Details

Product Specification

Condition	新的
Brand	HUAXIAMASTER

Product Descriptions

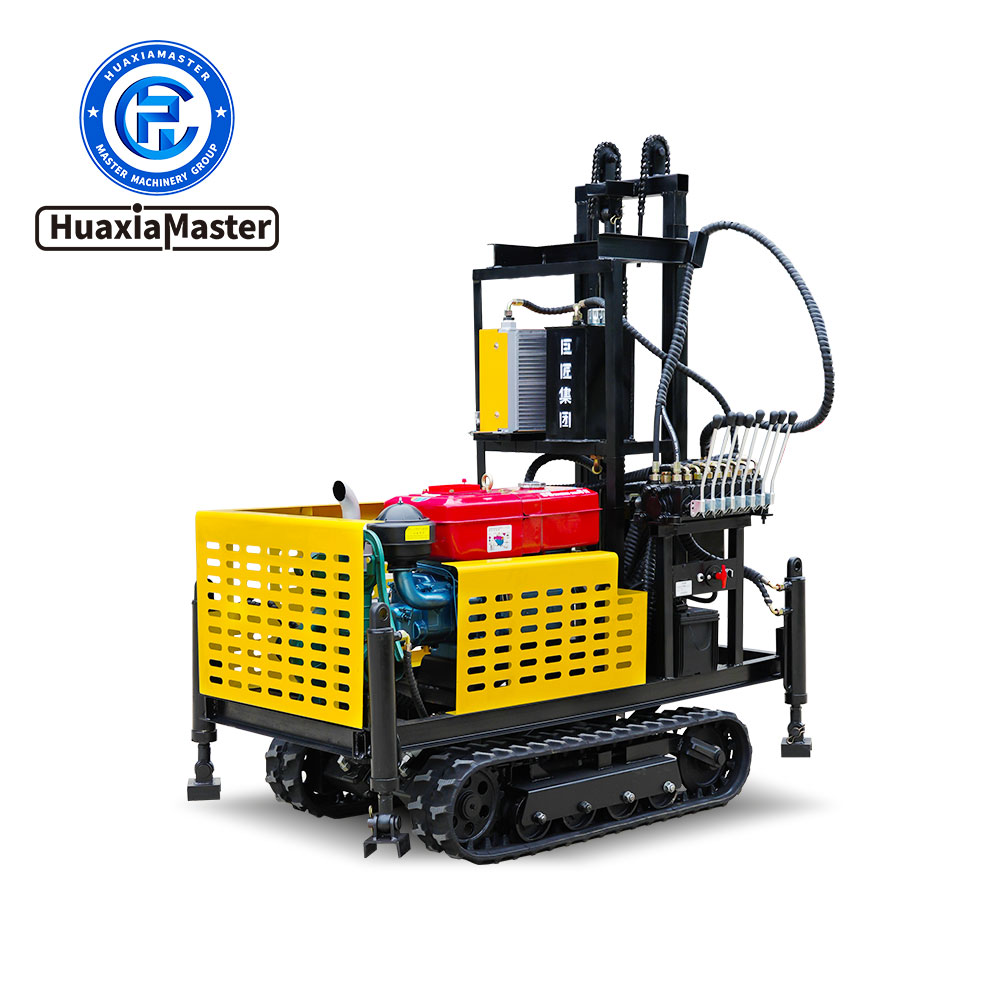

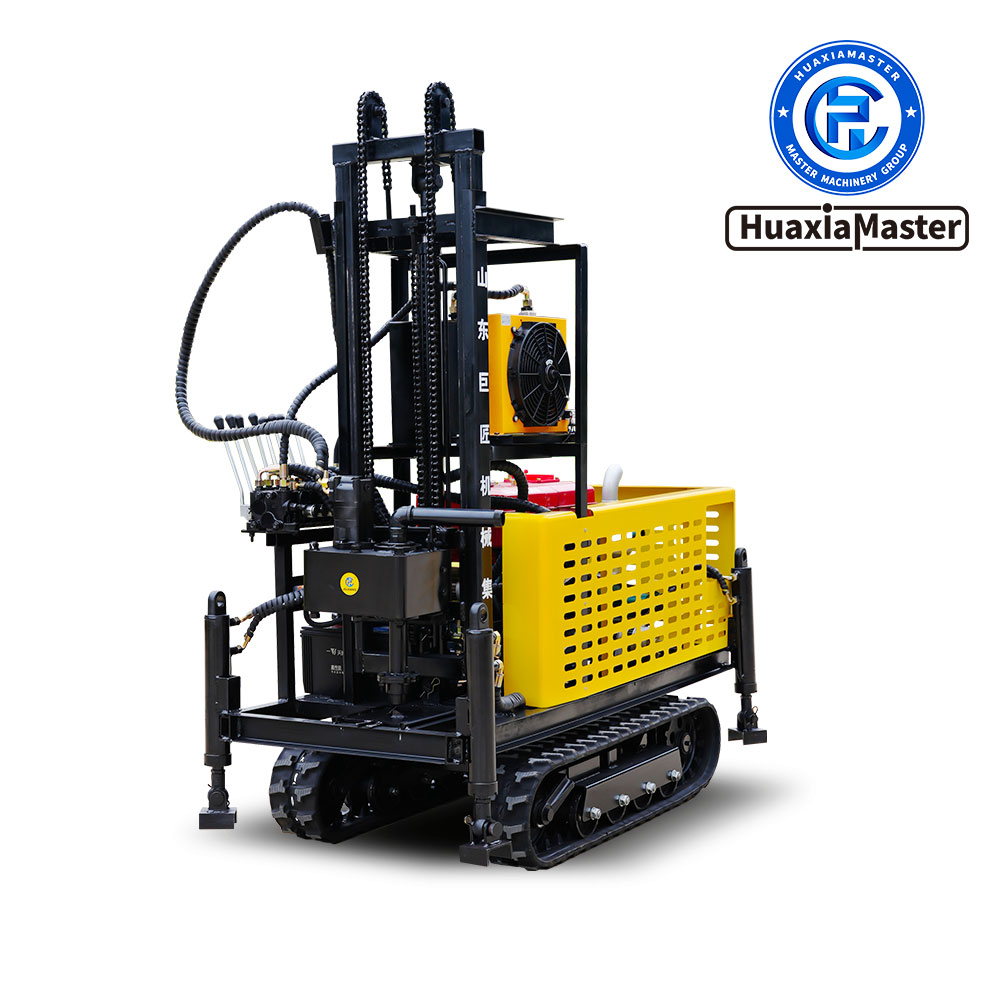

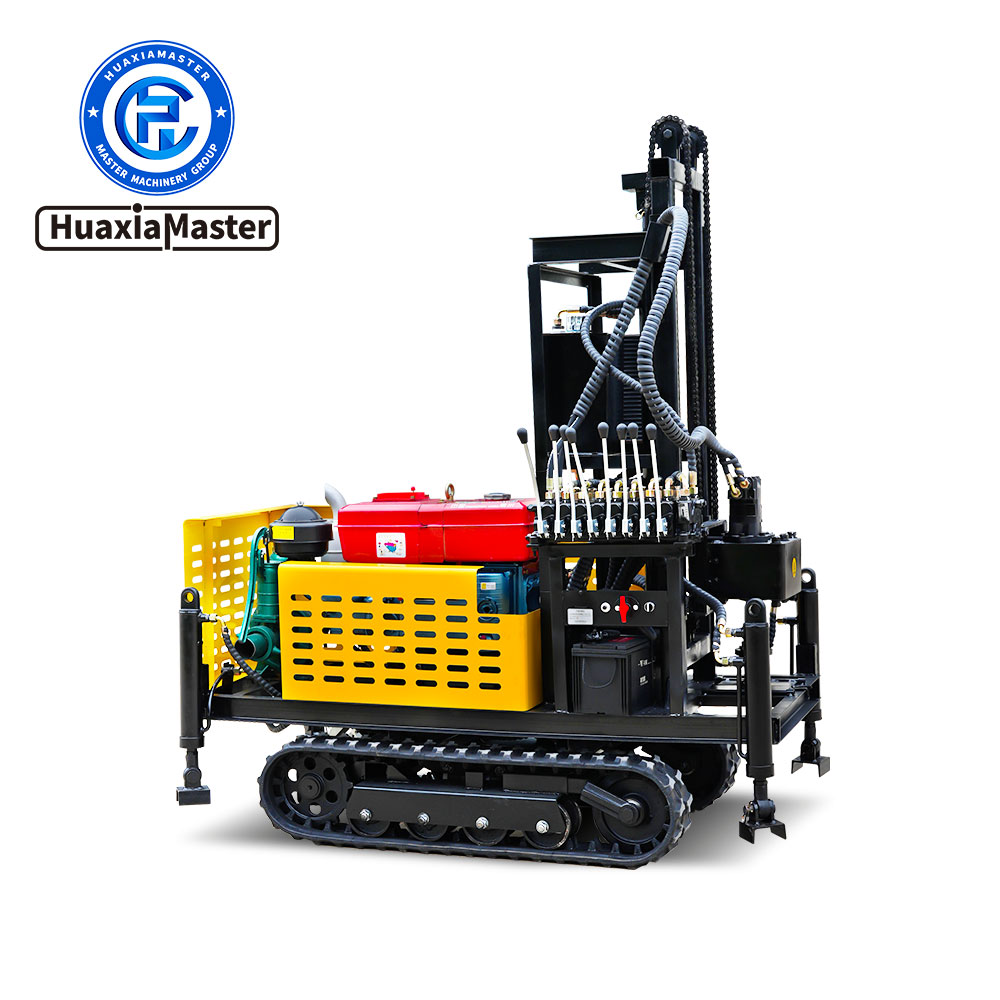

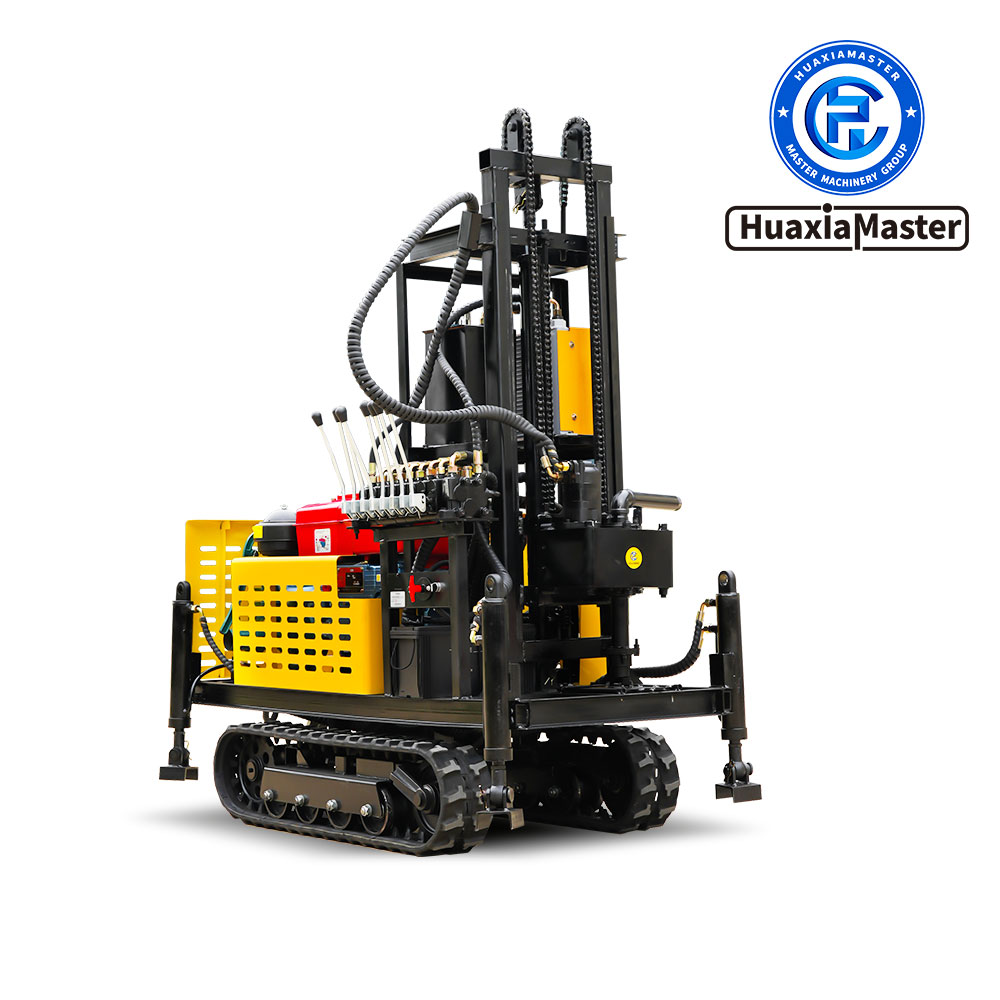

SJCY-D Crawler Diesel Hydraulic Drilling Rig

1、Introduction to SJCY-D Crawler Diesel Hydraulic Drilling Rig

SJCY-D crawler diesel hydraulic water well drilling rig is a hydraulic drilling rig developed and widely promoted by Shandong Master Group. It is suitable for drilling in soil layer, quicksand layer and a small amount of rock and soil layer. It is mainly used for drilling civil draft wells, ground source heat pump air conditioning wells, engineering dewatering wells, drought-resistant wells, industrial wells, etc.‌

2、Features of SJCY-D Crawler Diesel Hydraulic Drilling Rig

2.1 The diesel engine is equipped with electric starting, which is convenient to start and reduces the labor intensity of the operator.

2.2 The drilling rig adopts hydraulic working principle and is equipped with radiator, so the drilling rig can work continuously and efficiently.

2.3 Equipped with high-power hydraulic motor, the power head can rotate forward and backward.

2.4 The drill frame is equipped with hydraulic oil cylinder, and the oil pressure can be raised and lowered through the operating handle.

2.5 The drilling rig has its own water pump, which has reasonable structure, compact layout and good slag removal effect.

2.6 Equipped with rubber steel wire tracks, it is easy to move, and it will not hurt the road surface when walking on urban roads.

3、Parameters of SJCY-D Crawler Diesel Hydraulic Drilling Rig

Model	SJCY-D
Machine power	Single cylinder diesel engine/22 HP
Chassis	Rubber crawler hydraulic walking chassis
Vehicle weight	950kg
Overall machine size	200011002100mm
Power head	BM5-200 Hydraulic Motor
Pressurized system	Hydraulic cylinder booster
Outrigger	Four screw legs
Drill pipe specifications	50*1500mm
Drilling diameter	80-300mm
Drilling depth	0-120m
Slide travel	2400mm
Lift height	2600mm
One-time advancement length	1500mm

Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
