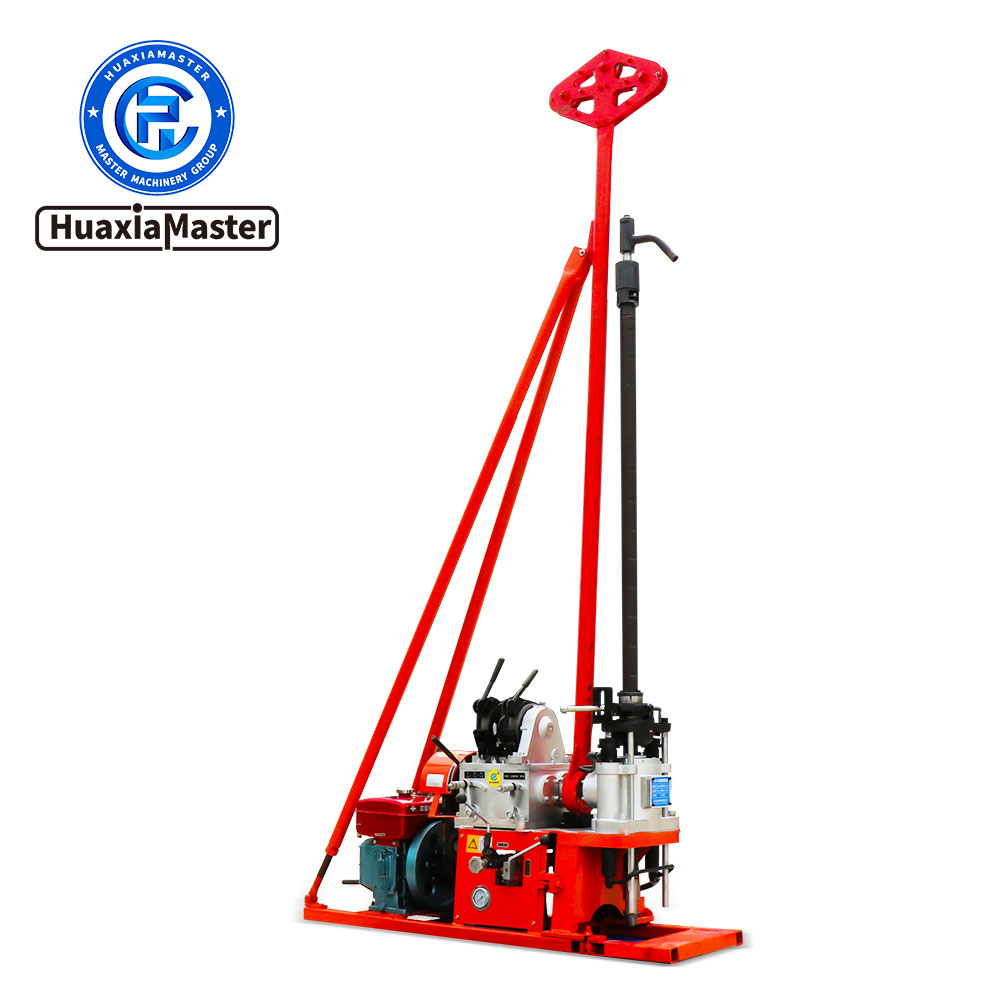

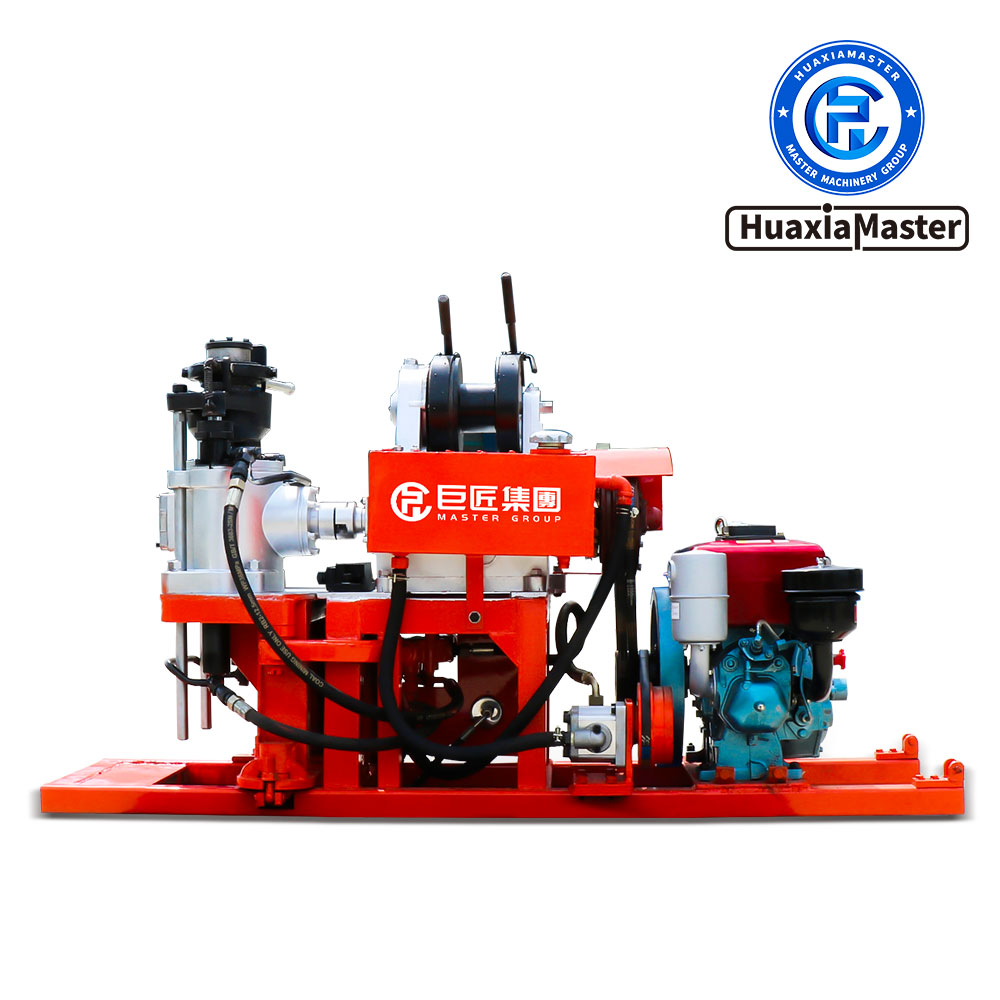

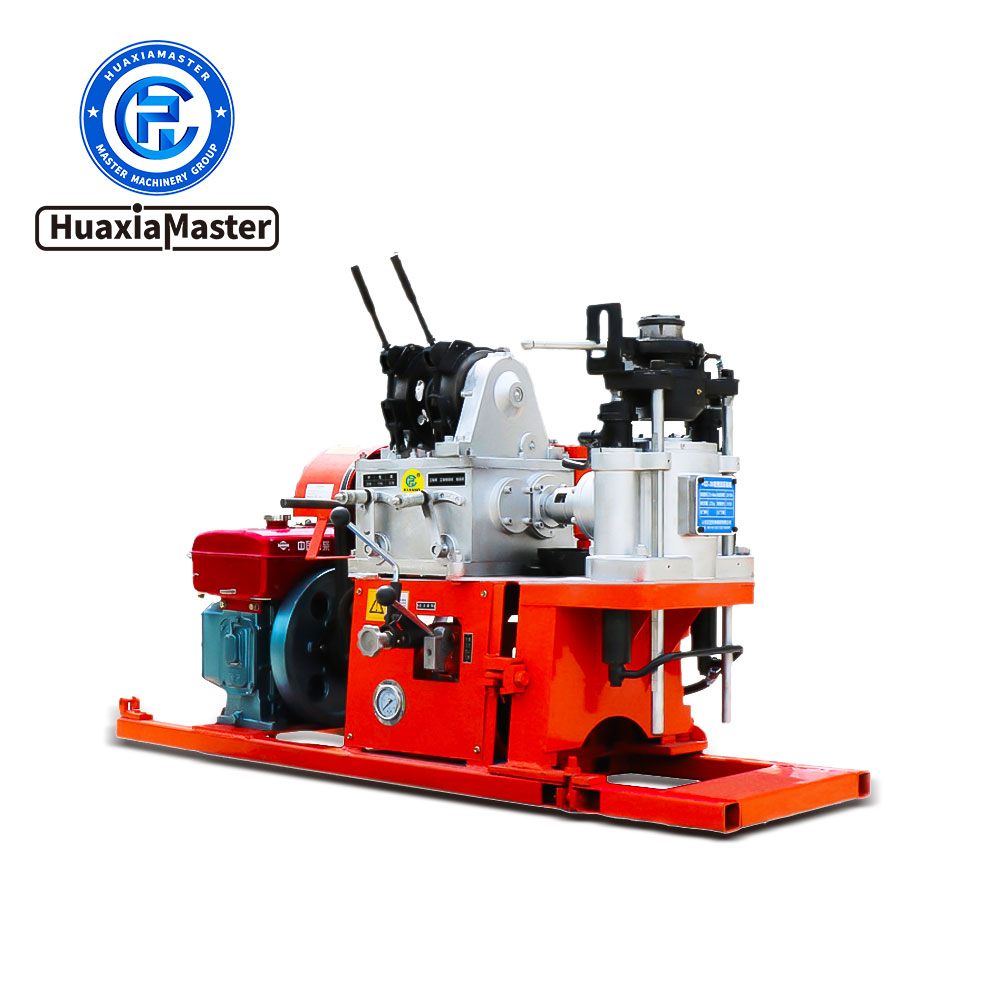

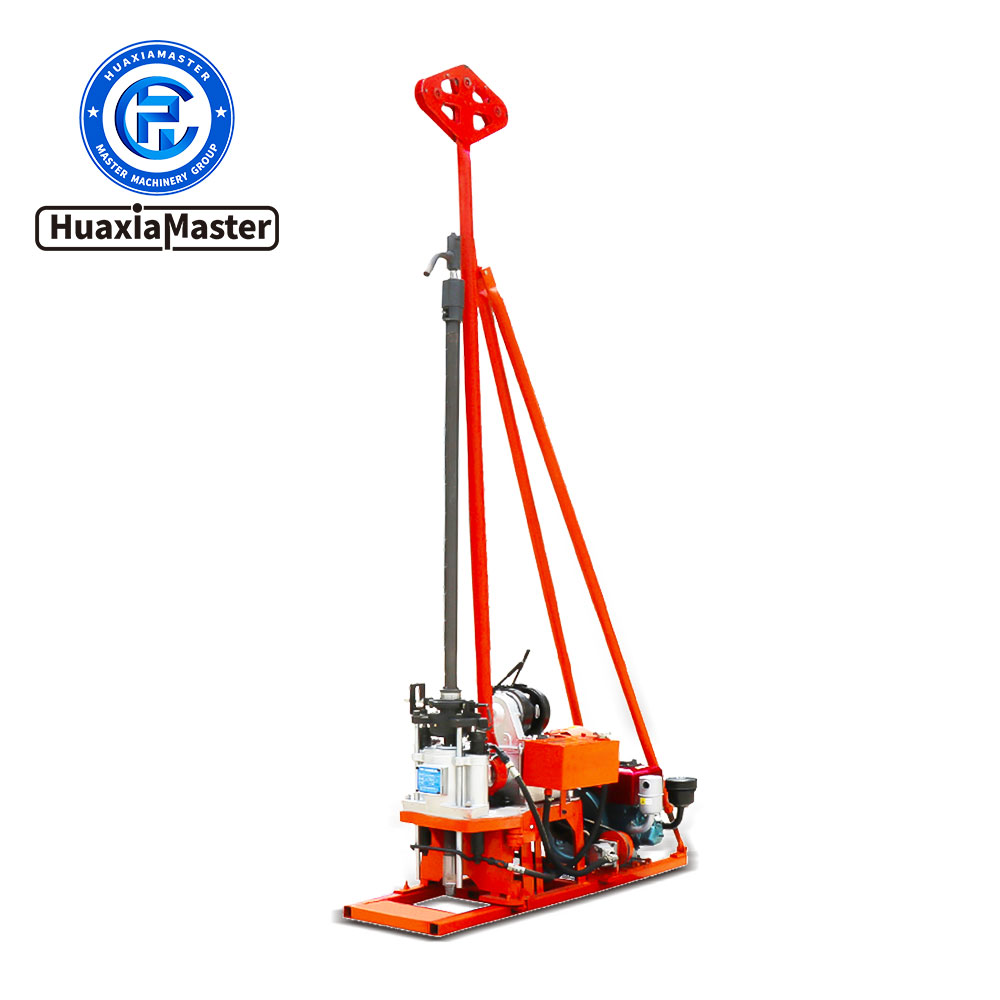

YQZ-30 Hydraulic Light Core Drilling Rig
1、Introduction to YQZ-30 Hydraulic Light Core Drill Rig
YQZ-30 hydraulic portable core drilling rig is a small portable crawler type hydraulic drilling machine, which is mainly used for general survey, geophysical exploration, road and construction drilling, shallow oil, natural gas and groundwater drilling, as well as dam grouting, tunnel ventilation and drainage engineering drilling.
2、Features of YQZ-30 Hydraulic Light Core Drilling Rig
2.1 It has oil pressure automatic feeding mechanism and high drilling efficiency.
2.2 The clamping rod can not be used to stop the machine.
2.3 The handle is centralized, easy to operate, safe and feasible.
2.4 It has compact structure and small space occupation.
2.5 The shell of the rotary gear and gearbox of the drilling rig is made of aluminum alloy, which reduces the weight of the body
2.6 It is suitable for complex terrain, easy to decompose and work in hilly area.
3、Parameters of YQZ-30 Hydraulic Light Core Drilling Rig
Model | YQZ-30 |
Borehole dia. | 75mm |
Sampling depth | 30m |
Drill pipe | 42mm |
Vertical shaft speed | 136/338/578rpm |
Vertical shaft travel | 400mm |
Vertical shaft lifting force | 10kN |
Lifting force of winch | 0-4kN |
Main engine power | Diesel engine R180 |
Drill size | 1630*950*1050mm |
Weight | 375kg |
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
\
