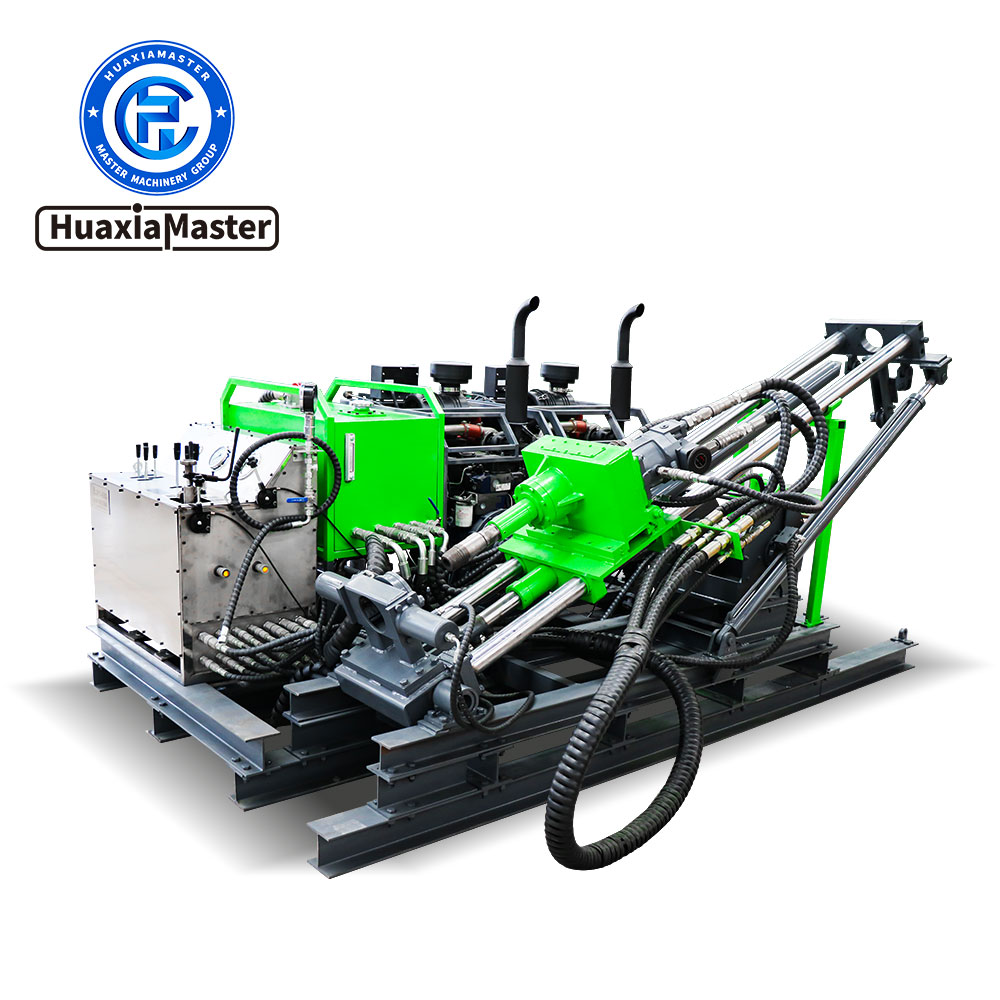

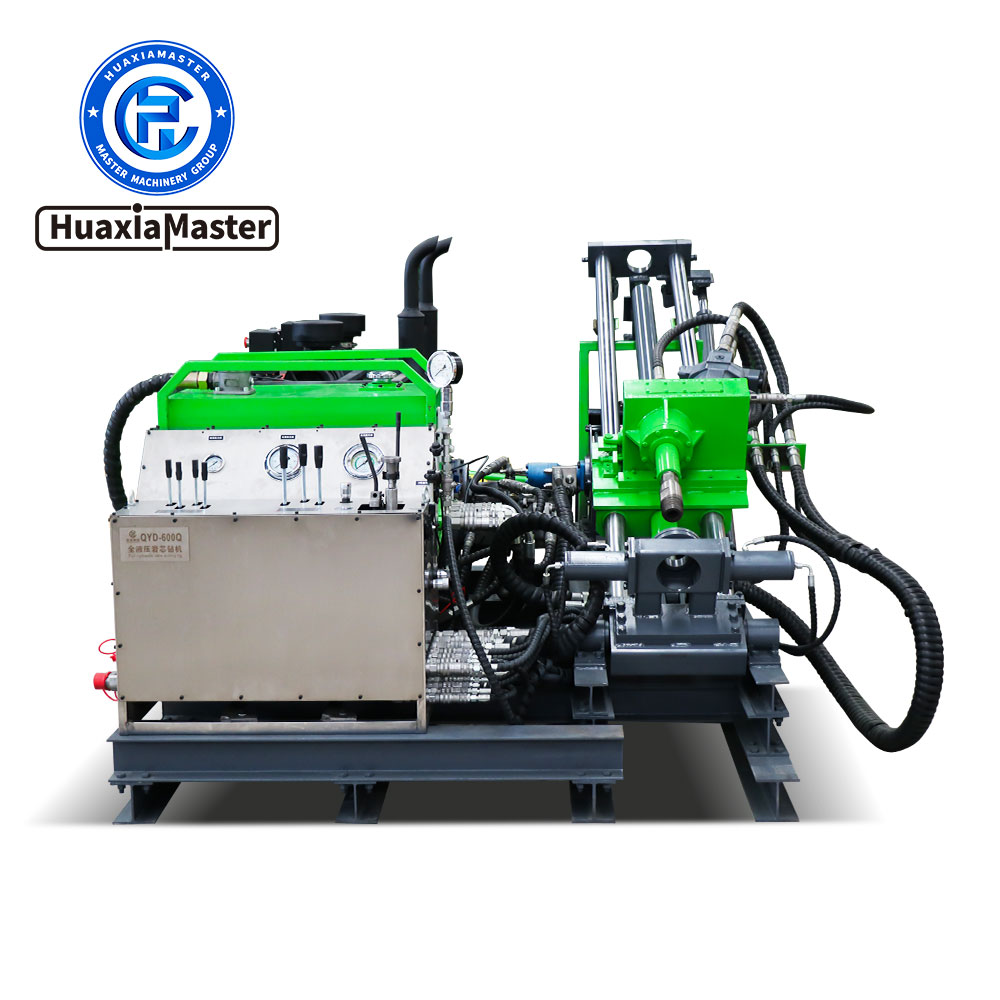

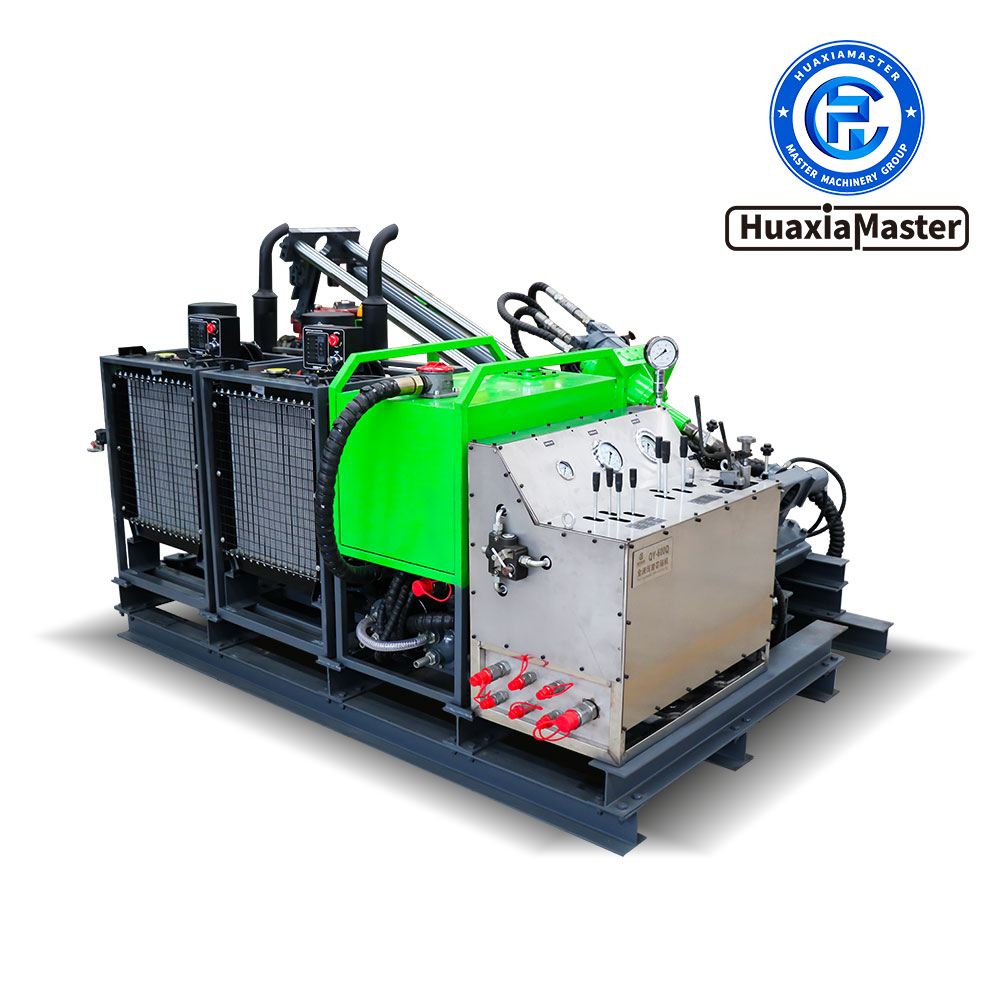

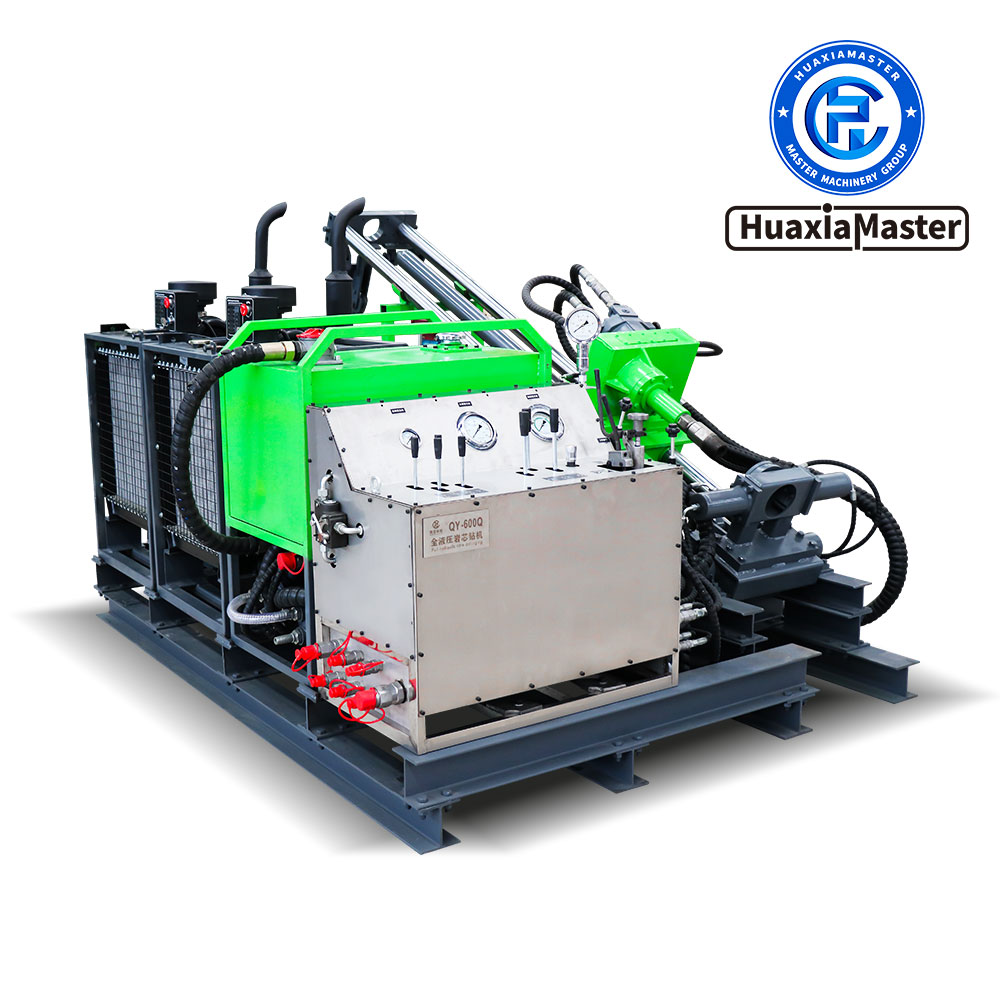

Portable fully hydraulic core drilling rig

Name: Portable fully hydraulic core drilling rig
Price: 4000 USD
Availability: 100
Rating: 3 (10 reviews)

AED 14,680.00 / Unit

可用性: 有存货

最低订购1 Unit

保存

报价请求

Free · No obligation

添加到容器

Sell Similar

Trade with confidence on Abraa

使用 Abraa 安全交易系统进行安全可靠的支付

Learn more

Supplier verification not completed

Pay only through Abraa to stay protected. Never pay a supplier by direct transfer.

Learn more

Secure Payment

Pay through Abraa, never by direct transfer to a supplier.

Product Inspection

Book a check before shipping to confirm quality and quantity.

買家保護

Get support and refunds if goods arrive not as described.

Verified Suppliers

Licence, address and on-site checks by the Abraa team.

项目详细信息

產品規格

Product Descriptions

QY series portable fully hydraulic core drilling rig

1、Introduction to QY Series Portable Fully Hydraulic Core Drilling Rig

Fully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.

2、Features of QY Series Portable Fully Hydraulic Core Drilling Rig

2.1 Modular design, light weight, easy to disassemble and carry.

2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.

2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure.

2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°.

2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.

2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.

3、Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig

还没有反馈

Your Rating

报价请求

Free · No obligation

QY series portable fully hydraulic core drilling rig 1、Introduction to QY Series Portable Fully Hydraulic Core Drilling RigFully hydraulic core exploration drilling rig adopts rope core drilling rig with full hydraulic power head drilling method, and the core drilled by the drilling tool is lifted out by the winch through the inner hole of the drill pipe to complete the geological drilling core work. It is mainly suitable for drilling solid ore deposits, and can also be used for engineering geology, shallow oil, natural gas, groundwater drilling, and engineering drilling such as tunnel ventilation, drainage and dike grouting.2、Features of QY Series Portable Fully Hydraulic Core Drilling Rig2.1 Modular design, light weight, easy to disassemble and carry.2.2 The rig is fully hydraulic driven, and the hydraulic system adopts load sensitive control, with high working efficiency and high torque.    2.3 The power head rotation is driven by axial piston pump and inclined shaft piston motor, and the mechanical two gears plus step less speed regulation, advanced structure.2.4 Equipped with a lateral translation mechanism for the power head, the mast is raised and lowered by a cylinder and can slide as a whole, and can drill holes within the range of 45-90°.2.5 Hydraulic gripper to achieve clamping drill pipe, with drill pipe disassembly.2.6 Hydraulic motor driven hoist, can be flexible lifting drilling tools or auxiliary tools.3、Parameters of QY Series Portable Fully Hydraulic Core Drilling Rig<table class="MsoNormalTable" border="1" cellspacing="0" style="border-collapse:collapse;margin-left:5.4000pt;border:none;
mso-border-left-alt:0.7500pt solid rgb(204,204,204);mso-border-top-alt:0.7500pt solid rgb(204,204,204);mso-border-right-alt:0.7500pt solid rgb(204,204,204);
mso-border-bottom-alt:0.7500pt solid rgb(204,204,204);mso-border-insideh:0.7500pt outset windowtext;mso-border-insidev:0.7500pt outset windowtext;
mso-padding-alt:0.0000pt 0.0000pt 0.0000pt 0.0000pt ;"><tr style="height:17.8000pt;"><td width="330" valign="center" colspan="2" style="width: 248.05pt; padding: 0pt; border-width: 1pt; border-style: outset; border-color: windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling rig model</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: 1pt outset windowtext; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">QY-600</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: 1pt outset windowtext; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">QY-800</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: 1pt outset windowtext; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">QY-1000</td></tr><tr style="height:17.8000pt;"><td width="152" valign="center" rowspan="4" style="width: 114pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Drilling capacity</td><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">BTW</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">600m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">800m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: 1pt outset windowtext; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1000m</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">NTW</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">600m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">800m</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">HTW</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">200m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">400mm</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">PQ</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">/</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">/</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">/</td></tr><tr style="height:17.8000pt;"><td width="152" valign="center" rowspan="2" style="width: 114pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Hydraulic system</td><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rated pressure</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">20mpa</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">20mpa</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">20mpa</td></tr><tr style="height:22.4500pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">cooling mode</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">water cooling</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">water cooling</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">water cooling</td></tr><tr style="height:13.5500pt;"><td width="152" valign="center" rowspan="2" style="width: 114pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Engine</td><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Engine type</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Yunnei</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Yunnei</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Yunnei</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rated power</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">55kW*2</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">58kW*3</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">55kW*3</td></tr><tr style="height:17.8000pt;"><td width="152" valign="center" rowspan="5" style="width: 114pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Power head</td><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Maximum torque</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1200N.m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1600N.m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">500-1460N.m</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Maximum rotate speed</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1100rpm</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1100rpm</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1300rpm</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Feeding stroke</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1800mm</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1800mm</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1800mm</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Lifting force</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">100kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">120kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">160kN</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Propulsion force</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">75kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">85kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">80kN</td></tr><tr style="height:17.8000pt;"><td width="152" valign="center" rowspan="3" style="width: 114pt; padding: 0pt; border-left: 1pt outset windowtext; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Wire-line coring winch</td><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Rope capacity</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">600m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">800m</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">1000m</td></tr><tr style="height:17.8000pt;"><td width="178" valign="center" style="width: 134.05pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">Lifting force</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">15kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">15kN</td><td width="200" valign="center" style="width: 150.55pt; padding: 0pt; border-left: none; border-right: 1pt outset windowtext; border-top: none; border-bottom: 1pt outset windowtext; background-image: initial; background-position: initial; background-size: initial; background-repeat: initial; background-attachment: initial; background-origin: initial; background-clip: initial;">24kN</td></tr>

添加到容器

Sell Similar

使用 Abraa 安全交易系统进行安全可靠的支付

所售

SHANDONG MASTER MACHINERY GROUP CO., LTD.

'基本成员'

Verification by Abraa

Email confirmed
Business verification · pending

去商店

类似产品

View all

MOQ 1 PCs DZL Series Small Four-Wheel ... AED 53,875.60

MOQ 1 PCs High-efficiency geological ... AED 101,016.75

MOQ 1 PCs XYC Series Vehicle-mounted ... AED 808,134.00

Water well drilling rig AED 53,875.60

MOQ 1 PCs Top drive geological ... AED 53,875.60

MOQ 1 PCs QYD-800 Fully Hydraulic Core ... AED 33,672.25

MOQ 1 PCs China Master exploration ... AED 101,016.75

MOQ 1 PCs Easy to transport tracked ... AED 53,875.60

MOQ 1 PCs QTZ Series Portable Soil ... AED 48,488.04

MOQ 1 PCs Hydraulic photovoltaic pile ... AED 53,875.60

Product Added To Container Successfuly !

View Container

An error occured while adding the product
please try again later !

You can't order less than 1

欢迎来到阿布拉！

立即订阅以直接将最新产品、最优惠和当前交易的 Abraa 时事通讯发送到您的电子邮箱！

Drilling rig model		QY-600	QY-800	QY-1000
Drilling capacity	BTW	600m	800m	1000m
	NTW	400m	600m	800m
	HTW	200m	400m	400mm
	PQ	/	/	/
Hydraulic system	Rated pressure	20mpa	20mpa	20mpa
Hydraulic system	cooling mode	water cooling	water cooling	water cooling
Engine	Engine type	Yunnei	Yunnei	Yunnei
Engine	Rated power	55kW*2	58kW*3	55kW*3
Power head	Maximum torque	1200N.m	1600N.m	500-1460N.m
	Maximum rotate speed	1100rpm	1100rpm	1300rpm
	Feeding stroke	1800mm	1800mm	1800mm
	Lifting force	100kN	120kN	160kN
	Propulsion force	75kN	85kN	80kN
Wire-line coring winch	Rope capacity	600m	800m	1000m
	Lifting force	15kN	15kN	24kN
