XYX Series Wheel Hydraulic Core Drilling Rig

Introduction of XYX Series Wheel Hydraulic Core Drilling Rig

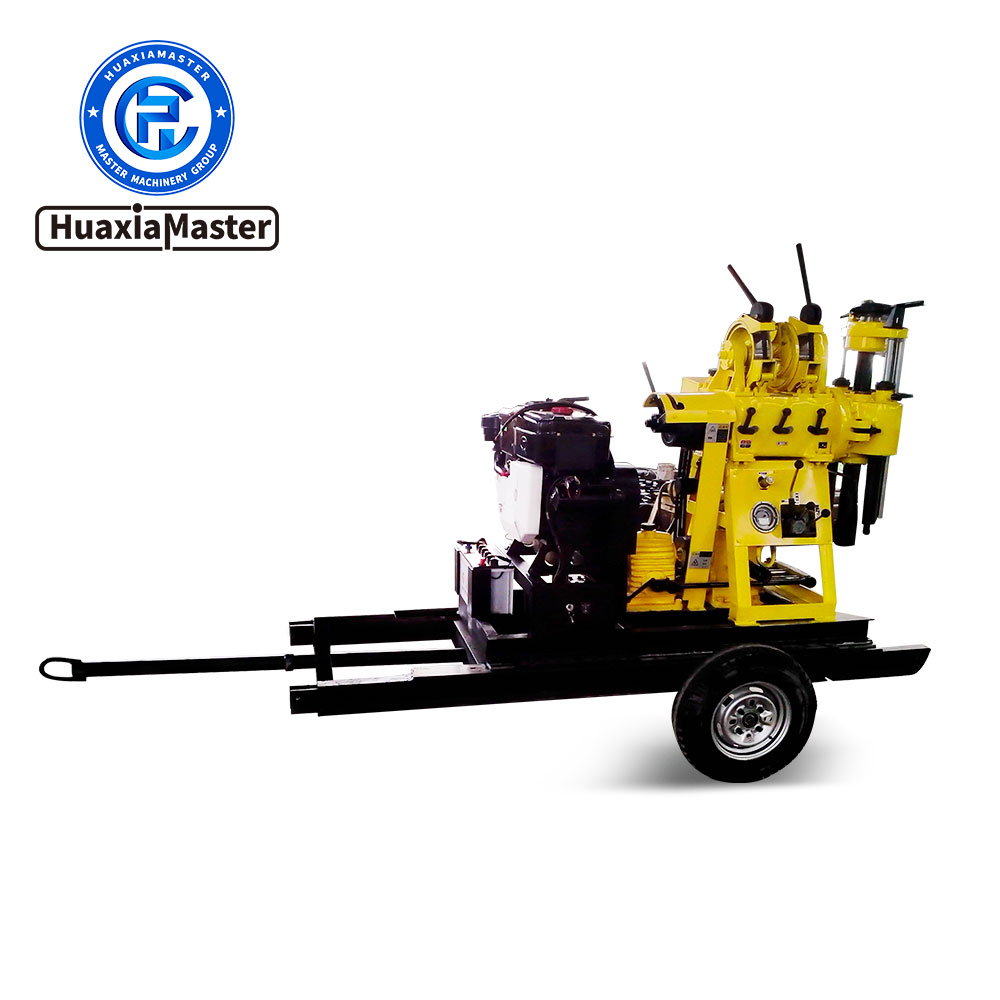

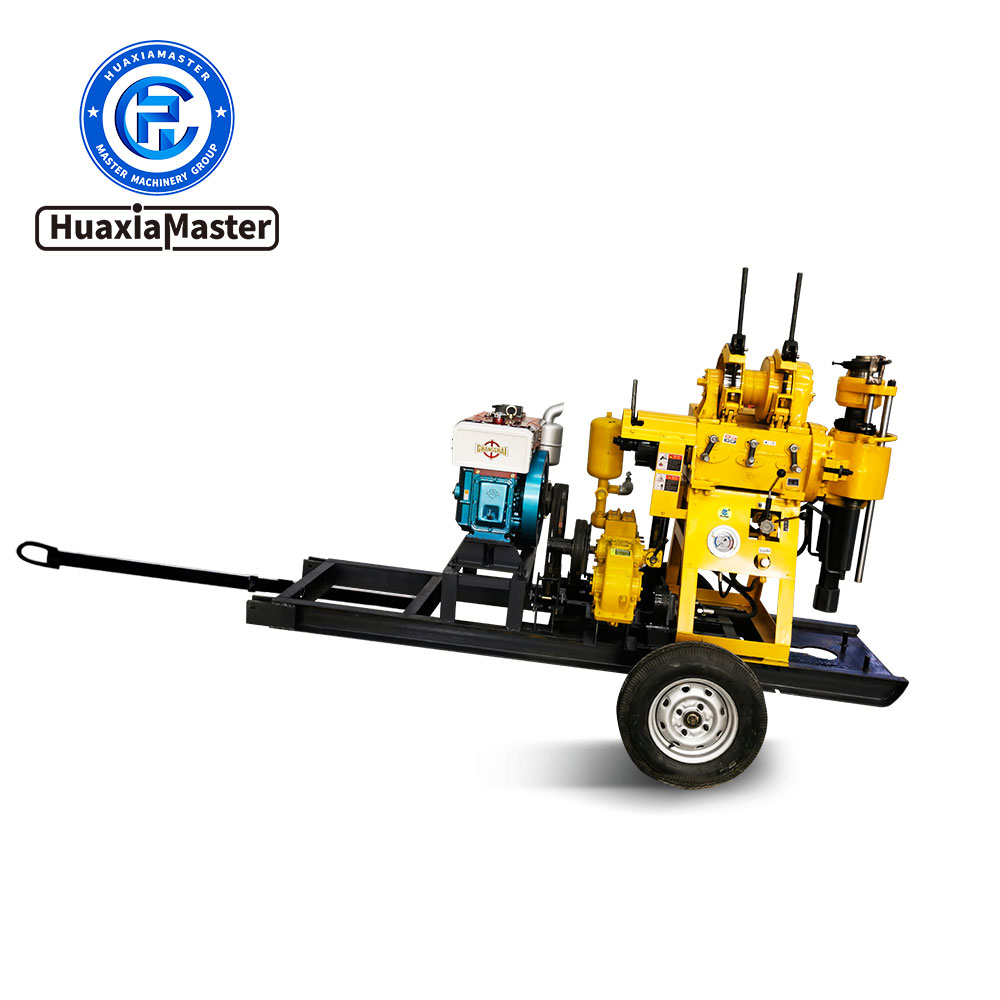

XYX series wheeled hydraulic core drilling rig is designed to satisfy the change of short distance construction site in field exploration. On the basis of hydraulic drilling rig, removable walking mechanism and towing device are installed. According to the special requirements of customers, we can customize two-wheel or four-wheel towing style.
2、Features of XYX Series Wheel Hydraulic Core Drilling Rig
2.1 Walking mechanism and towing device make it more convenient to move in short distance.
2.2 The optional moving device can realize the front and back movement of the main machine and is convenient for wellhead operation.
2.3 The optional electrically started diesel engine can reduce the labor intensity of operators, especially in cold season.
2.4 It has an oil pressure feed mechanism to improve drilling efficiency.
2.5 Equipped with hole bottom pressure gauge, easy to master the situation in the hole.
3、Parameters of XYX Series Wheel Hydraulic Core Drilling Rig
Drilling rig model XYX-100 XYX-150 XYX-200
Overall machine parameters Drilling depth 100m 150m 200m
Open hole dia 325mm 325mm 400mm
End hole dia 75mm 75mm 75mm
Drill pipe dia 42mm 42/50mm 42/50mm
Drilling angle 90°-75° 90°-75° 90°-75°
Weight 500kg 550kg 1300kg
Vertical shaft Vertical shaft speed 142、285、570r/min 1010、790、470、295、140r/min 64、128、287、557r/min
Vertical axis travel 450mm 450mm 450mm
winch Single rope lifting force 1000kg 1600kg 2400kg
Lifting speed 0.42、0.84、1.68m/s 1.05、0.66、0.31m/s 0.41、0.82、1.64m/s
Wire rope dia 12mm 12mm 12mm
Wire rope capacity 35m 35m 35m
Rig tower Effective height 6.5m 6.5m 6.5m
Rated load 18T 18T 18T
Mud pump type Horizontal single cylinder double acting Horizontal single cylinder double acting Horizontal single cylinder double acting
Displacement 95L/min 160L/min 160L/min
work pressure 1.3Mpa 1.3Mpa 1.3Mpa
Inlet hose dia 50mm 50mm 50mm
Outlet pipe diameter 32mm 32mm 32mm
Note: Products are constantly being improved. Any changes will not be notified separately. Please refer to the actual product.
